Cables

YYSch

Download PDF

Add to inquiry

Download PDF

To inquiry

PVC telecommunications installation cable

Telecommunications cables

Signalling cable for indoor telephone and intercom systems. Not suitable for outdoor installation; the cable should not be laid in earth or water or used as an energy cable in power installations.

Design

This product consists of:

  • 1
    Kupferleiter, rund eindrähtig
  • 2
    Aderisolation (PVC)
  • 3
    Mantel (PVC grau RAL 7001 oder elfenbein RAL 1015)

Technical Data

Standard: EN 50575
Test Voltage: 500 V / 50 Hz
Rated Voltage: max. 65 V
Bending radius (min.): 8 x Ø der Leitung
Fire properties:
  • EN 60332-1-2: selbstverlöschend
  • CPR-Klassifizierung: Eca
Core identification: Farbcode für YYSch-Leitungen
Temperature range:
  • Laying temperature: min. -5°C
  • Fixed installation: -40°C up to 70°C

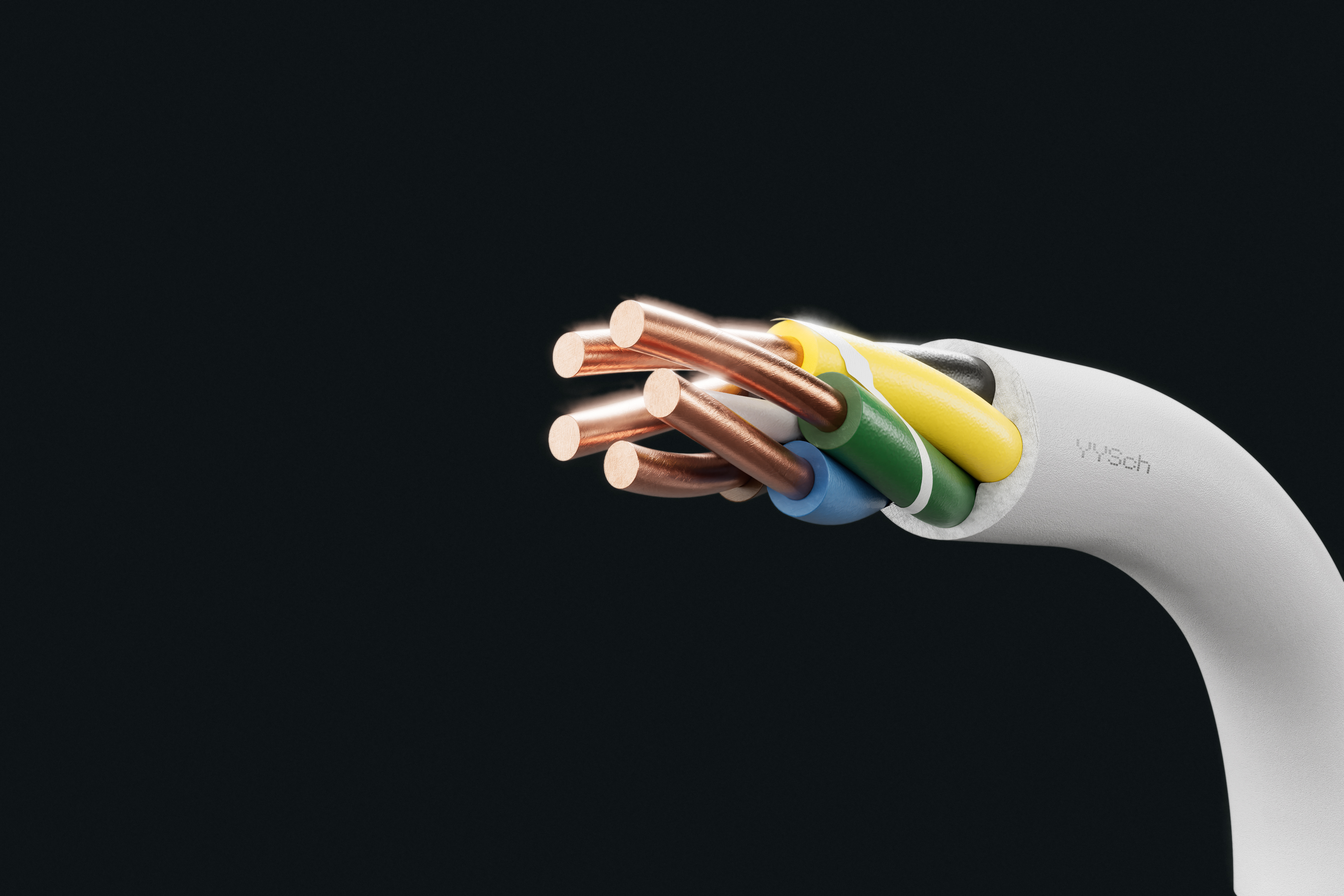

Cable image - YYSch
+
-
Cable image - YYSch
+
-
Cable image - YYSch
+
-

Contact us

Are you interested in this product?

Dogan Özcan

Product supervisor

+43 (0) 1 70170-154
[email protected]

Electricity

Add to inquiry
Parameter
Unit
Values
Conductor diameter (mm)
mm
0.6
Conductor resistance, max. at 20 °C (Ω/km)
Ω/km
65
Insulation resistance, min. at 20 °C (MΩ/km)
MΩ/km
50

Options

Add to inquiry
Number of cores x conductor diameter
Outer diameter appr. (mm)
Total weight appr. (kg/km)
Standard lengths/packing (m)
2 x 0.6
3.4
14
500 Sp, 1000 Sp
3 x 0.6
3.6
18
500 Sp, 1000 Sp
4 x 0.6
3.8
22
500 Sp, 1000 Sp
5 x 0.6
4.1
26
500 Sp, 1000 Sp
6 x 0.6
4.6
32
500 Sp, 1000 Sp
8 x 0.6
5.1
44
500 Sp, 1000 Sp
10 x 0.6
6
54
500 Sp, 1000 Sp
12 x 0.6
6.2
62
500 Sp, 1000 Sp
14 x 0.6
6.4
69
500 Sp, 1000 Sp
16 x 0.6
7.1
84
500 Sp, 1000 Sp
20 x 0.6
7.4
99
500 Sp, 1000 Sp
26 x 0.6
8.4
125
500 Sp, 1000 Sp

Technical changes reserved.

All figures are therefore without guarantee.
