Cables

YSLY

Download PDF

Add to inquiry

Download PDF

To inquiry

PVC control cable, unscreened

Automation and Motor Supply Cables

As flexible control and connecting cable for fixed laying and flexible applications without tensile stress and/or without guided movements. Applicable in dry, damp and wet rooms, for medium mechanical stress, but not for outdoor use.

Design

This product consists of:

  • 1
    Bare copper conductors, fine wires class 5 according to DIN EN 60228 / VDE 0295 / IEC 60228
  • 2
    Core insulation of special compound based on polyvinyl chloride (PVC)
  • 3
    Cores are stranded in layers with optimal lay-length
  • 4
    Outer sheath of special compound based on polyvinyl chloride (PVC), colour: grey (RAL 7001) or black (RAL 9005)

Technical Data

Standard: Based on VDE 0281
Test Voltage: 4000 V / 50 Hz
Rated Voltage: 300/500 V (Uo/U)
Bending radius (min.):
  • Fixed installation: 4 x Ø of cable
  • Flexible use: 15 x Ø of cable
Fire properties:
  • EN 60332-1-2: self-extinguishing and flame retardant
  • CPR classification: Eca
Core identification: Black (continuously numbered), with green/yellow ground conductor from 3 cores (JZ) or without (OZ)
Temperature range:
  • Fixed installation: -40°C up to 80°C
  • Flexible use: -5°C up to 70°C

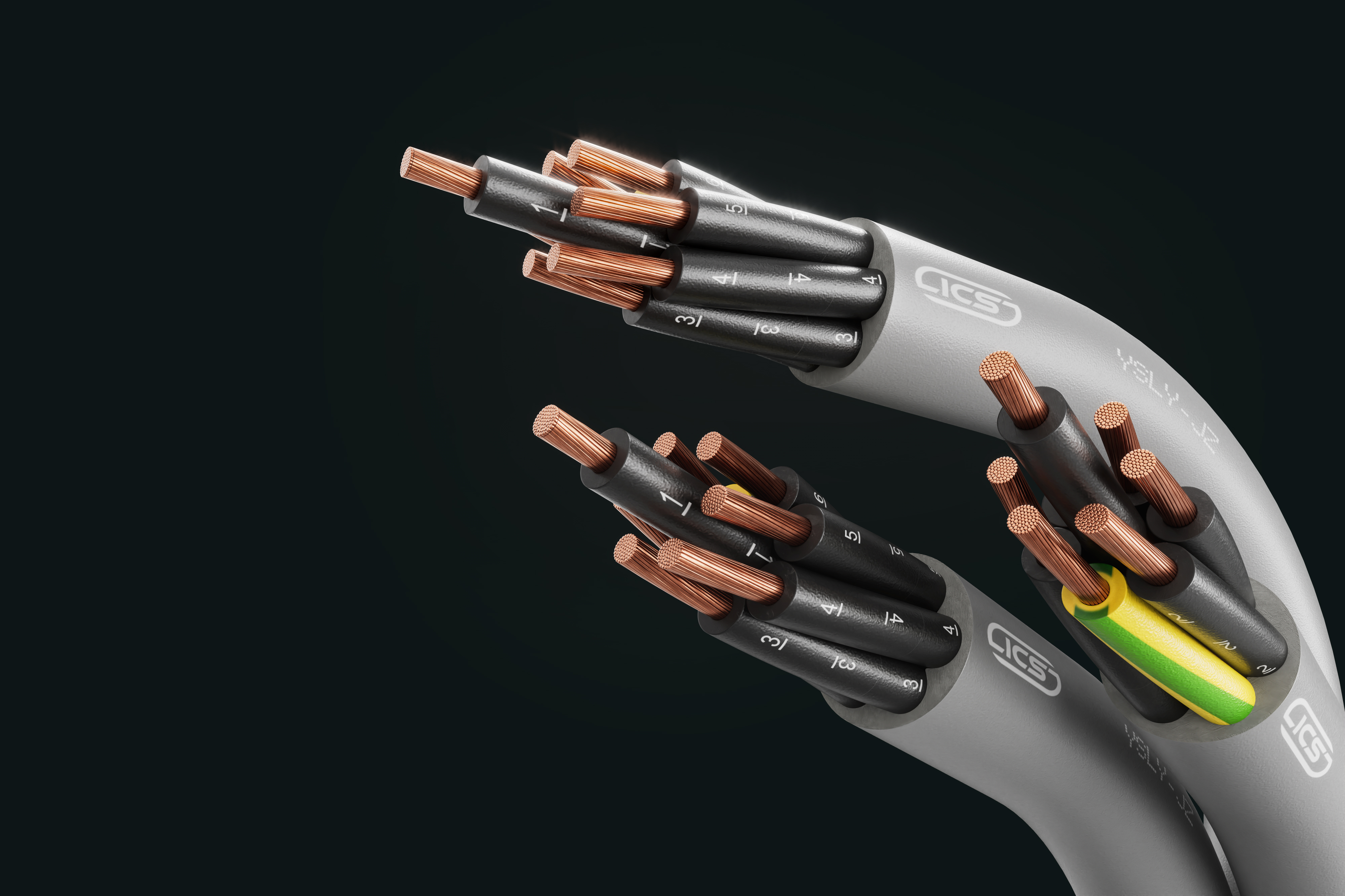

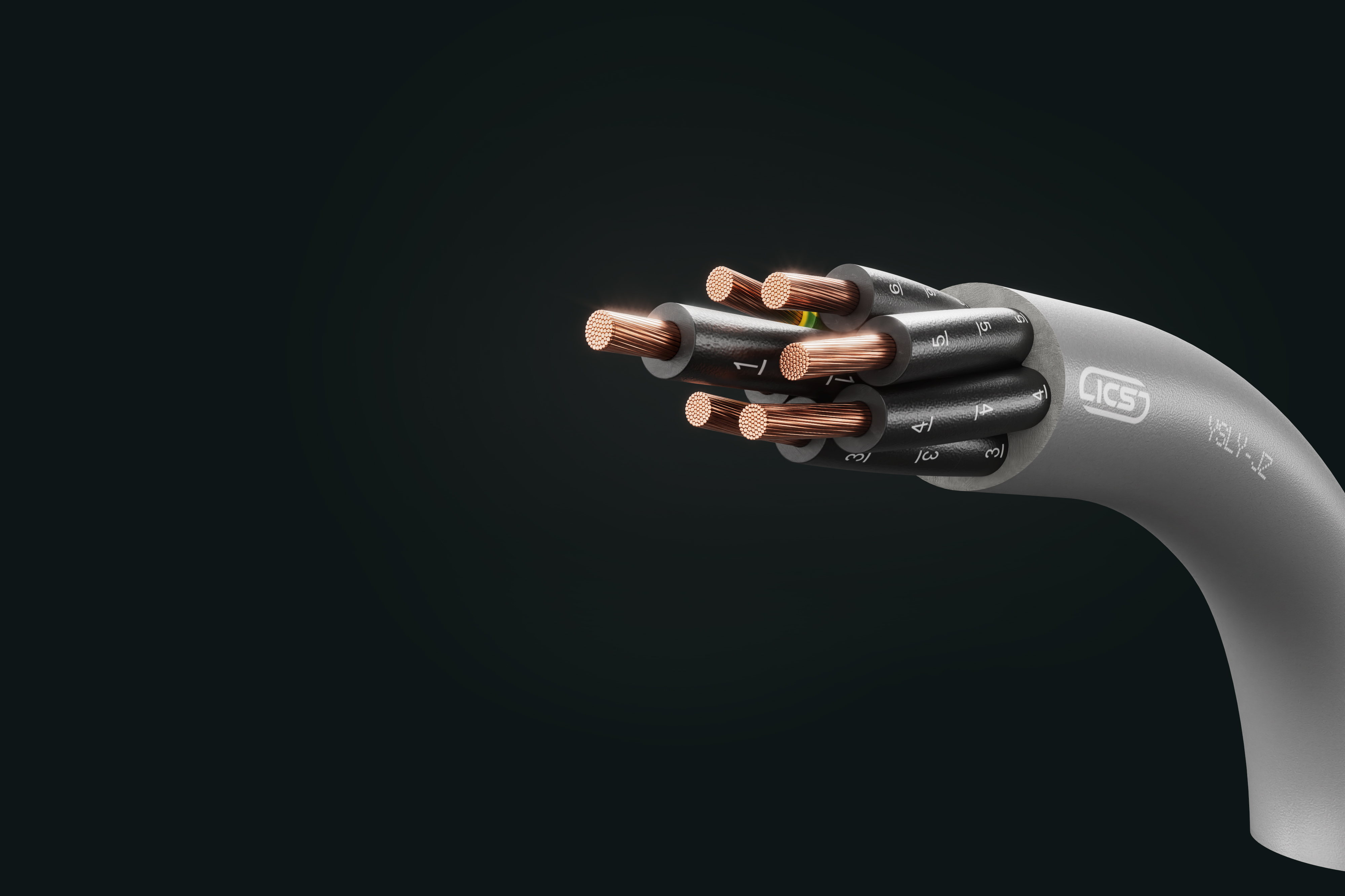

Cable image - YSLY
+
-
Cable image - YSLY
+
-
Cable image - YSLY
+
-

Contact us

Are you interested in this product?

Jan Pietroň

Product supervisor

+420 604 471 907
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Outer diameter appr. (mm)
Cu-value (kg/km)
Total weight appr. (kg/km)
2 x 0.5
4.8
9.7
36
3 x 0.5
5.0
14.4
42
4 x 0.5
5.7
19.2
55
5 x 0.5
6.2
24.0
65
7 x 0.5
6.7
33.6
81
10 x 0.5
8.8
48.0
129
12 x 0.5
9.0
58.0
142
14 x 0.5
9.5
67.0
158
16 x 0.5
10.0
76.0
176
18 x 0.5
10.7
86.4
202
21 x 0.5
11.3
101.0
229
25 x 0.5
12.9
120.0
284
30 x 0.5
13.5
144.0
330
34 x 0.5
14.5
163.0
375
40 x 0.5
15.0
192.0
410
50 x 0.5
17.0
240.0
520
61 x 0.5
19.6
293.0
620
2 x 0.75
5.2
14.4
44
3 x 0.75
5.4
21.6
53
4 x 0.75
6.2
29.0
68
5 x 0.75
6.8
36.0
83
6 x 0.75
7.0
43.0
99
7 x 0.75
7.3
50.0
104
10 x 0.75
9.6
72.0
165
12 x 0.75
9.9
86.0
183
16 x 0.75
11.4
115.0
240
18 x 0.75
11.9
130.0
267
21 x 0.75
12.8
151.0
303
25 x 0.75
14.3
180.0
376
34 x 0.75
16.3
245.0
496
41 x 0.75
18.3
296.0
620
50 x 0.75
19.2
360.0
698
61 x 0.75
20.5
439.0
790
2 x 1
5.5
19.2
51
3 x 1
5.9
29.0
64
4 x 1
6.5
38.4
80
5 x 1
7.2
48.0
99
7 x 1
8.0
67.0
127
10 x 1
9.4
96.0
200
12 x 1
10.0
115.0
223
14 x 1
11.4
134.0
249
16 x 1
12.0
154.0
286
18 x 1
12.7
173.0
316
21 x 1
13.6
205.0
369
25 x 1
14.5
240.0
456
30 x 1
16.4
308.0
530
34 x 1
17.4
326.0
591
50 x 1
20.9
480.0
855
61 x 1
24.0
586.0
1050
2 x 1.5
6.3
28.8
69
3 x 1.5
6.6
43.0
84
4 x 1.5
7.3
58.0
105
5 x 1.5
8.2
72.0
132
6 x 1.5
8.5
86.0
158
7 x 1.5
8.9
101.0
168
10 x 1.5
11.6
144.0
263
12 x 1.5
12.0
173.0
294
14 x 1.5
12.8
202.0
336
16 x 1.5
13.5
230.0
377
18 x 1.5
14.4
259.0
426
21 x 1.5
15.2
302.0
488
25 x 1.5
17.5
360.0
612
32 x 1.5
18.5
461.0
700
34 x 1.5
19.7
490.0
795
42 x 1.5
22.2
605.0
999
50 x 1.5
23.6
720.0
1148
2 x 2.5
7.6
48.0
106
3 x 2.5
8.1
72.0
132
4 x 2.5
9.0
96.0
167
5 x 2.5
10.1
120.0
211
2 x 4
9.0
76.8
138
3 x 4
9.9
115.0
205
4 x 4
11.2
154.0
263
5 x 4
12.6
192.0
332
3 x 6
11.2
173.0
278
4 x 6
12.6
230.0
358
5 x 6
14.1
288.0
453
4 x 10
16.5
384.0
620
5 x 10
18.4
480.0
778
4 x 16
19.6
614.0
938
5 x 16
21.9
768.0
1178
4 x 25
27.0
960.0
1590
5 x 25
30.0
1200.0
1954
4 x 35
29.0
1344.0
2113
5 x 35
33.0
1680.0
2635
4 x 50
35.0
1920.0
2950

Technical changes reserved.

All figures are therefore without guarantee.
