Cables

YSLCY

Download PDF

Add to inquiry

Download PDF

To inquiry

PVC control cable, screened

Automation and Motor Supply Cables

As flexible control and connecting cable for fixed laying and flexible applications without tensile stress and/or without guided movements. Applicable in dry, damp and wet rooms, especially when excellent EMC characteristics are requested. Applicable for medium mechanical stress but not for outdoor use.

Design

This product consists of:

  • 1
    Bare copper conductors, fine wires class 5 according to DIN EN 60228 / VDE 0295 / IEC 60228
  • 2
    Core insulation of special compound based on polyvinyl chloride (PVC)
  • 3
    Cores are stranded in layers with optimal lay-length
  • 4
    Wrapping with plastic tape
  • 5
    Tinned copper wire braiding
  • 6
    Outer sheath of special compound based on polyvinyl chloride (PVC), colour: grey (RAL 7001) or black (RAL 9005)

Technical Data

Standard: Based on VDE 0281
Test Voltage: 4000 V / 50 Hz
Rated Voltage: 300/500 V (Uo/U)
Bending radius (min.):
  • Fixed installation: 4 x Ø of cable
  • Flexible use: 15 x Ø of cable
Fire properties:
  • EN 60332-1-2: self-extinguishing and flame retardant
  • CPR classification: Eca
Core identification: Black (continuously numbered), with green/yellow ground conductor from 3 cores (JZ) or without (OZ)
Temperature range:
  • Fixed installation: -40°C up to 80°C
  • Flexible use: -5°C up to 70°C

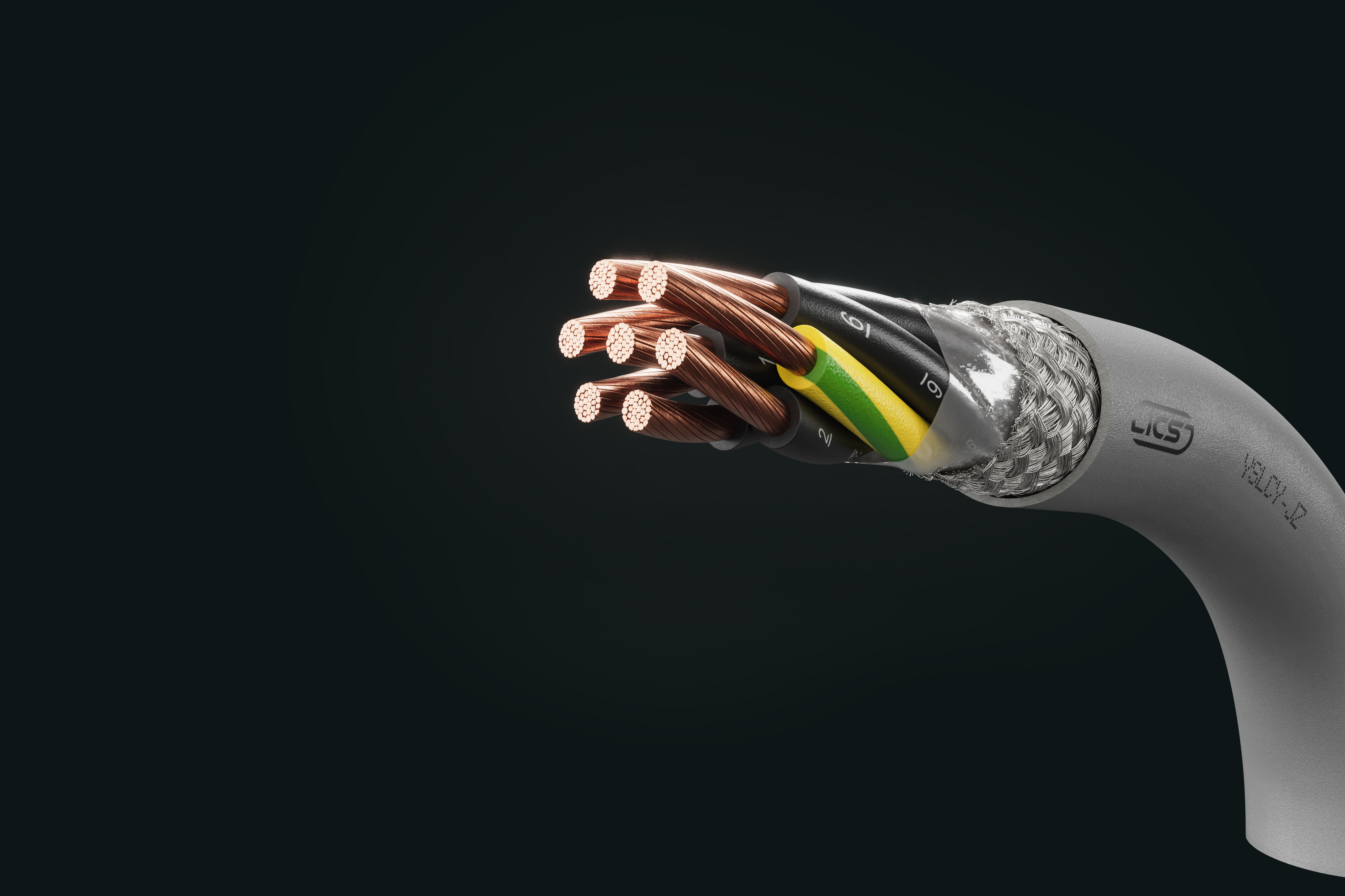

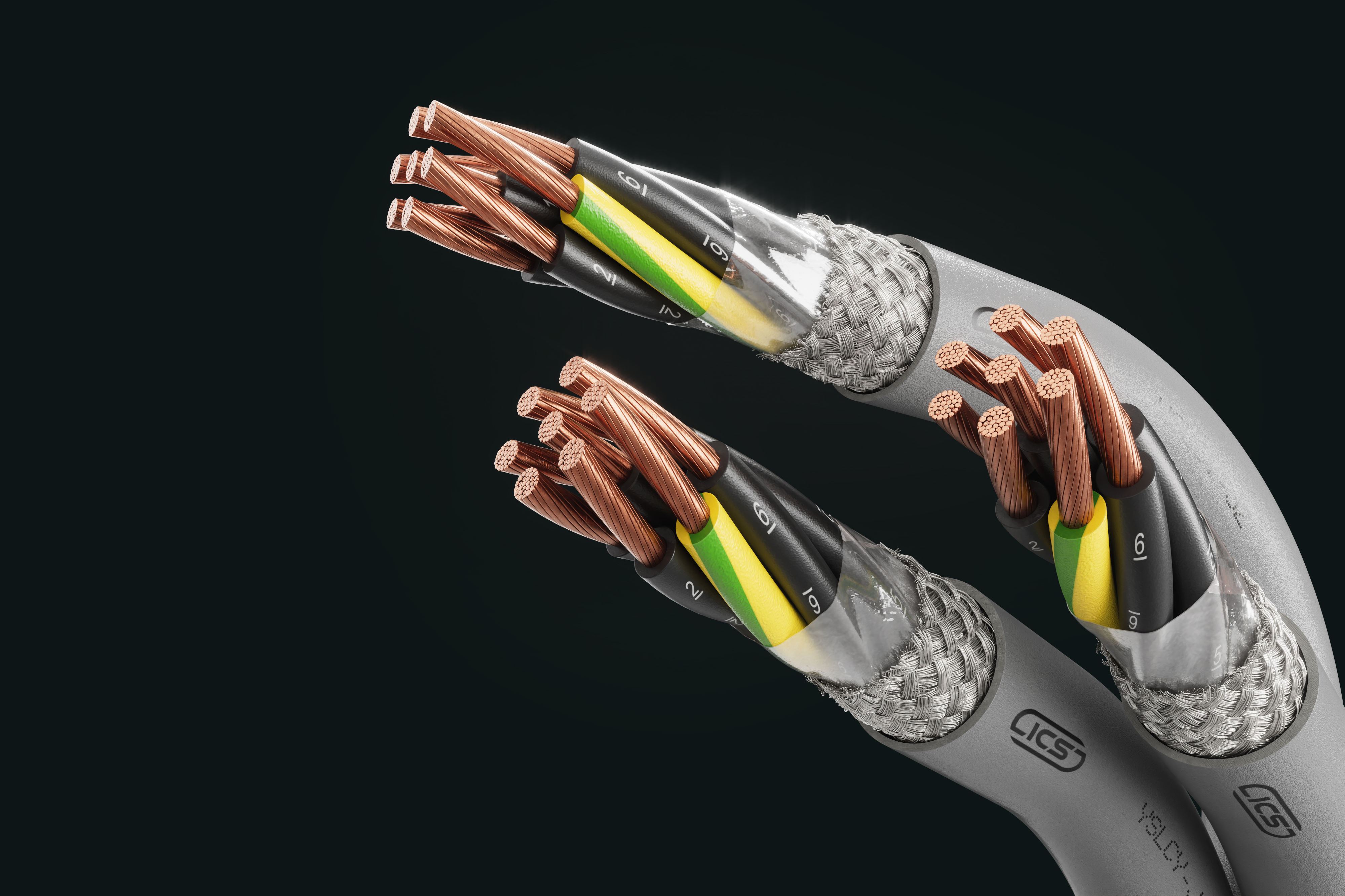

Cable image - YSLCY
+
-
Cable image - YSLCY
+
-
Cable image - YSLCY
+
-

Contact us

Are you interested in this product?

Jan Pietroň

Product supervisor

+420 604 471 907
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Outer diameter appr. (mm)
Cu-value (kg/km)
Total weight appr. (kg/km)
2 x 0.5
5.6
36
45
3 x 0.5
6.1
43
56
4 x 0.5
6.7
49
68
5 x 0.5
7.3
57
80
7 x 0.5
7.9
59
100
10 x 0.5
9.5
92
143
12 x 0.5
10.4
104
160
14 x 0.5
11.0
116
180
16 x 0.5
11.5
129
202
21 x 0.5
12.8
159
252
25 x 0.5
14.5
211
318
30 x 0.5
15.3
238
363
34 x 0.5
16.3
270
420
40 x 0.5
17.3
297
465
50 x 0.5
19.6
362
575
61 x 0.5
20.8
424
675
2 x 0.75
6.5
43
63
3 x 0.75
7.0
52
65
4 x 0.75
9.5
61
79
5 x 0.75
7.6
72
95
7 x 0.75
8.2
89
120
8 x 0.75
9.0
100
134
10 x 0.75
10.5
121
168
12 x 0.75
10.9
138
190
16 x 0.75
12.1
174
241
18 x 0.75
12.7
211
268
21 x 0.75
13.7
237
319
25 x 0.75
15.2
280
377
34 x 0.75
17.0
357
497
44 x 0.75
19.2
448
600
50 x 0.75
20.6
496
695
61 x 0.75
23.0
619
720
2 x 1
6.5
51
63
3 x 1
6.9
62
76
4 x 1
7.5
74
94
5 x 1
8.2
88
110
7 x 1
8.9
112
141
10 x 1
11.4
152
202
12 x 1
11.8
174
232
14 x 1
12.4
217
259
16 x 1
13.0
241
305
18 x 1
14.2
268
342
21 x 1
15.0
302
386
25 x 1
17.0
354
464
30 x 1
17.6
407
530
34 x 1
19.1
548
604
50 x 1
22.6
671
549
2 x 1.5
7.7
65
97
3 x 1.5
8.1
82
106
4 x 1.5
8.9
100
131
5 x 1.5
9.5
110
156
7 x 1.5
10.7
154
203
8 x 1.5
11.7
172
227
10 x 1.5
14.0
236
310
12 x 1.5
13.5
268
341
14 x 1.5
15.3
302
389
16 x 1.5
16.1
338
438
18 x 1.5
17.1
373
490
21 x 1.5
18.1
422
553
25 x 1.5
20.6
530
667
32 x 1.5
22.3
645
817
34 x 1.5
23.2
686
874
44 x 1.5
26.5
899
1139
50 x 1.5
27.8
1001
1269
61 x 1.5
29.4
1183
1490
2 x 2.5
8.5
91
101
3 x 2.5
9.0
119
148
4 x 2.5
10.7
149
190
5 x 2.5
11.0
179
222
7 x 2.5
12.8
254
298
3 x 4
10.9
172
207
4 x 4
12.0
239
251
5 x 4
13.5
288
340
4 x 6
14.3
334
384
5 x 6
15.7
403
472
4 x 10
20.0
518
683
5 x 10
22.1
662
824
4 x 16
22.0
809
930
5 x 16
26.2
990
1203

Technical changes reserved.

All figures are therefore without guarantee.
