Cables

V-VMvKhsas

Download PDF

Add to inquiry

Download PDF

To inquiry

PVC/PVC/PVC aluminium energy cables, screened

Low Voltage Cables 0,6/1 kV

Design

This product consists of:

  • 1
    Aluminium conductor, sector-shaped solid (Alsvm)
  • 2
    Core insulation (PVC)
  • 3
    Cores stranded together in lay-lengths
  • 4
    Inner covering (EPDM and PVC, black)
  • 5
    Inner covering (EPDM)
  • 6
    Concentric screen (bare copper wires applied with changing direction of lay) and counter helix (copper tape)
  • 7
    Sheath (PVC grey RAL 7001)

Technical Data

Standard: NEN HD 603-3I
Test Voltage: core/core 4 kV / 50 Hz
Rated Voltage: 0,6/1 kV
Bending radius (min.):
  • installation/pulling: 12 x Ø of cable
  • fixed/final instalation: 10 x Ø of cable
  • transport: 15 x Ø of cable
Fire properties:
  • EN 60332-1-2: self-extinguishing
  • CPR classification: Eca
Core identification: VDEN: red, yellow, blue, yellow/blue
Temperature range:
  • Operating temperature: -15°C up to 70°C
  • Conductor temperature: max. 70°C
  • Short circuit temperature: max. 200°C

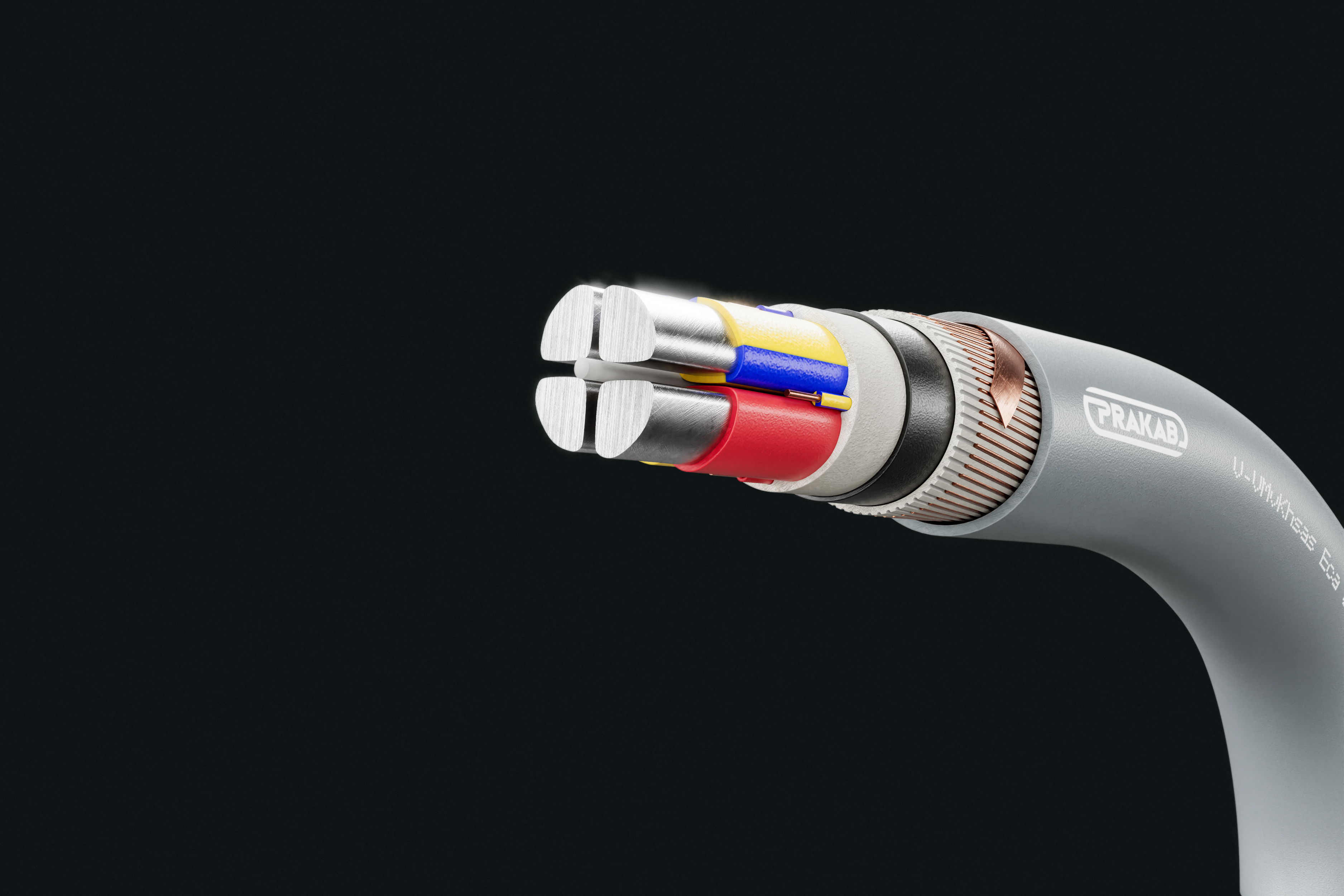

Cable image - V-VMvKhsas
+
-
Cable image - V-VMvKhsas
+
-
Cable image - V-VMvKhsas
+
-

Contact us

Are you interested in this product?

Ing. Dan Bachtík

Product supervisor

+420734366090
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section + number of auxiliary conductor x nominal cross-section of auxiliary conductor / concentric conductor (mm²)
Number of cores x nominal cross-section + number of auxiliary conductor x nominal cross-section of auxiliary conductor / concentric conductor (mm²)
Average insulation thickness of main cores (mm)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
DC resistance main core Rdc at 20 °C
Current rating in the earth acc. NEN 1010
Current rating in the air (A)
4 x 50 Alsvm + 4 x 2.5 sas / 25
1.4
36.8
2170
0.641
172
121
4 x 95 Alsvm + 4 x 6 sas / 35
1.6
45.7
3471
0.32
255
189
4 x 150 Alsvm + 4 x 6 sas / 50
1.8
52.9
4840
0.206
325
246
4 x 240 Alsvm + 4 x 6 sas / 70
2.2
63.6
7091
0.125
427
339

Technical changes reserved.

All figures are therefore without guarantee.
