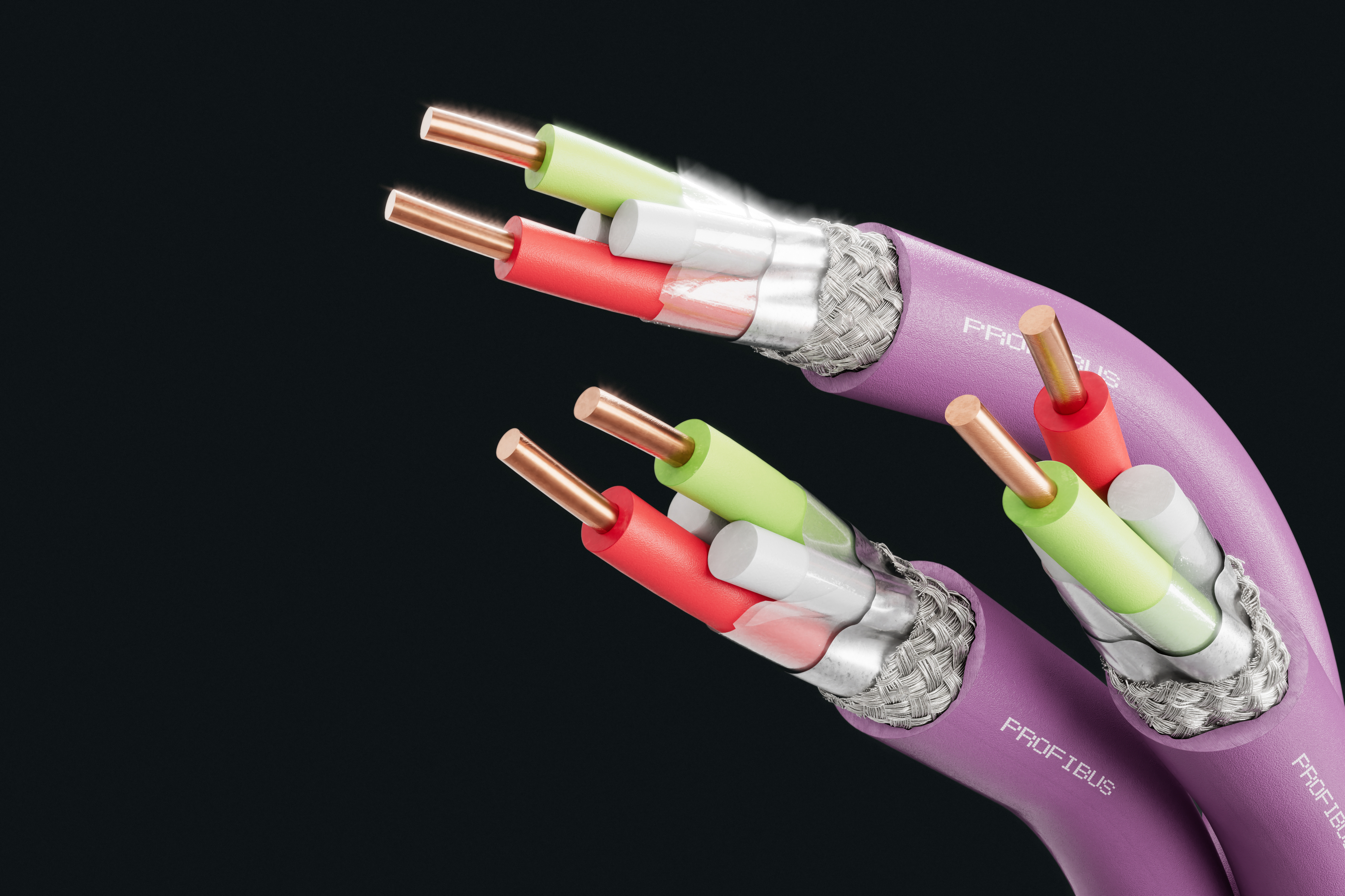

Profibus cable
Control and electronics cables
Connecting cable in machine controls, e.g. as a connecting cable between bus segments.

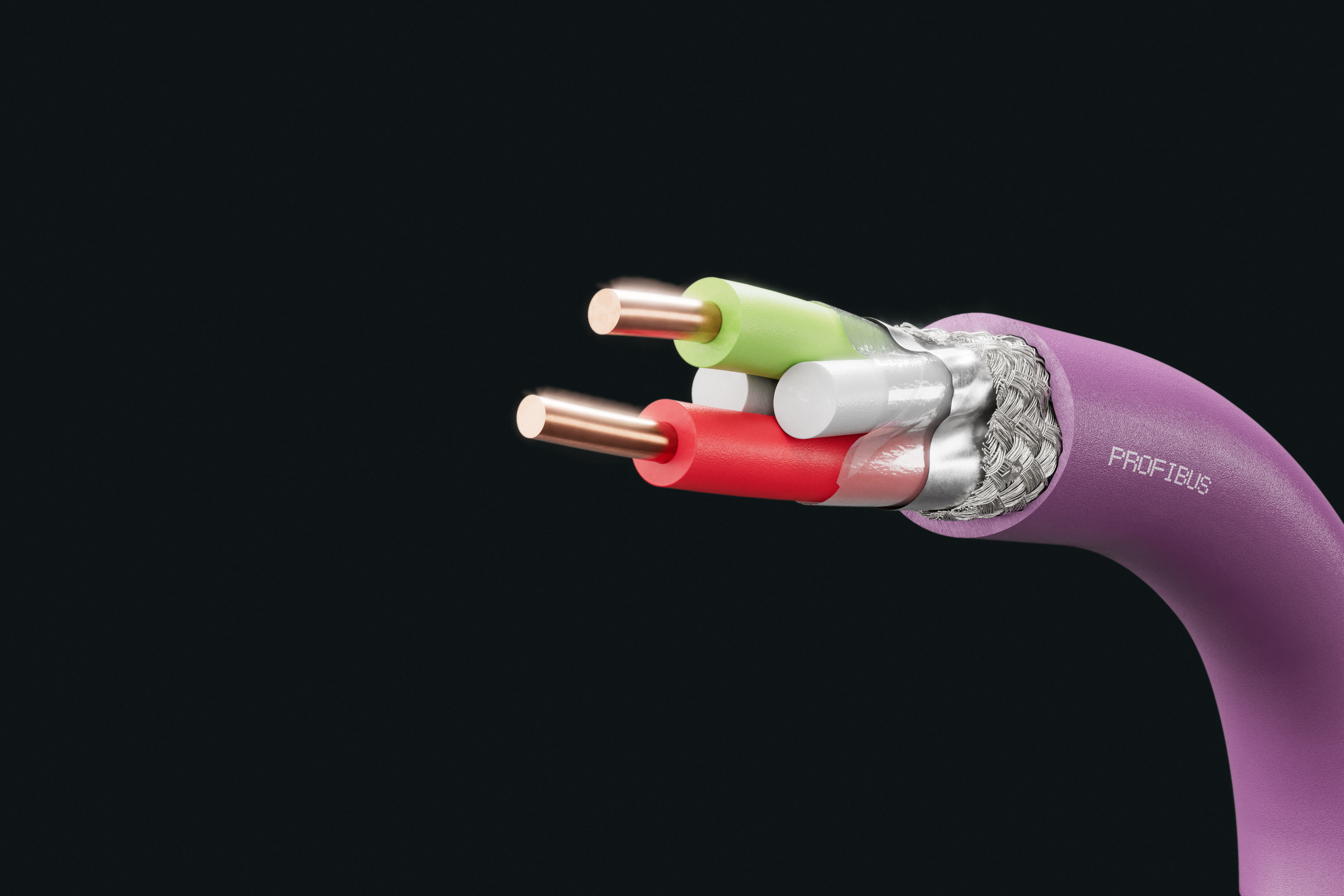

Design
This product consists of:
- 1Kupferleiter, rund eindrähtig
- 2Aderisolation (PE), Adern paarverseilt
- 3Bebänderung (Kunststofffolie)
- 4Schirm (kunststoffkaschierte Aluminiumfolie und Geflechtschirm aus verzinnten Kupferdrähten)
- 5Mantel (PVC violett RAL 4001)
Technical Data
Standard: EN 50170
Test Voltage: 1.5 kV
Rated Voltage: max. 250 V
Bending radius (min.): 75 mm
Fire properties: CPR classification: Eca
Core identification: red, green
Temperature range:
- Laying temperature: min. -10°C
- Operating temperature: -30°C up to 80°C
Contact us
Are you interested in this product?
Dogan Özcan
Product supervisor
Electricity
Parameter
Unit
Values
Conductor diameter (mm)
mm
0.64
Conductor resistance, max. at 20 °C (Ω/km)
Ω/km
133
Insulation resistance, min. at 20 °C (MΩ/km)
MΩ/km
1000
Mutual capacitance (approx. value), at 800 Hz (nF/km)
nF/km
30
Characteristic impendace at 0,56/0,80 MHz, max. (+/- 10%) (Ω)
Ω
150
