FRNC control cable, halogen-free, screened
Automation and Motor Supply Cables
LiHCH cables are multi-core halogen-free screened control cables suitable for indoor use in industrial applications with increased requirements for electromagnetic compatibility. Generally used in flexible or fixed applications with low mechanical and tensile stress as connecting cables for data processing, measurement and control engineering, safety related systems and as electronics cable where such cables are needed.

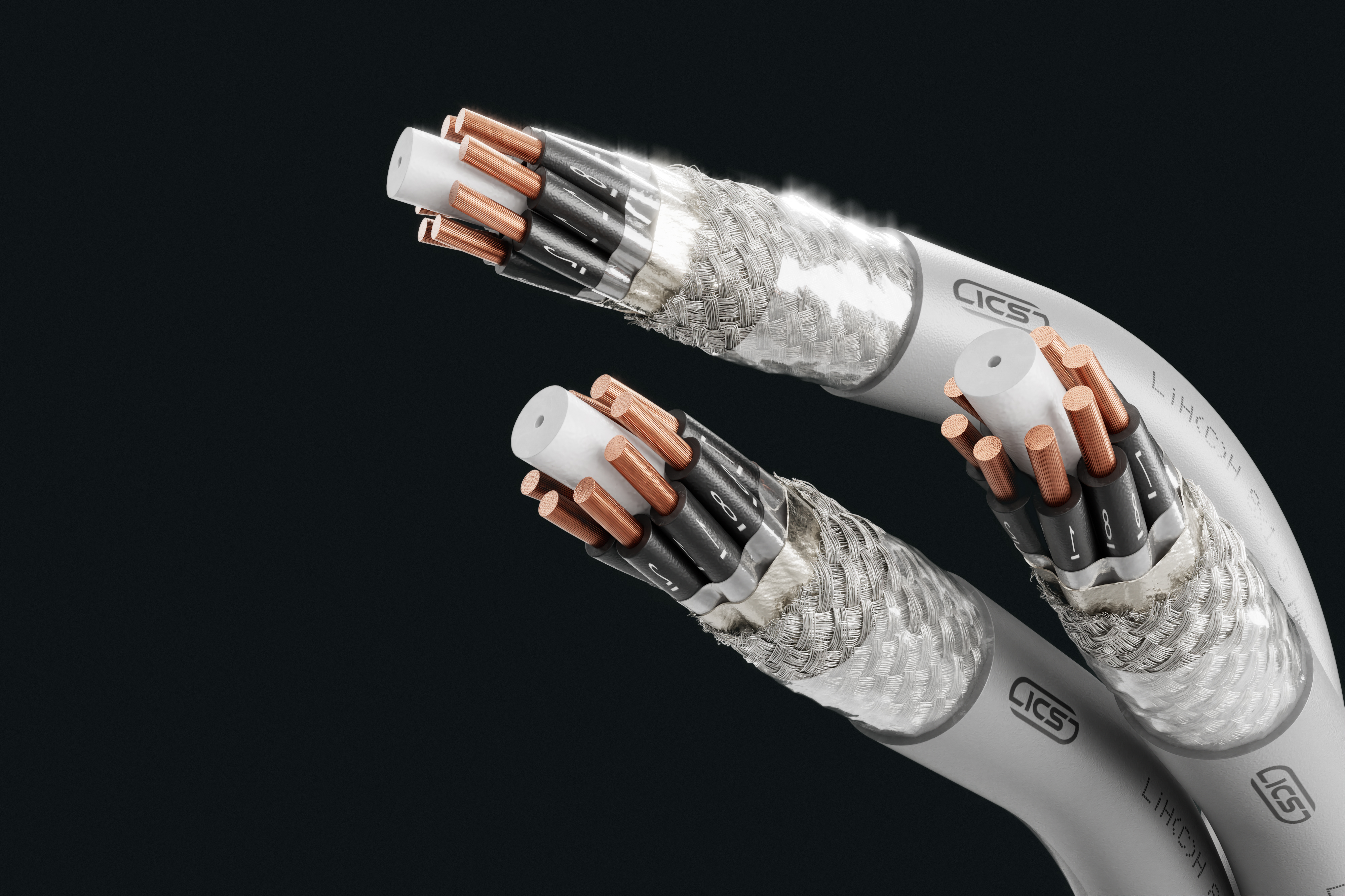

Design
This product consists of:
- 1Bare copper conductors, fine wires class 5 according to DIN EN 60228 / VDE 0295 / IEC 60228
- 2Core insulation of special halogen-free, flame retardant compound (FRNC)
- 3Cores are stranded in layers with optimal lay-length
- 4Wrapping with plastic tape
- 5Tinned copper wire braiding
- 6Wrapping with plastic tape
- 7Outer sheath of special halogen-free, flame retardant compound (FRNC), colour: grey (RAL 7001)
Technical Data
Standard: Based on EN 50525-3-11
Test Voltage: 4000 V / 50 Hz
Rated Voltage: 300/500 V (Uo/U)
Bending radius (min.):
- Fixed installation: 4 x Ø of cable
- Flexible use: 15 x Ø of cable
Fire properties:
- EN 60332-1-2: self-extinguishing and flame retardant
- EN 60332-3-24 (Category C): reduced flame propagation
- EN 60754-1 and 2: halogen-free; non-corrosive combustion gases
- EN 61034-2, IEC 61034: smoke density
- CPR classification: Dca
Core identification: Black (continuously numbered), from 3 cores with green/yellow ground conductor
Temperature range:
- Fixed installation: -40°C up to 70°C
- Flexible use: -5°C up to 70°C
