Motor power supply cable for EIB-Bus, halogen-free, screened
Halogen-free Control and Electronic Cables
For installation on and under plaster in dry, damp and wet locations, as a BUS cable (EIB installation bus) and as a measuring and control cable in power installations.

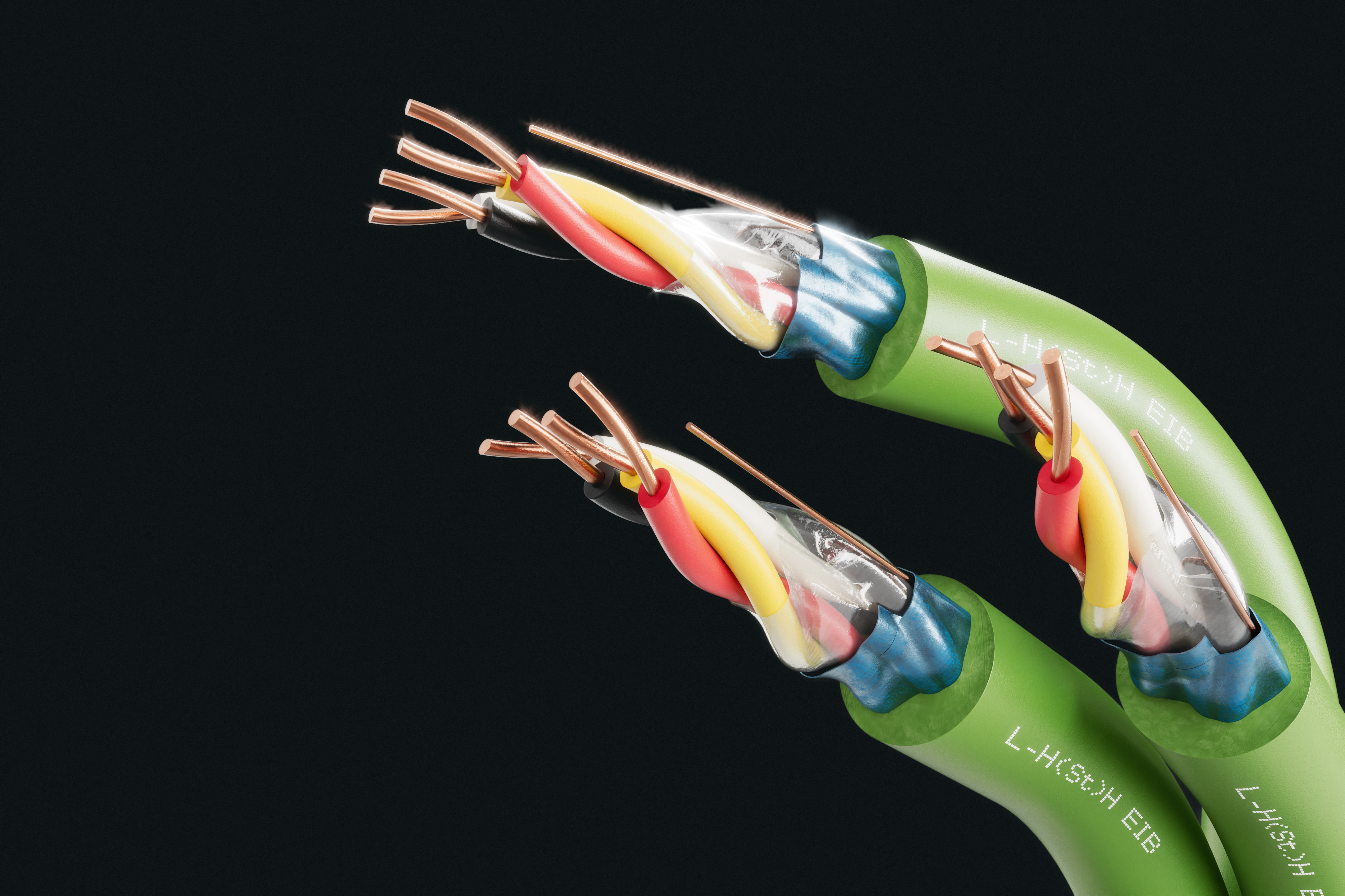

Design
This product consists of:
- 1Copper conductor, round solid (RE)
- 2Core insulation (halogen-free polymer compound), cores stranded to star quads
- 3Taping (halogen-free plastic foil)
- 4Screen (plastic laminated aluminium tape with drain wire)
- 5Sheath (PVC grey RAL 7035 or green RAL 6018)
Technical Data
Standard: adapted to DIN VDE 0815
Test Voltage:
- 800 Veff (core/core) / 50 Hz
- 4000 Veff (core/screen) / 50 Hz
Rated Voltage: max. 300 Vss
Bending radius (min.): 7.5 x Ø of cable
Fire properties:
- EN 60332-1-2: flame retardant and self-extinguishing
- EN 60754-1 and 2: halogen-free; non-corrosive combustion gases
- CPR classification: Eca
Core identification: 1st. circuite: red (a), black (b) 2nd. circuite: white (a), yelow (b)
Temperature range:
- Laying temperature: min. -5°C
- Fixed installation: -30°C up to 70°C
- Flexible use: -5°C up to 50°C
Contact us
Are you interested in this product?
Dogan Özcan, MSc
Product supervisor
Electricity
Parameter
Unit
Values
Conductor diameter (mm)
mm
0.8
Conductor resistance, max. at 20 °C (Ω/km)
Ω/km
73.2
Insulation resistance, min. at 20 °C (MΩ/km)
MΩ/km
100
Mutual capacitance (approx. value), at 800 Hz (nF/km)
nF/km
100
Capacitance unbalance at 800 Hz, k1 max. (pF/km)
pF/km
200
