HSLCH

Download PDF

Add to inquiry

Download PDF

To inquiry

FRNC Control cable, halogen-free, screened

PVC and Rubber Cables and Wires

As flexible control and connecting cable for fixed laying and flexible applications without tensile stress and/or without guided movements, especially for the protection of human life and valuable equipment.

Design

This product consists of:

  • 1
    Copper conductor, fine wire
  • 2
    Core insulation (FRNC), cores stranded in layers
  • 3
    Inner covering (halogen-free plastic tape)
  • 4
    Screen (braided screen, tinned copper wires)
  • 5
    Sheath (FRNC grey RAL 7001, oil resistant)

Technical Data

Test Voltage: 2 kV
Rated Voltage: 300/500 V (Uo/U)
Bending radius (min.):
  • 4 x Ø of cable (fixed installed)
  • 15 x Ø of cable (free motion)
Fire properties:
  • EN 60332-1-2: flame retardant
  • EN 60754-1 and 2: halogen-free; non-corrosive
  • combustion gases
  • EN 61034-2: low smoke emission
  • EN 60332-3-22 and 24: reduced flame
  • propagation
Core identification: black with number printing, with one core green-yellow (JZ), without (OZ)
Temperature range:
  • Laying temperature: min. -5°C
  • Conductor temperature: max. 70°C
  • Short circuit temperature: max. 150°C
  • Fixed installation: -40°C up to 70°C

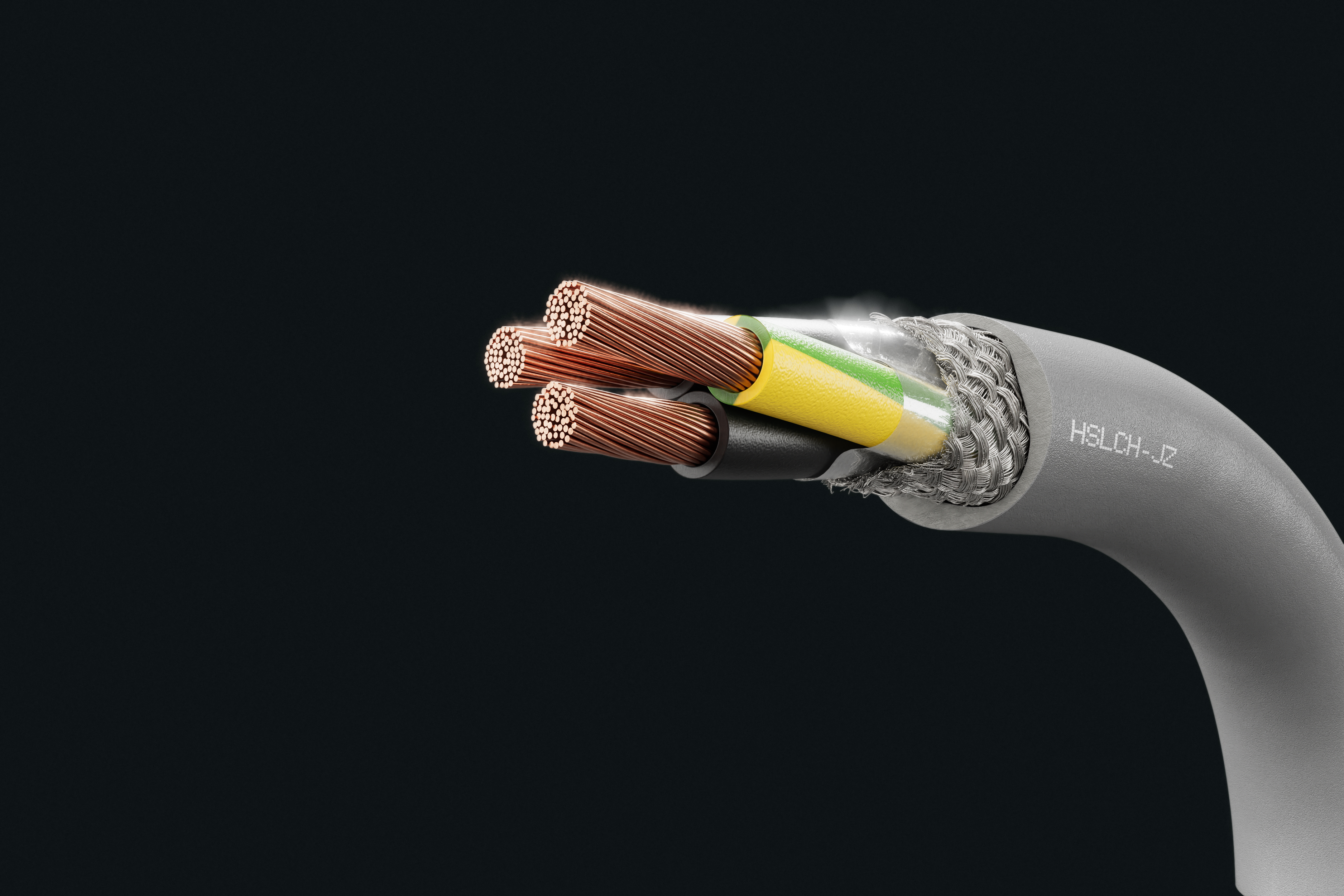

Cable image - HSLCH
+
-

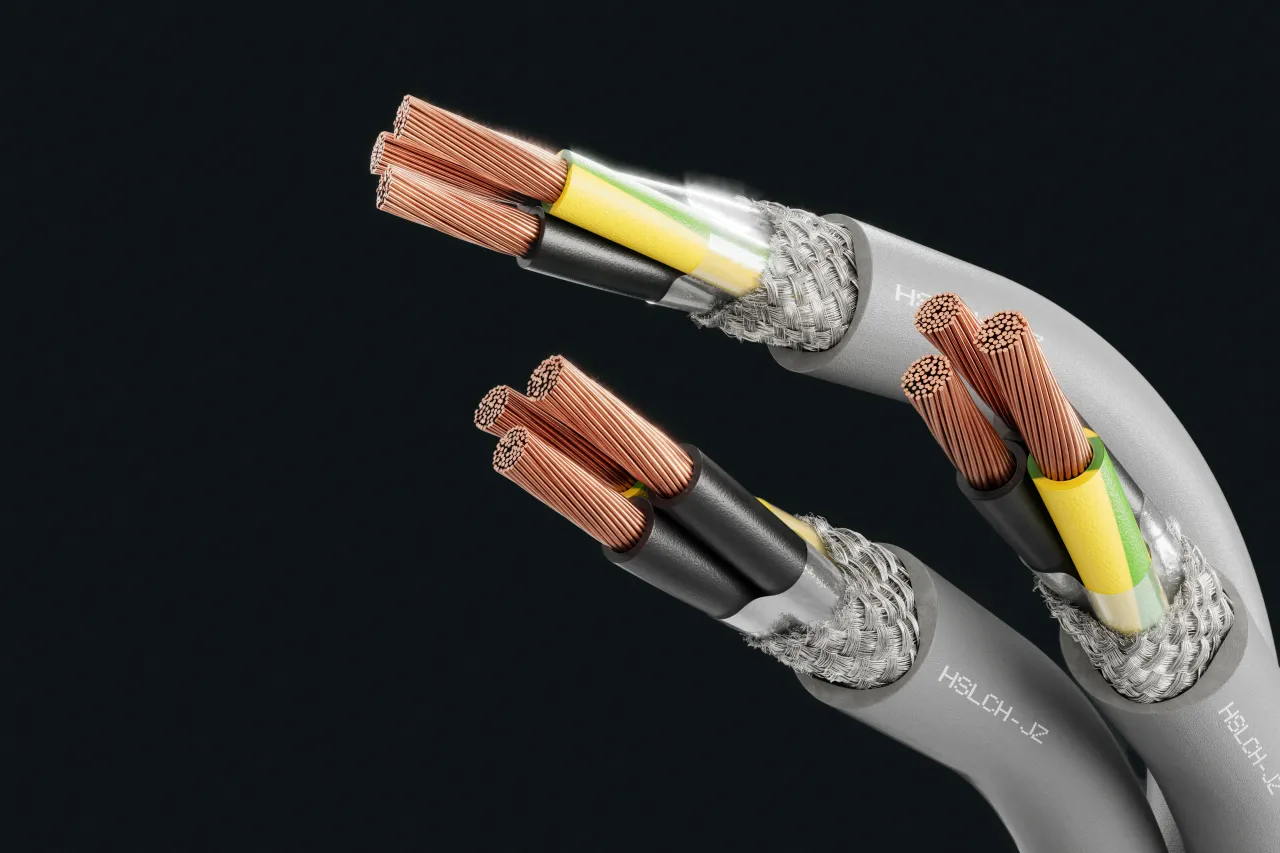

Cable image - HSLCH
+
-

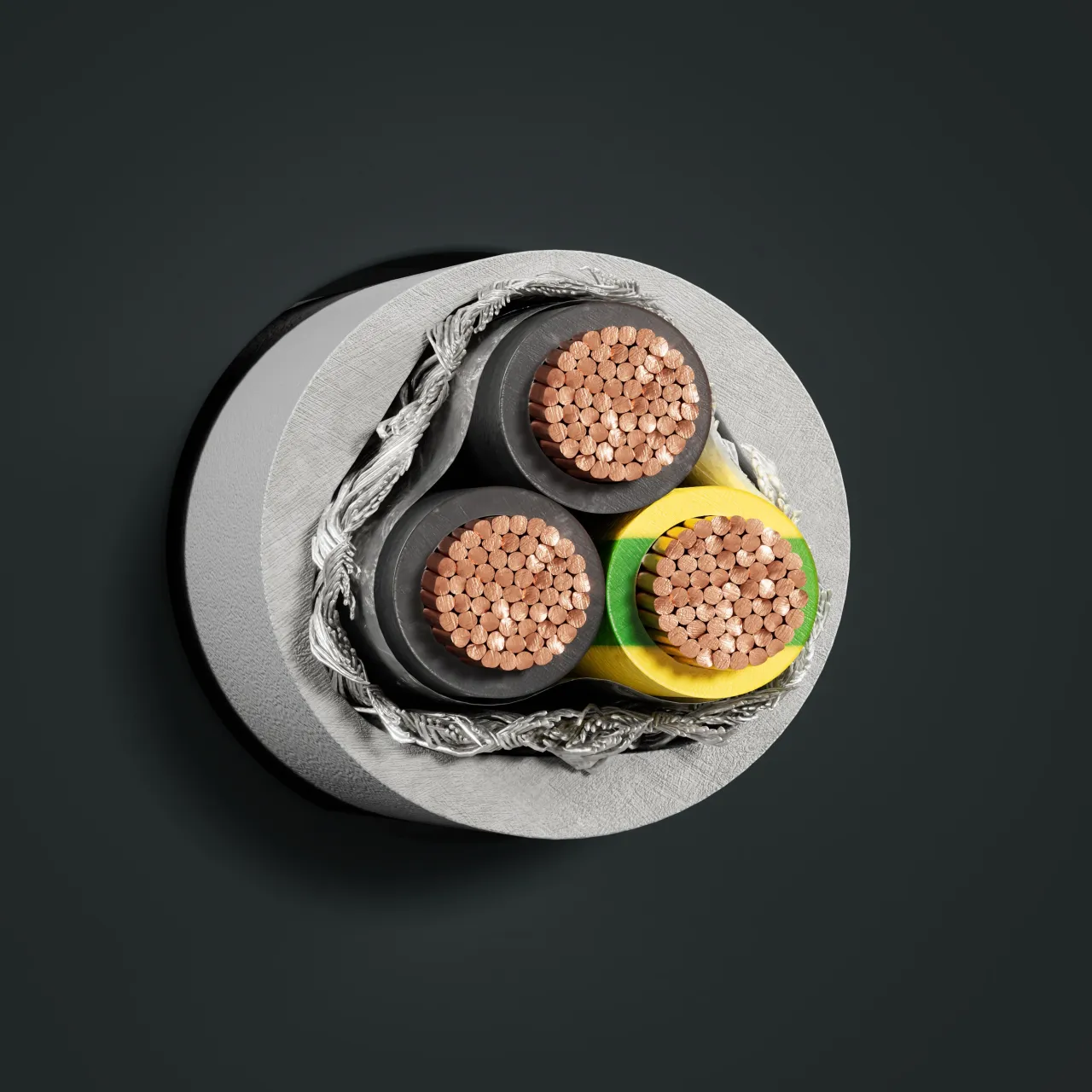

Cable image - HSLCH
+
-

Contact us

Are you interested in this product?

Jan Pietroň

Product supervisor

+420 604 471 907
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Max. conductor resistance (Ω/km)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
2 x 0,75
26.0
5.8
49
3 x 0,75
26.0
7.0
63
4 x 0,75
26.0
7.2
77
5 x 0,75
26.0
7.5
87
12 x 0,75
26.0
11.4
187
25 x 0,75
26.0
16.0
397
2 x 1
19.5
8.7
130
3 x 1
19.5
6.6
70
4 x 1
19.5
7.2
85
5 x 1
19.5
8.7
111
7 x 1
19.5
8.7
130
12 x 1
19.5
11.3
215
18 x 1
19.5
13.5
315
25 x 1
19.5
17.7
464
2 x 1,5
13.3
6.7
67
3 x 1,5
13.3
7.0
85
4 x 1,5
13.3
7.9
106
5 x 1,5
13.3
8.6
130
7 x 1,5
13.3
9.2
165
18 x 1,5
13.3
14.5
395
25 x 1,5
13.3
21.0
678
2 x 2,5
7.98
9.7
123
3 x 2,5
7.98
8.4
125
4 x 2,5
7.98
11.1
188
5 x 2,5
7.98
10.1
190
7 x 2,5
7.98
11.0
245
12 x 2,5
7.98
18.2
796
3 x 4
4.95
9.9
175
4 x 4
4.95
10.8
220
5 x 4
4.95
11.7
270
3 x 6
3.3
12.5
365
4 x 10
1.91
16.3
523
4 x 16
1.15
19.2
769

Technical changes reserved.

All figures are therefore without guarantee.
