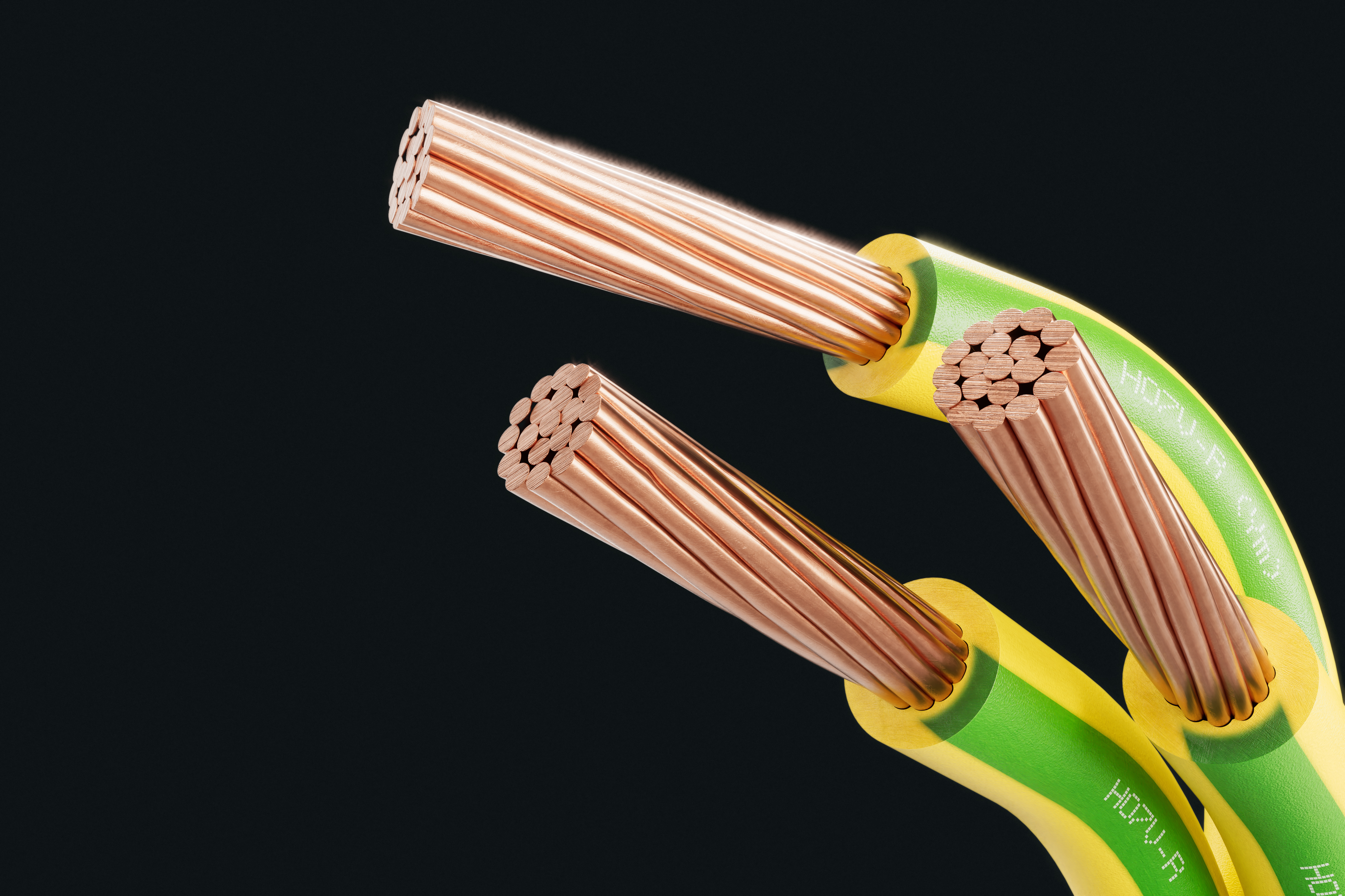

PVC insulated wires, stranded
PVC and Rubber Cables and Wires
For fixed installation in conduits on or under plaster. Suitable for protected installation in and on lighting facilities or control devices for voltages up to 750 V AC or 1000 V DC against ground.
Design
This product consists of:
- 1Copper conductor, round stranded (RM) -U
- 2Core insulation (PVC)
Technical Data
Standard: EN 50525-2-31
Certificate:
- EZÚ Czech Republic
- ÖVE Austria
Test Voltage: 2.5 kV / 50 Hz
Rated Voltage: 450/750 V (Uo/U)
Bending radius (min.): 4 x Ø of wire
Fire properties:
- EN 60332-1-2: self-extinguishing
- CPR Classification: Eca
Core identification: According to EN 50525-1: CR, SM, MD, HA, SE, OR, RZ, RA, TY, FI, BA, ZZ
Temperature range:
- Laying temperature: min. 5°C
- Operating temperature: -5°C up to 70°C
- Conductor temperature: max. 70°C
- Short circuit temperature: max. 160°C
