Cables

H05VV-F (YMM)

Download PDF

Add to inquiry

Download PDF

To inquiry

PVC Control cable, medium duty

Flexible cables

Suitable for medium mechanical stress in households and offices as well for household appliances (also in damp rooms). Not suitable for outdoor installation, in commercial establishments or for the connection of commercially used power tools.

Design

This product consists of:

  • 1
    Copper conductor, fine wire (–F)
  • 2
    Core insulation (PVC)
  • 3
    Sheath (PVC grey RAL 7035 or special colour)

Technical Data

Standard: EN 50525-2-11
Certificate: ÖVE Austria
Test Voltage:
  • 2 kV / 50 Hz
Rated Voltage: 300/500 V (Uo/U)
Bending radius (min.):
  • 3 x Ø of cable
Fire properties:
  • EN 60332-1-2: flame retardant
  • CPR classification: Eca
Core identification:
  • colours according to CENELEC HD 308 S2
Temperature range:
  • Laying temperature: min. 5°C
  • Operating temperature: 5°C up to 50°C
  • Conductor temperature: max. 60°C
  • Short circuit temperature: max. 150°C

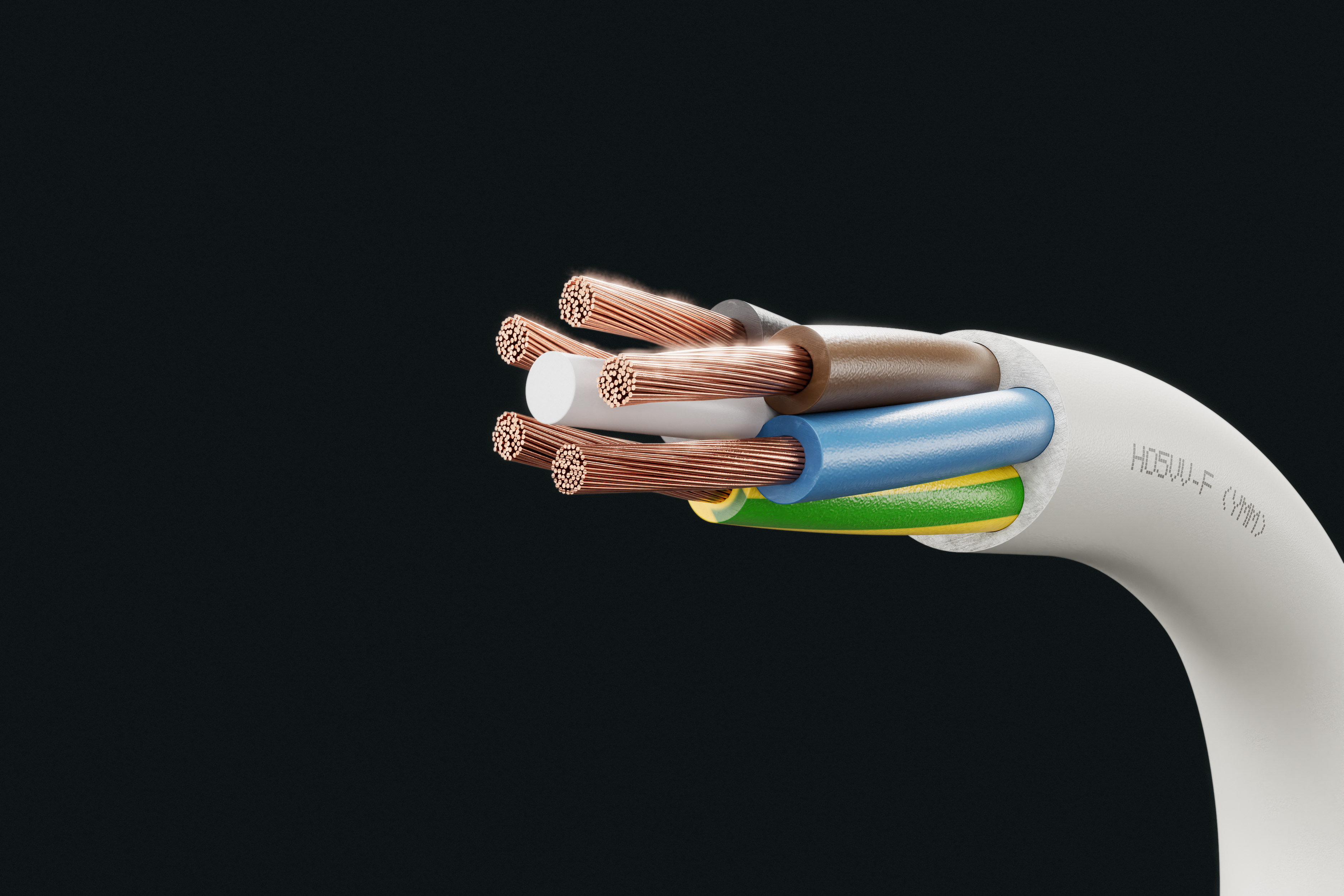

Cable image - H05VV-F (YMM)
+
-
Cable image - H05VV-F (YMM)
+
-
Cable image - H05VV-F (YMM)
+
-

Contact us

Are you interested in this product?

Dogan Özcan

Product supervisor

+43 (0) 1 70170-154
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Max. conductor resistance (Ω/km)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
Standard lengths/packing (m)
2 x 0,75
26
5.8
57
500 Sp, 1000 Sp
3 G 0,75
26
6.2
67
500 Sp, 1000 Sp
4 G 0,75
26
6.7
79
500 Sp, 1000 Sp
5 G 0,75
26
7.7
97
500 Sp, 1000 Sp
7 G 0,75
26
8.5
130
500 T, 1000 T
10 G 0,75
26
11
200
500 T, 1000 T
12 G 0,75
26
11.5
230
500 T, 1000 T
14 G 0,75
26
12
260
500 T, 1000 T
16 G 0,75
26
13
290
500 T, 1000 T
19 G 0,75
26
14
340
500 T, 1000 T
2 x 1
19.5
6.2
64
500 Sp, 1000 Sp
3 G 1
19.5
6.6
76
500 Sp, 1000 Sp
4 G 1
19.5
7.4
96
500 Sp, 1000 Sp
5 G 1
19.5
8.1
112
500 Sp, 1000 Sp
7 G 1
19.5
9
136
500 T, 1000 T
10 G 1
19.5
11.7
210
500 T, 1000 T
12 G 1
19.5
12.1
233
500 T, 1000 T
14 G 1
19.5
13
300
500 T, 1000 T
16 G 1
19.5
13.9
307
500 T, 1000 T
19 G 1
19.5
14.5
349
500 T, 1000 T
2 x 1,5
13.3
7.1
86
500 Sp, 1000 Sp
3 G 1,5
13.3
7.6
107
500 Sp, 1000 Sp
3 x 1,5
13.3
7.6
107
500 Sp, 1000 Sp
4 G 1,5
13.3
8.5
132
500 Sp, 1000 Sp
5 G 1,5
13.3
9.5
165
500 Sp, 1000 Sp
7 G 1,5
13.3
10.6
189
500 T, 1000 T
10 G 1,5
13.3
13.7
286
500 T, 1000 T
14 G 1,5
13.3
14.9
363
500 T, 1000 T
16 G 1,5
13.3
16
463
500 T, 1000 T
19 G 1,5
13.3
16.4
480
500 T, 1000 T
2 x 2,5
7.98
8.8
129
500 Sp, 1000 Sp
3 G 2,5
7.98
9.3
154
500 Sp, 1000 Sp
3 x 2,5
7.98
9.3
154
500 Sp, 1000 Sp
4 G 2,5
7.98
10.4
195
500 Sp, 1000 Sp
5 G 2,5
7.98
11.7
239
500 Sp, 1000 Sp
7 G 2,5
7.98
13
294
500 T, 1000 T
10 G 2,5
7.98
16.5
431
500 T, 1000 T
12 G 2,5
7.98
17.5
564
500 T, 1000 T
14 G 2,5
7.98
18.3
570
500 T, 1000 T
16 G 2,5
7.98
20
750
500 T, 1000 T
19 G 2,5
7.98
21
850
500 T, 1000 T
4 G 4
4.95
12
283
500 Sp, 1000 Sp
5 G 4
4.95
13.3
320
500 Sp, 1000 Sp
4 G 6
3.3
14.7
379
500 Sp, 1000 Sp
5 G 6
3.3
16
470
500 Sp, 1000 Sp

Technical changes reserved.

All figures are therefore without guarantee.
