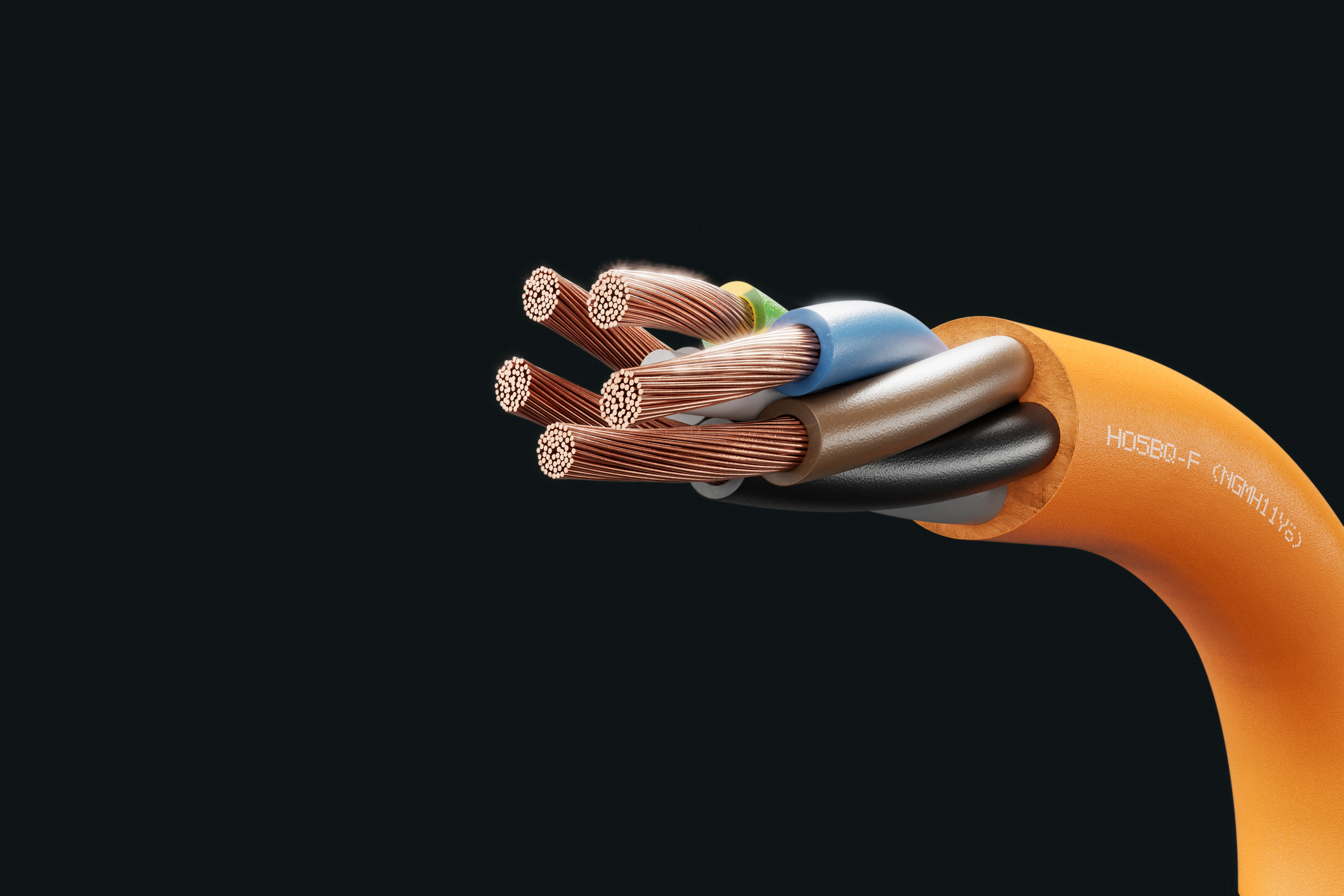

PUR Insulated wire
PUR cables
For use in dry, damp or wet rooms with medium mechanical stress. The cables are primarily used in industrial enterprises and construction sites under demanding operating conditions, especially with demanding operating conditions, especially abrasive and grinding stresses.
Design
This product consists of:
- 1Kupferleiter, feindrähtig verzinnt oder unverzinnt
- 2Aderisolation (EPR-Gummi)
- 3Mantel (Polyurethan orange, ölbeständig und abriebfest)
Technical Data
Standard: EN 50525-2-21
Test Voltage: 2 kV
Rated Voltage: 300/500 V (Uo/U)
Bending radius (min.):
- 3 x Ø der Leitung (feste Verlegung)
- 5 x Ø der Leitung (freie Verlegung)
Core identification: HD 308 S2
Temperature range:
- Laying temperature: min. -40°C
- Conductor temperature: max. 90°C
- Short circuit temperature: max. 200°C
- Fixed installation: -40°C up to 75°C
- Flexible use: -25°C up to 75°C
