VDE approved charging cable for electro vehicles

Commercial Vehicles and EVC Cables

Our FLEXICS® CHARGE EVC cables have been developed especially as charging cables for electro vehicles.

Design

This product consists of:

1
Bare copper conductors, fine wires class 5 according to DIN EN 60228 / VDE 0295 / IEC 60228 (optional tinned copper wires)
2
Power supply cores of special halogen-free compound based on cross-linked polymer (XLPE), compound type EVI-2
3
Control core insulation of special thermoplastic elastomer, compound type EVI-1 or special cross-linked polymer (XLPE), compound type EVI-2
4
Power supply cores stranded together with control cores and construction-related fillers (optional)
5
Non-woven tape separation (optional)
6
Outer sheath of special thermoplastic halogen-free flame retardant compound based on polyurethane (PUR), compound type EVM-1

Technical Data

Standard: EN 50620; IEC 62893

Certificate: VDE Certificate No. 40052200

Test Voltage: 2500 V / 50 Hz

Rated Voltage: 450/750 V (Uo/U)

Bending radius (min.):

Fixed installation: 5 x Ø of cable
Flexible use: 15 x Ø of cable

Fire properties:

EN 60332-1-2: self-extinguishing and flame retardant
halogen-free: EN 5052:2011 Annex B or IEC 62821-1:2015 Annex B

Core identification: Colour code acc. to HD 308 S2 with one or two control / pilot core(s) coloured and numbered

Temperature range: Operating temperature: -40°C up to 90°C

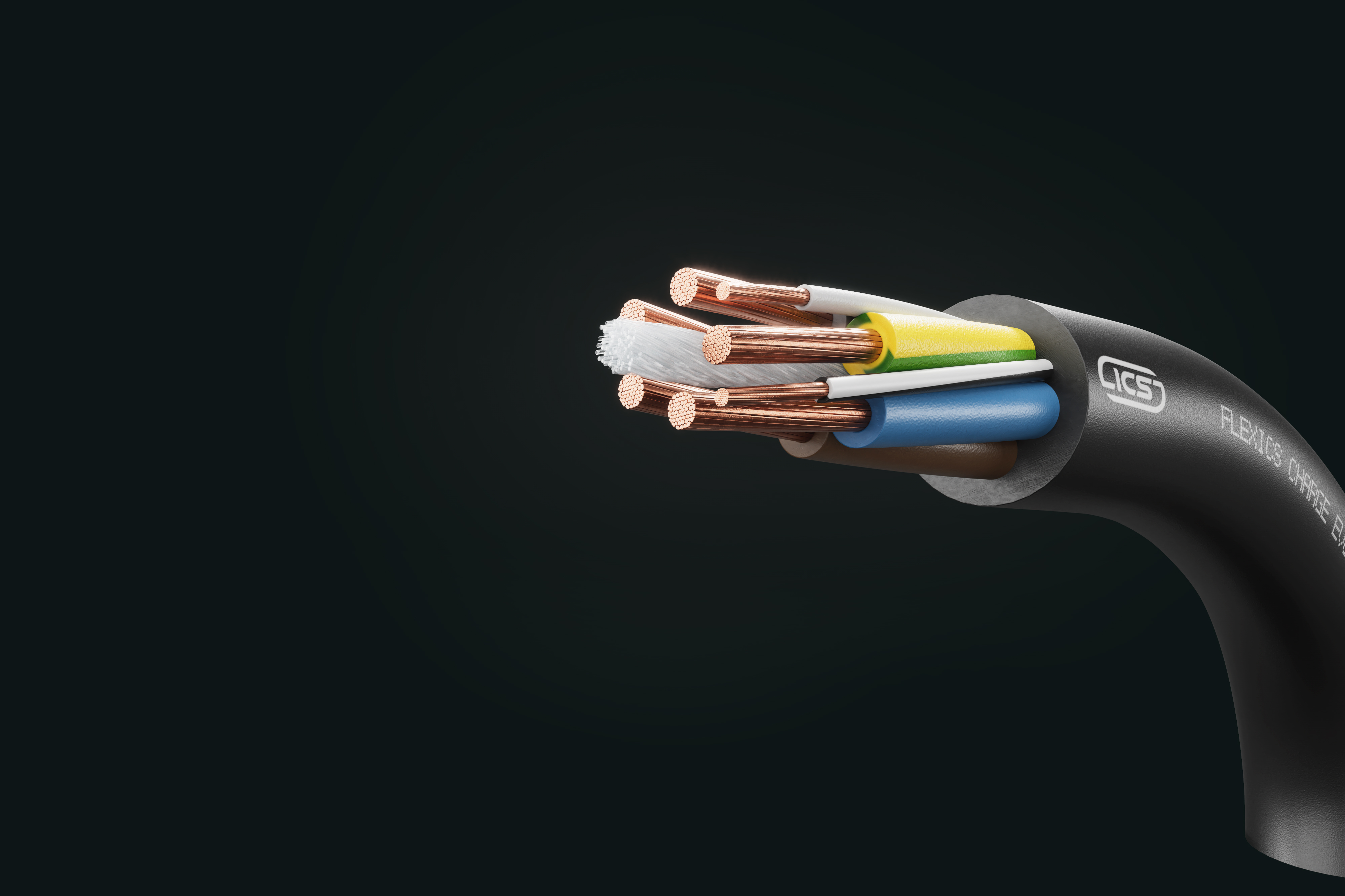

Cable image - FLEXICS® CHARGE EVC H07BZ5-F

Contact us

Are you interested in this product?

Dipl. Ing. Peter Tomka

Product supervisor

+421 37 6969631

[email protected]

Add to inquiry

Number of cores x nominal cross-section (mm²)

CC / CP Cores (mm²)

Outer diameter appr. (mm)

Cu-value (kg/km)

Total weight appr. (kg/km)

3 x 1.5

1...2 x 0,5...1,0

9.1

48.0

110

3 x 2.5

1...2 x 0,5...1,0

10.2

76.8

152

4 x 2.5

1...2 x 0,5...1,0

11.7

100.8

196

5 x 2.5

1...2 x 0,5...1,0

12.7

124.8

230

3 x 4

1...2 x 0,5...1,0

12.3

120.0

225

4 x 4

1...2 x 0,5...1,0

13.6

158.4

281

5 x 4

1...2 x 0,5...1,0

15.4

196.8

344

3 x 6

1...2 x 0,5...1,0

13.5

177.6

296

4 x 6

1...2 x 0,5...1,0

15.4

235.2

382

5 x 6

1...2 x 0,5...1,0

16.5

292.8

446
