Telecommunication underground cable, screened, longitudinally water-proof
Telecommunications cables
Underground cable for use in telecommunications installations and related installations. Suitable for installation under ground, in water, cable ducts etc.

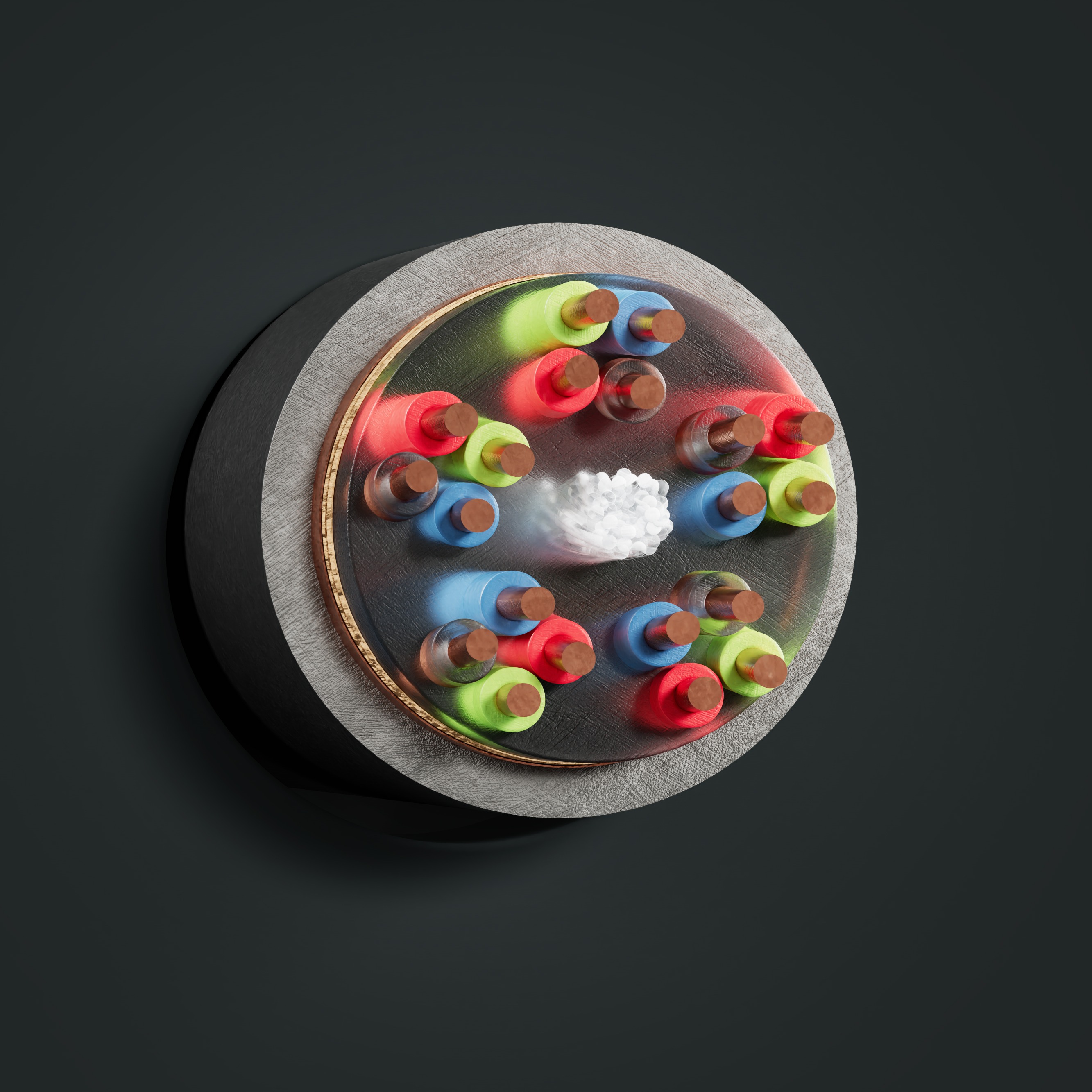

Design
This product consists of:
- 1Kupferleiter, rund eindrähtig (RE)
- 2Aderisolation (foam-skin PE), Adern sind zu Sternvierern und diese in Lagen verseilt, Verseilband längswasserdicht durch Petrolatfüllung
- 3Gemeinsame Aderumhüllung (Kunststofffolie)
- 4Schirm (copolymer beschichtete Aluminiumfolie, die mit dem PE-Mantel verschweißt ist)
- 5Mantel (PE schwarz, UV-beständig)
Technical Data
Standard: adapted to Telekom Austria-Standard
Test Voltage: 2 kV (core/screen)
Rated Voltage: max. 200 Veff
Bending radius (min.): 10 x Ø des Kabels
Fire properties: CPR-Klassifizierung: Fca
Core identification: Colour code with trace quad in each layer (TA standard)
Temperature range:
- Laying temperature: min. -20°C
- Conductor temperature: max. 80°C
- Fixed installation: -20°C up to 50°C
- Flexible use: -20°C up to 70°C
Contact us
Are you interested in this product?
Dogan Özcan
Product supervisor
Electricity
Parameter
Unit
Values
Conductor diameter (mm)
mm
0.6
0.8
Conductor resistance, max. at 20 °C (Ω/km)
Ω/km
130
73.2
Insulation resistance, min. at 20 °C (MΩ/km)
MΩ/km
5000
5000
Mutual capacitance (approx. value), at 800 Hz (nF/km)
nF/km
50
50
