PVC/PVC copper energy cables, screened

Copper 0,6/1 kV, screened or armoured

Power distribution and control cables in power stations, industrial installations and switchgears, as well as in local mains. For fixed installation underground, in interior premises, cable ducts, in the open air and in water – as permitted by the local building regulations – if protection against shock hazard in the event of mechanical damage or electrical screening is required.

Design

This product consists of:

  • 1
    Copper conductor, round solid (RE) resp. round stranded (RM)
  • 2
    Core insulation (PVC)
  • 3
    Concentric screen (bare copper wires) and counter helix (copper tape) and optional plastic tape
  • 4
    Inner sheath (PVC black, UV-resistant)
  • 5
    Inner covering (EPDM)
  • 6
    Outer sheath (PVC black, UV-resistant)

Technical Data

Standard:
  • ÖVE/ONORM E 8200-603 (HD 603)
  • ÖVE/ONORM E 8200-627 (HD 627)
Certificate: ÖVE Austria
Test Voltage: core/core 4 kV / 50 Hz
Rated Voltage: 0,6/1 kV
Bending radius (min.):
  • 12 x Ø of cable (multicore)
  • 15 x Ø of cable (singlecore)
Fire properties:
  • EN 60332-1-2: self-extinguishing
  • CPR classification: Eca
Core identification: HD 308 S2
Temperature range:
  • Laying temperature: min. -5°C
  • Operating temperature: -50°C up to 70°C
  • Conductor temperature: max. 70°C
  • Short circuit temperature: max. 160°C

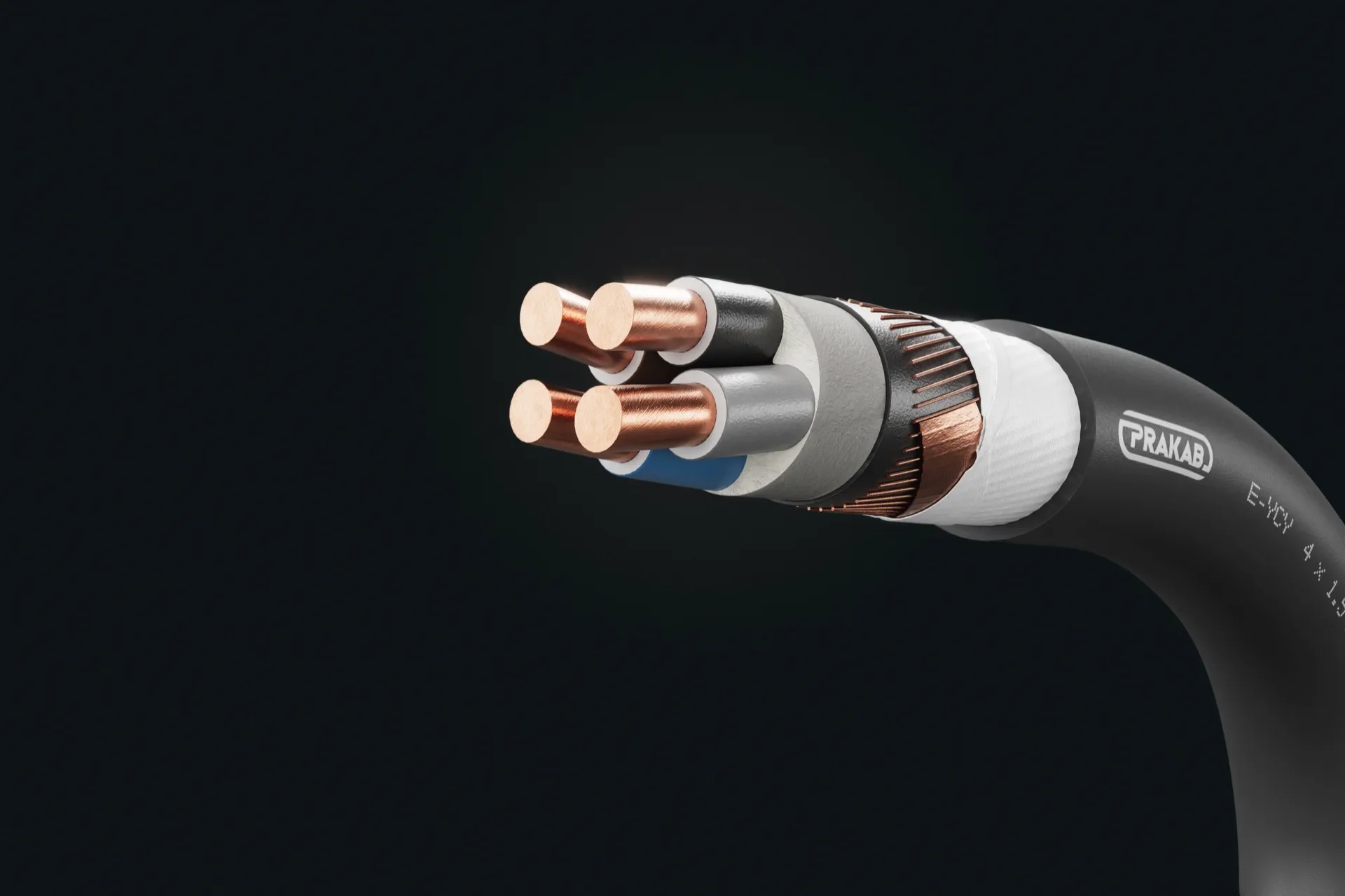

Cable image - E-YCY
+
-

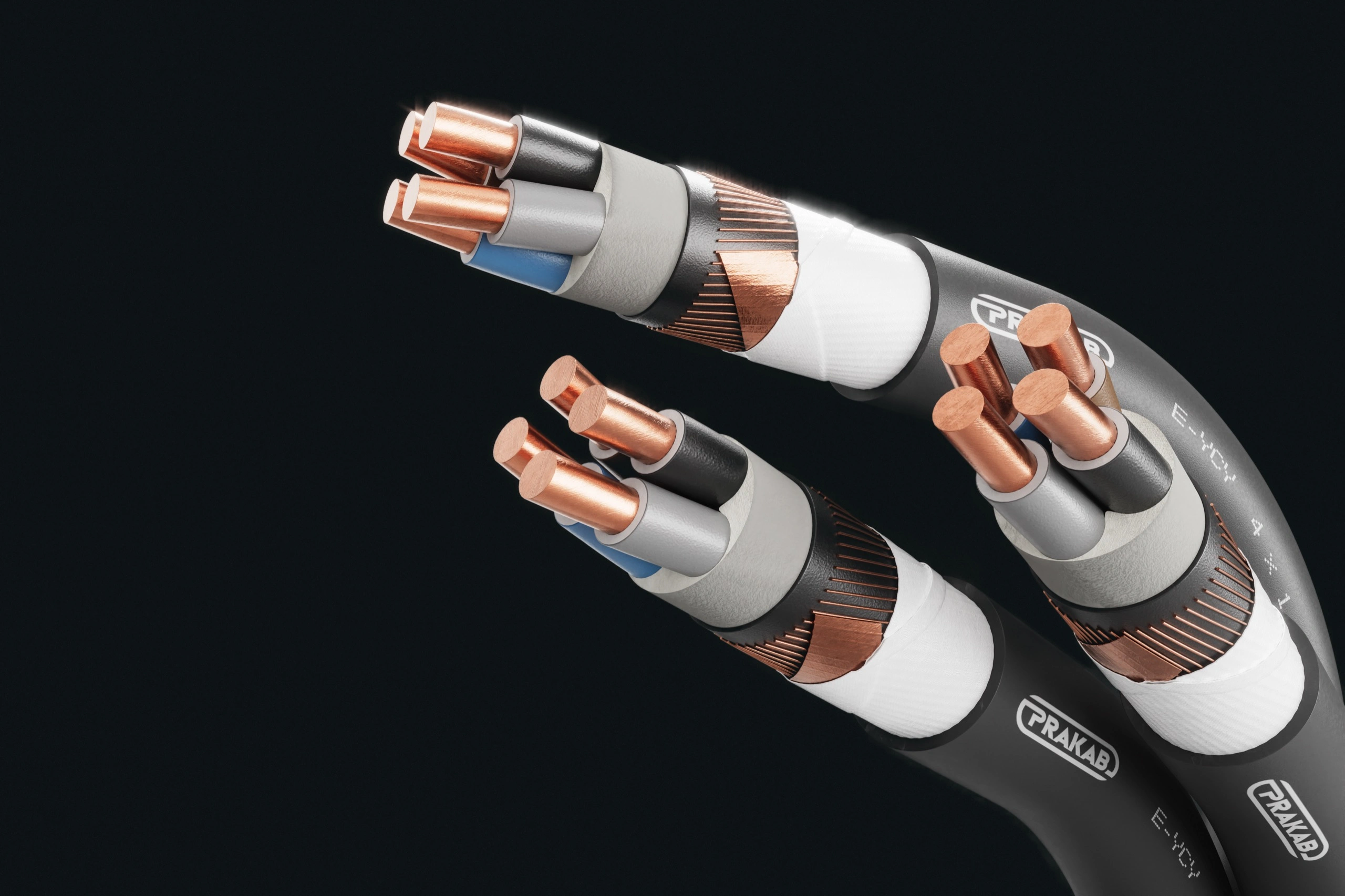

Cable image - E-YCY
+
-
Cable image - E-YCY
+
-

Contact us

Are you interested in this product?

Vojtěch Cuřín

Product supervisor

+420 731 226 023
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section / cross-section of screen (mm²)
Number of cores x nominal cross-section / cross-section of screen (mm²)
Max. conductor resistance (Ω/km)
Current rating in the earth (A)
Current rating in the air (A)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
2 x 1.5 RE / 1.5
12.1
32
20
13.5
238
2 x 1.5 RE / 16
12.1
32
20
14.2
316
3 x 1.5 RE / 1.5
12.1
27
20
13.9
261
3 x 1.5 RE / 6
12.1
27
20
14.5
309
3 x 1.5 RE / 16
12.1
27
20
14.9
331
4 x 1.5 RE / 1.5
12.1
27
20
14.6
293
4 x 1.5 RE / 16
12.1
27
20
15.6
427
5 x 1.5 RE / 1.5
12.1
19
14
15.5
327
5 x 1.5 RE / 16
12.1
19
14
16.2
376
7 x 1.5 RE / 1.5
12.1
16
12
16.7
401
7 x 1.5 RE / 2.5
12.1
16
12
16.7
410
7 x 1.5 RE / 6
12.1
16
12
17.3
448
7 x 1.5 RE / 16
12.1
16
12
17.7
535
10 x 1.5 RE / 2.5
12.1
13
10
19.6
548
10 x 1.5 RE / 6
12.1
13
10
20.2
586
10 x 1.5 RE / 16
12.1
13
10
20.6
674
12 x 1.5 RE / 1.5
12.1
12
10
20.0
581
12 x 1.5 RE / 2.5
12.1
12
10
20.0
590
12 x 1.5 RE / 16
12.1
12
10
21.0
716
14 x 1.5 RE / 4
12.1
12
9
21.3
660
14 x 1.5 RE / 16
12.1
12
9
21.7
767
16 x 1.5 RE / 4
12.1
11
9
22.3
586
16 x 1.5 RE / 16
12.1
11
9
23.2
721
19 x 1.5 RE / 1.5
12.1
11
9
22.4
772
19 x 1.5 RE / 4
12.1
11
9
23.0
799
19 x 1.5 RE / 6
12.1
11
9
23.0
819
19 x 1.5 RE / 16
12.1
11
9
23.4
904
24 x 1.5 RE / 1.5
12.1
9
8
25.7
988
24 x 1.5 RE / 6
12.1
9
8
26.3
1036
24 x 1.5 RE / 16
12.1
9
8
26.7
1119
30 x 1.5 RE / 16
12.1
8
7
27.8
1250
37 x 1.5 RE / 6
12.1
8
7
29.1
1345
37 x 1.5 RE / 16
12.1
8
7
29.5
1426
44 x 1.5 RE / 16
12.1
7
6
32.4
1671
48 x 1.5 RE / 16
12.1
7
6
32.8
1746
61 x 1.5 RE / 16
12.1
7
6
33.5
1951
2 x 2.5 RE / 2.5
7.41
42
27
14.2
286
2 x 2.5 RE / 16
7.41
42
27
15.2
412
3 x 2.5 RE / 2.5
7.41
36
25
14.7
318
3 x 2.5 RE / 16
7.41
36
25
15.7
444
4 x 2.5 RE / 2.5
7.41
36
25
15.6
361
4 x 2.5 RE / 6
7.41
36
25
16.2
400
4 x 2.5 RE / 16
7.41
36
25
16.6
487
5 x 2.5 RE / 2.5
7.41
25
19
16.5
407
5 x 2.5 RE / 16
7.41
25
19
17.5
533
7 x 2.5 RE / 2.5
7.41
21
17
17.9
505
7 x 2.5 RE / 6
7.41
21
17
18.5
543
7 x 2.5 RE / 16
7.41
21
17
18.9
630
10 x 2.5 RE / 4
7.41
18
14
21.7
704
10 x 2.5 RE / 16
7.41
18
14
22.1
812
12 x 2.5 RE / 4
7.41
17
13
22.2
765
12 x 2.5 RE / 16
7.41
17
13
22.6
876
14 x 2.5 RE / 16
7.41
16
13
23.4
948
16 x 2.5 RE / 6
7.41
15
12
22.1
831
16 x 2.5 RE / 16
7.41
15
12
23.1
1101
19 x 2.5 RE / 6
7.41
14
11
25.3
1077
19 x 2.5 RE / 16
7.41
12
11
25.7
1160
24 x 2.5 RE / 6
7.41
12
10
28.6
1338
24 x 2.5 RE / 10
7.41
12
10
29.0
1369
24 x 2.5 RE / 16
7.41
12
10
29.0
1420
30 x 2.5 RE / 6
7.41
11
9
29.9
1527
30 x 2.5 RE / 16
7.41
11
9
30.3
1608
37 x 2.5 RE / 16
7.41
11
9
31.3
1971
48 x 2.5 RE / 16
7.41
9
8
34.5
2441
2 x 4 RE / 4
4.61
54
37
16.5
383
2 x 4 RE / 16
4.61
54
37
16.9
491
3 x 4 RE / 4
4.61
46
34
17.1
431
4 x 4 RE / 4
4.61
46
34
18.1
493
4 x 4 RE / 16
4.61
46
34
18.5
601
5 x 4 RE / 4
4.61
32
25
19.3
561
5 x 4 RE / 16
4.61
32
25
19.7
669
7 x 4 RE / 4
4.61
28
21
20.9
700
7 x 4 RE / 16
4.61
28
21
21.3
808
10 x 4 RE / 6
4.61
25
18
25.4
1019
14 x 4 RE / 16
4.61
24
17
27.5
1304
2 x 6 RE / 6
3.08
68
48
17.5
470
2 x 6 RE / 16
3.08
68
48
16.1
481
3 x 6 RE / 6
3.08
58
43
18.2
535
4 x 6 RE / 6
3.08
58
43
19.3
618
4 x 6 RE / 16
3.08
58
43
19.7
705
5 x 6 RE / 16
3.08
41
32
21.0
794
2 x 10 RE / 16
1.83
90
66
19.9
702
4 x 10 RE / 16
1.83
78
59
22.1
933
4 x 10 RM / 16
1.83
78
59
20.7
876
5 x 10 RM / 16
1.83
55
44
23.8
1021
2 x 16 RE / 10
1.15
116
89
19.6
806
3 x 16 RE / 10
1.15
101
78
21.1
941
4 x 16 RE / 10
1.15
101
78
24.7
1189
4 x 16 RE / 16
1.15
101
78
24.4
1141
5 x 16 RM / 16
1.15
71
59
26.1
1381
3 x 25 RM / 16
0.727
132
105
25.1
1421
4 x 25 RM / 16
0.727
132
105
28.2
1641

Technical changes reserved.

All figures are therefore without guarantee.
