YSLYCY-JZ 600 or YSLYCY-OZ 600

Download PDF

Add to inquiry

Download PDF

To inquiry

PVC control cable, screened

Control and electronics cables

Flexible power, process control and instrumentation cable for industry and machinery environment with specific EMC (electromagnetic compatibility) requirements. The cable is resistant to UV-irradiation, to most commonly used chemicals and to oil and grease. For indoor and outdoor application.

Design

This product consists of:

  • 1
    Kupferleiter, feindrähtig
  • 2
    Aderisolation (PVC)
  • 3
    Innenmantel (PVC schwarz)
  • 4
    Schirm (Geflechtschirm, verzinnte Kupferdrähte)
  • 5
    Mantel (PVC schwarz, UV- und ölbeständig)

Technical Data

Standard: SKW-factory standard
Test Voltage: 4 kV
Rated Voltage: 0.6/1 kV (Uo/U)
Bending radius (min.):
  • 5x Ø der Leitung (feste Verlegung)
  • 10x Ø der Leitung (flexible Verlegung)
Fire properties: EN 60332-1-2: self-extinguishing and flame retardant
Core identification: black with number printing, protective conductor green/yellow (outer layer)
Temperature range:
  • Laying temperature: min. -40°C
  • Conductor temperature: max. 70°C
  • Fixed installation: -40°C up to 70°C
  • Flexible use: 5°C up to 70°C

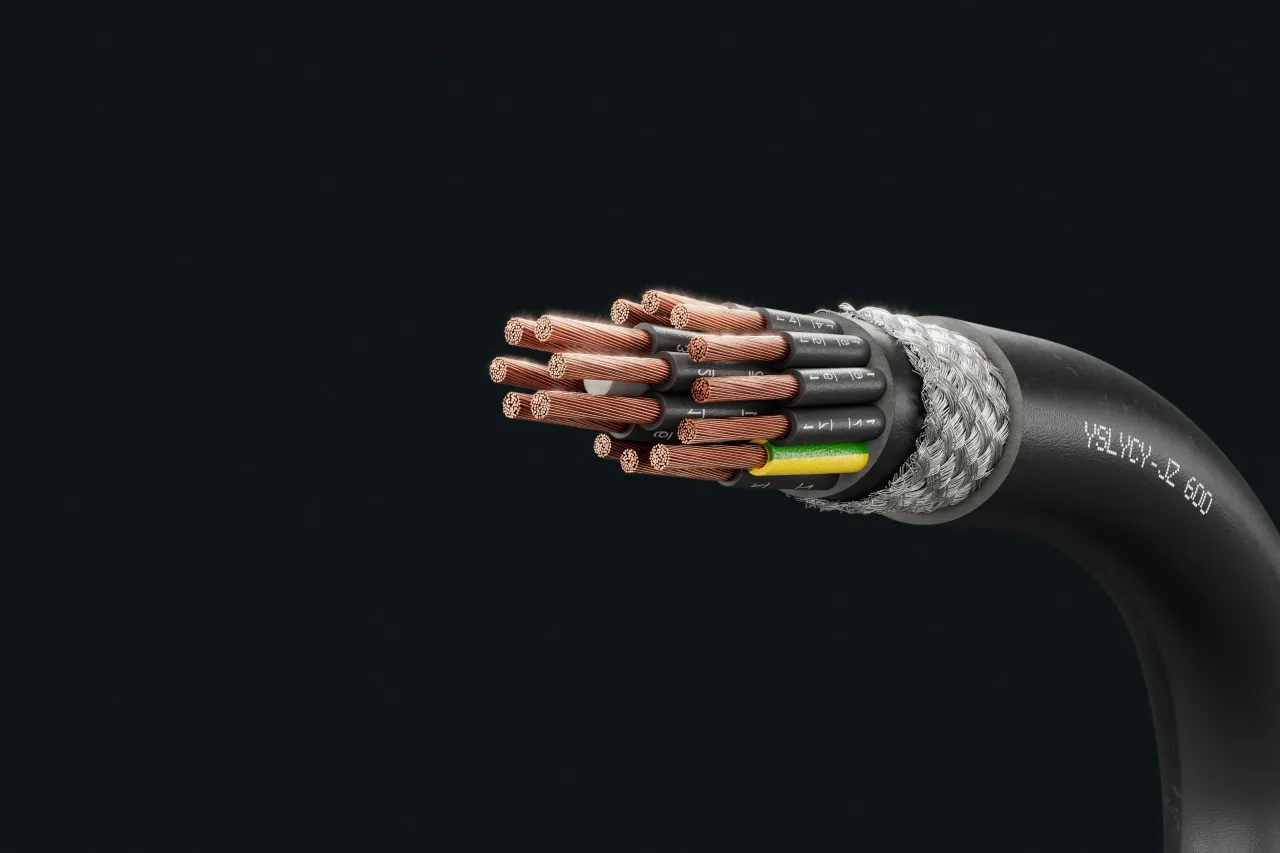

Cable image - YSLYCY-JZ 600 or YSLYCY-OZ 600
+
-

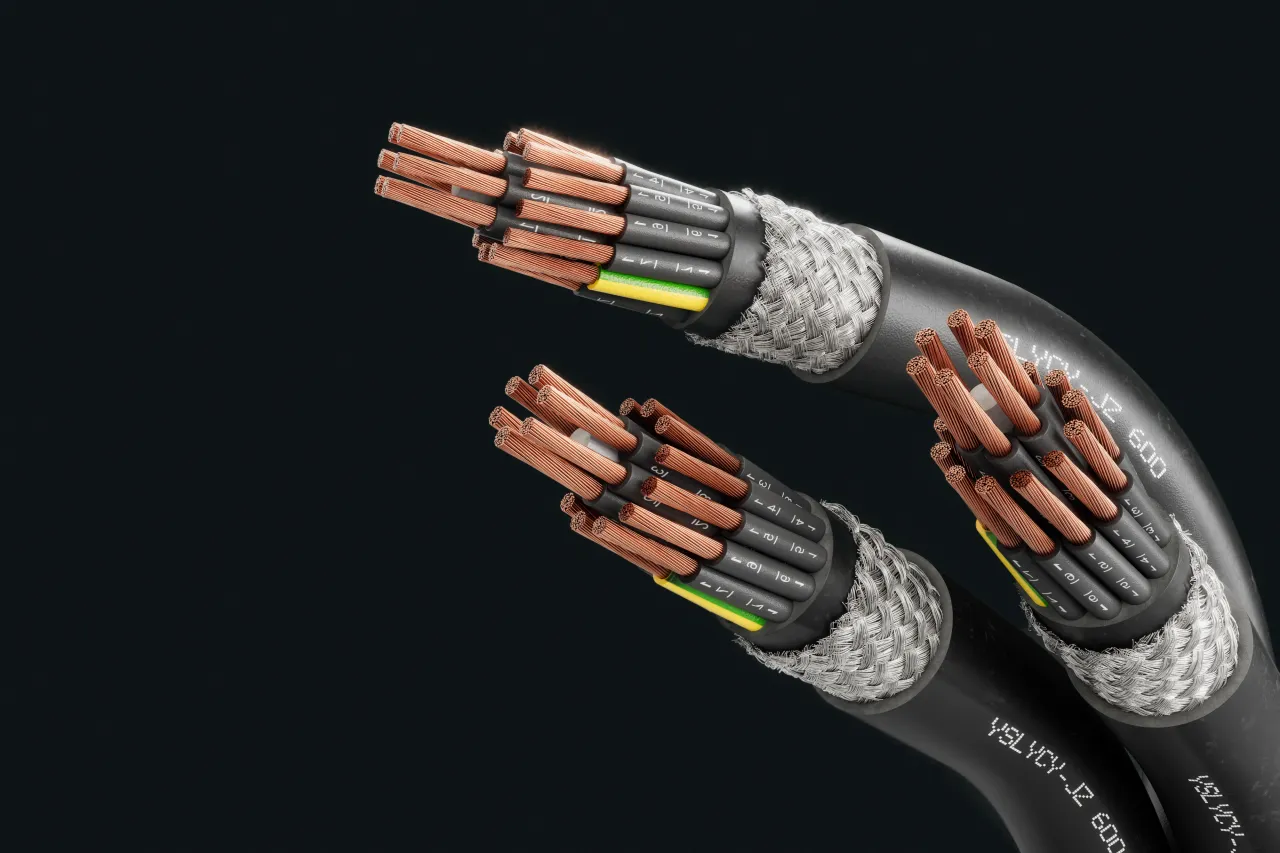

Cable image - YSLYCY-JZ 600 or YSLYCY-OZ 600
+
-
Cable image - YSLYCY-JZ 600 or YSLYCY-OZ 600
+
-

Contact us

Are you interested in this product?

Dogan Özcan, MSc

Product supervisor

+43 (0) 1 70170-154
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Max. conductor resistance (Ω/km)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
Standard lengths/packing (m)
2 x 0,75
26.0
8.7
143
500 T, 1000 T
3 x 0,75
26.0
9.3
155
500 T, 1000 T
4 x 0,75
26.0
10.2
214
500 T, 1000 T
5 x 0,75
26.0
11.0
250
500 T, 1000 T
7 x 0,75
26.0
12.0
319
500 T, 1000 T
18 x 0,75
26.0
17.5
588
500 T, 1000 T
25 x 0,75
26.0
20.7
746
500 T, 1000 T
2 x 1
19.5
9.0
162
500 T, 1000 T
3 x 1
19.5
9.8
143
500 T, 1000 T
4 x 1
19.5
10.6
176
500 T, 1000 T
5 x 1
19.5
11.1
192
500 T, 1000 T
7 x 1
19.5
12.3
245
500 T, 1000 T
12 x 1
19.5
15.6
372
500 T, 1000 T
18 x 1
19.5
67.0
143
500 T, 1000 T
25 x 1
19.5
21.6
706
500 T, 1000 T
2 x 1,5
13.3
10.3
157
500 T, 1000 T
3 x 1,5
13.3
11.1
192
500 T, 1000 T
4 x 1,5
13.3
11.8
220
500 T, 1000 T
5 x 1,5
13.3
13.0
254
500 T, 1000 T
7 x 1,5
13.3
14.2
319
500 T, 1000 T
12 x 1,5
13.3
18.0
503
500 T, 1000 T
18 x 1,5
13.3
21.4
732
500 T, 1000 T
25 x 1,5
13.3
25.4
971
500 T, 1000 T
3 x 2,5
7.98
12.7
250
500 T, 1000 T
4 x 2,5
7.98
13.8
308
500 T, 1000 T
5 x 2,5
7.98
15.0
368
500 T, 1000 T
7 x 2,5
7.98
16.3
438
500 T, 1000 T
12 x 2,5
7.98
21.6
727
500 T, 1000 T
4 x 4
4.95
15.2
418
500 T, 1000 T
5 x 4
4.95
16.9
485
500 T, 1000 T
4 x 6
4.95
17.4
530
500 T, 1000 T
5 x 6
3.3
18.8
640
500 T, 1000 T
4 x 16
1.21
25.6
1238
500 T, 1000 T
5 x 16
1.21
28.5
1528
500 T, 1000 T
4 x 25
0.78
31.2
1856
500 T, 1000 T

Technical changes reserved.

All figures are therefore without guarantee.
