YSLY-JZ or YSLY-OZ

Download PDF

Add to inquiry

Download PDF

To inquiry

PVC control cable, unscreened

Control and electronics cables

For the electrical connection of components of production machines and machine tools. Shows some resistance to all-purpose mineral oil and is not designed for permanent usage in oil baths. The cable is designed for use in buildings and should be installed with mechanical protection.

Design

This product consists of:

  • 1
    Kupferleiter, feindrähtig
  • 2
    Aderisolation (PVC), Adern in Lagen verseilt
  • 3
    Mantel (PVC grau RAL 7001 oder blau RAL 5012 bei Eigensicherheit, bedingt ölbeständig)

Technical Data

Standard: based on VDE 0281
Test Voltage: 4 kV
Rated Voltage: 300/500 V (Uo/U)
Bending radius (min.):
  • 5x Ø der Leitung (feste Verlegung)
  • 7,5x Ø der Leitung (flexible Verlegung)
Fire properties: EN 60332-1-2: self-extinguishing and flame retardant
Core identification: black with number printing, with one core green-yellow (JZ), without (OZ)
Temperature range:
  • Laying temperature: min. 5°C
  • Conductor temperature: max. 60°C
  • Short circuit temperature: max. 150°C
  • Fixed installation: -50°C up to 70°C
  • Flexible use: -5°C up to 70°C

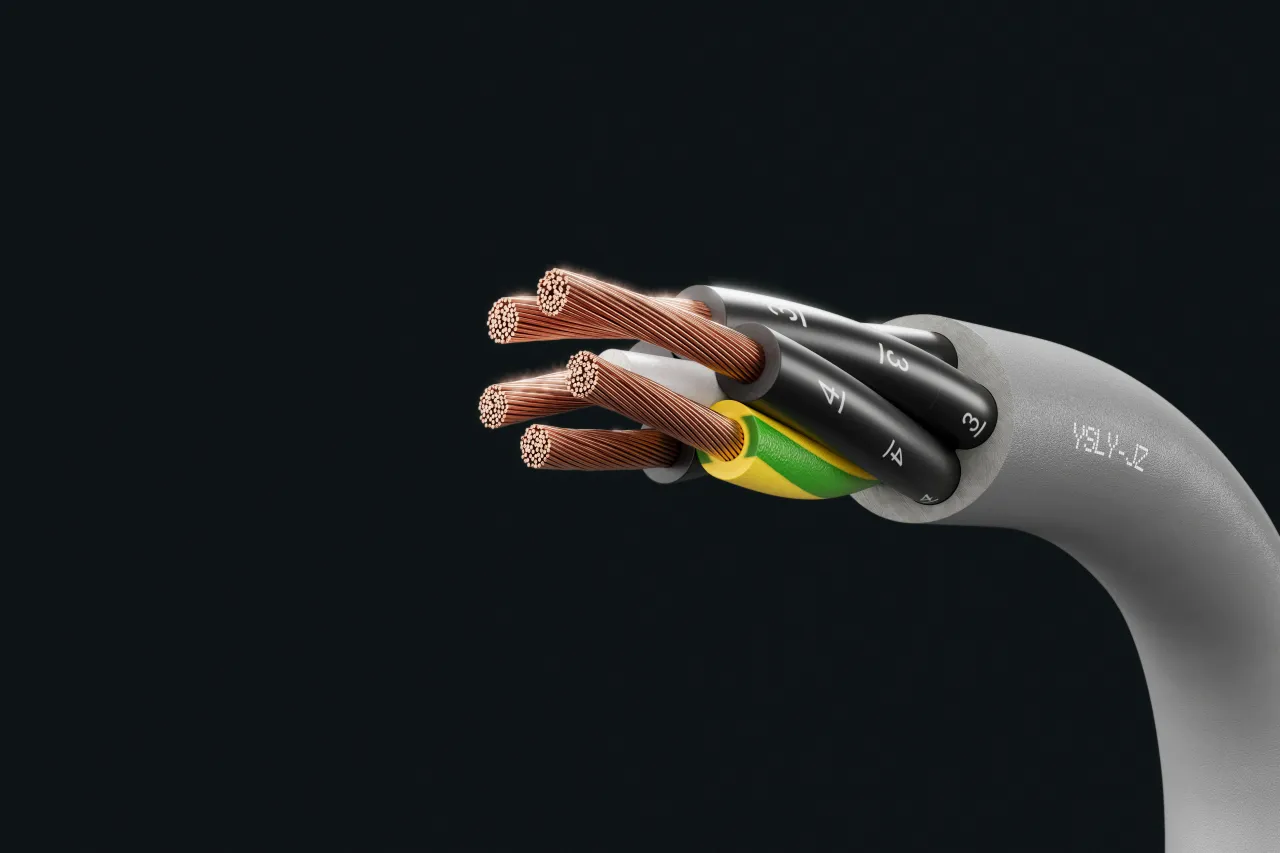

Cable image - YSLY-JZ or YSLY-OZ
+
-

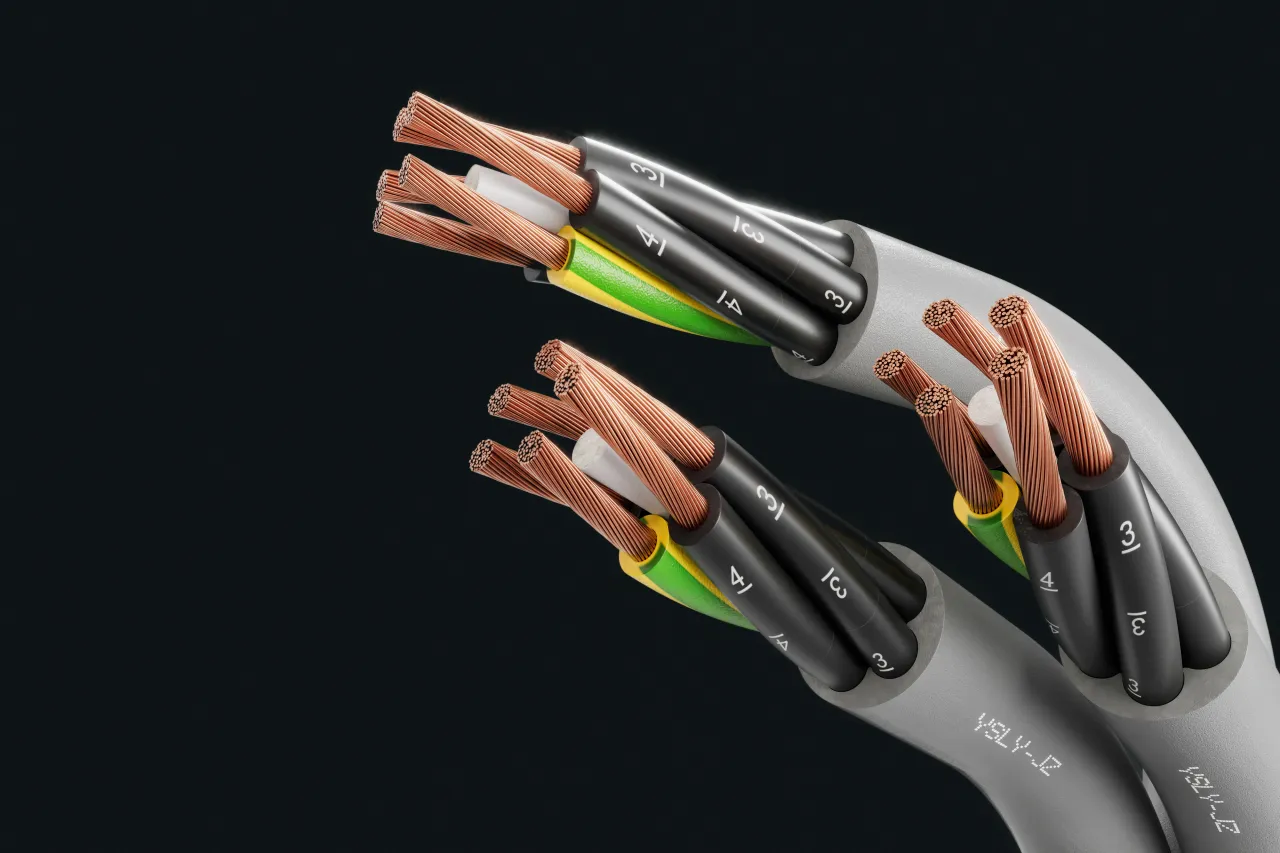

Cable image - YSLY-JZ or YSLY-OZ
+
-
Cable image - YSLY-JZ or YSLY-OZ
+
-

Contact us

Are you interested in this product?

Dogan Özcan, MSc

Product supervisor

+43 (0) 1 70170-154
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Max. conductor resistance (Ω/km)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
Standard lengths/packing (m)
2 x 0,5
39.0
4.8
32
100 R, 500 SP
3 x 0,5
39.0
5.1
39
100 R, 500 SP
4 x 0,5
39.0
5.5
47
100 R, 500 SP
5 x 0,5
39.0
6.0
55
100 R, 500 SP
7 x 0,5
39.0
6.7
81
100 R, 500 SP
10 x 0,5
39.0
8.4
101
500 SP, 1000 SP
12 x 0,5
39.0
8.7
115
500 SP, 1000 SP
14 x 0,5
39.0
9.1
131
500 SP, 1000 SP
16 x 0,5
39.0
10.3
151
500 SP, 1000 SP
18 x 0,5
39.0
10.3
166
500 SP, 1000 SP
21 x 0,5
39.0
11.7
197
500 T, 1000 T
25 x 0,5
39.0
12.5
228
500 T, 1000 T
30 x 0,5
39.0
12.9
264
500 T, 1000 T
34 x 0,5
39.0
13.9
296
500 T, 1000 T
40 x 0,5
39.0
15.4
452
500 T, 1000 T
50 x 0,5
39.0
17.5
510
500 T, 1000 T
61 x 0,5
39.0
19.1
670
500 T, 1000 T
2 x 0,75
26.0
5.2
40
50 R, 100 R, 500 SP, 1000 SP
3 x 0,75
26.0
5.5
48
500 T, 1000 T
4 x 0,75
26.0
6.0
59
500 T, 1000 T
5 x 0,75
26.0
6.5
70
100 R, 500 SP
6 x 0,75
26.0
7.3
85
500 T, 1000 T
7 x 0,75
26.0
7.3
94
500 T, 1000 T
10 x 0,75
26.0
9.4
133
500 T, 1000 T
12 x 0,75
26.0
9.7
153
500 T, 1000 T
15 x 0,75
26.0
10.7
195
500 T, 1000 T
16 x 0,75
26.0
11.2
221
500 T, 1000 T
18 x 0,75
26.0
11.5
229
500 T, 1000 T
21 x 0,75
26.0
13.7
256
500 T, 1000 T
25 x 0,75
26.0
15.3
297
500 T, 1000 T
34 x 0,75
26.0
15.3
388
500 T, 1000 T
41 x 0,75
26.0
16.6
668
500 T, 1000 T
42 x 0,75
26.0
17.0
467
500 T, 1000 T
50 x 0,75
26.0
19.8
730
500 T, 1000 T
61 x 0,75
26.0
21.2
890
500 T, 1000 T
80 x 0,75
26.0
26.0
1165
500 T, 1000 T
2 x 1
19.5
5.6
47
500 T, 1000 T
3 x 1
19.5
5.9
58
500 T, 1000 T
4 x 1
19.5
6.5
71
500 T, 1000 T
5 x 1
19.5
7.3
88
500 T, 1000 T
7 x 1
19.5
7.9
113
500 T, 1000 T
10 x 1
19.5
10.2
160
500 T, 1000 T
12 x 1
19.5
10.5
185
500 T, 1000 T
14 x 1
19.5
11.1
211
500 T, 1000 T
16 x 1
19.5
11.9
242
500 T, 1000 T
18 x 1
19.5
12.5
268
500 T, 1000 T
21 x 1
19.5
14.0
310
500 T, 1000 T
25 x 1
19.5
14.9
361
500 T, 1000 T
30 x 1
19.5
15.5
421
500 T, 1000 T
41 x 1
19.5
19.2
715
500 T, 1000 T
50 x 1
19.5
21.1
843
500 T, 1000 T
61 x 1
19.5
22.5
1080
500 T, 1000 T
2 x 1,5
13.3
6.0
58
500 T, 1000 T
3 x 1,5
13.3
6.4
72
500 SP, 1000 SP
4 x 1,5
13.3
7.2
93
500 T, 1000 T
5 x 1,5
13.3
7.8
111
500 T, 1000 T
6 x 1,5
13.3
8.5
129
500 T, 1000 T
7 x 1,5
13.3
8.5
144
500 T, 1000 T
10 x 1,5
13.3
11.0
205
500 T, 1000 T
12 x 1,5
13.3
11.6
243
500 T, 1000 T
14 x 1,5
13.3
12.1
278
500 T, 1000 T
16 x 1,5
13.3
12.8
312
500 T, 1000 T
18 x 1,5
13.3
13.5
346
500 T, 1000 T
21 x 1,5
13.3
15.1
400
500 T, 1000 T
25 x 1,5
13.3
16.2
467
500 T, 1000 T
32 x 1,5
13.3
19.2
820
500 T, 1000 T
34 x 1,5
13.3
19.7
860
500 T, 1000 T
50 x 1,5
13.3
23.7
1296
500 T, 1000 T
61 x 1,5
13.3
25.4
1502
500 T, 1000 T
2 x 2,5
7.98
7.1
85
500 T, 1000 T
3 x 2,5
7.98
7.5
108
500 T, 1000 T
4 x 2,5
7.98
8.3
135
500 T, 1000 T
5 x 2,5
7.98
9.0
162
500 T, 1000 T
7 x 2,5
7.98
10.1
219
500 T, 1000 T
10 x 2,5
7.98
13.0
310
500 T, 1000 T
12 x 2,5
7.98
13.4
361
500 T, 1000 T
16 x 2,5
7.98
14.9
467
500 T, 1000 T
18 x 2,5
7.98
15.8
519
500 T, 1000 T
25 x 2,5
7.98
18.9
705
500 T, 1000 T
34 x 2,5
7.98
24.6
1513
500 T, 1000 T
2 x 4
4.95
8.6
127
500 T, 1000 T
3 x 4
4.95
9.4
167
500 T, 1000 T
4 x 4
4.95
10.3
209
500 T, 1000 T
5 x 4
4.95
11.3
252
500 T, 1000 T
7 x 4
4.95
13.9
488
500 T, 1000 T
2 x 6
3.3
10.0
179
500 T, 1000 T
3 x 6
3.3
11.9
298
500 T, 1000 T
4 x 6
3.3
10.7
232
500 T, 1000 T
5 x 6
3.3
13.1
360
500 T, 1000 T
3 x 10
1.91
14.3
407
500 T, 1000 T
4 x 10
1.91
15.8
514
500 T, 1000 T
5 x 10
1.91
17.4
623
500 T, 1000 T
3 x 16
1.21
16.9
605
500 T, 1000 T
4 x 16
1.21
18.7
769
500 T, 1000 T
5 x 16
1.21
20.6
950
500 T, 1000 T
7 x 16
1.21
23.9
1779
500 T, 1000 T
4 x 25
0.78
22.5
1165
500 T, 1000 T
7 x 25
0.78
31.2
2597
500 T, 1000 T
4 x 35
0.554
24.9
1549
500 T, 1000 T
5 x 35
0.554
33.0
2635
500 T, 1000 T
4 x 50
0.368
29.3
2151
500 T, 1000 T
5 x 50
0.368
33.0
2671
500 T, 1000 T
4 x 70
0.272
42.2
4050
500 T, 1000 T

Technical changes reserved.

All figures are therefore without guarantee.
