YR

Download PDF

Add to inquiry

Download PDF

To inquiry

PVC telecommunications installation cable

Telecommunications cables

Optimal use for intercommunication buildings, not qualified for high voltage systems, always install in safe materials (pipes/tubes and channels)

Design

This product consists of:

  • 1
    Kupferleiter, rund eindrähtig
  • 2
    Aderisolation (PVC), Adern in Lagen verseilt
  • 3
    Mantel (PVC weiß RAL 1013)

Technical Data

Standard: EN 50575
Test Voltage: 500 V
Rated Voltage: 100 V
Bending radius (min.): 8 x Ø der Leitung
Fire properties: CPR classification: Eca
Core identification: DIN 47100
Temperature range:
  • Laying temperature: min. -30°C
  • Conductor temperature: max. 70°C

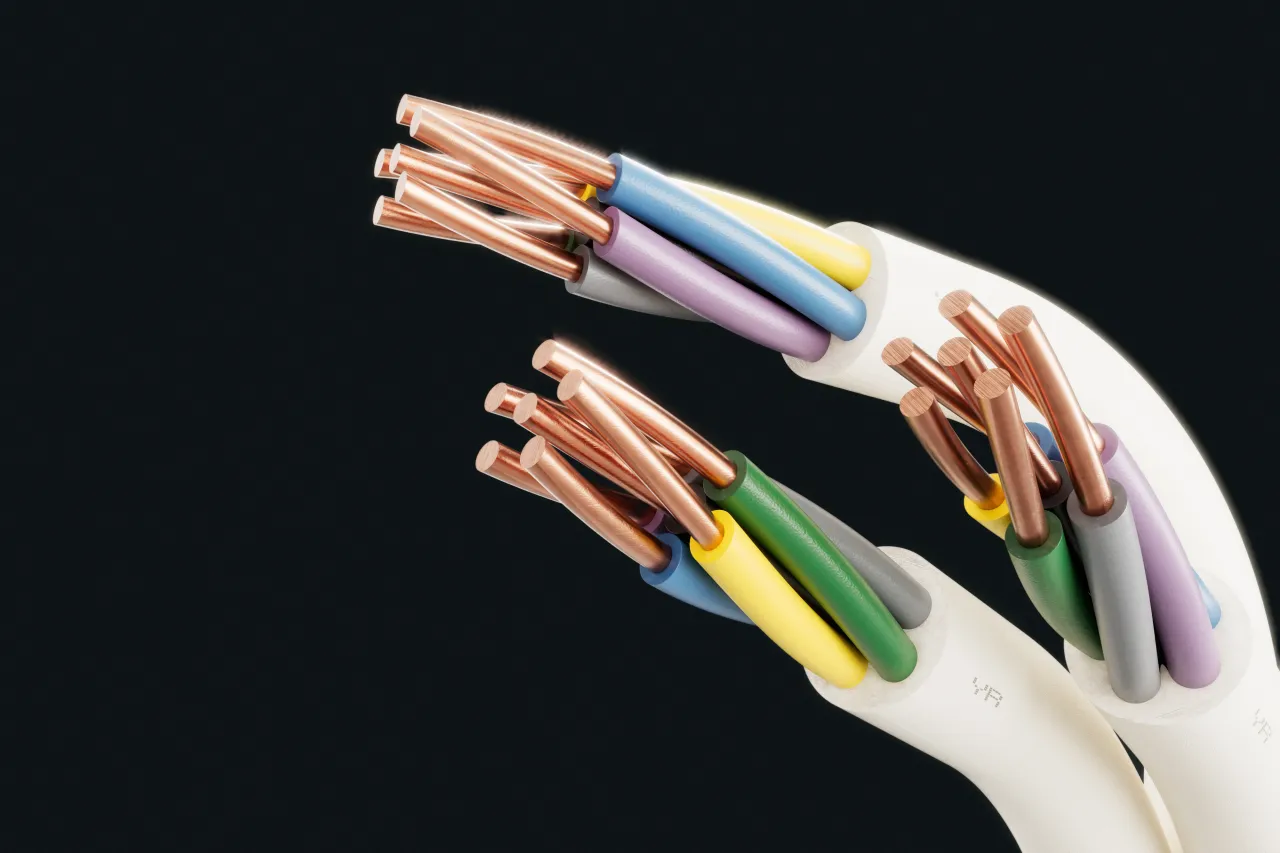

Cable image - YR
+
-

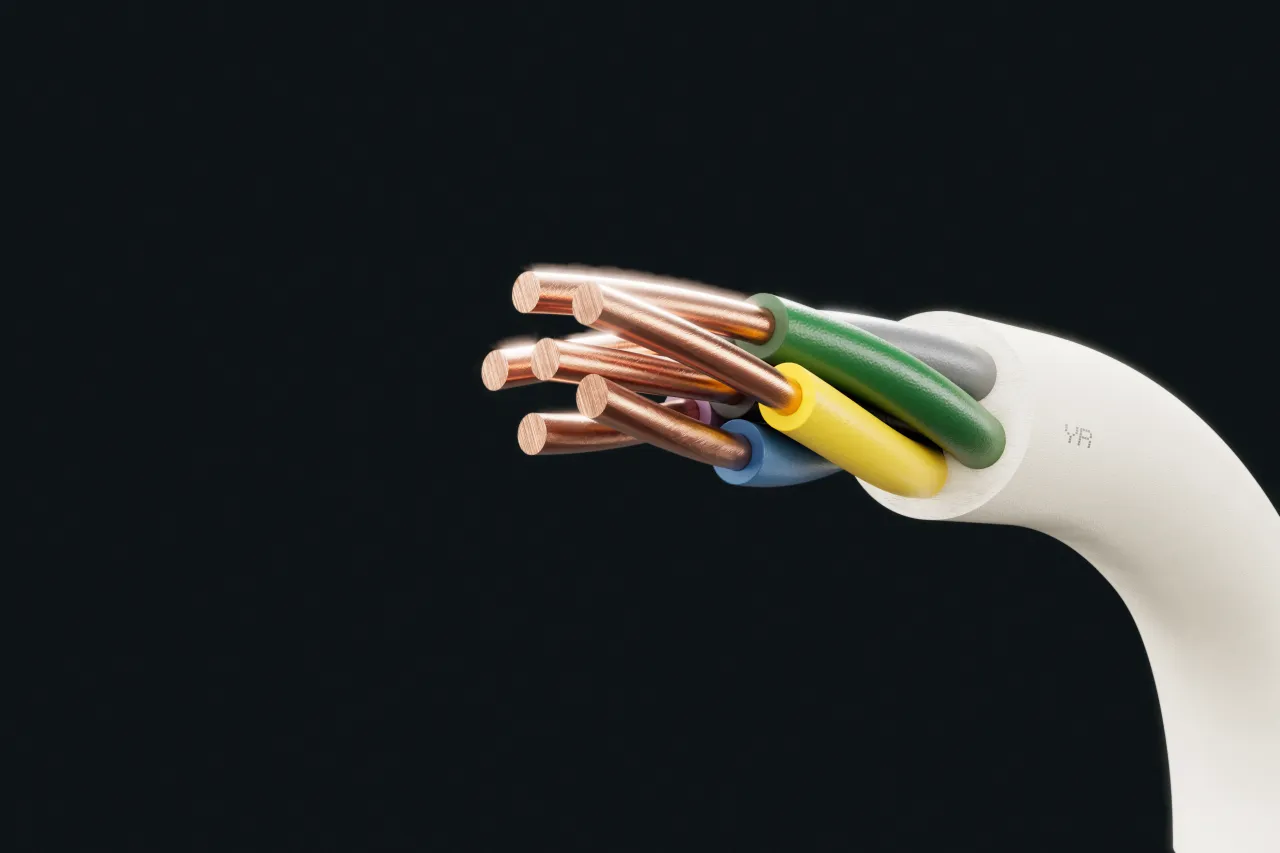

Cable image - YR
+
-
Cable image - YR
+
-

Contact us

Are you interested in this product?

Dogan Özcan, MSc

Product supervisor

+43 (0) 1 70170-154
[email protected]

Electricity

Add to inquiry
Parameter
Unit
Values
Conductor diameter (mm)
mm
0.8
Conductor resistance, max. at 20 °C (Ω/km)
Ω/km
36.6
Insulation resistance, min. at 20 °C (MΩ/km)
MΩ/km
100
Mutual capacitance (approx. value), at 800 Hz (nF/km)
nF/km
100

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
Standard lengths/packing (m)
2 x 0,8
4.2
24
500 SP, 1000 SP
3 x 0,8
4.8
30
500 SP, 1000 SP
4 x 0,8
5.2
36
500 SP, 1000 SP
5 x 0,8
5.8
44
500 SP, 1000 SP
6 x 0,8
6.0
52
500 SP, 1000 SP
8 x 0,8
6.3
63
500 SP, 1000 SP
10 x 0,8
7.4
92
500 SP, 1000 SP
12 x 0,8
7.7
94
500 SP, 1000 SP
14 x 0,8
8.2
107
500 SP, 1000 SP
16 x 0,8
8.4
135
500 SP, 1000 SP
20 x 0,8
9.4
160
500 SP, 1000 SP
24 x 0,8
10.4
194
500 SP, 1000 SP

Technical changes reserved.

All figures are therefore without guarantee.
