PVC/PVC railway signalling cable, unscreened

Safety and control cable for fixed installation in railway installations.

Design

This product consists of:

  • 1
    Copper conductor, round solid (RE)
  • 2
    Core insulation (PVC)
  • 3
    Inner covering (plastic tape)
  • 4
    Sheath (PVC grey RAL 7035 with black stripes)

Technical Data

Standard: ÖVE-K 12
Test Voltage: 2.5 kV
Bending cycles:  Ø des Kabels
Bending radius (min.): 7,5 x Ø of cable
Fire properties: EN 60332-1-2: flame retardant
Core identification: ÖVE-K 12
Temperature range:
  • Laying temperature: min. -5°C
  • Operating temperature: -30°C up to 60°C
  • Conductor temperature: max. 70°C

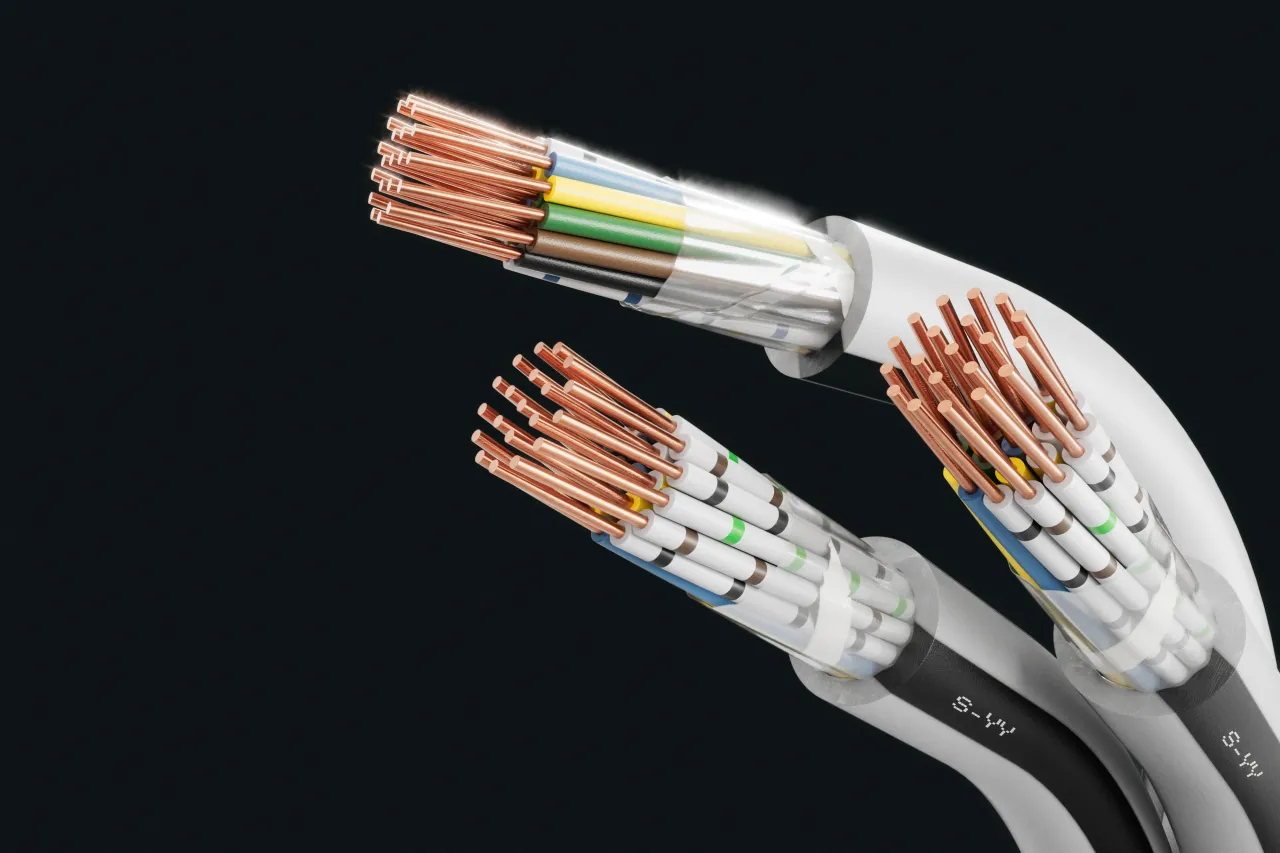

Cable image - S-YY
+
-

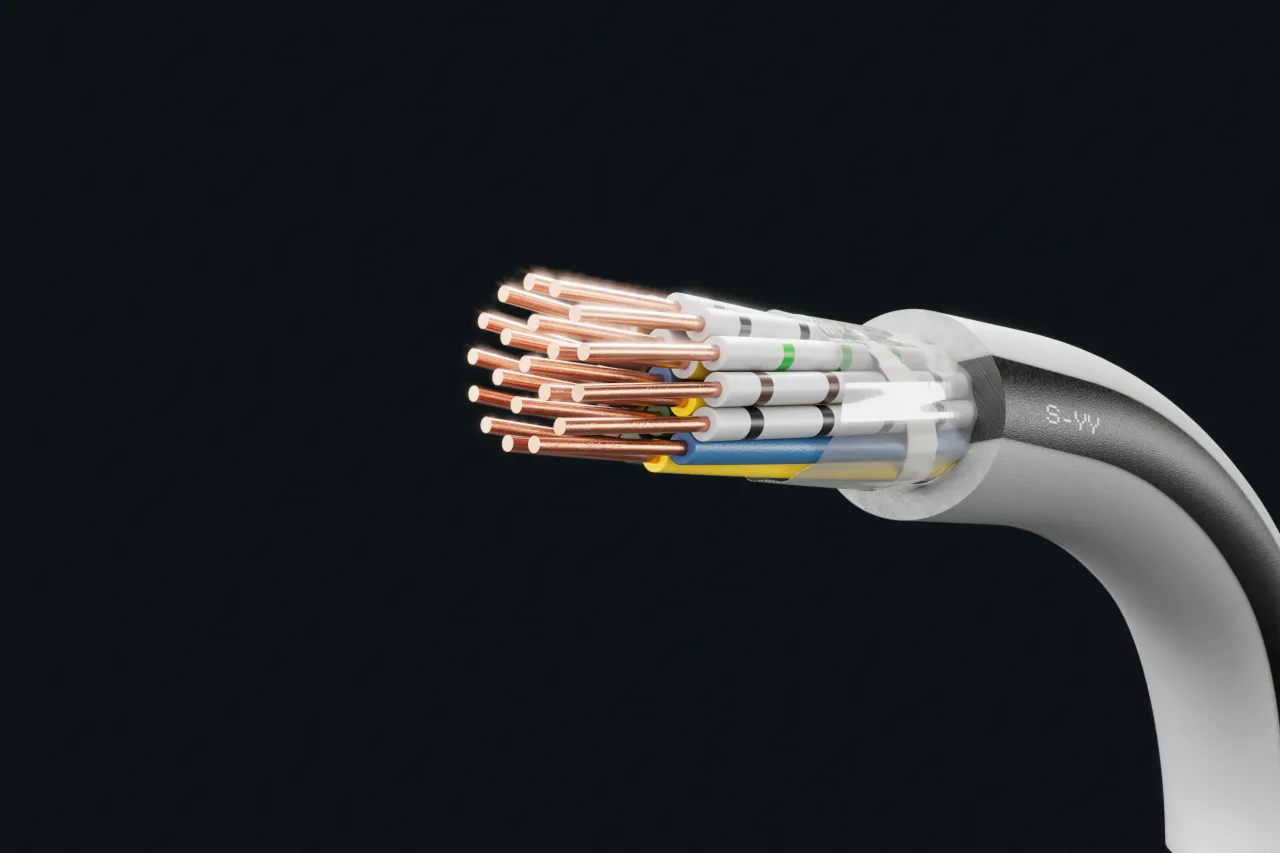

Cable image - S-YY
+
-
Cable image - S-YY
+
-

Contact us

Are you interested in this product?

Ing. Štěpán Laštůvka

Product supervisor

+420 732 912 682
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Standard lengths/packing (m)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
30 x 0,6
1000 T
10,7
176
60 x 0,6
1000 T
14,9
347
10 x 1
1000 T
9,9
148
30 x 1
1000 T
14,9
394
20 x 0,6
1000 T
9,1
124

Technical changes reserved.

All figures are therefore without guarantee.
