S-2Y2YBY quad

Download PDF

Add to inquiry

Download PDF

To inquiry

Railway signalling cable, unscreened, armoured

Railway Signalling and Telecommunications Cables

Safety and control cable for fixed installation in railway installations. The cables must be protected from the constant influence of sunlight.

Design

This product consists of:

  • 1
    Copper conductor, round solid (RE)
  • 2
    Core insulation (PE), cores star quaded and quads stranded in layers
  • 3
    Inner covering (plastic foil)
  • 4
    Inner sheath (PE, black)
  • 5
    Armouring (bare steel tape, wrapped with plastic tape)
  • 6
    Sheath (PVC grey RAL 7035)

Technical Data

Standard: ÖVE-K 11
Rated Voltage: max. 250 V
Bending radius (min.): 12 x Ø of cable
Fire properties: EN 60332-1-2: flame retardant
Core identification: Colour code with trace quad in each layer
Temperature range:
  • Laying temperature: min. -5°C
  • Operating temperature: -30°C up to 60°C
  • Conductor temperature: max. 80°C

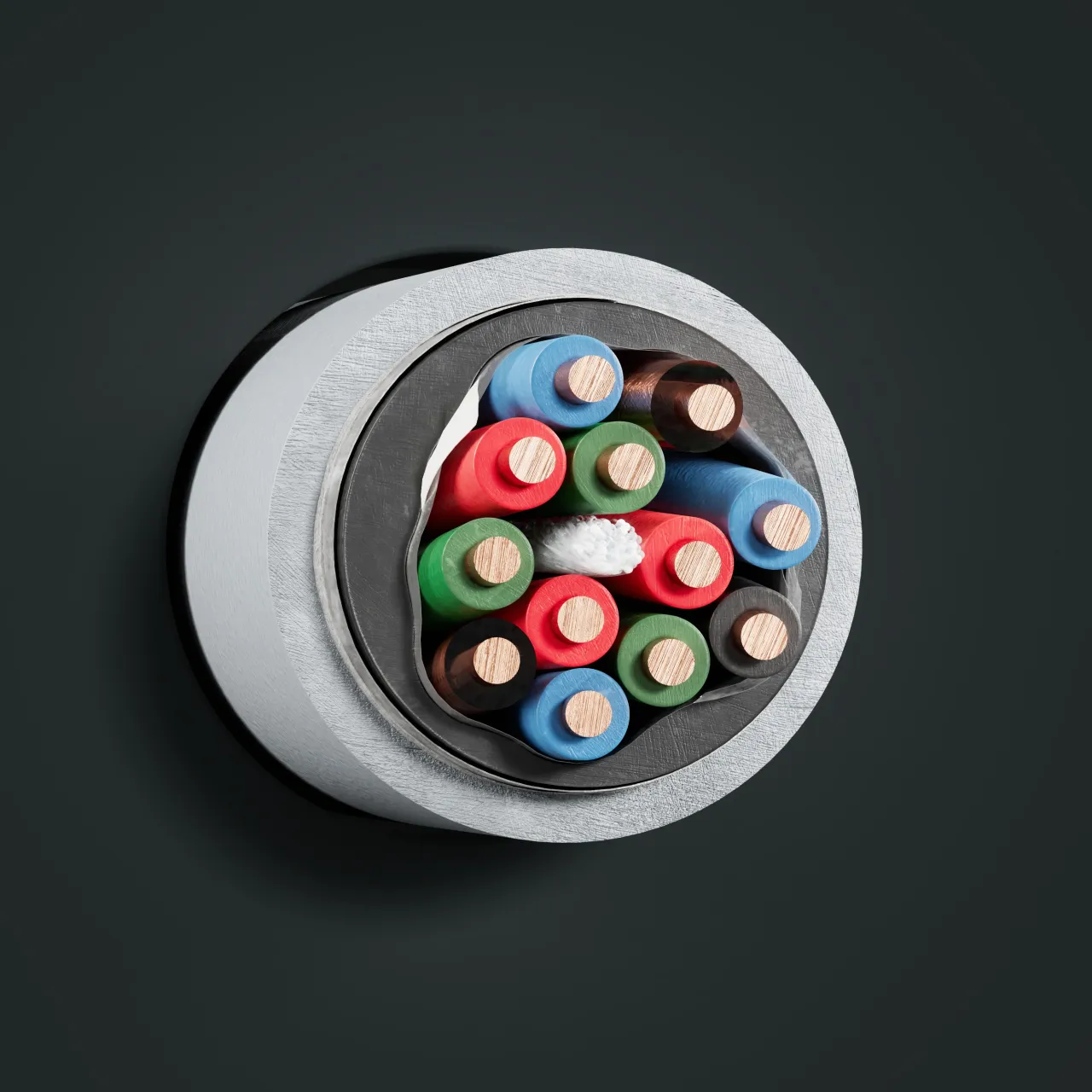

Cable image - S-2Y2YBY quad
+
-

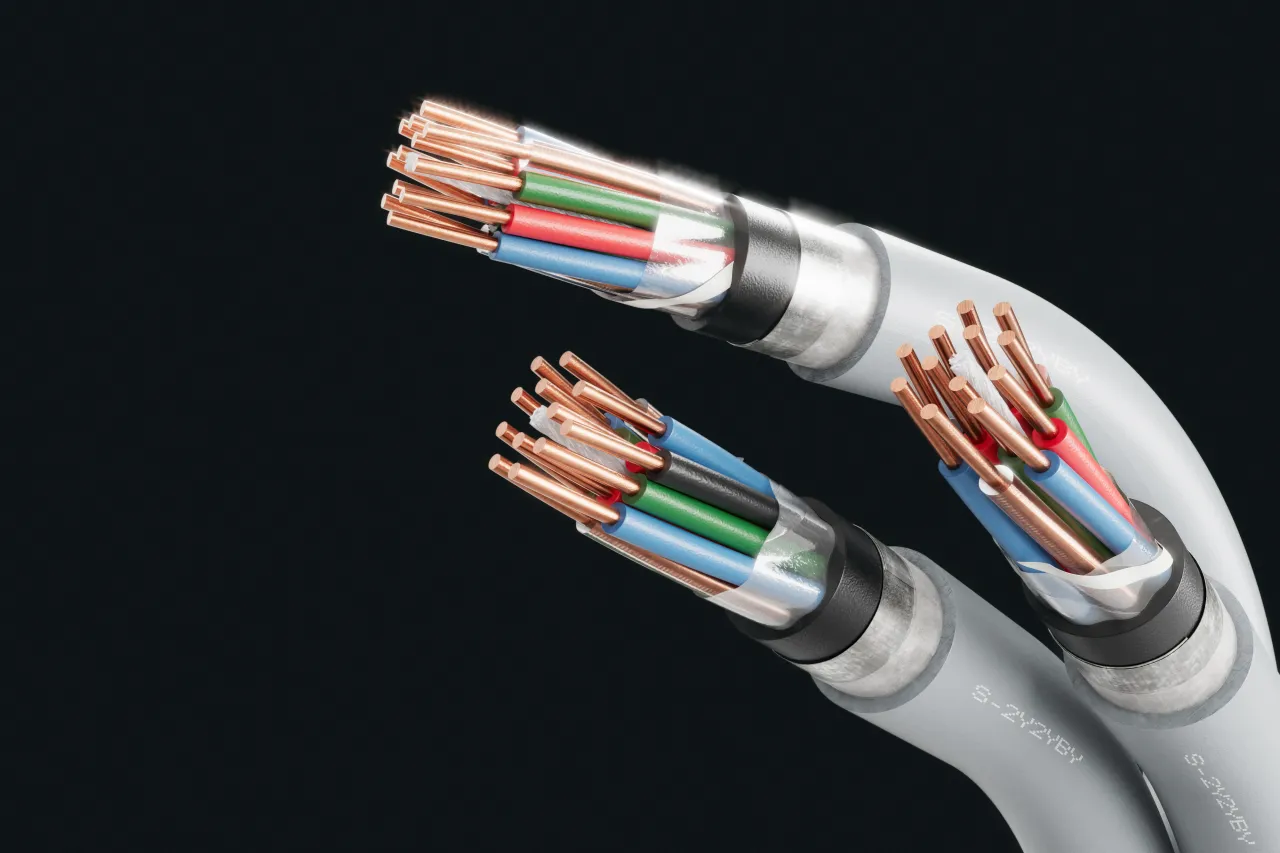

Cable image - S-2Y2YBY quad
+
-

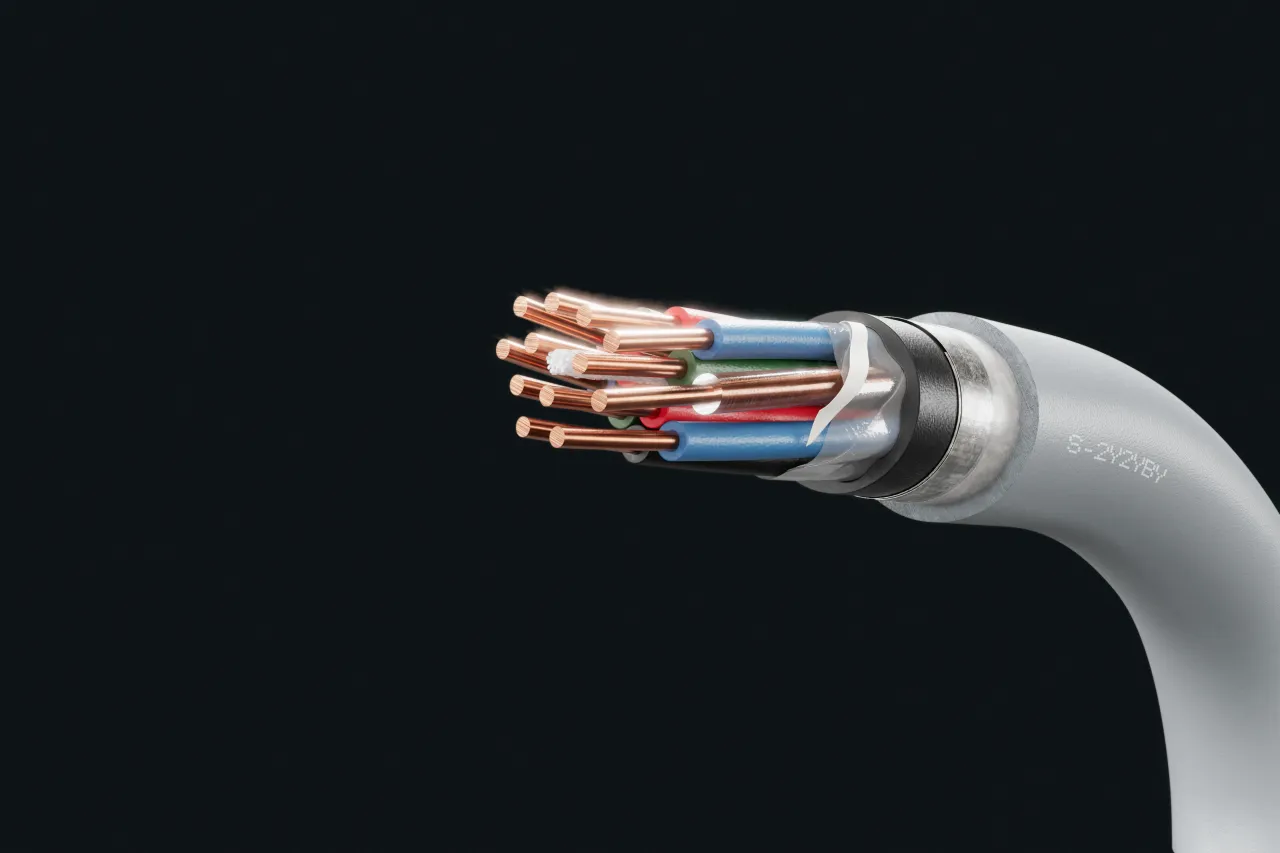

Cable image - S-2Y2YBY quad
+
-

Contact us

Are you interested in this product?

Ing. Štěpán Laštůvka

Product supervisor

+420 732 912 682
[email protected]

Options

Add to inquiry
Number of quads x conductor diameter
Standard lengths/packing (m)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
1 x 4 x 0.8
1000 D
12,3
210
20 x 4 x 1.8
500 D, 1000 D
32,1
1182
5 x 4 x 0.9
500 D, 1000 D
21,0
573
5 x 4 x 1.4
500 D, 1000 D
29,5
977
2 x 4 x 0.8
1000 D
17,3
294
15 x 4 x 1.8
500 D, 1000 D
29,0
979
7 x 4 x 0.9
500 D, 1000 D
23,2
670
7 x 4 x 1.4
500 D, 1000 D
32,6
1181
3 x 4 x 0.8
1000 D
18,4
353
25 x 4 x 1.8
500 D, 1000 D
35,6
1435
10 x 4 x 0.9
500 D, 1000 D
27,2
881
10 x 4 x 1.4
500 D, 1000 D
39,3
1639
5 x 4 x 0.8
1000 D
20,6
469
15 x 4 x 0.9
500 D, 1000 D
31,1
1151
15 x 4 x 1.4
500 D, 1000 D
46,5
2195
7 x 4 x 0.8
500 D, 1000 D
21,0
546
20 x 4 x 0.9
500 D, 1000 D
35,3
1449
20 x 4 x 1.4
500 D, 1000 D
52,5
2816
10 x 4 x 0.8
500 D, 1000 D
25,5
754
25 x 4 x 0.9
500 D, 1000 D
38,7
1696
25 x 4 x 1.4
500 D, 1000 D
57,8
3414
1 x 4 x 0.8
500 D, 1000 D
14,0
244
1 x 4 x 0.9
500 D, 1000 D
15,7
331
2 x 4 x 0.8
500 D, 1000 D
18,0
337
2 x 4 x 0.9
500 D, 1000 D
24,5
608
3 x 4 x 0.8
500 D, 1000 D
18,2
403
3 x 4 x 0.9
500 D, 1000 D
25,3
698

Technical changes reserved.

All figures are therefore without guarantee.
