1-CSKHDH-V180 P15-R - P60-R, PH120-R, P75090-R, PS15 - PS60, B2ca s1a d1 a1 SiR/FRNC energy cables, with circuit integrity, armoured, UV resistant
Safety Cables
Cables are designed for fixed distribution of electricity in ordinary environment in hotels, hospitals, subway, airports, etc., to protect people and technical equipment of buildings in case of fire, where there is requirement to maintain the functionality of the entire cable installation in fire. In case of fire, the cable releases a small amount of heat and smoke. The cables are UV-resistant.

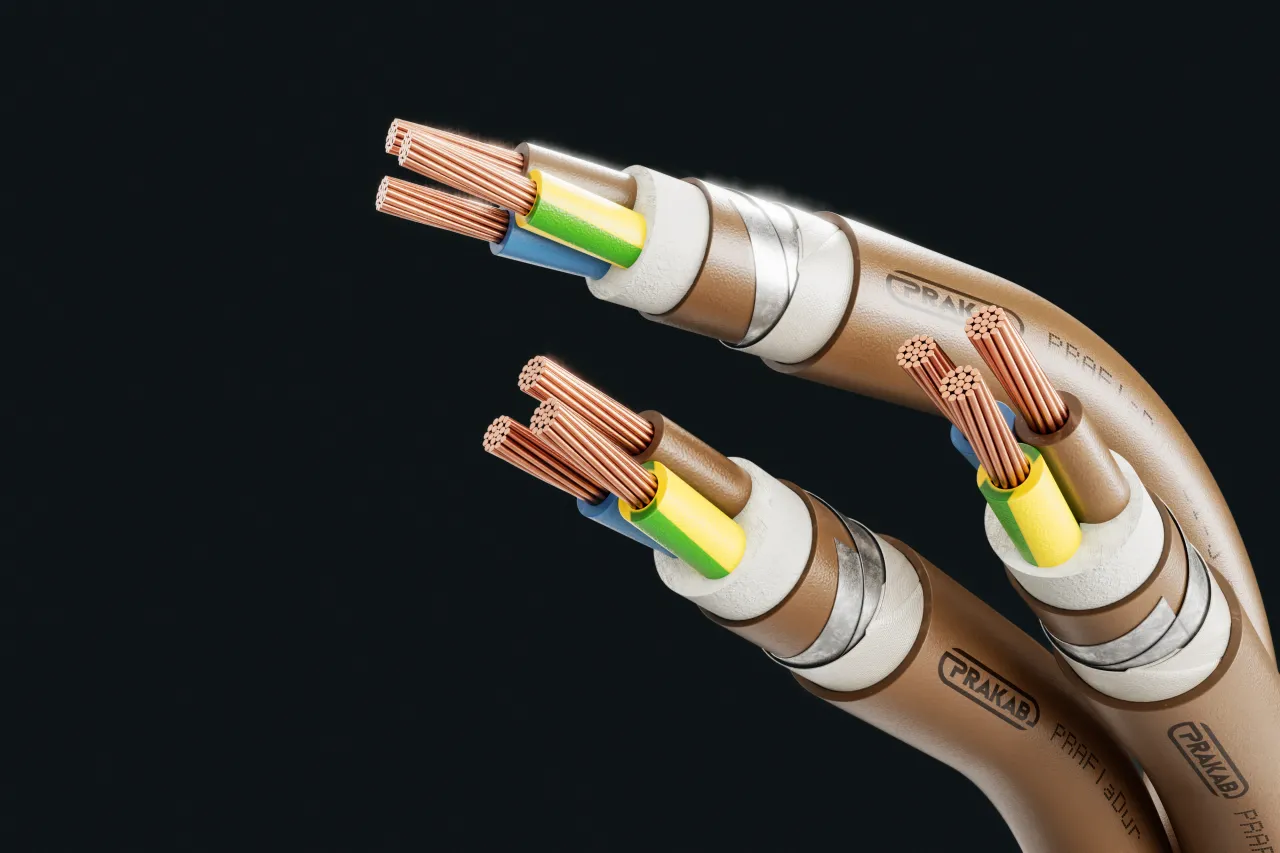

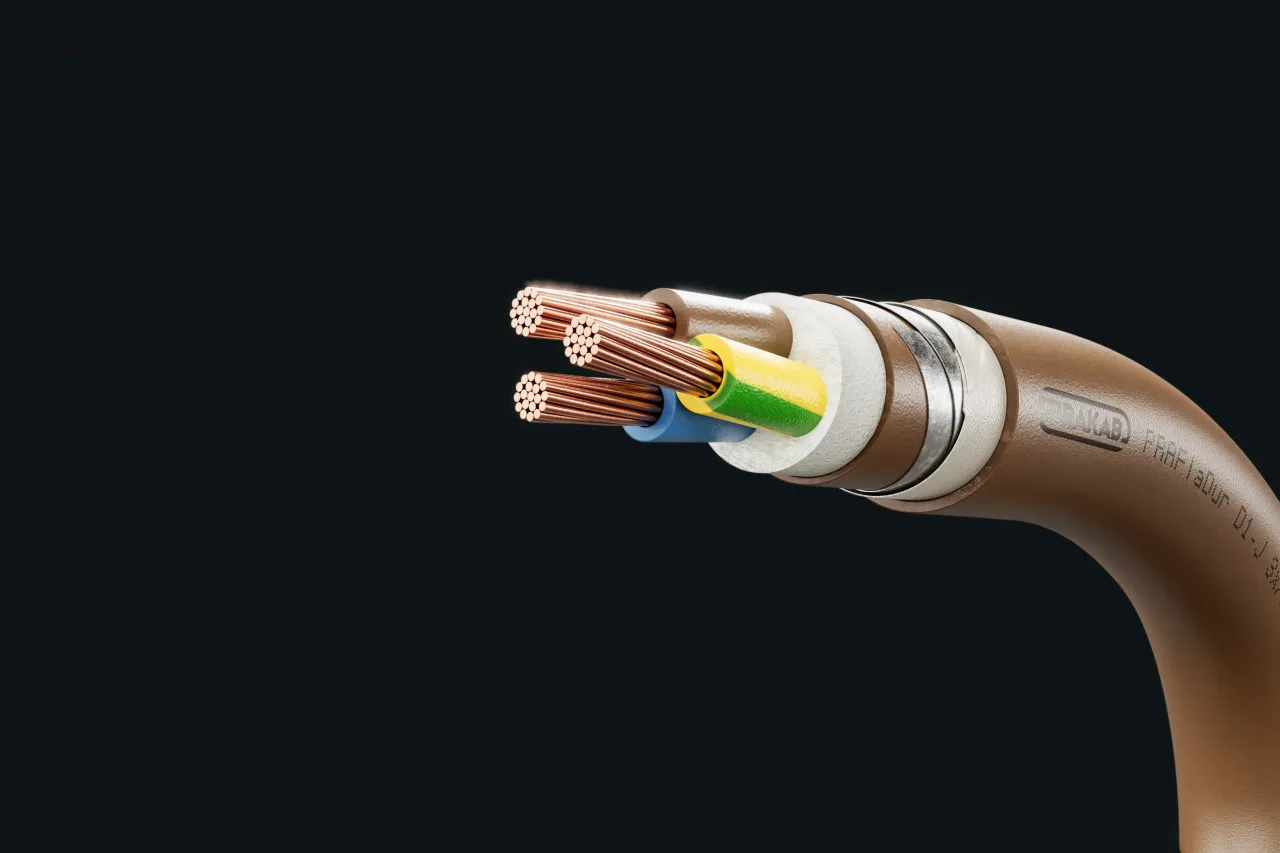

Design
This product consists of:
- 1Copper conductor, round solid (RE) resp. round stranded (RM)
- 2Core insulation (silicone rubber)
- 3Inner covering (halogen-free bedding compound)
- 4Inner sheath (halogen-free polymer compound)
- 5Armouring (galvanized steel tape)
- 6Outer sheath (halogen-free polymer compound, brown)
Technical Data
Standard: ČSN 34 7660-100
Certificate: EZÚ Czech Republic
Test Voltage: core/core 4 kV / 50 Hz
Rated Voltage: 0.6/1 kV
Bending radius (min.): 12 x Ø of cable (multicore)
Fire properties:
- ČSN EN 60332-1-2: self-extinguishing
- ČSN EN 60754-2: halogen-free, non-corrosive combustion gases
- ČSN EN 61034-2: low smoke emission
- ČSN EN 60332-3-22: reduced flame propagation
- ČSN 73 0895, STN 92 0205: circuit integrity
- ČSN EN 13501-6: fire classification
- CPR Classification: B2ca s1a d1 a1
Core identification: ČSN 33 0166 ed. 2, ČSN EN 50334
Temperature range:
- Laying temperature: min. -5°C
- Operating temperature: -50°C up to 60°C
- Conductor temperature: max. 90°C
- Short circuit temperature: max. 90°C
