1-CSKHCH-V180 P15-R - P60-R, PS15 - PS60, P(750)90-R B2ca s1d1a1 SiR/FRNC energy cables, with circuit integrity, screened, UV-resistant
Safety Cables
These cables are intended for the stationary distribution of electrical energy in dry or damp premises and for fixed installations in air or concrete. Suitable for hotels, hospitals, underground railways, airports etc. to protect people and technical building equipment in the event of fire.. Not allowed for installations underground or in water. These cables are UV-protected.

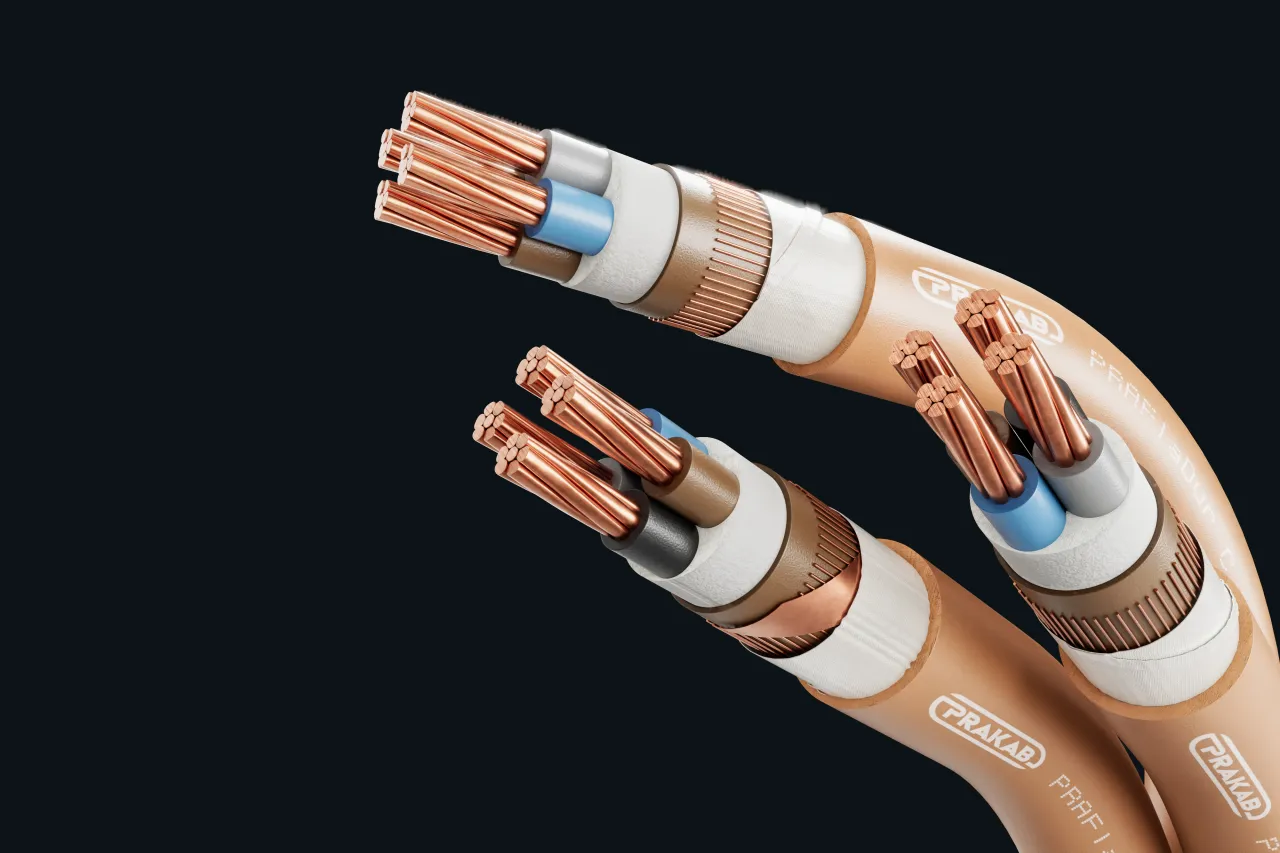

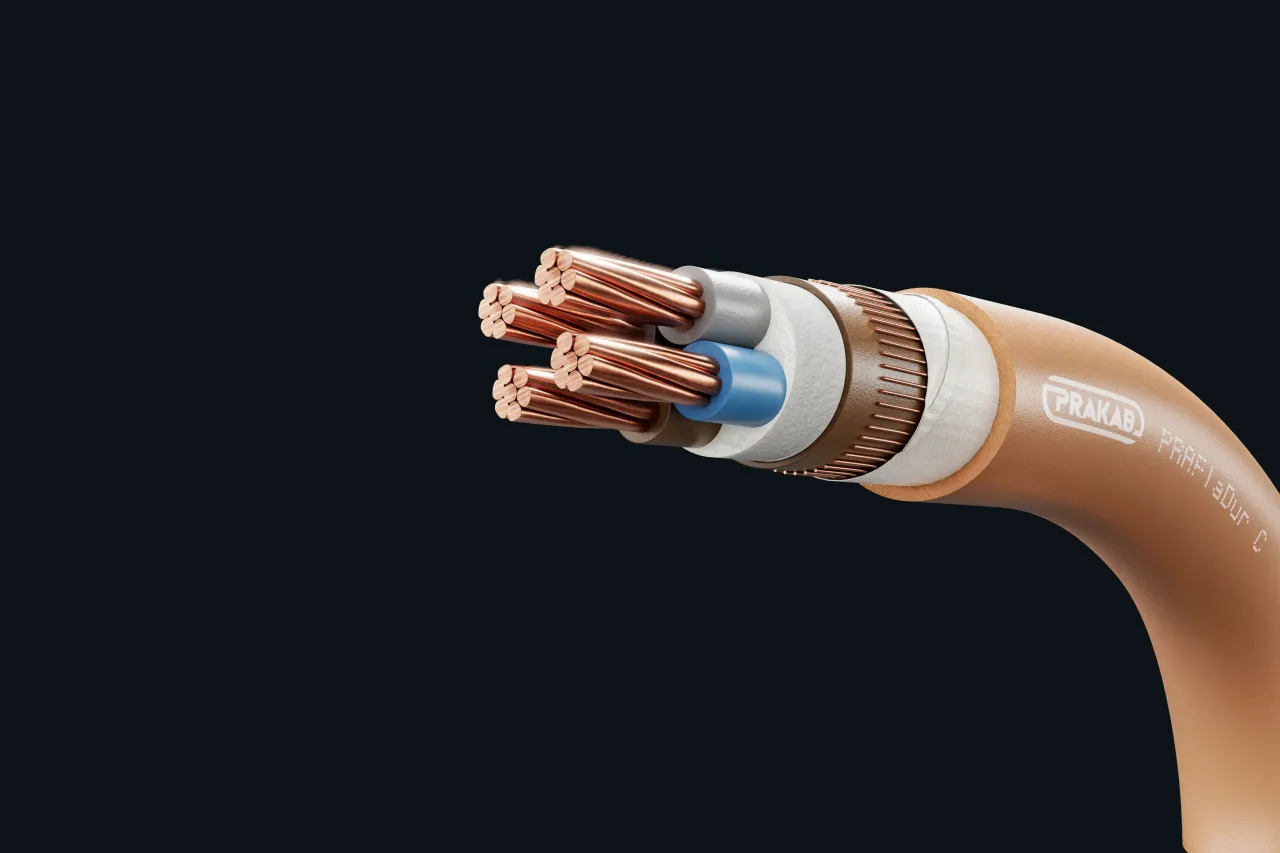

Design
This product consists of:
- 1Copper conductor, round solid (RE) resp. round stranded (RM)
- 2Core insulation (silicone rubber)
- 3Inner covering (halogen-free filling compound)
- 4Concentric screen (bare copper wires), counter helix (copper tape) and halogen-free plastic tape
- 5Sheath (halogen-free polymer compound, brown)
Technical Data
Standard: ČSN 34 7660-100, TP PRAKAB 01/21
Certificate:
- EZÚ Czech Republic
- TSÚS Slovakia
Test Voltage: core/core 4 kV / 50 Hz
Rated Voltage: 0,6/1 kV
Bending radius (min.):
- 12 x Ø of cable (multicore)
- 15 x Ø of cable (singlecore)
Fire properties:
- ČSN EN 60332-1-2: self-extinguishing
- ČSN EN 60754-2: halogen-free, non-corrosive combustion gases
- ČSN EN 61034-2: low smoke emission
- ČSN EN 60332-3-22: reduced flame propagation
- ČSN 73 0895, STN 92 0205: circuit integrity
- ČSN EN 13501-6: fire classification
Core identification:
- ČSN 33 0166 ed. 2
- ČSN EN 50334
Temperature range:
- Laying temperature: min. -5°C
- Operating temperature: -40°C up to 60°C
- Conductor temperature: max. 90°C
- Short circuit temperature: max. 250°C
