PE-ALT-CLT

Download PDF

Add to inquiry

Download PDF

To inquiry

Railway signalling cable, unscreened, armoured

Safety and control cable for fixed installation in railway installations.

Design

This product consists of:

  • 1
    Copper conductor, round solid (RE)
  • 2
    Core insulation (PE), cores star quaded and quads stranded in layers
  • 3
    Inner covering (plastic tape)
  • 4
    Inner sheath (PE black)
  • 5
    Armouring (two layers galvanized steel tapes)
  • 6
    Outer sheath (PE black, UV-resistant)

Technical Data

Standard: SBB-Standard CFF FFS 3001.52.1000
Test Voltage:
  • core/core 2 kV / 50 Hz
  • core/screen 2 kV / 50 Hz
Rated Voltage:
  • 420 Veff (AC)
  • 600 V (DC)
Bending radius (min.): 20 x Ø of cable
Core identification: SBB-Standard CFF FFS 3001.52.1000
Temperature range:
  • Laying temperature: min. -5°C
  • Operating temperature: -40°C up to 70°C

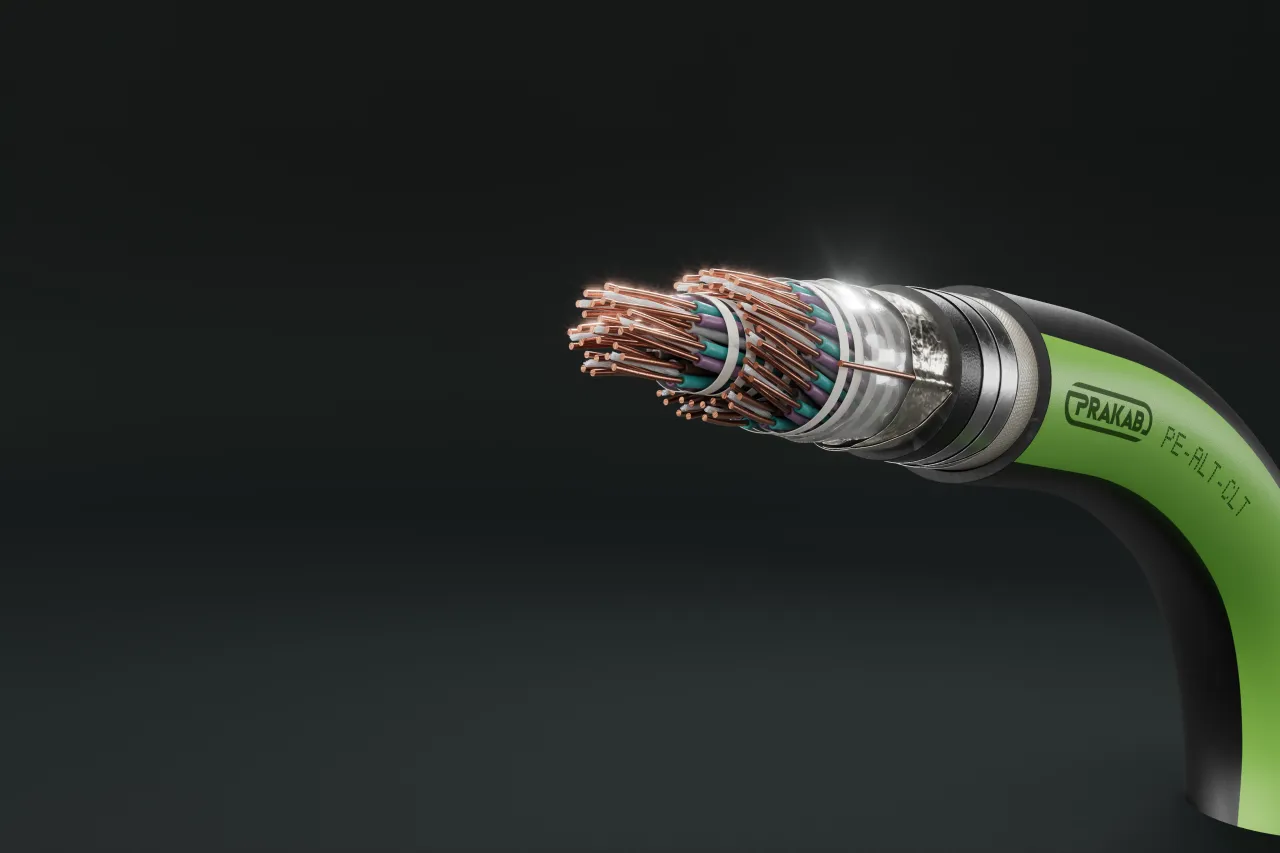

Cable image - PE-ALT-CLT
+
-

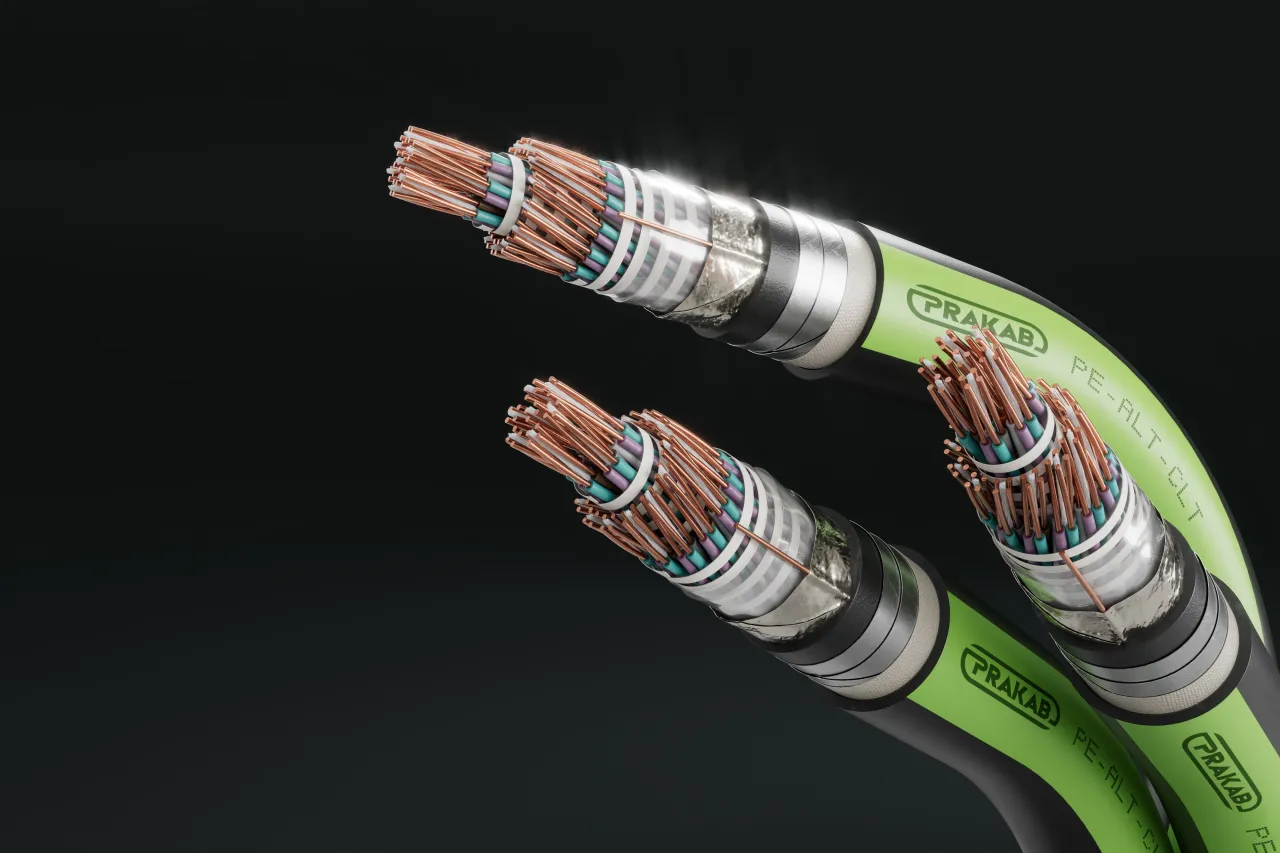

Cable image - PE-ALT-CLT
+
-
Cable image - PE-ALT-CLT
+
-

Contact us

Are you interested in this product?

Ing. Štěpán Laštůvka

Product supervisor

+420 732 912 682
[email protected]

Electricity

Add to inquiry
Parameter
Unit
Values
Conductor diameter (mm)
mm
0.8
1.5
Loop resistance max (Ω/km)
Ω/km
73.5
20.9
Capacitance unbalance at 800 Hz, k1 max. (pF/km)
pF/km
380
380
Capacitance unbalance k9 - k12, max. at 800 Hz (pF/km)
pF/km
200
200
Capacitance unbalance earth/core at 800 Hz, ea1, ea2 max. (pF/km)
pF/km
640
640
Mutual capacitance, max. (nF/km)
nF/km
49
55

Options

Add to inquiry
Number of quads x conductor diameter
Outer diameter appr. (mm)
Total weight appr. (kg/km)
1 x 4 x 0.8
15.3
261
3 x 4 x 0.8
19.4
410
5 x 4 x 0.8
22.5
547
10 x 4 x 0.8
27.2
790
20 x 4 x 0.8
33.5
1241
30 x 4 x 0.8
38.3
1582
50 x 4 x 0.8
47.1
2365
1 x 4 x 1.5
17.9
387
3 x 4 x 1.5
25.6
765
5 x 4 x 1.5
29.4
1024
10 x 4 x 1.5
37.4
1682

Technical changes reserved.

All figures are therefore without guarantee.
