Cables

(N)HXH FE180/E90

Download PDF

Add to inquiry

Download PDF

To inquiry

SiR/FRNC halogen-free energy cable with insulation integrity and circuit integrity VDE Reg. No. 8310

Safety Cables with circuit integrity

These cables are intended for the stationary distribution of electrical energy in dry or damp premises and for fixed installations in air or concrete. Suitable for hotels, hospitals, underground railways, airports etc. to protect people and technical building equipment in the event of fire if circuit integrity is required.

Design

This product consists of:

  • 1
    Copper conductor, round solid (RE) resp. round stranded (RM)
  • 2
    Primary core insulation (silicone rubber)
  • 3
    Secondary core insulation (silicone rubber)
  • 4
    Inner covering (halogen-free bedding compound)
  • 5
    Sheath (halogen-free polymer compound, orange)

Technical Data

Standard: adapted to DIN VDE 0266
Certificate:
  • VDE Germany
  • VDE Reg. No. 8310
Test Voltage: core/core 4 kV / 50 Hz
Rated Voltage: 0,6/1 kV
Bending radius (min.):
  • 12 x Ø of cable (multi core)
  • 15 x Ø of cable (single core)
Fire properties:
  • EN 60332-1-2: flame retardant
  • EN 60754-2: halogen-free, non-corrosive combustion gases
  • EN IEC 60332-3-24: reduced flame propagation
  • EN 61034-2: low smoke emission
  • DIN VDE 0472-814: insulation integrity FE 180
  • DIN 4102-12: circuit integrity E90
Core identification: HD 308 S2
Temperature range:
  • Laying temperature: min. -5°C
  • Operating temperature: -50°C up to 90°C
  • Conductor temperature: max. 90°C
  • Short circuit temperature: max. 90°C

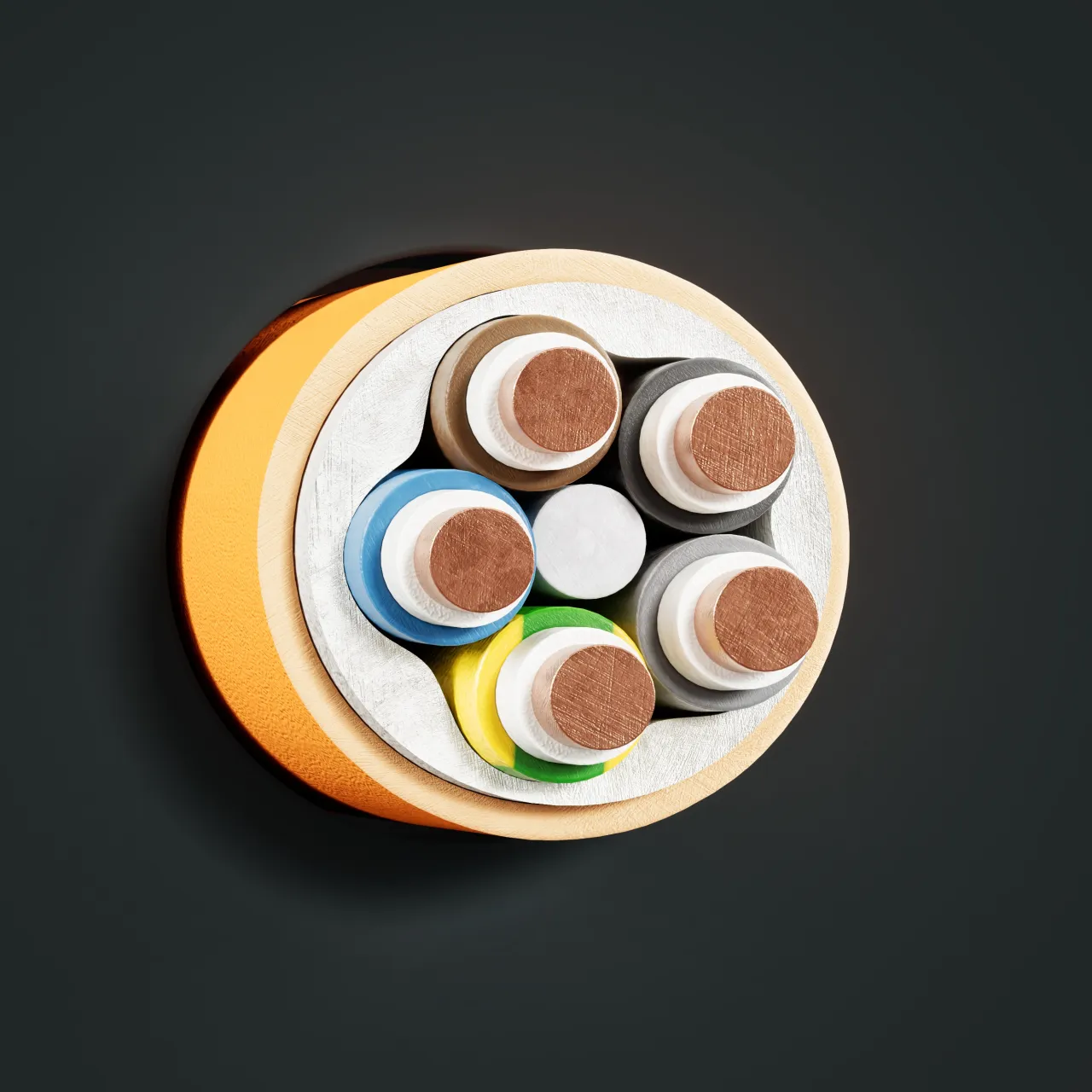

Cable image - (N)HXH FE180/E90
+
-

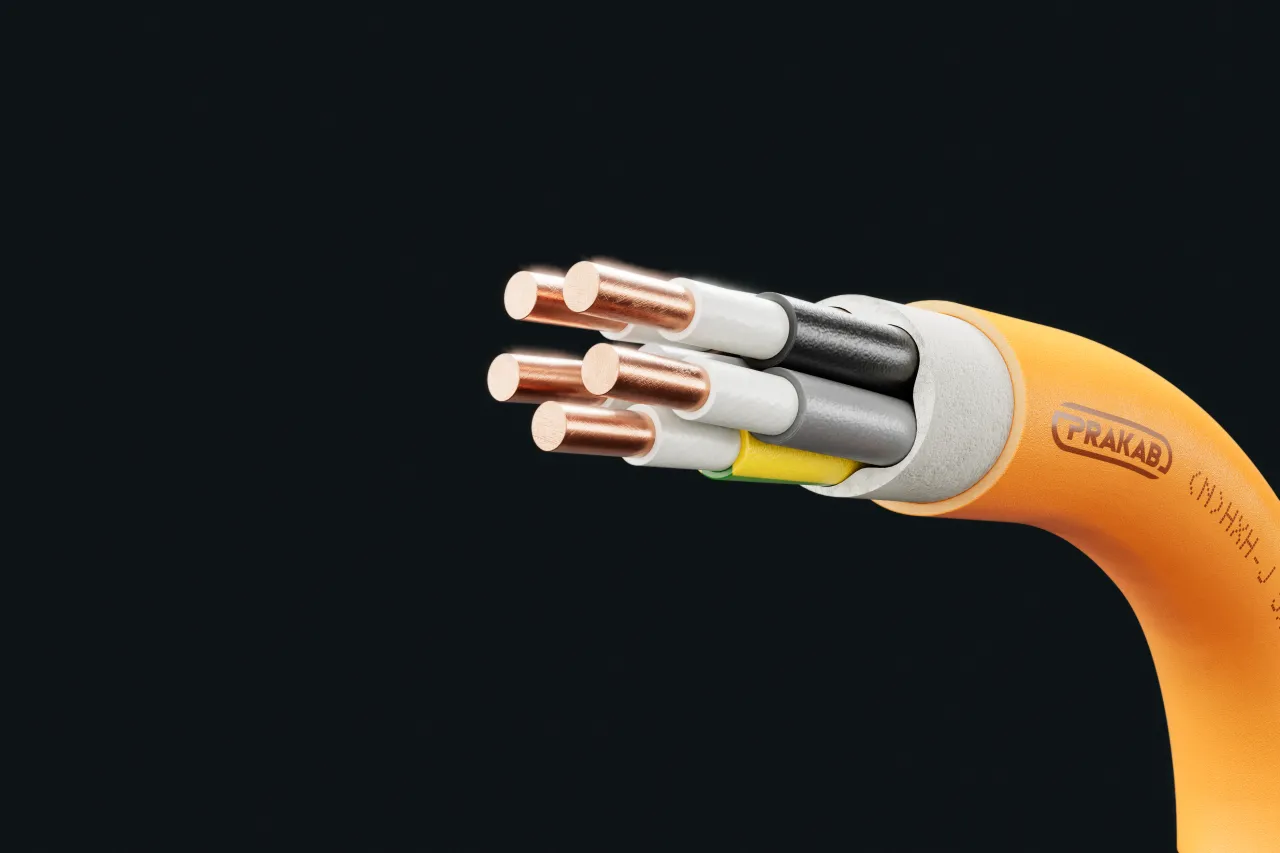

Cable image - (N)HXH FE180/E90
+
-

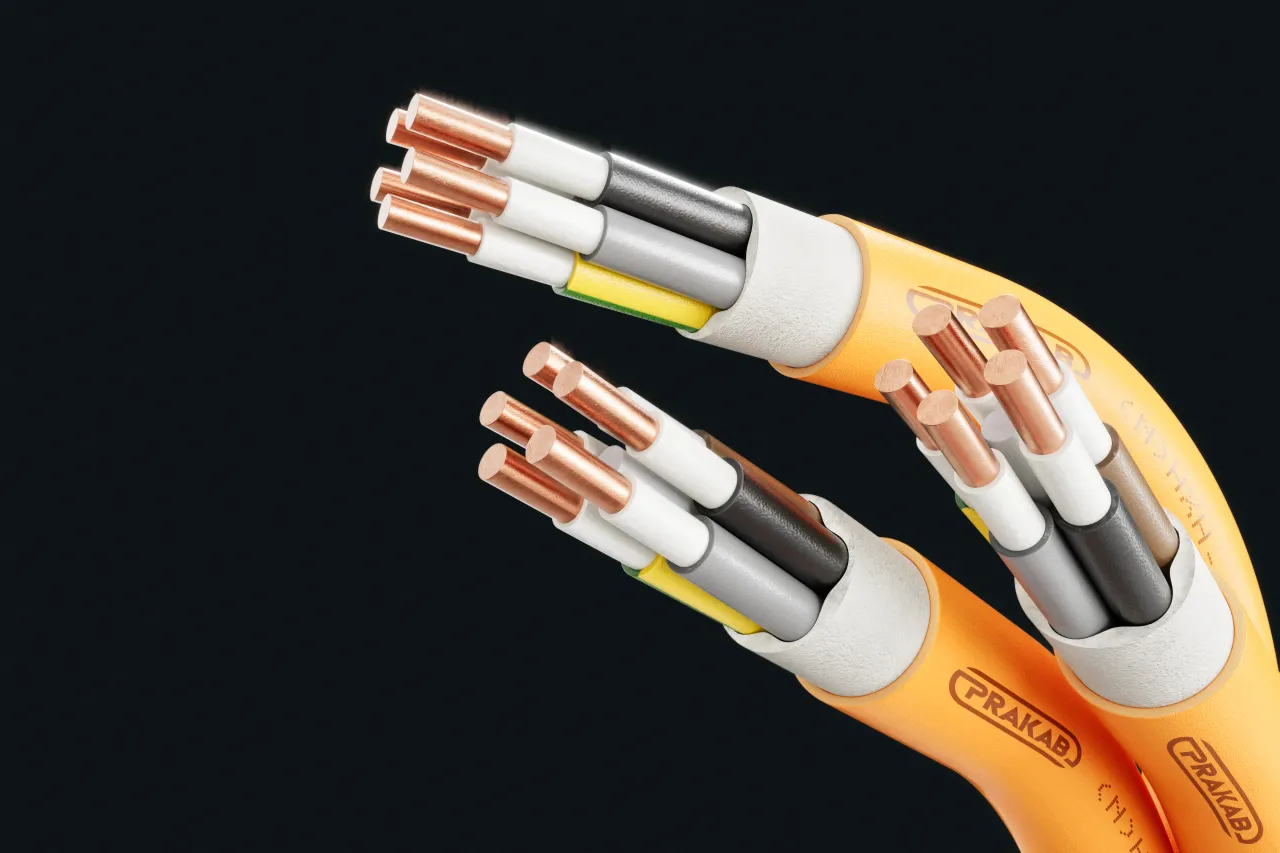

Cable image - (N)HXH FE180/E90
+
-

Contact us

Are you interested in this product?

Ing. Dan Bachtík

Product supervisor

+420734366090
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Max. conductor resistance (Ω/km)
Current rating in the air (A)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
2 x 1.5 RE
12.1
28
11.7
191
3 x 1.5 RE
12.1
24
12.3
214
4 x 1.5 RE
12.1
24
13.2
246
5 x 1.5 RE
12.1
16
14.2
282
6 x 1.5 RE
12.1
16
15.2
324
7 x 1.5 RE
12.1
16
15.2
342
8 x 1.5 RE
12.1
14
16.7
400
10 x 1.5 RE
12.1
13
18.6
490
12 x 1.5 RE
12.1
13
19.2
532
14 x 1.5 RE
12.1
12
20.1
586
16 x 1.5 RE
12.1
12
21.1
647
19 x 1.5 RE
12.1
11
22.1
728
24 x 1.5 RE
12.1
10
26.5
1009
30 x 1.5 RE
12.1
9
28.0
1148
2 x 2.5 RE
7.41
37
12.5
228
3 x 2.5 RE
7.41
32
13.1
260
4 x 2.5 RE
7.41
32
14.1
304
5 x 2.5 RE
7.41
22
15.2
351
6 x 2.5 RE
7.41
21
16.4
407
7 x 2.5 RE
7.41
21
16.4
433
8 x 2.5 RE
7.41
18
18.1
505
8 x 2.5 RE
7.41
18
18.1
505
10 x 2.5 RE
7.41
18
20.2
623
12 x 2.5 RE
7.41
18
20.8
684
14 x 2.5 RE
7.41
16
21.8
759
16 x 2.5 RE
7.41
15
22.9
842
19 x 2.5 RE
7.41
14
24.0
954
24 x 2.5 RE
7.41
13
29.0
1315
2 x 4 RE
4.61
49
13.4
275
3 x 4 RE
4.61
42
14.0
320
4 x 4 RE
4.61
42
15.1
377
5 x 4 RE
4.61
28
16.3
440
7 x 4 RE
4.61
27
17.6
550
12 x 4 RE
4.61
22
22.6
883
19 x 4 RE
4.61
19
27.1
1326
2 x 6 RE
3.08
62
14.3
337
3 x 6 RE
3.08
53
15.1
399
4 x 6 RE
3.08
53
16.3
476
5 x 6 RE
3.08
36
17.7
559
7 x 6 RE
3.08
34
19.1
709
2 x 10 RE
1.83
85
15.9
456
3 x 10 RE
1.83
74
16.8
552
4 x 10 RE
1.83
74
18.2
670
4 x 10 RM
1.83
74
18.7
692
5 x 10 RE
1.83
49
19.8
800
5 x 10 RM
1.83
49
20.4
827
7 x 10 RE
1.83
48
21.5
1023
1 x 16 RE
1.15
131
11.5
271
1 x 16 RM
1.15
131
11.7
278
2 x 16 RE
1.15
113
17.8
616
2 x 16 RM
1.15
113
18.2
639
3 x 16 RE
1.15
98
18.8
761
3 x 16 RM
1.15
98
19.3
788
4 x 16 RE
1.15
98
20.4
934
4 x 16 RM
1.15
98
21.0
965
5 x 16 RE
1.15
65
22.3
1128
5 x 16 RM
1.15
65
22.9
1164
1 x 25 RM
0.727
177
13.4
392
1 x 25 RM
0.727
177
13.4
392
2 x 25 RM
0.727
152
21.5
935
3 x 25 RM
0.727
133
22.9
1165
3 x 25 + 16 RM/RM
0.727
133
24.1
1326
4 x 25 RM
0.727
133
26.0
1509
5 x 25 RM
0.727
90
28.4
1819
1 x 35 RM
0.524
217
14.4
494
2 x 35 RM
0.524
186
23.6
1192
3 x 35 RM
0.524
162
26.1
1575
3 x 35 + 16 RM/RM
0.524
162
27.1
1721
4 x 35 RM
0.524
162
28.5
1945
5 x 35 RM
0.524
109
31.4
2373
1 x 50 RM
0.387
265
16.2
642
3 x 50 RM
0.387
197
29.9
2082
3 x 50 + 25 RM/RM
0.387
197
31.4
2329
4 x 50 RM
0.387
197
33.3
2630
5 x 50 RM
0.387
133
36.7
3203
1 x 70 RM
0.268
336
18.0
858
3 x 70 RM
0.268
250
34.2
2858
3 x 70 + 35 RM/RM
0.268
250
35.7
3183
4 x 70 RM
0.268
250
37.7
3578
5 x 70 RM
0.268
180
41.6
4368
1 x 95 RM
0.193
415
20.2
1140
3 x 95 RM
0.193
308
39.0
3845
3 x 95 + 50 RM/RM
0.193
308
41.0
4296
4 x 95 RM
0.193
308
43.1
4827
4 x 95 RM
0.193
308
43.1
4826
5 x 95 RM
0.193
215
48.1
5960
1 x 120 RM
0.153
485
21.6
1384
3 x 120 RM
0.153
359
42.1
4683
3 x 120 + 70 RM/RM
0.153
359
44.9
5380
4 x 120 RM
0.153
359
46.8
5935
5 x 120 RM
0.153
247
51.9
7278
1 x 150 RM
0.124
557
23.6
1680
3 x 150 RM
0.124
412
46.8
5778
3 x 150 + 70 RM/RM
0.124
412
48.7
6370
4 x 150 RM
0.124
412
51.8
7279
5 x 150 RM
0.124
279
57.7
8976
1 x 185 RM
0.099
646
25.8
2061
3 x 185 + 95 RM/RM
0.099
475
54.1
7991
4 x 185 RM
0.099
475
57.5
9058
1 x 240 RM
0.075
774
28.8
2650
3 x 240 + 120 RM/RM
0.075
564
60.9
10297
4 x 240 RM
0.075
564
64.7
11689

Technical changes reserved.

All figures are therefore without guarantee.

To inquiry

CMS

Add to inquiry
System / System Manufacturer
System identification
Classification
Range
Distance (a) /Width (b) / Load (g)
AbP number
Laying type No.
Normtrag
Leiter
E90
n x ≥ 1.5
a ≤ 1200 mm b = 400 mm g ≤ 20 kg/m
P-MPA-E-09-016
2.2.2 -1
Normtrag
Rinne
E90
n x ≥ 1.5
a ≤ 1200 mm b = 300 mm g ≤ 10 kg/m
P-MPA-E-09-016
2.2.2 -2
Normtrag
Abstandschelle
E90
n x ≥ 1.5
a ≤ 300 mm
P-MPA-E-09-016
2.2.2 - 3
Normtrag
Bügeschelle mit LW
E90
n x ≥ 1.5
a ≤ 600 mm
P-MPA-E-09-016
2.2.2 - 4
OBO Bettermann
2031-M/15
E90
n x ≥ 1.5
a ≤ 600 mm g ≤ 1.1 kg/m
P-MPA-E-09-016
2.2.15 - 7
Niedax
RLVC 60.300 S + KTA300
E90
n x ≥ 1.5
a ≤ 1500 mm b = 300 mm g ≤ 20 kg/m
P-1016 DMT DO
I
Niedax
RLVC 60.400 S + KTA400
E90
n x ≥ 1.5
a ≤ 1500 mm b = 400 mm g ≤ 30 kg/m
P-1016 DMT DO
II
Lanz
G-Kanal 100x150
E90
n x = 1.5
a ≤ 1500 mm g ≤ 10 kg/m
P-1016 DMT DO
III
Lanz
G-Kanal 50x100
E90
n x = 1.5
a ≤ 1500 mm g ≤ 10 kg/m
P-1016 DMT DO
IV
Lanz
G-Kanal 100x150 (decke)
E90
n x ≥ 1.5 - n x ≤ 10
a ≤ 1500 mm g ≤ 10 kg/m
P-1016 DMT DO
V
Lanz
C-Kanal (decke)
E90
n x ≥ 1.5 - n x ≤ 2.5
a ≤ 800 mm g ≤ 0.85 kg/m
P-1016 DMT DO
VIII

Technical changes reserved.

All figures are therefore without guarantee.
