NHXH FE180/E90

Download PDF

Add to inquiry

Download PDF

To inquiry

SI/FRNC energy cable with insulation integrity FE180 and circuit integrity E90

Safety Cables

Suitable to protect people and technical building equipment in the event of fire if circuit integrity is required (circuit integrity is only maintained if these cables are installed with specified supporting elements). The cable is not UV-resistant.

Design

This product consists of:

  • 1
    Kupferleiter, rund eindrähtig (RE) bzw. rund mehrdrähtig (RM)
  • 2
    Aderisolation (Silikonkautschuk)
  • 3
    Gemeinsame Aderumhüllung (halogenfreies Textilband)
  • 4
    Mantel (halogenfreie Polymermischung orange)

Technical Data

Standard: adapted to DIN VDE 0266
Certificate: VDE Germany
Test Voltage: 4 kV
Rated Voltage: 0.6/1 kV (Uo/U)
Bending radius (min.):
  • 15 x Ø des Kabels (einadrig)
  • 12 x Ø des Kabels (mehradrig)
Fire properties: DIN 4102-12: circuit integrity E90
Core identification: HD 308 S2
Temperature range:
  • Laying temperature: min. -5°C
  • Operating temperature: -50°C up to 90°C
  • Conductor temperature: max. 90°C
  • Short circuit temperature: max. 250°C

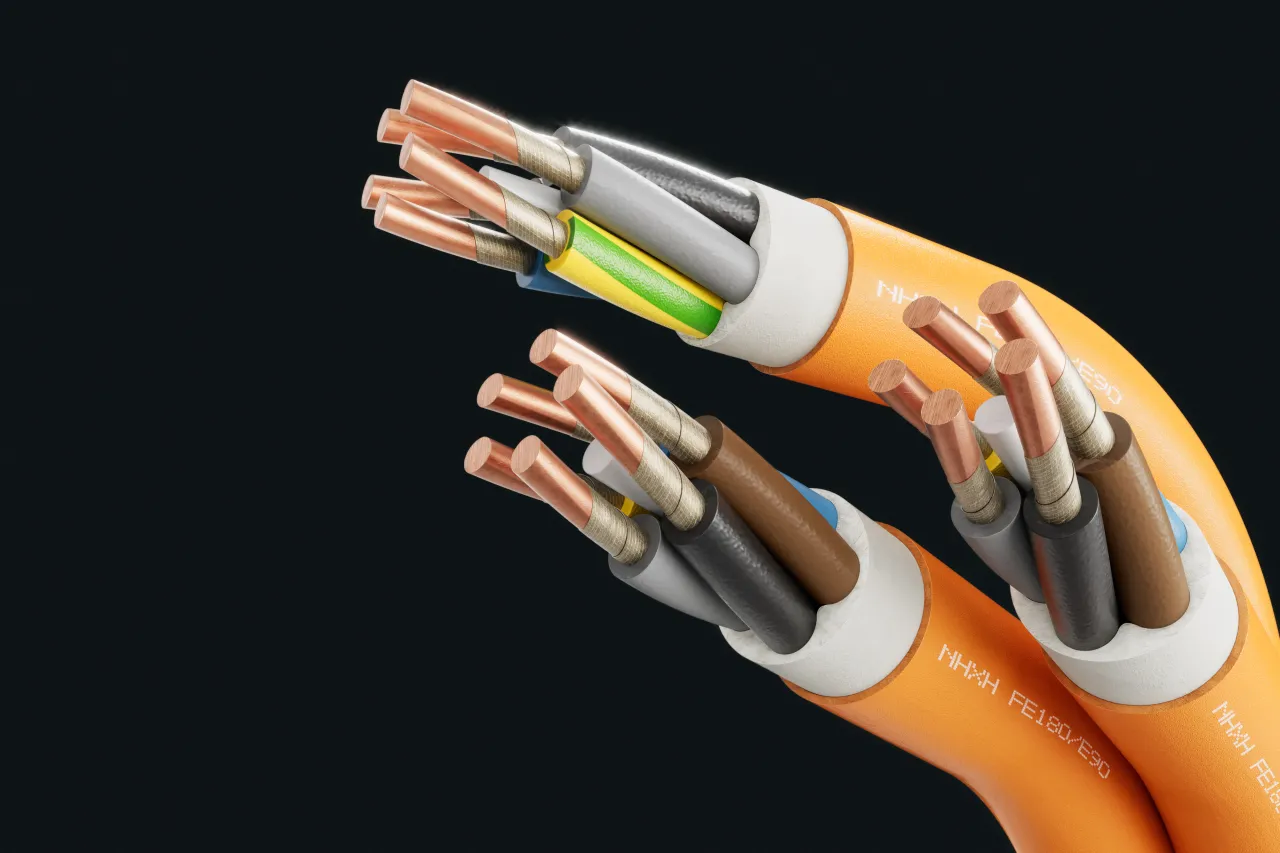

Cable image - NHXH FE180/E90
+
-

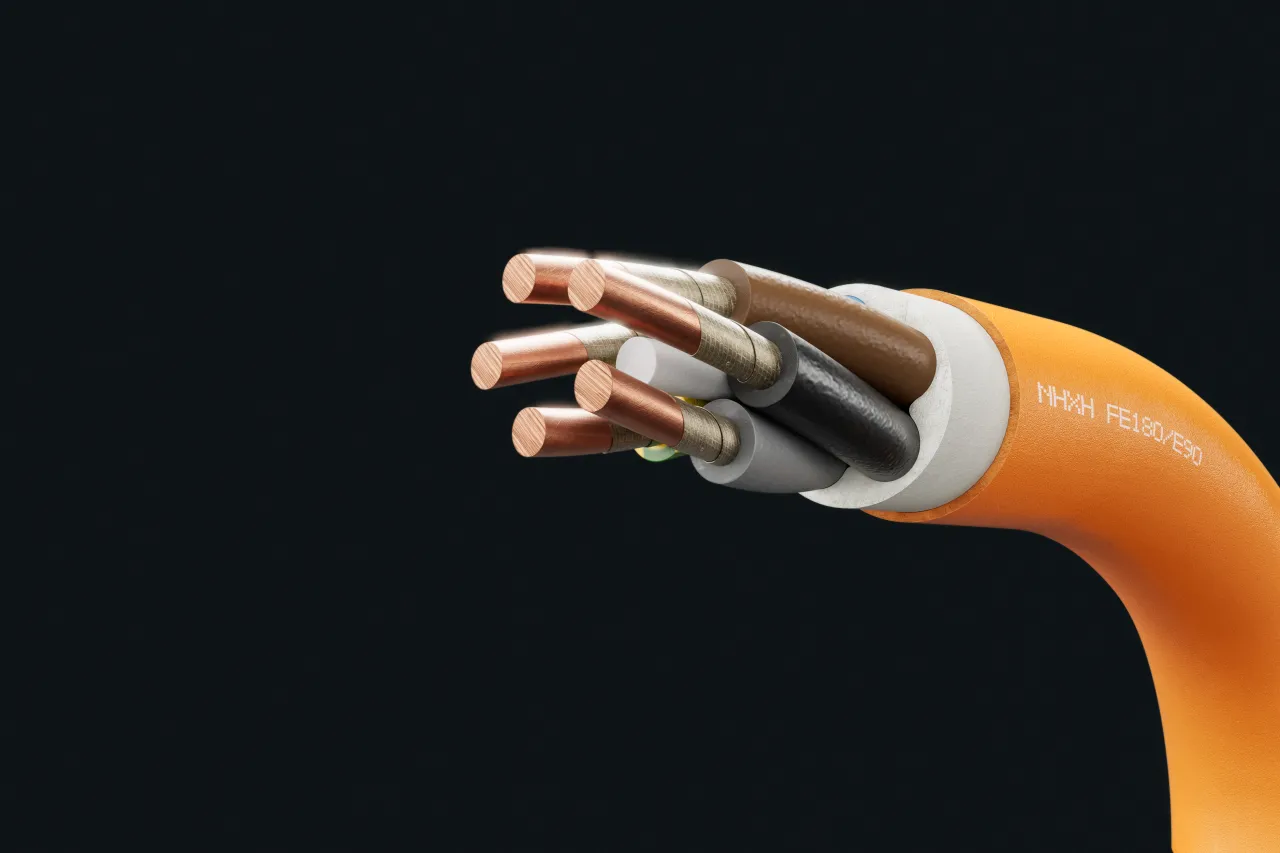

Cable image - NHXH FE180/E90
+
-
Cable image - NHXH FE180/E90
+
-

Contact us

Are you interested in this product?

Dogan Özcan, MSc

Product supervisor

+43 (0) 1 70170-154
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Max. conductor resistance (Ω/km)
Current rating in the air (A)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
2 x 1,5 RE
12.1
28
13.0
185
3 x 1,5 RE
12.1
24
13.5
210
4 x 1,5 RE
12.1
24
14.4
240
5 x 1,5 RE
12.1
16
15.5
280
6 x 1,5 RE
12.1
16
16.5
330
7 x 1,5 RE
12.1
16
17.0
345
8 x 1,5 RE
12.1
14
18.9
390
10 x 1,5 RE
12.1
13
20.1
465
12 x 1,5 RE
12.1
13
20.7
520
14 x 1,5 RE
12.1
12
21.5
655
16 x 1,5 RE
12.1
12
22.6
725
19 x 1,5 RE
12.1
11
23.6
810
24 x 1,5 RE
12.1
10
27.4
895
30 x 1,5 RE
12.1
9
28.9
1180
40 x 1,5 RE
12.1
8
32.7
1320
2 x 2,5 RE
7.41
37
13.8
225
3 x 2,5 RE
7.41
32
14.4
255
4 x 2,5 RE
7.41
32
15.4
300
5 x 2,5 RE
7.41
22
16.5
350
7 x 2,5 RE
7.41
21
17.7
445
8 x 2,5 RE
7.41
18
20.3
495
10 x 2,5 RE
7.41
18
21.7
645
12 x 2,5 RE
7.41
17
22.3
745
14 x 2,5 RE
7.41
16
23.3
750
16 x 2,5 RE
7.41
15
24.5
925
19 x 2,5 RE
7.41
14
25.6
1040
24 x 2,5 RE
7.41
13
30.0
1175
30 x 2,5 RE
7.41
12
32.0
1390
40 x 2,5 RE
7.41
11
35.9
1735
2 x 4 RE
4.61
49
14.7
270
3 x 4 RE
4.61
42
15.4
315
4 x 4 RE
4.61
42
16.5
375
5 x 4 RE
4.61
28
17.8
465
7 x 4 RE
4.61
27
19.1
555
10 x 4 RE
4.61
23
23.6
755
12 x 4 RE
4.61
22
24.3
925
14 x 4 RE
4.61
21
25.4
1005
19 x 4 RE
4.61
19
28.2
1345
2 x 6 RE
3.08
62
15.7
335
3 x 6 RE
3.08
53
16.5
400
4 x 6 RE
3.08
53
17.7
480
5 x 6 RE
3.08
36
19.2
560
7 x 6 RE
3.08
34
20.3
725
2 x 10 RE
1.83
85
17.3
455
2 x 10 RM
1.83
74
17.8
555
3 x 10 RE
1.83
74
18.2
550
3 x 10 RM
1.83
74
18.8
770
4 x 10 RE
1.83
74
19.6
690
4 x 10 RM
1.83
74
203.0
790
5 x 10 RE
1.83
49
21.3
825
5 x 10 RM
1.83
49
22.0
920
7 x 10 RE
1.83
48
23.0
1050
1 x 16 RE
1.15
131
11.6
280
1 x 16 RM
1.15
131
11.9
300
2 x 16 RE
1.15
113
19.1
685
2 x 16 RM
1.15
113
19.6
695
3 x 16 RE
1.15
98
20.1
790
3 x 16 RM
1.15
98
20.8
850
4 x 16 RE
1.15
98
21.8
1010
4 x 16 RM
1.15
98
22.5
1075
5 x 16 RE
1.15
65
23.7
1165
5 x 16 RM
1.15
65
24.5
1245
7 x 16 RM
1.15
58
26.5
1580
1 x 25 RM
0.727
177
13.6
390
2 x 25 RM
0.727
152
22.9
1080
3 x 25 RE
0.727
133
24.3
1290
3 x 25 + 16 RM/RM
0.727
133
26.5
1435
4 x 25 RM
0.727
133
26.5
1515
5 x 25 RM
0.727
90
29.1
1780
1 x 35 RM
0.524
217
15.0
495
2 x 35 RM
0.524
186
25.4
1320
3 x 35 RM
0.524
162
27.2
1615
3 x 35 + 25 RM/RM
0.524
162
29.7
1815
3 x 35 + 16 RM/RM
0.524
162
29.7
1215
4 x 35 RM
0.524
162
29.7
1990
5 x 35 RM
0.524
109
33.3
2480
1 x 50 RM
0.387
265
16.5
645
3 x 50 RM
0.387
197
30.9
2035
3 x 50 + 35 RM/RM
0.387
197
34.3
2535
3 x 50 + 25 RM/RM
0.387
197
34.3
2470
4 x 50 RM
0.387
197
34.3
2680
5 x 50 RM
0.387
133
37.8
3320
1 x 70 RM
0.268
336
18.4
870
3 x 70 RM
0.268
250
34.9
2910
3 x 70 + 50 RM/RM
0.268
250
38.4
3425
3 x 70 + 35 RM/RM
0.268
250
38.4
3305
4 x 70 RM
0.268
250
38.4
3615
5 x 70 RM
0.268
180
42.9
4580
1 x 95 RM
0.193
415
20.5
1150
3 x 95 RM
0.193
415
39.9
3910
3 x 95 + 50 RM/RM
0.193
308
44.2
4490
4 x 95 RM
0.193
308
45.0
4935
5 x 95 RM
0.193
215
49.0
6150
1 x 120 RM
0.153
85
22.2
1380
3 x 120 RM
0.153
359
43.7
4825
3 x 120 + 70 RM/ RM
0.153
359
48.1
5560
4 x 120 RM
0.153
359
48.1
6150
5 x 120 RM
0.153
247
53.3
7525
1 x 150 RM
0.124
557
24.0
1700
3 x 150 RM
0.124
412
47.4
5830
3 x 150 + 70 RM/ RM
0.124
412
52.3
6600
4 x 150 RM
0.124
412
49.0
7500
5 x 150 RM
0.124
279
58.4
9250
1 x 185 RM
0.099
646
26.4
2165
3x 185 RM
0.099
475
52.9
7460
3 x 185 + 95 RM/ RM
0.099
475
58.9
8520
4 x 185 RM
0.099
475
58.9
9370
5 x 185 RM
0.099
321
65.3
11365
1 x 240 RM
0.075
774
29.4
2765
3 x 240 RM
0.075
564
59.8
9530
3 x 240 + 120 RM/ RM
0.075
564
66.0
10870
4 x 240 RM
0.075
564
66.0
12025
5 x 240 RM
0.075
380
73.8
14750

Technical changes reserved.

All figures are therefore without guarantee.
