Cables

(N)HXH FE180/E30-E60

Download PDF

Add to inquiry

Download PDF

To inquiry

SiR/FRNC halogen-free energy cable with insulation integrity and circuit integrity VDE Reg. No K011

Safety Cables with circuit integrity

These cables are intended for the stationary distribution of electrical energy in dry or damp premises and for fixed installations in air or concrete. Suitable for hotels, hospitals, underground railways, airports etc. to protect people and technical building equipment in the event of fire.. Not allowed for installations underground or in water. These cables are not UV-protected

Design

This product consists of:

  • 1
    Copper conductor, round solid (RE) orround stranded (RM)
  • 2
    Core insulation (silicone rubber)
  • 3
    Inner covering (halogen-free tape or halogen free polymer compound)
  • 4
    Sheath (halogen-free polymer compound, orange)

Technical Data

Standard:
  • adapted to DIN VDE 0266
  • HD 604.5H
  • DIN VDE 0276-604, part 0, 1 and 5G
  • DIN VDE 0276-627, part 1 and 7H
Certificate:
  • VDE Germany
  • VDE Reg. No. K011
Test Voltage: core/core 4 kV / 50 Hz
Rated Voltage: 0,6/1 kV
Bending radius (min.): 12 x Ø of cable
Fire properties:
  • EN 60332-1-2: flame retardant
  • EN 60754-2: halogen-free, non-corrosive combustion gases
  • EN IEC 60332-3-24: reduced flame propagation
  • EN 61034-2: low smoke emission
  • IEC 60331-21: insulation integrity FE180
  • DIN 4102-12: circuit integrity E30-E60
Core identification: HD 308 S2
Temperature range:
  • Laying temperature: min. -5°C
  • Operating temperature: -30°C up to 90°C
  • Conductor temperature: max. 90°C
  • Short circuit temperature: max. 250°C

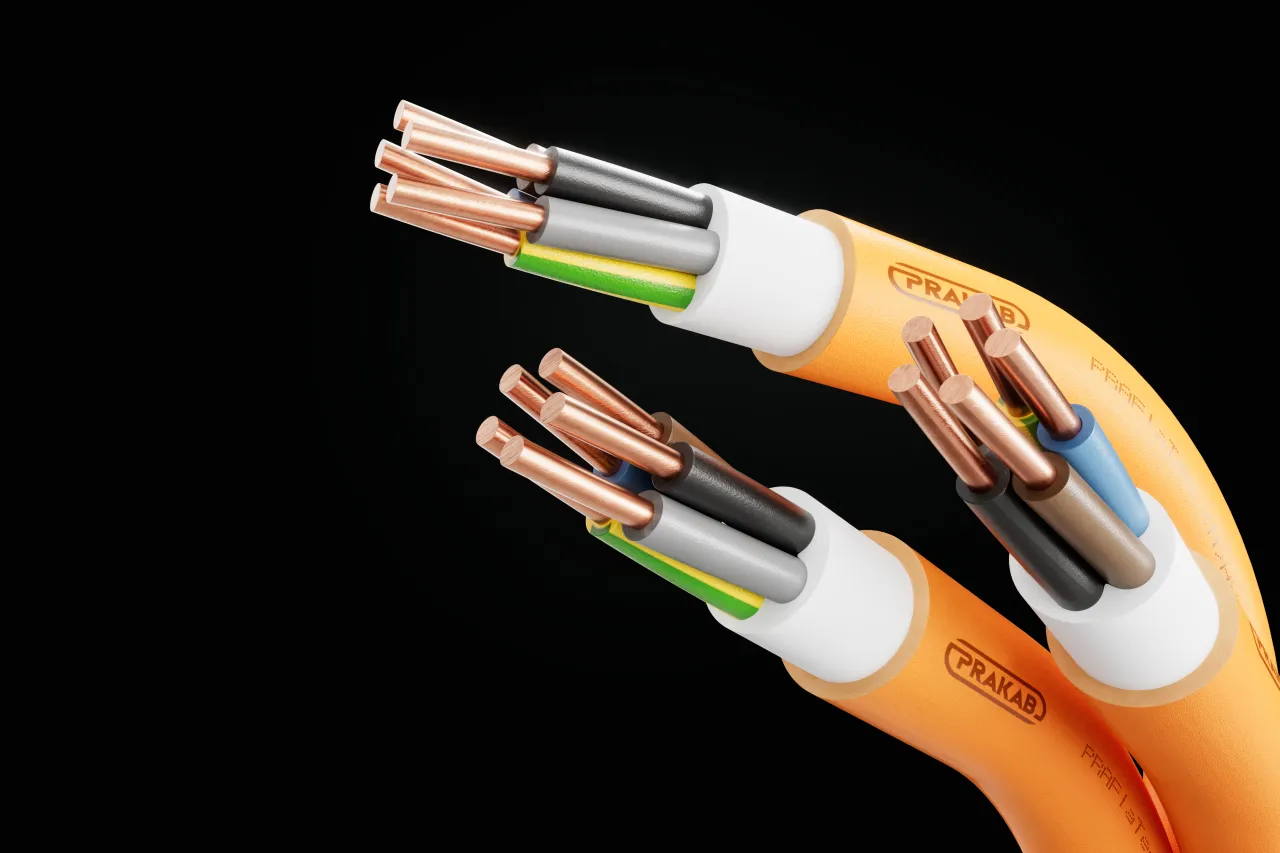

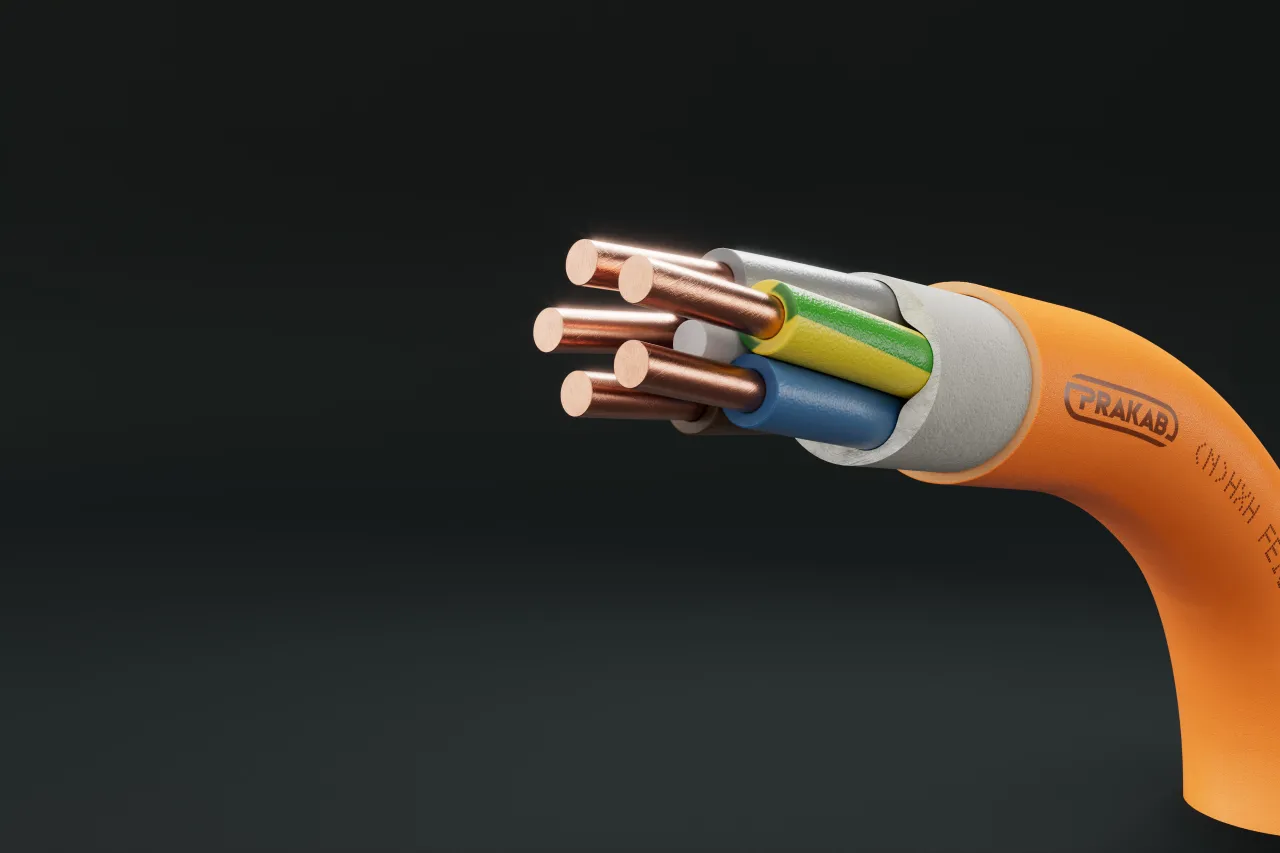

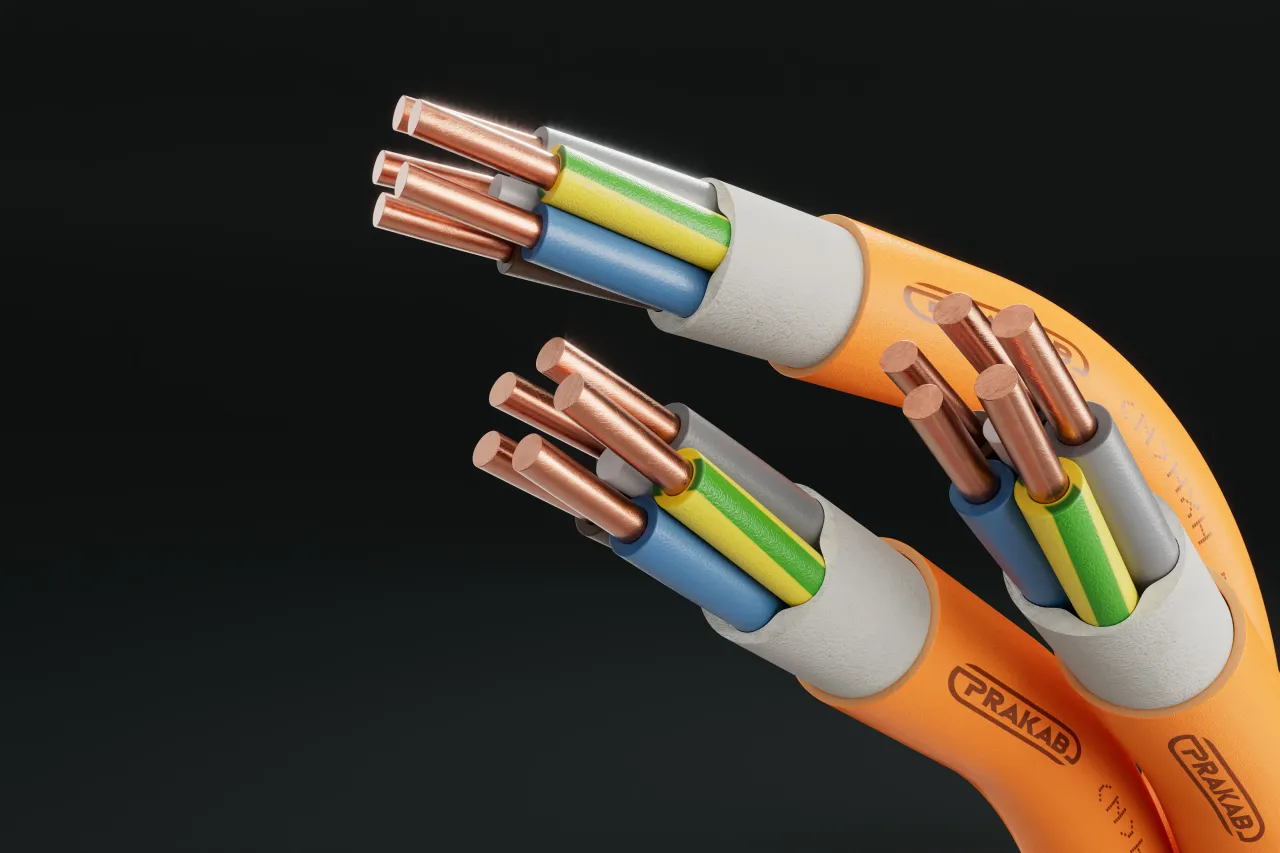

Cable image - (N)HXH FE180/E30-E60
+
-

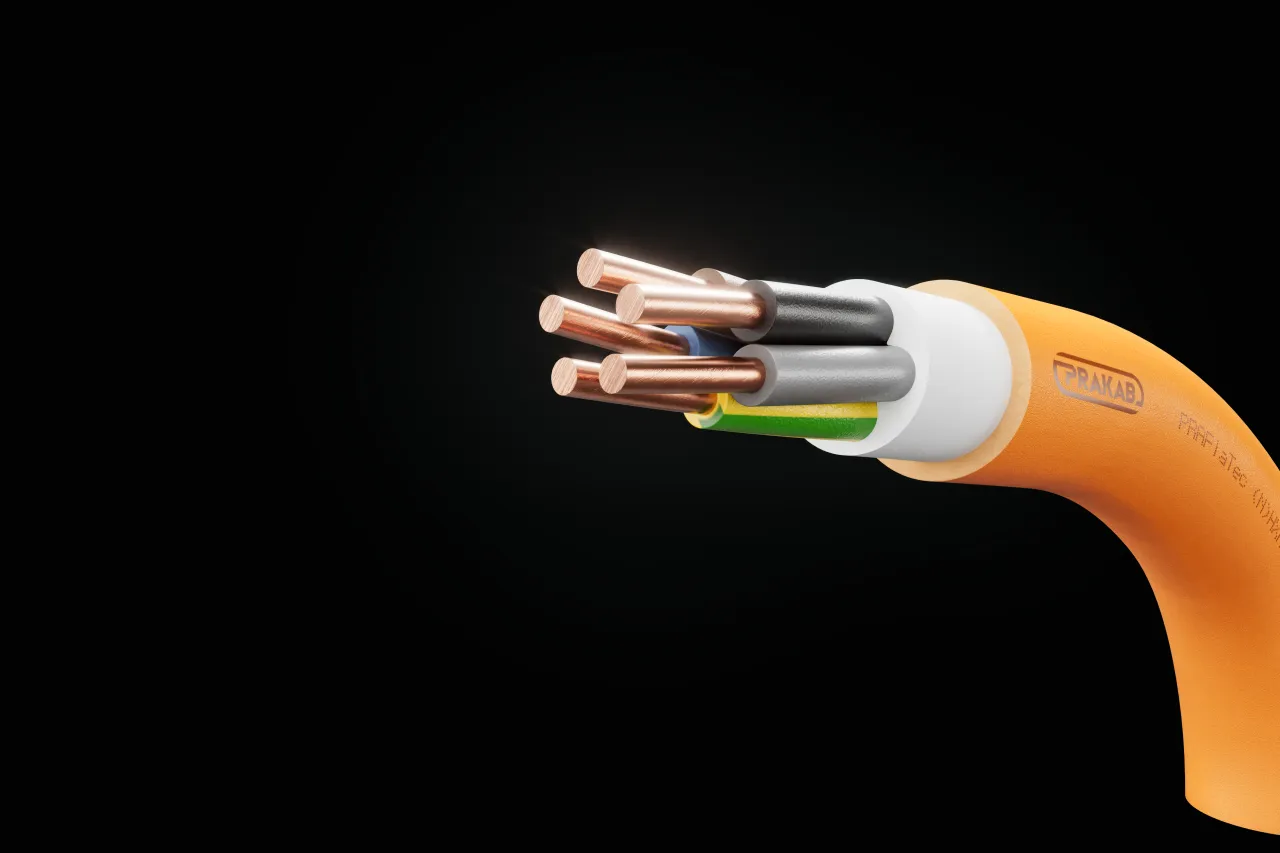

Cable image - (N)HXH FE180/E30-E60
+
-

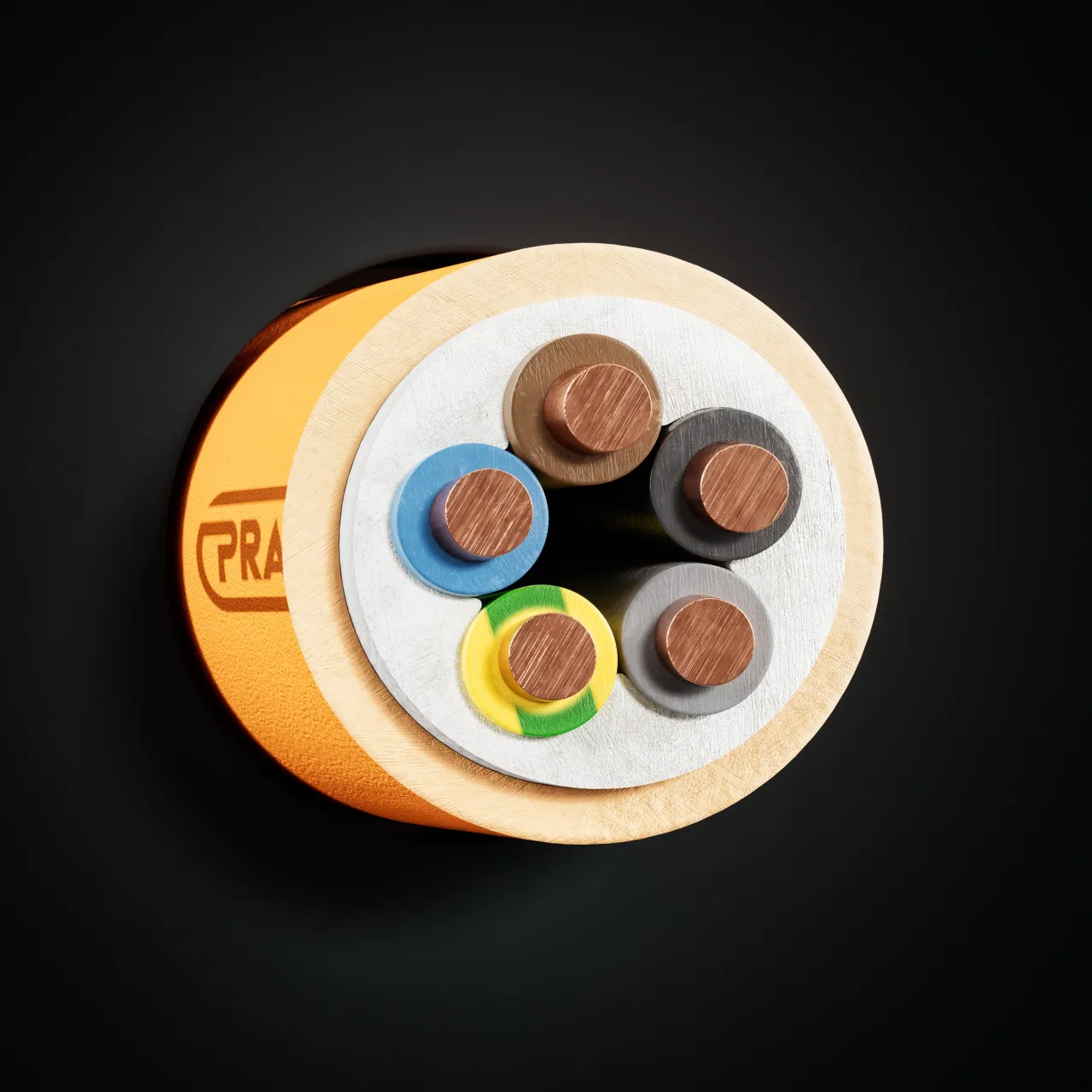

Cable image - (N)HXH FE180/E30-E60
+
-

Contact us

Are you interested in this product?

Ing. Dan Bachtík

Product supervisor

+420734366090
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Max. conductor resistance (Ω/km)
Current rating in the air (A)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
2 x 1.5 RE
12.1
29
9.3
126
3 x 1.5 RE
12.1
24
9.9
147
4 x 1.5 RE
12.1
24
10.7
174
5 x 1.5 RE
12.1
24
11.5
202
7 x 1.5 RE
12.1
16
12.6
254
10 x 1.5 RE
12.1
13
15.8
379
12 x 1.5 RE
12.1
13
16.3
414
14 x 1.5 RE
12.1
12
17.2
466
16 x 1.5 RE
12.1
12
18.0
517
19 x 1.5 RE
12.1
11
19.1
591
21 x 1.5 RE
12.1
10
20.0
630
24 x 1.5 RE
12.1
10
22.3
777
30 x 1.5 RE
12.1
8
23.5
894
40 x 1.5 RE
12.1
8
28.5
1298
52 x 1.5 RE
12.1
8
31.8
1626
61 x 1.5 RE
12.1
7
33.9
1865
2 x 2.5 RE
7.41
38
10.2
161
3 x 2.5 RE
7.41
32
10.8
190
4 x 2.5 RE
7.41
32
11.6
225
5 x 2.5 RE
7.41
32
12.8
269
7 x 2.5 RE
7.41
20
13.9
343
10 x 2.5 RE
7.41
17
17.6
510
12 x 2.5 RE
7.41
16
18.1
562
14 x 2.5 RE
7.41
16
19.1
635
16 x 2.5 RE
7.41
15
20.0
707
19 x 2.5 RE
7.41
14
21.2
811
21 x 2.5 RE
7.41
13
22.5
878
24 x 2.5 RE
7.41
12
24.8
1063
30 x 2.5 RE
7.41
10
28.3
1396
40 x 2.5 RE
7.41
10
31.5
1760
52 x 2.5 RE
7.41
10
35.4
2235
61 x 2.5 RE
7.41
9
37.7
2569
2 x 4 RE
4.61
51
12.2
233
3 x 4 RE
4.61
42
12.8
275
4 x 4 RE
4.61
42
14.0
334
5 x 4 RE
4.61
42
15.2
391
2 x 6 RE
3.08
63
13.1
291
3 x 6 RE
3.08
54
14.1
356
4 x 6 RE
3.08
54
15.2
429
5 x 6 RE
3.08
54
16.7
514
2 x 10 RE
1.83
86
15.1
418
3 x 10 RE
1.83
74
16.2
520
4 x 10 RE
1.83
74
17.8
642
5 x 10 RE
1.83
74
19.6
778
1 x 16 RM
1.15
131
9.7
213
2 x 16 RE
1.15
113
17.4
588
2 x 16 RM
1.15
113
17.9
611
3 x 16 RE
1.15
98
18.4
732
3 x 16 RM
1.15
98
19.2
764
4 x 16 RE
1.15
98
20.2
911
4 x 16 RM
1.15
98
21.4
972
5 x 16 RE
1.15
98
22.4
1118
5 x 16 RM
1.15
98
23.2
1154
1 x 25 RM
0.727
177
11.3
313
2 x 25 RM
0.727
133
21.6
924
3 x 25 RM
0.727
133
23.2
1164
4 x 25 RM
0.727
133
25.4
1447
5 x 25 RM
0.727
133
30.3
1935
1 x 35 RM
0.524
217
12.8
422
3 x 35 RM
0.524
162
28.5
1713
4 x 35 RM
0.524
162
31.1
2113
5 x 35 RM
0.524
162
32.5
2454
1 x 50 RM
0.387
265
14.5
557
3 x 50 RM
0.387
197
31.9
2215
4 x 50 RM
0.387
197
35.1
2755
5 x 50 RM
0.387
197
38.1
3259
1 x 70 RM
0.268
336
16.6
770
3 x 70 RM
0.268
250
33.8
2510
4 x 70 RM
0.268
250
40.4
3801
5 x 70 RM
0.268
250
42.7
4298
1 x 95 RM
0.193
415
18.9
1049
3 x 95 RM
0.193
308
38.3
4275
4 x 95 RM
0.193
308
45.6
5066
5 x 95 RM
0.193
308
46.6
6127
1 x 120 RM
0.153
485
20.6
1299
3 x 120 RM
0.153
359
43.8
4796
4 x 120 RM
0.153
359
50.0
6262
5 x 120 RM
0.153
359
50.6
7740
1 x 150 RM
0.124
557
22.5
1582
3 x 150 RM
0.124
412
42.8
5805
4 x 150 RM
0.124
412
55.3
7702
5 x 150 RM
0.124
412
56.4
9675
1 x 185 RM
0.099
646
24.6
1950
3 x 185 RM
0.099
475
52.3
7159
4 x 185 RM
0.099
475
56.3
8769
5 x 185 RM
0.099
475
62.3
11932
1 x 240 RM
0.075
774
27.8
2537
3 x 240 RM
0.075
564
59.1
9288
4 x 240 RM
0.075
564
68.0
11965

Technical changes reserved.

All figures are therefore without guarantee.

To inquiry

CMS

Add to inquiry
System / System Manufacturer
System identification
Classification
Range
Distance (a) /Width (b) / Load (g)
AbP number
Laying type No.
Normtrag
Rinne
E60
n x ≥ 1.5
a ≤ 1200 mm b = 300 mm g ≤ 10 kg/m
P-MPA-E-23-003
1.2
Normtrag
Leiter
E60
n x ≥ 1.5
a ≤ 1200 mm b = 400 mm g ≤ 20 kg/m
P-MPA-E-23-003
1.1
Normtrag
Abstandschelle
E60
n x ≥ 1.5
a ≤ 300 mm
P-MPA-E-23-003
1.3
Normtrag
Bügelschelle
E60
n x = 1.5
a ≤ 300 mm
P-MPA-E-23-003
1.4
Normtrag
Bügelschelle mit LW
E60
n x ≥ 1.5
a ≤ 600 mm
P-MPA-E-23-003
1.5
OBO Bettermann
RKSM 630 + AW55/31
E60
n x ≥ 1.5
a ≤ 1500 mm b = 300 mm g ≤ 20 kg/m
P-MPA-E-23-003
2.1
OBO Bettermann
RKSM 640 + AW55/41
E60
n x ≥ 1.5
a ≤ 1500 mm b = 400 mm g ≤ 20 kg/m
P-MPA-E-23-003
2.2
OBO Bettermann
2056/M
E60
n x ≥ 1.5
a ≤ 800 mm
P-MPA-E-23-003
8.1
OBO Bettermann
732/733
E60
n x ≥ 1.5
a ≤ 800 mm
P-MPA-E-23-003
8.2
OBO Bettermann
2033M
E60
n x = 2.5
a ≤ 500 mm
P-MPA-E-23-003
10.1
OBO Bettermann
2031-M/70
E30
n x ≥ 1.5
a ≤ 800 mm g ≤ 6 kg/m
P-MPA-E-23-003
6.3
OBO Bettermann
2033M
E30
n x = 1.5
a ≤ 500 mm
P-MPA-E-23-003
10.1
Niedax
RLVC 60.300 + KTAS300
E60
n x ≥ 1.5
a ≤ 1500 mm b = 300 mm g ≤ 20 kg/m
P-MPA-E-23-003
3.1
Niedax
RLVC 60.400 + KTAS400
E60
n x ≥ 1.5
a ≤ 1500 mm b = 400 mm g ≤ 20 kg/m
P-MPA-E-23-003
3.2
Niedax
RLVC 60.300 E5 + TAH
E60
n x ≥ 1.5
a ≤ 1500 mm b = 300 mm g ≤ 20 kg/m
P-MPA-E-23-003
3.3
Niedax
Bügelschellen B
E60
n x ≥ 1.5
a ≤ 800 mm
P-MPA-E-23-003
9.1
Niedax
Abstandschelle SAS
E60
n x ≥ 1.5
a ≤ 800 mm
P-MPA-E-23-003
9.2
Niedax
SHS80
E30
n x ≥ 1.5
a ≤ 800 mm g ≤ 6 kg/m
P-MPA-E-23-003
7.3

Technical changes reserved.

All figures are therefore without guarantee.
