(N)AYY

Download PDF

Add to inquiry

Download PDF

To inquiry

PVC/PVC aluminium energy cables

Power Cables and Overhead Lines 0.6/1 kV

The cables are designed for distribution of electrical energy in fixed installation in the ground, cable ducts and in the external environment.

Design

This product consists of:

  • 1
    Aluminium conductor, sector-shaped stranded (SM)
  • 2
    Core insulation (PVC)
  • 3
    Inner covering (EPDM)
  • 4
    Sheath (PVC black, UV-resistant)

Technical Data

Standard: adapted to DIN VDE 0276-603 (HD 603)
Certificate: VDE Germany
Test Voltage: core/core 4 kV / 50 Hz
Rated Voltage: 0,6/1 kV
Bending radius (min.): 12 x Ø of cable
Fire properties:
  • EN 60332-1-2: self-extinguishing
  • CPR: Eca
Core identification: HD 308 S2
Temperature range:
  • Laying temperature: min. -5°C
  • Operating temperature: -50°C up to 70°C
  • Conductor temperature: max. 70°C
  • Short circuit temperature: max. 140°C

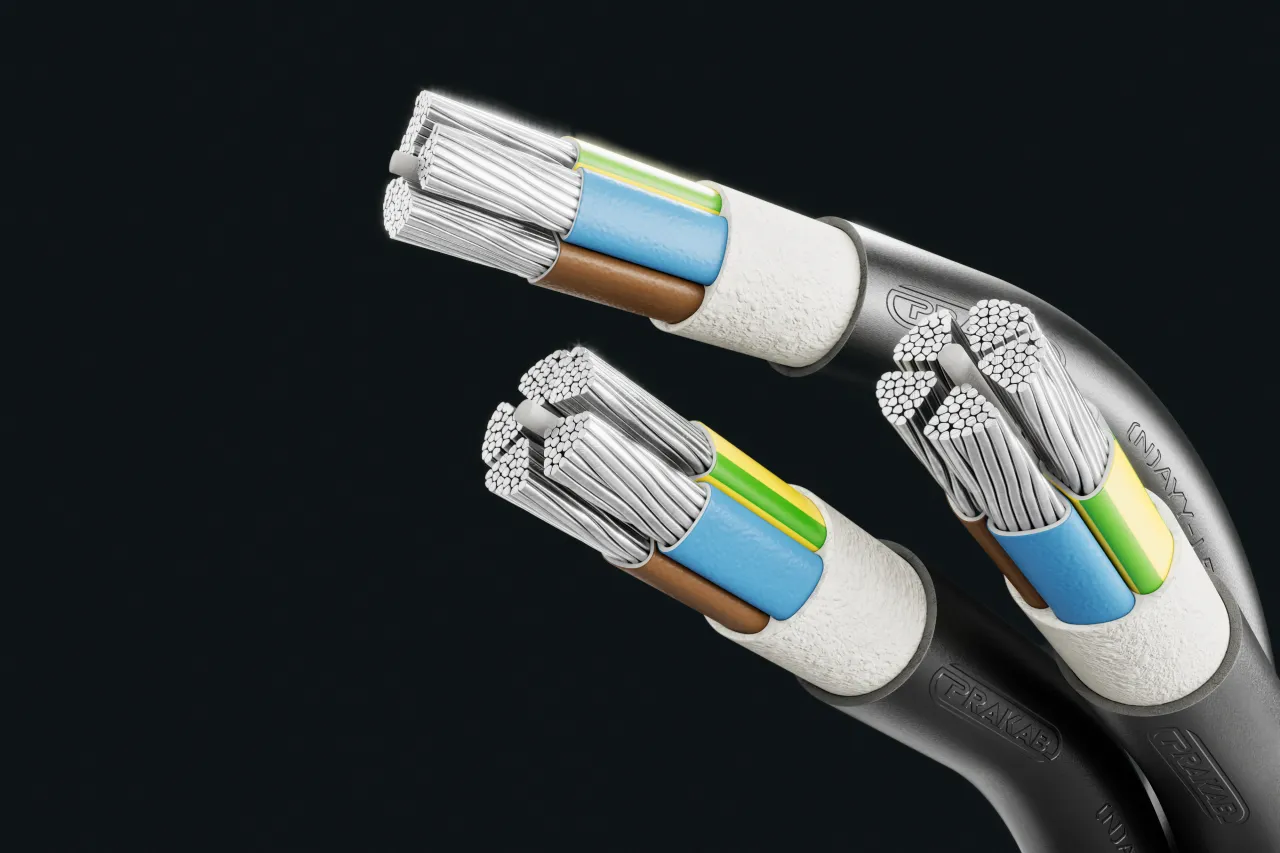

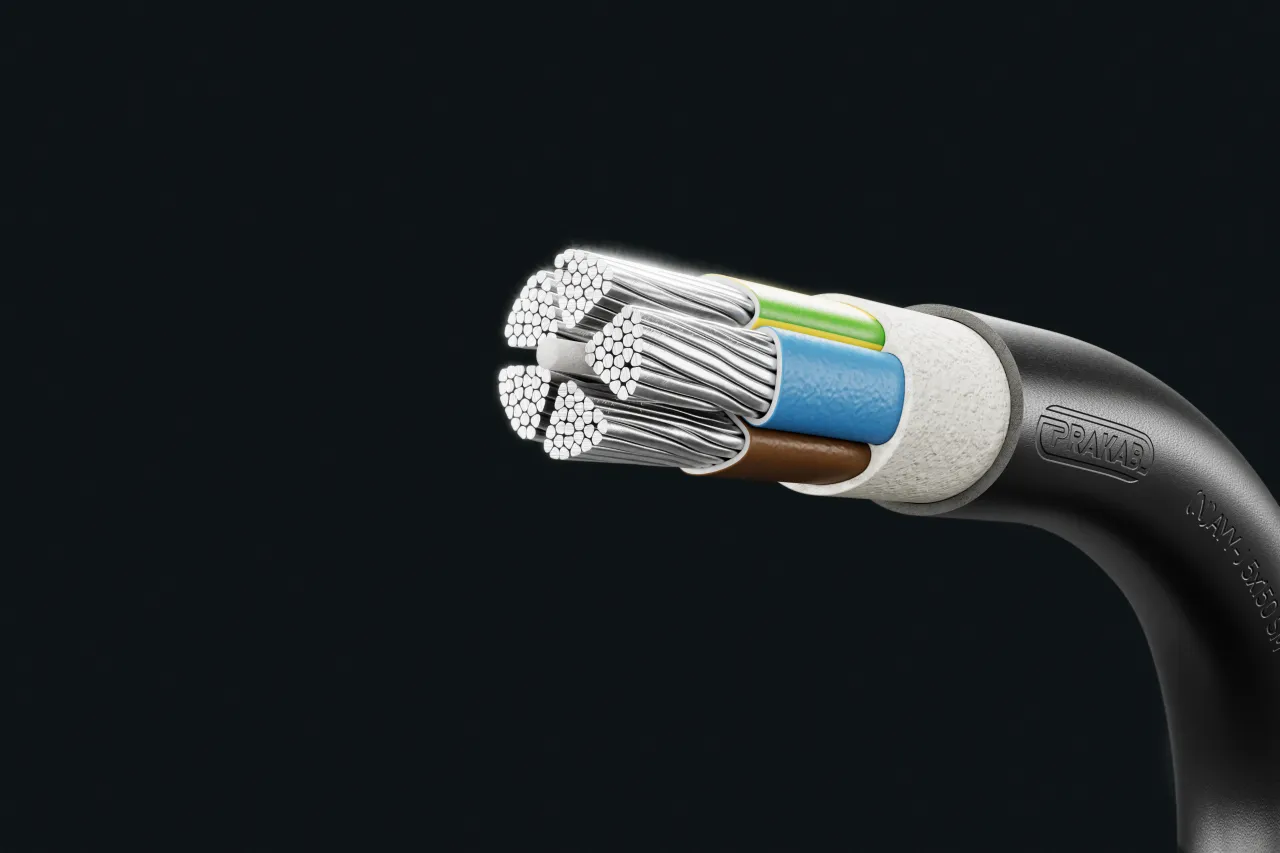

Cable image - (N)AYY
+
-
Cable image - (N)AYY
+
-
Cable image - (N)AYY
+
-

Contact us

Are you interested in this product?

Jan Pietroň

Product supervisor

+420 604 471 907
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Max. conductor resistance (Ω/km)
Current rating in the air (A)
Current rating in the earth (A)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
5 x 50 SM
0.641
82
99
33.5
1767
5 x 70 SM
0.443
107
126
38.6
2268
5 x 95 SM
0.32
131
151
43.1
2972
5 x 120 SM
0.253
151
171
48.2
3542
5 x 150 SM
0.206
173
193
52.9
4259
5 x 185 SM
0.164
197
216
59.1
5225
5 x 240 SM
0.125
235
253
69.6
6703

Technical changes reserved.

All figures are therefore without guarantee.
