JE-H(St)H...Bd FE180/E30-E90 RAL3020

Download PDF

Add to inquiry

Download PDF

To inquiry

SiR/FRNC halogen-free installation cable with insulation integrity and circuit integrity, screened

Safety Cables

Measuring and control cable providing functional integrity in the event of fire. Not designed for laying in earth or water. Not UV and water resistant.

Design

This product consists of:

  • 1
    Copper conductor, round solid (RE)
  • 2
    Core insulation (silicone rubber), cores pair stranded, marking with green thread
  • 3
    Inner covering (plastic tape)
  • 4
    Screen (plastic laminated aluminium tape with drain wire)
  • 5
    Sheath (halogen-free polymer compound, red)

Technical Data

Standard: adapted to DIN VDE 0815
Certificate: VDE Germany
Test Voltage:
  • core/core 500 V / 50 Hz
  • core/screen 2000 V / 50 Hz
Rated Voltage: max. 225 Vss
Bending radius (min.): 7,5 x Ø of cable
Fire properties:
  • EN 60332-1-2: self-extinguishing
  • EN 60754-2: halogen-free, non-corrosive combustion gases
  • EN 61034-2: low smoke emission
  • EN 60332-3-22: reduced flame propagation
  • IEC 60331-23: insulation integrity FE180
  • DIN 4102-12: circuit integrity E30-E90
Core identification: DIN VDE 0815
Temperature range:
  • Laying temperature: min. -5°C
  • Operating temperature: -30°C up to 70°C

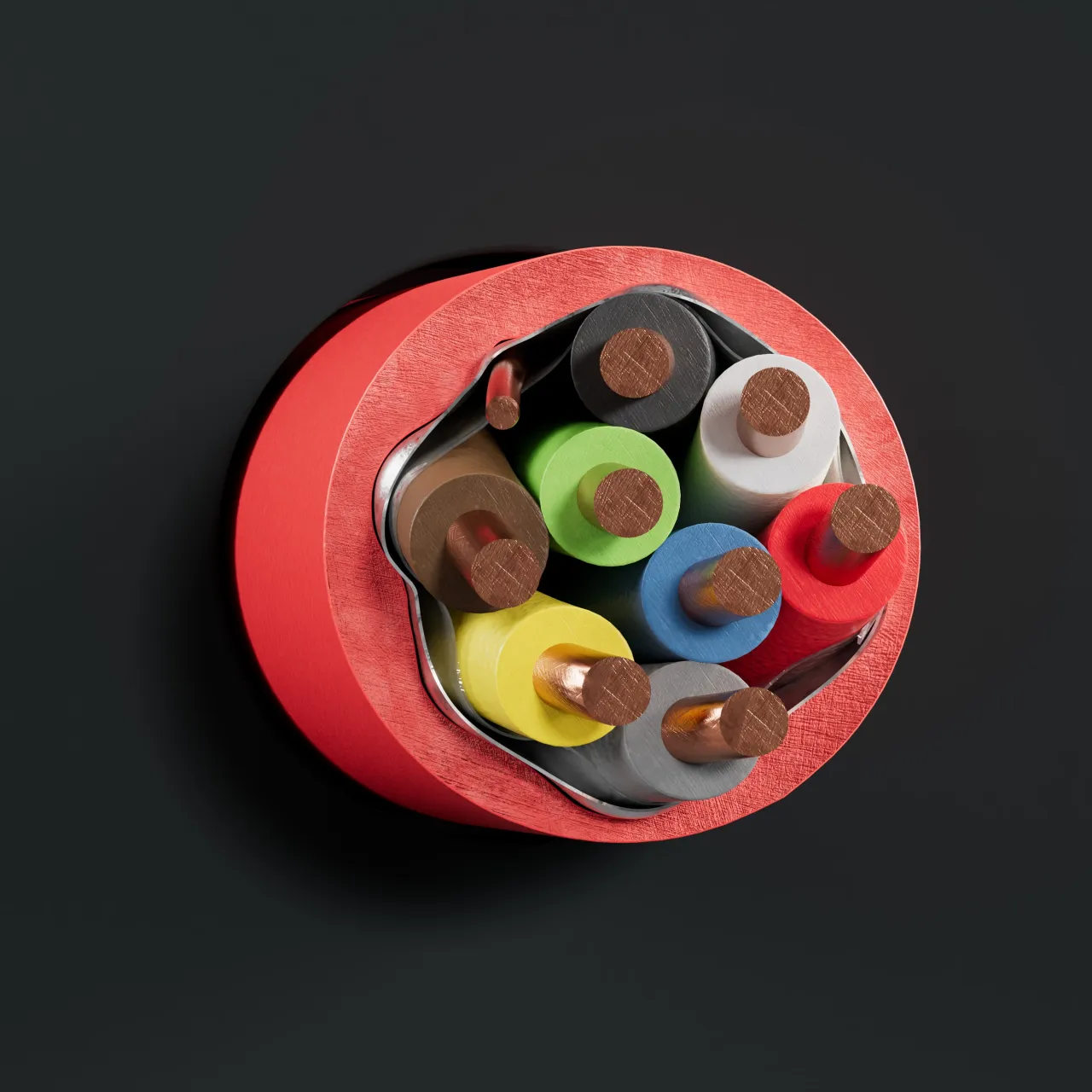

Cable image - JE-H(St)H...Bd FE180/E30-E90 RAL3020
+
-

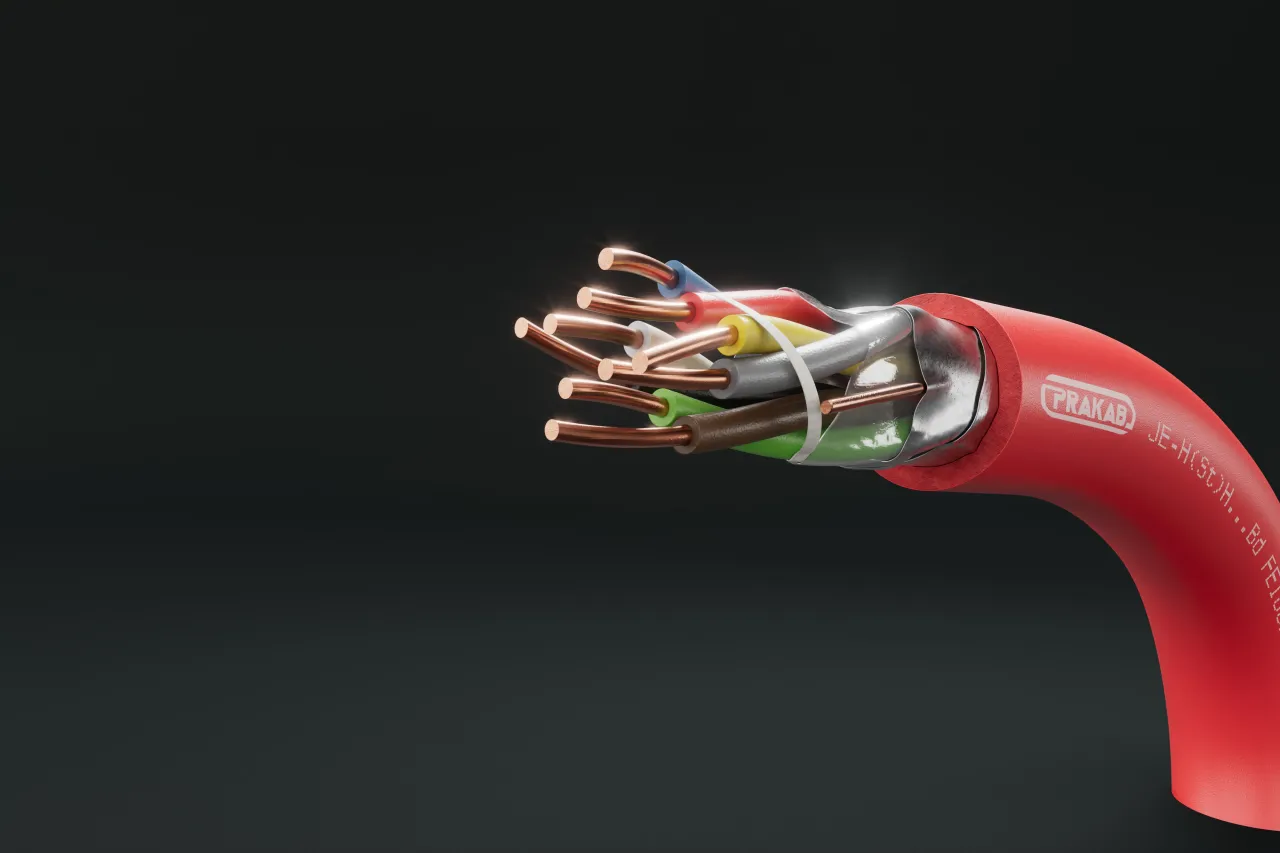

Cable image - JE-H(St)H...Bd FE180/E30-E90 RAL3020
+
-

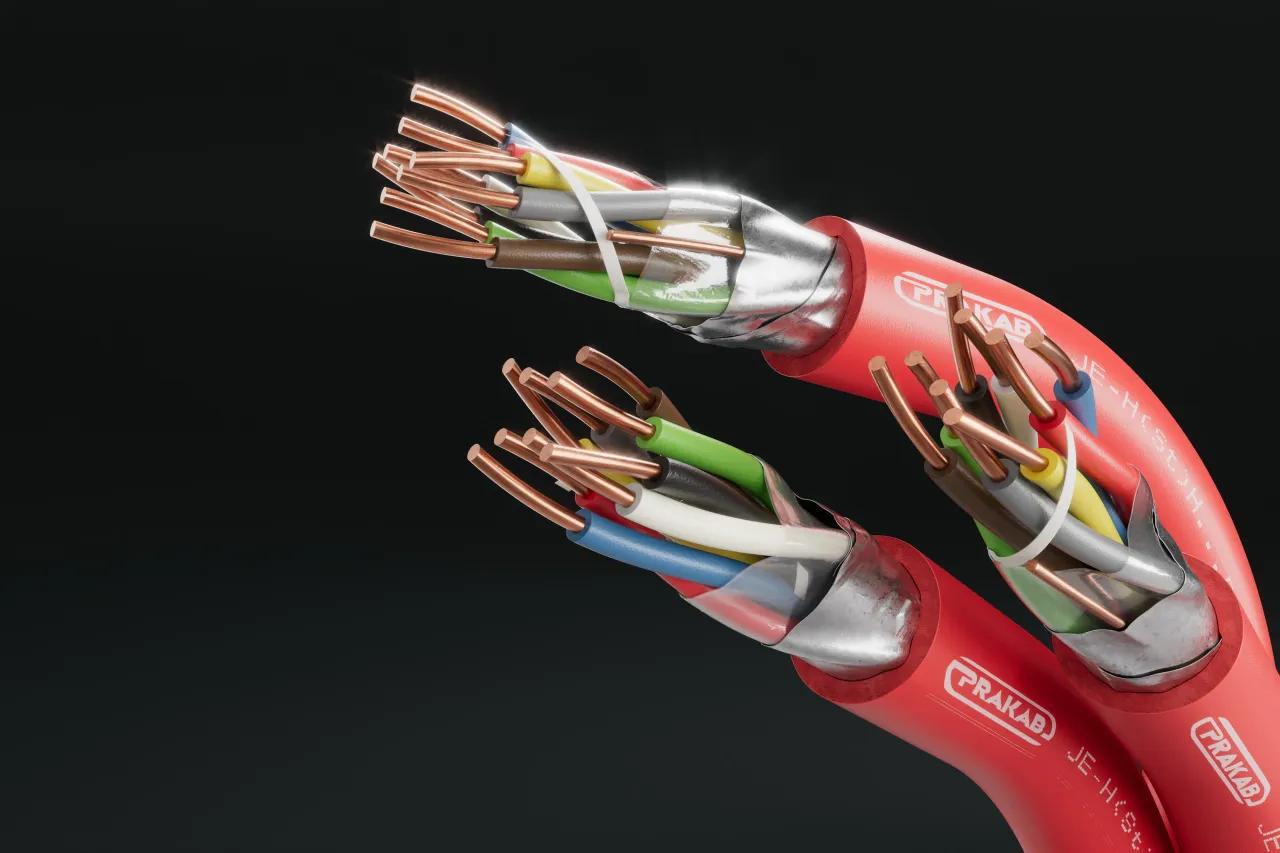

Cable image - JE-H(St)H...Bd FE180/E30-E90 RAL3020
+
-

Contact us

Are you interested in this product?

Ing. Štěpán Laštůvka

Product supervisor

+420 732 912 682
[email protected]

Electricity

Add to inquiry
Parameter
Unit
Values
Conductor diameter (mm)
mm
0.8
Loop resistance max (Ω/km)
Ω/km
73.2
Mutual capacitance (approx. value), at 800 Hz (nF/km)
nF/km
120
Mutual capacitance, max. (nF/km)
nF/km
144
Capacitance unbalance, max. k (pF/500m)
pF/500m
400
Insulation resistance, min. at 20 °C (MΩ/km)
MΩ/km
100

Options

Add to inquiry
Number of pairs x nominal diameter
Outer diameter appr. (mm)
Total weight appr. (kg/km)
1 x 2 x 0.8
7.3
63
2 x 2 x 0.8
8.1
86
4 x 2 x 0.8
11.3
140
8 x 2 x 0.8
13.9
225
12 x 2 x 0.8
16.3
307
16 x 2 x 0.8
18.3
386
20 x 2 x 0.8
20.5
482
32 x 2 x 0.8
25.3
734
52 x 2 x 0.8
31.0
1108

Technical changes reserved.

All figures are therefore without guarantee.
