JE-H(St)H...Bd FE180/E30

Download PDF

Add to inquiry

Download PDF

To inquiry

halogen-free installation control cable with insulation integrity and circuit integrity, screened

Safety Cables

Measuring and control cable providing functional integrity in the event of fire. Not designed for laying in earth or water. Not UV and water resistant.

Design

This product consists of:

  • 1
    Copper conductor, round solid (RE)
  • 2
    Core insulation (silicone rubber), cores pair stranded, marking with green thread
  • 3
    Inner covering (plastic tape)
  • 4
    Screen (plastic laminated aluminium tape with drain wire)
  • 5
    Sheath (halogen-free polymer compound, orange or red)

Technical Data

Standard: adapted to DIN VDE 0815
Certificate: VDE Germany
Test Voltage:
  • core/core 500 V / 50 Hz
  • core/screen 2000 V / 50 Hz
Rated Voltage: max. 225 Vss
Bending radius (min.): 7,5 x Ø of cable
Fire properties:
  • EN 60332-1-2: self-extinguishing
  • EN 60754-2: halogen-free, non-corrosive combustion gases
  • EN 61034-2: low smoke emission
  • EN 60332-3-22: reduced flame propagation
  • IEC 60331-23: insulation integrity FE180
  • DIN 4102-12: circuit integrity E30
Core identification: DIN VDE 0815
Temperature range:
  • Laying temperature: min. -5°C
  • Operating temperature: -30°C up to 70°C

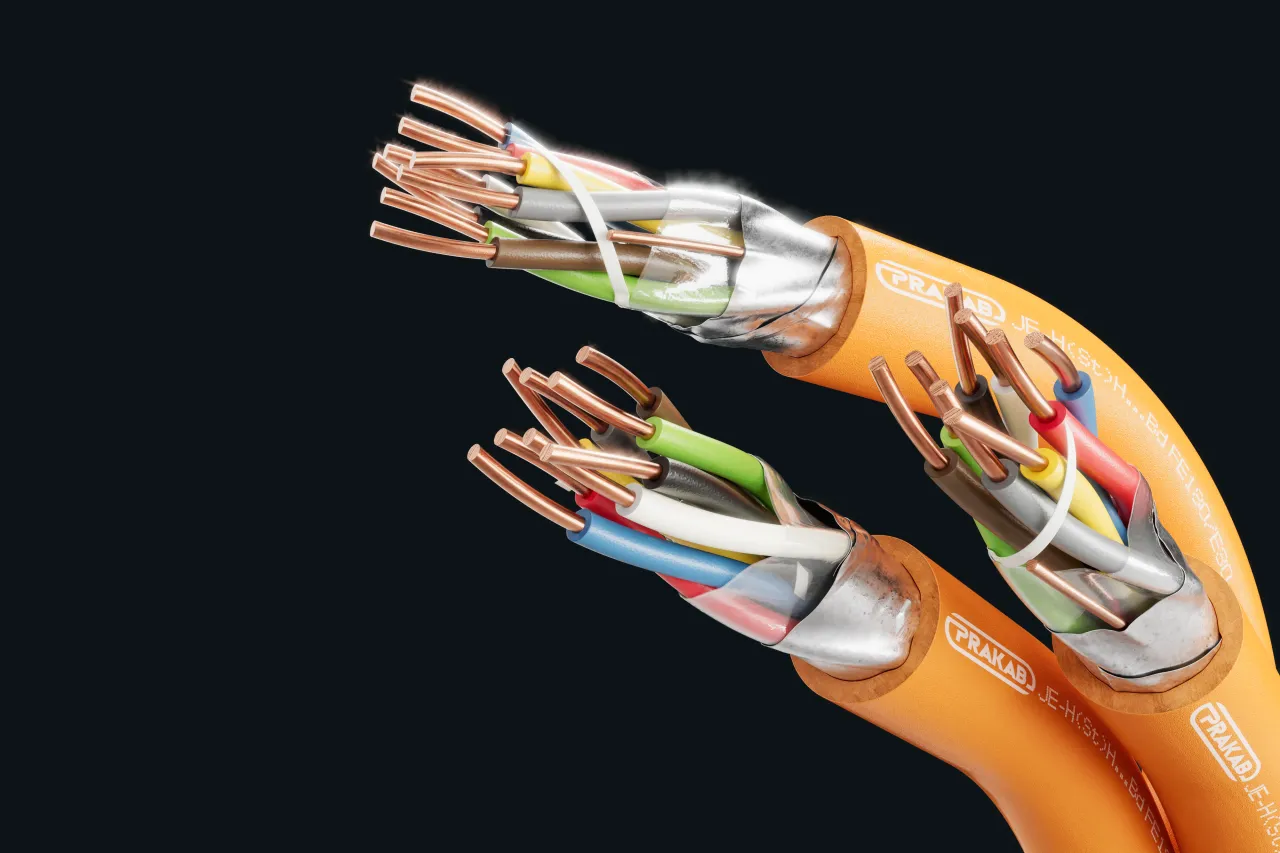

Cable image - JE-H(St)H...Bd FE180/E30
+
-

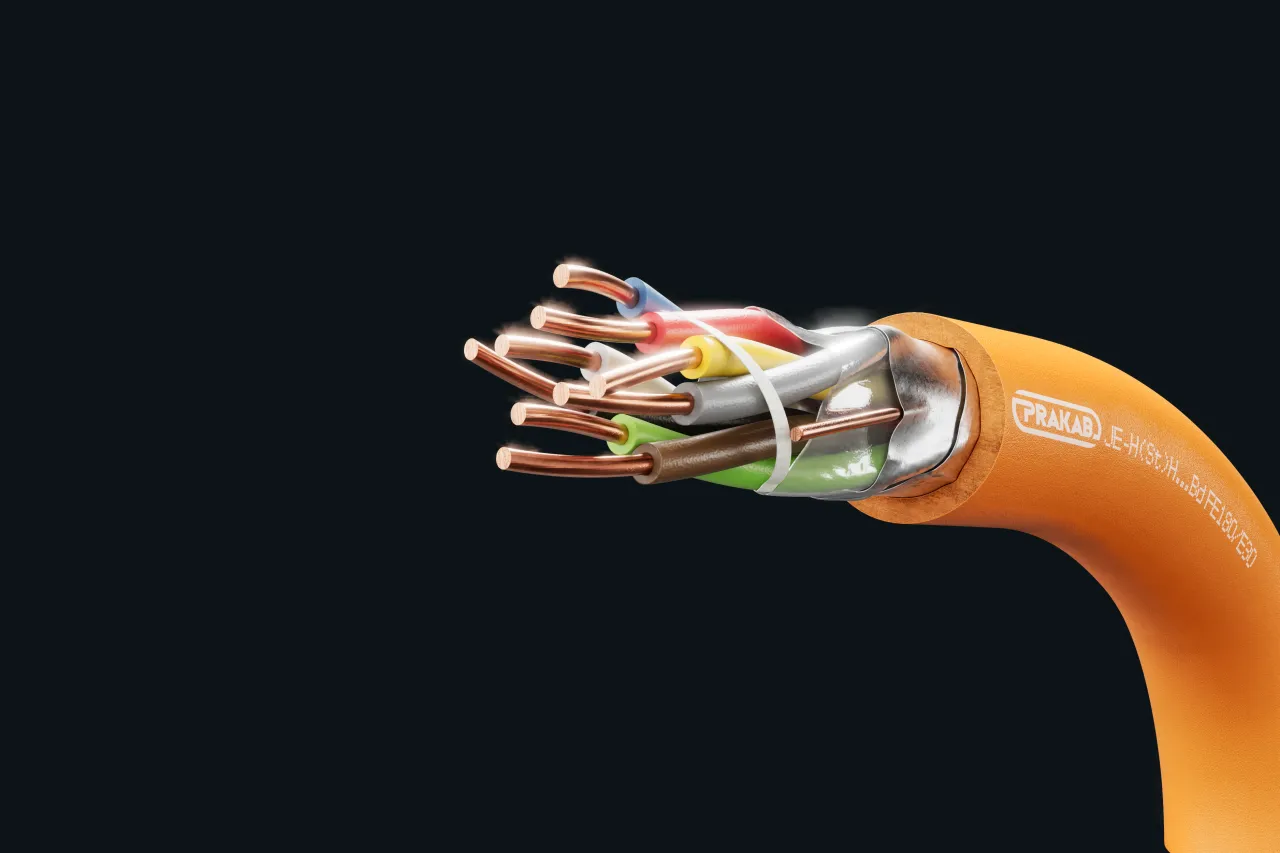

Cable image - JE-H(St)H...Bd FE180/E30
+
-
Cable image - JE-H(St)H...Bd FE180/E30
+
-

Contact us

Are you interested in this product?

Ing. Štěpán Laštůvka

Product supervisor

+420 732 912 682
[email protected]

Electricity

Add to inquiry
Parameter
Unit
Values
Conductor diameter (mm)
mm
0.8
Loop resistance max (Ω/km)
Ω/km
73.2
Mutual capacitance (approx. value), at 800 Hz (nF/km)
nF/km
144
Mutual capacitance, max. (nF/km)
nF/km
120
Capacitance unbalance, max. k (pF/500m)
pF/500m
400
Insulation resistance, min. at 20 °C (MΩ/km)
MΩ/km
100

Options

Add to inquiry
Number of pairs x nominal diameter
Outer diameter appr. (mm)
Total weight appr. (kg/km)
2 x 2 x 0.8
7.9
84
4 x 2 x 0.8
11.1
138

Technical changes reserved.

All figures are therefore without guarantee.

To inquiry

CMS

Add to inquiry
System / System Manufacturer
System identification
Classification
Range
Distance (a) /Width (b) / Load (g)
AbP number
AbP part no.
Normtrag
Kabelleiter
E30
n x 2 x ≥ 0.8
a ≤ 1200 mm b = 400 mm g ≤ 20 kg/m
P-MPA-E-09-016
15-1
Normtrag
Kabelrinne
E30
n x 2 x ≥ 0.8
a ≤ 1200 mm b = 300 mm g ≤ 10 kg/m
P-MPA-E-09-016
15-2
Normtrag
Einzelschelle
E30
n x 2 x ≥ 0.8
a ≤ 300 mm
P-MPA-E-09-016
15-3
Normtrag
Bügleschelle m. Langwanne
E30
n x 2 x ≥ 0.8
a ≤ 600 mm
P-MPA-E-09-016
15-4
Niedax
RLVC 60.400
E30
n x 2 x ≥ 0.8
≤ 1500 mm b = 400 mm g ≤ 30 kg/m
ABP_P-1016-DMT-DO
II
LANZ
G-Kanal 50x100
E30
n x 2 x ≥ 0.8
wire dia. 4 mm g ≤ 10 kg/m
ABP_P-1016-DMT-DO
IV
OBO Bettermann
Grip 2031/M30
E30
n x 2 x ≥ 0.8
a ≤ 500 mm g ≤ 2,5 kg/m
ABP_P-1016-DMT-DO
XI
LANZ
WSP-Multibahn 400x60
E30
n x 2 x ≥ 0.8
a ≤ 1800 mm b = 400 mm g ≤ 20 kg/m
ABP_P-1016-DMT-DO
XIV
PohlCon
RG 60-30S
E30
n x 2 x ≥ 0.8
a ≤ 1550 mm b = 300 mm g ≤ 20 kg/m
ABP_P-1036-DMT_DO
IV
PohlCon
RG 60-40S
E30
n x 2 x ≥ 0.8
a ≤ 1550 mm b = 300 mm g ≤ 20 kg/m
ABP_P-1036-DMT_DO
V

Technical changes reserved.

All figures are therefore without guarantee.
