JB-Y(St)Y

Download PDF

Add to inquiry

Download PDF

To inquiry

Fire alarm cable, screened

Fire Alarm Cables

For the fixed installation for indoors as installation cabble in fire alarm systems.

Design

This product consists of:

  • 1
    Kupferleiter, rund eindrähtig
  • 2
    Aderisolation (PVC), Adern paarverseilt, Paare in Lagen verseilt
  • 3
    Gemeinsame Aderumhüllung (Kunststofffolie)
  • 4
    Schirm (kunststoffkaschierte Aluminiumfolie mit Beidraht)
  • 5
    Mantel (PVC rot mit Aufdruck „Brandmeldeleitung“)

Technical Data

Standard: adapted to DIN VDE 0815
Test Voltage: 800 Veff (core/screen)
Rated Voltage: max. 300 Vss (kurzzeitig max. 600 Vss)
Bending radius (min.): 7,5 x Ø der Leitung
Fire properties: EN 60332-1-2: flame retardant
Core identification: DIN VDE 0815
Temperature range:
  • Laying temperature: min. -5°C
  • Fixed installation: -30°C up to 70°C
  • Flexible use: -5°C up to 50°C

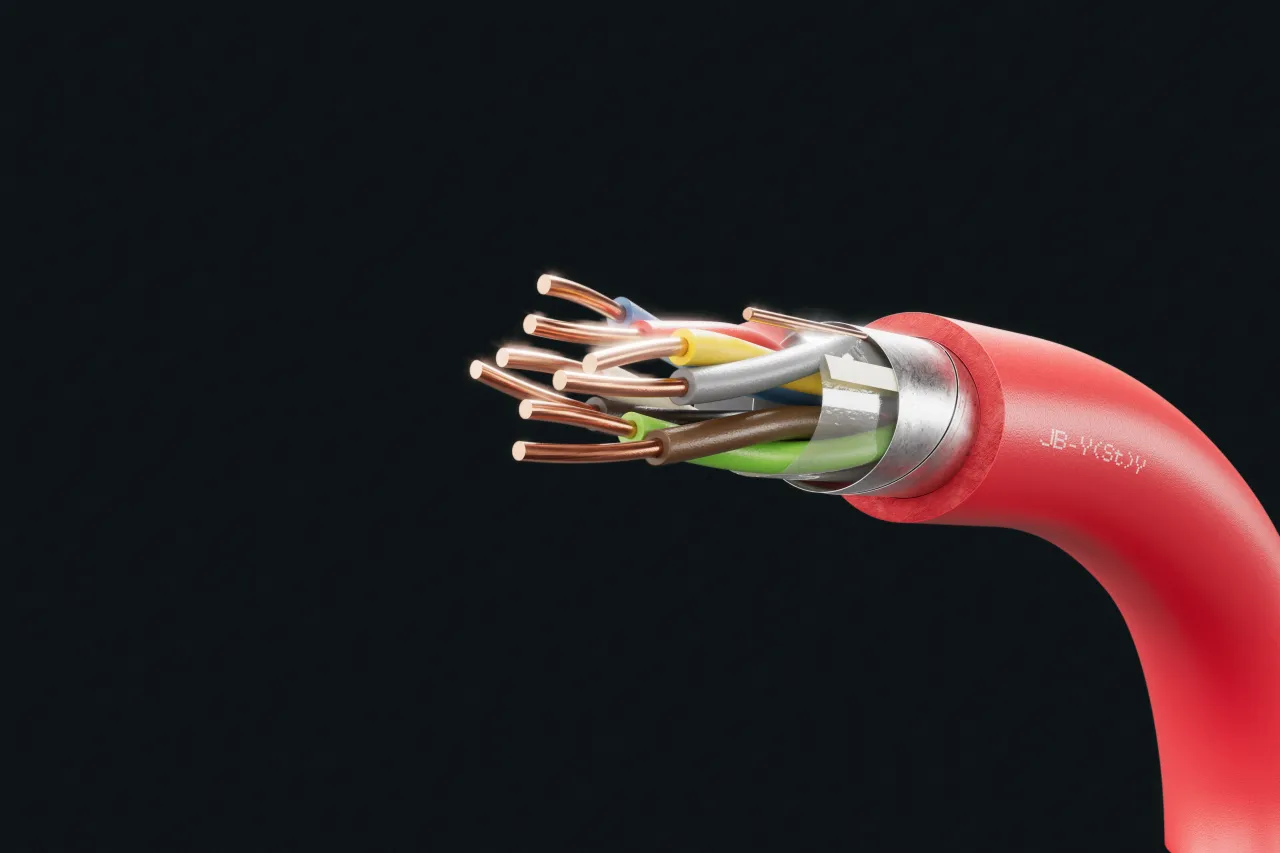

Cable image - JB-Y(St)Y
+
-

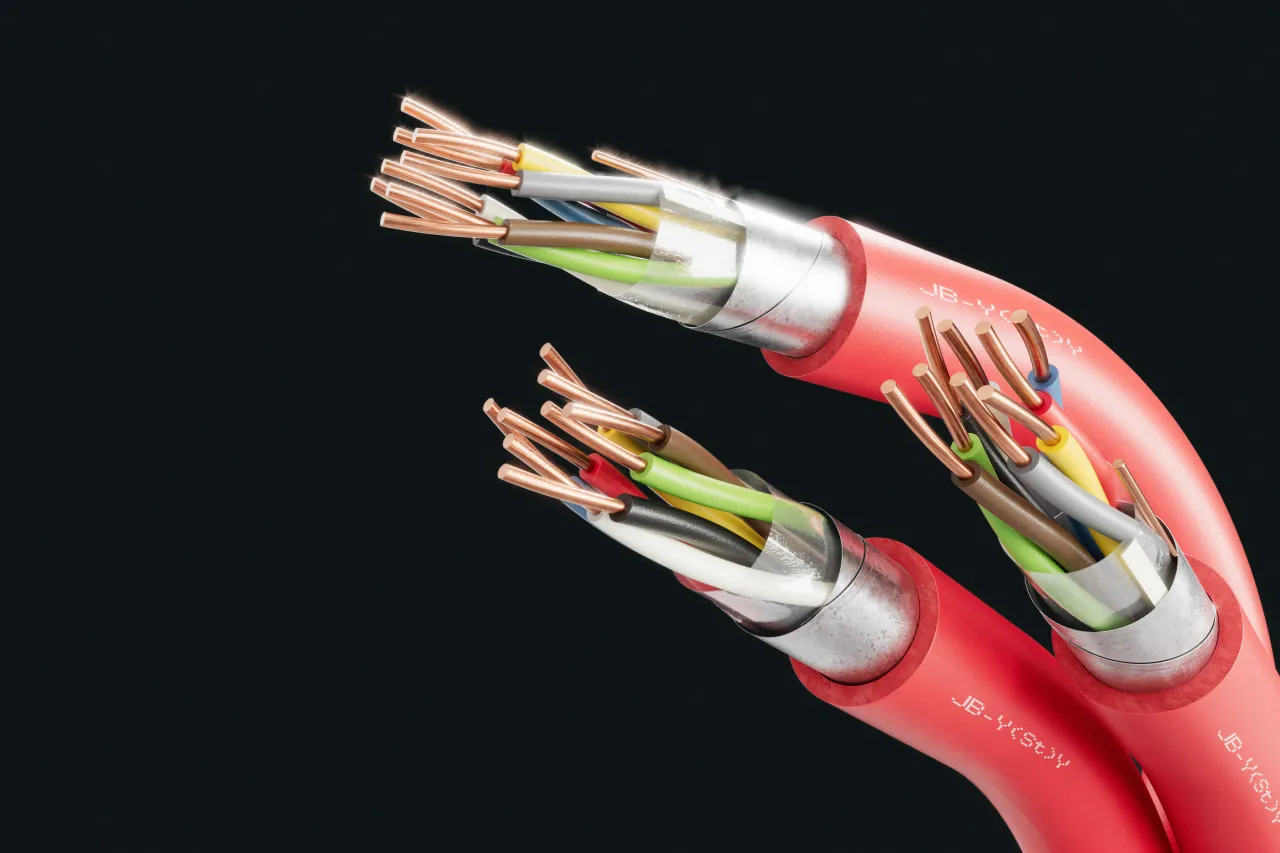

Cable image - JB-Y(St)Y
+
-
Cable image - JB-Y(St)Y
+
-

Contact us

Are you interested in this product?

Dogan Özcan, MSc

Product supervisor

+43 (0) 1 70170-154
[email protected]

Electricity

Add to inquiry
Parameter
Unit
Values
Conductor diameter (mm)
mm
0.8
Conductor resistance, max. at 20 °C (Ω/km)
Ω/km
73.2
Insulation resistance, min. at 20 °C (MΩ/km)
MΩ/km
100
Mutual capacitance (approx. value), at 800 Hz (nF/km)
nF/km
120
Capacitance unbalance at 800 Hz, k1 max. (pF/km)
pF/km
100

Options

Add to inquiry
Number of pairs x nominal diameter
Outer diameter appr. (mm)
Total weight appr. (kg/km)
Standard lengths/packing (m)
1 x 2 x 0.8
6.0
40
100 R, 500 SP, 1000 SP
2 x 2 x 0.8
6.1
54
100 R, 500 SP, 1000 SP
4 x 2 x 0.8
8.7
94
100 R, 500 SP, 1000 SP
5 x 2 x 0.8
9.4
114
500 SP, 1000 SP
6 x 2 x 0.8
10.1
135
100 R, 500 SP, 1000 SP
10 x 2 x 0.8
12.0
205
500 T, 1000 T
12 x 2 x 0.8
12.8
235
500 T, 1000 T
20 x 2 x 0.8
15.0
384
500 T, 1000 T
30 x 2 x 0.8
19.0
522
500 T, 1000 T
40 x 2 x 0.8
20.9
663
500 T, 1000 T
50 x 2 x 0.8
23.4
832
500 T, 1000 T
60 x 2 x 0.8
25.0
978
500 T, 1000 T
100 x 2 x 0.8
32.5
1900
500 T, 1000 T

Technical changes reserved.

All figures are therefore without guarantee.
