JE-H(St)H...Bd FE180/E30 red, Fire alarm cable

Download PDF

Add to inquiry

Download PDF

To inquiry

Fire alarm cable, with insulation integrity FE180 and circuit integrity E30, screened

Safety Cables

For use in fire alarm systems where functional integrity is required. Predominantly for indoor applications, but also for fixed installation outdoors if protected from sunlight. Not suitable for power installations and underground laying.

Design

This product consists of:

  • 1
    Kupferleiter, rund eindrähtig (RE)
  • 2
    Aderisolation (halogenfreie Polymermischung), Adern zu Paaren und diese in Bündel verseilt
  • 3
    Gemeinsame Aderumhüllung (halogenfreie Kunststofffolie)
  • 4
    Schirm (kunststoffkaschierte Aluminiumfolie mit Beidraht)
  • 5
    Mantel (halogenfreie Polymermischung rot, mit Aufdruck „Brandmeldeleitung“)

Technical Data

Standard: adapted to DIN VDE 0815
Test Voltage: 2000 Veff (core/screen)
Rated Voltage: max. 225 Vss
Bending radius (min.): 7,5 x Ø der Leitung
Fire properties: DIN 4102-12: circuit integrity E30
Core identification: DIN VDE 0815
Temperature range: Laying temperature: min. -5°C

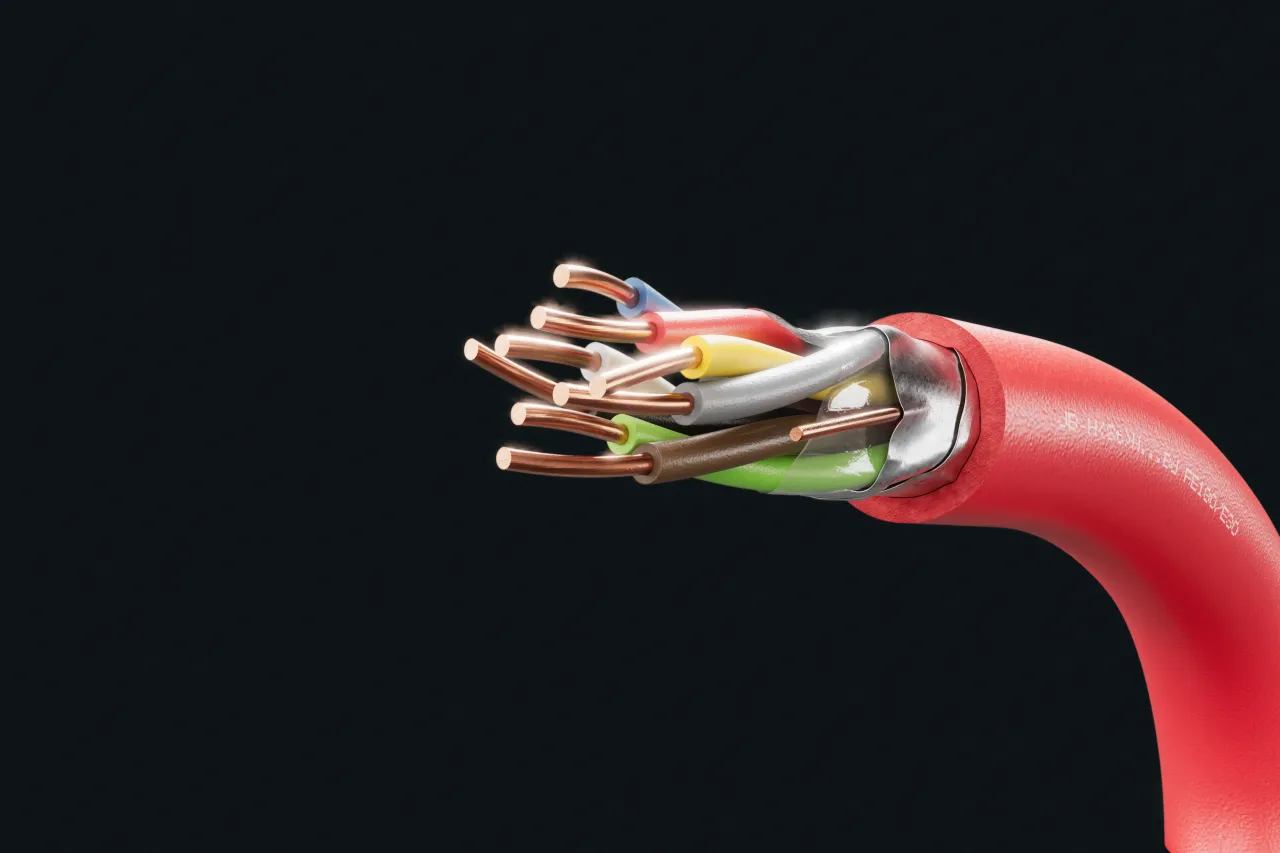

Cable image - JE-H(St)H...Bd FE180/E30 red, Fire alarm cable
+
-

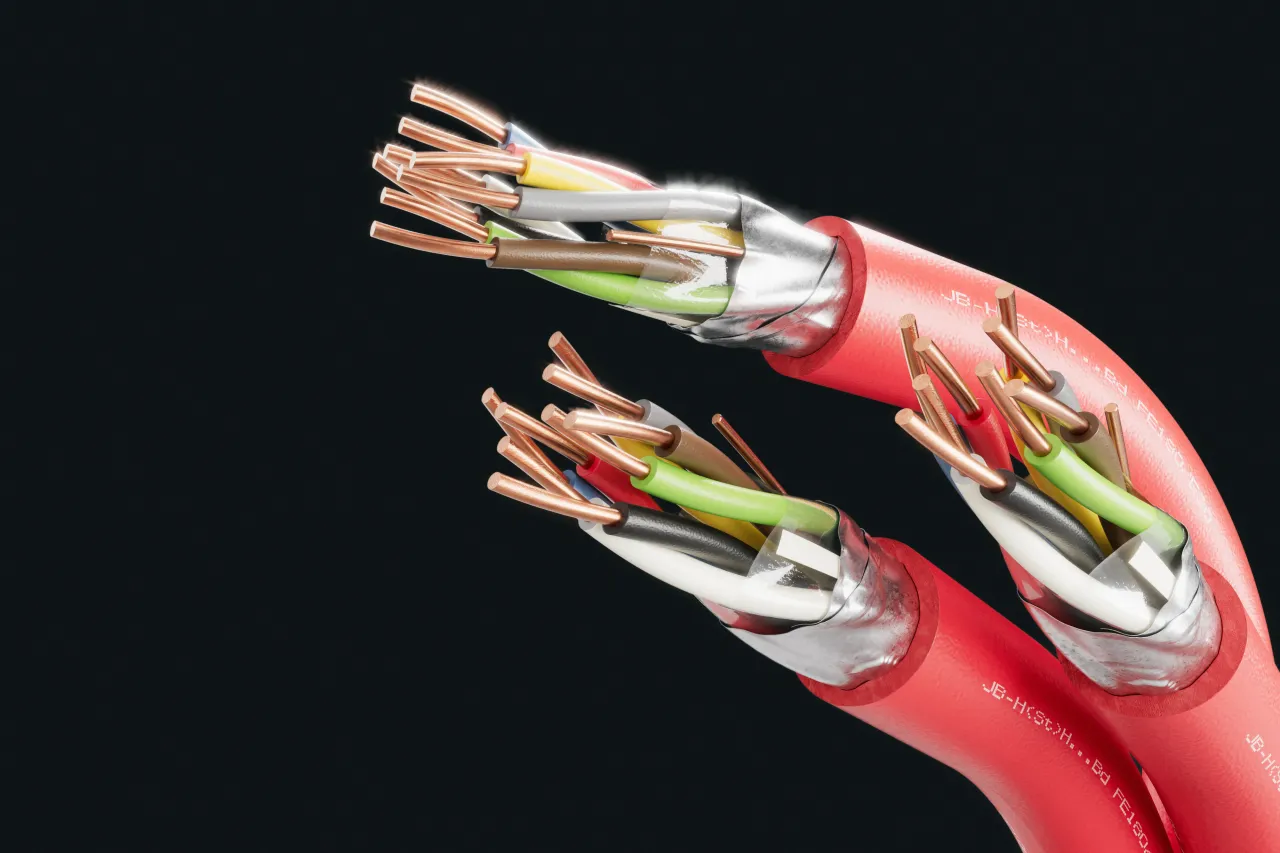

Cable image - JE-H(St)H...Bd FE180/E30 red, Fire alarm cable
+
-
Cable image - JE-H(St)H...Bd FE180/E30 red, Fire alarm cable
+
-

Contact us

Are you interested in this product?

Dogan Özcan, MSc

Product supervisor

+43 (0) 1 70170-154
[email protected]

Electricity

Add to inquiry
Parameter
Unit
Values
Conductor diameter (mm)
mm
0.8
Loop resistance max (Ω/km)
Ω/km
73.2
Insulation resistance, min. at 20 °C (MΩ/km)
MΩ/km
100
Mutual capacitance (approx. value), at 800 Hz (nF/km)
nF/km
144
Mutual capacitance, max. (nF/km)
nF/km
120
Capacitance unbalance, max. k (pF/500m)
pF/500m
200
Capacitance unbalance at 800 Hz, k1 max. (pF/km)
pF/km
400

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
Standard lengths/packing (m)
1 x 2 x 0,8
7.1
61
500 T, 1000 T
2 x 2 x 0,8
7.5
65
500 T, 1000 T
4 x 2 x 0,8
9.5
104
500 T, 1000 T
8 x 2 x 0,8
11.5
165
500 T, 1000 T
12 x 2 x 0,8
13.0
235
500 T, 1000 T
16 x 2 x 0,8
15.0
300
500 T, 1000 T
20 x 2 x 0,8
16.5
361
500 T, 1000 T
52 x 2 x 0,8
27.6
906
500 T, 1000 T
32 x 2 x 0,8
20.5
554
500 T, 1000 T

Technical changes reserved.

All figures are therefore without guarantee.
