HSLH-JZ or HSLH-OZ

Download PDF

Add to inquiry

Download PDF

To inquiry

control cable, halogen-free, unscreened

Halogen-free Control and Electronic Cables

As flexible control and connecting cable for fixed laying and flexible applications without tensile stress and/or without guided movements. For the protection of human life and valuable equipment, especially when excellent EMC behavior is requested.

Design

This product consists of:

  • 1
    Copper conductor, fine wire
  • 2
    Core insulation (FRNC), cores stranded in layers
  • 3
    Sheath (FRNC grey RAL 7001, oil resistant)

Technical Data

Test Voltage: 2 kV
Rated Voltage: 300/500 V (Uo/U)
Bending radius (min.):
  • 4 x Ø of cable (fixed installed)
  • 15 x Ø of cable (free motion)
Fire properties:
  • EN 60332-1-2: flame retardant and self-extinguishing
  • EN 60754-1 and 2: halogen-free; non-corrosive
  • combustion gases
  • EN 61034-2: low smoke emission
  • EN 60332-3-22 and 24: reduced flame
  • propagation
  • CPR classification: Eca
Core identification: black with number printing, with one core greenyellow (JZ), without (OZ)
Temperature range:
  • Laying temperature: min. -5°C
  • Conductor temperature: max. 70°C
  • Short circuit temperature: max. 150°C
  • Fixed installation: -40°C up to 70°C

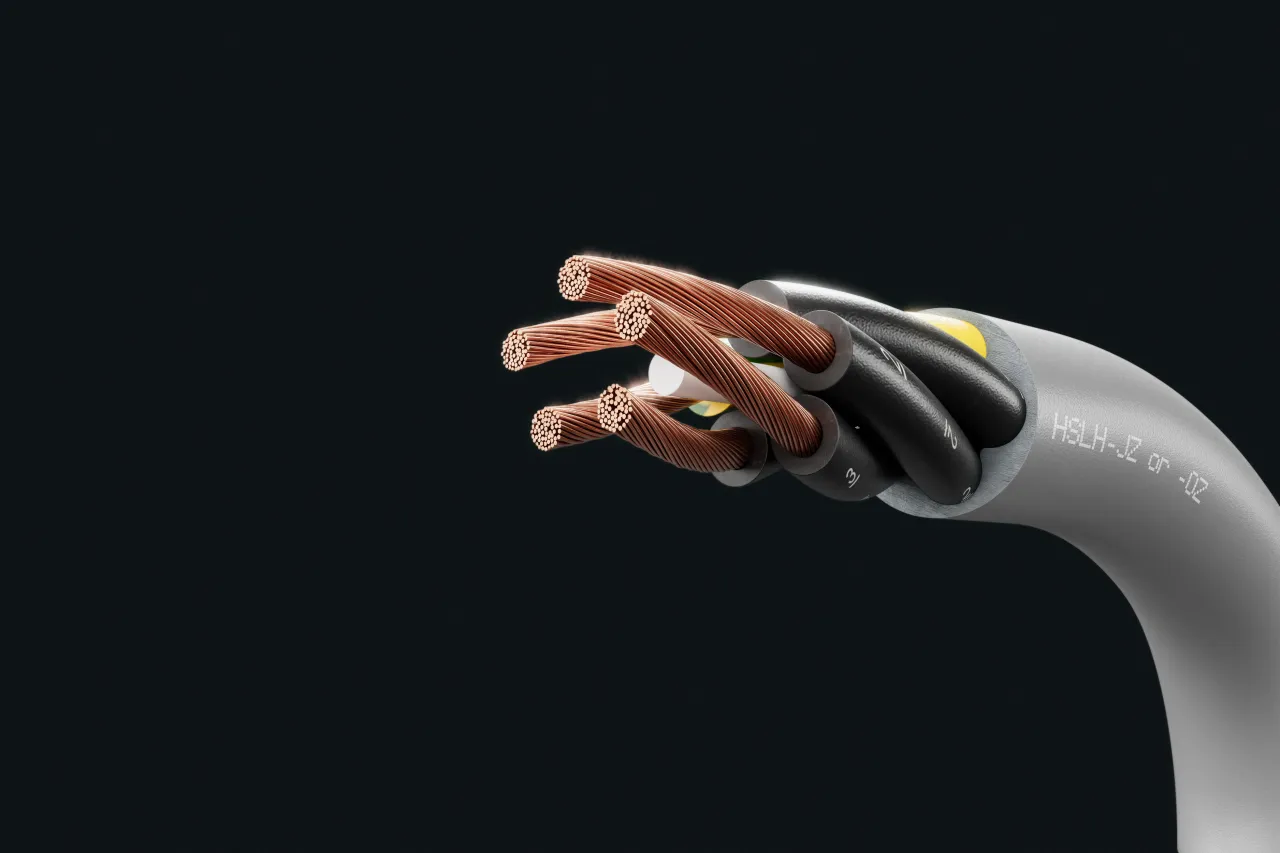

Cable image - HSLH-JZ or HSLH-OZ
+
-

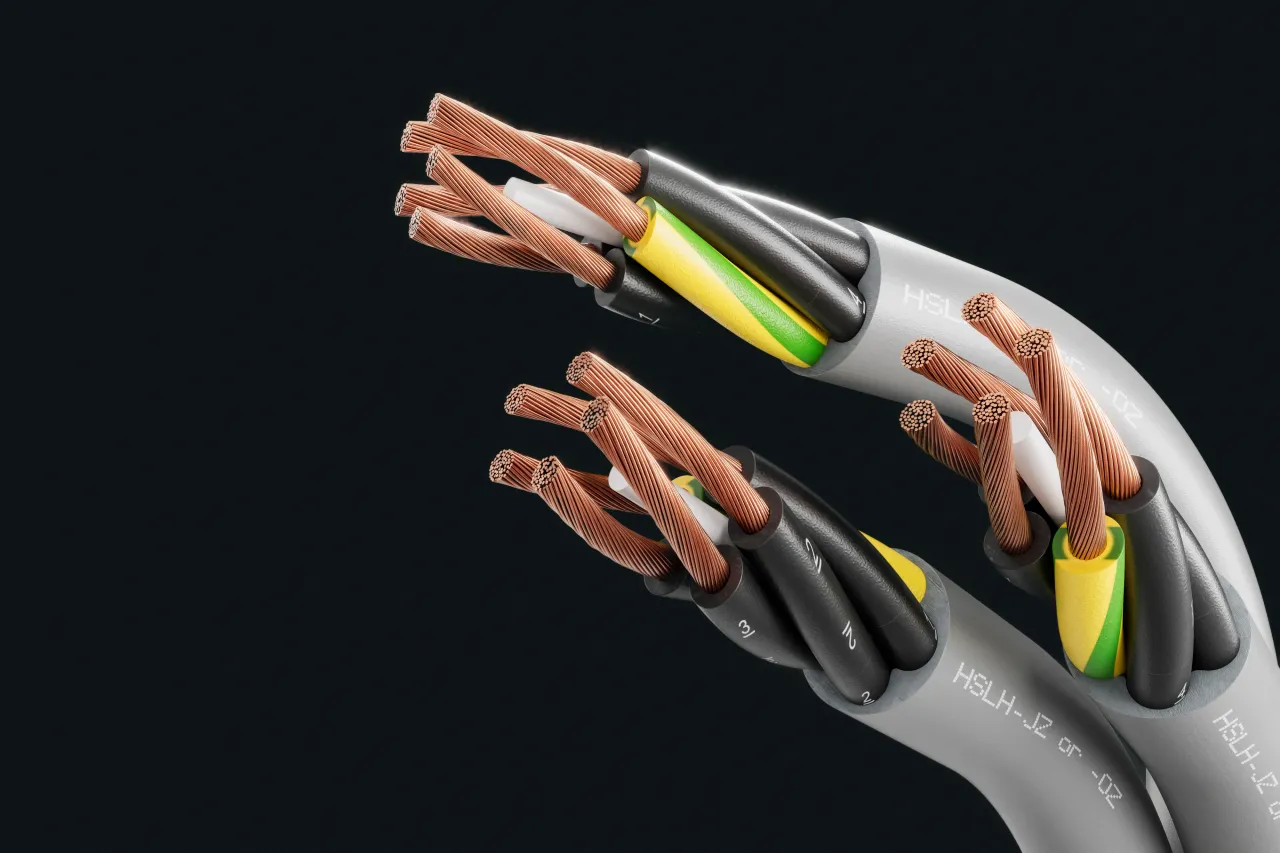

Cable image - HSLH-JZ or HSLH-OZ
+
-
Cable image - HSLH-JZ or HSLH-OZ
+
-

Contact us

Are you interested in this product?

Dogan Özcan, MSc

Product supervisor

+43 (0) 1 70170-154
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Max. conductor resistance (Ω/km)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
2 x 0,75
26.0
5.2
40
3 x 0,75
26.0
5.5
48
4 x 0,75
26.0
6.0
59
5 x 0,75
26.0
6.5
70
7 x 0,75
26.0
7.3
94
12 x 0,75
26.0
9.7
153
18 x 0,75
26.0
11.5
221
25 x 0,75
26.0
13.7
297
2 x 1
19.5
5.6
47
3 x 1
19.5
5.9
58
4 x 1
19.5
6.5
71
5 x 1
19.5
7.3
88
7 x 1
19.5
7.9
113
12 x 1
19.5
10.5
185
18 x 1
19.5
12.5
268
25 x 1
19.5
14.9
384
2 x 1,5
13.3
6.0
58
3 x 1,5
13.3
6.4
72
4 x 1,5
13.3
7.2
93
5 x 1,5
13.3
7.8
111
7 x 1,5
13.3
8.5
144
12 x 1,5
13.3
11.6
243
18 x 1,5
13.3
13.5
346
25 x 1,5
13.3
16.2
467
34 x 1,5
13.3
22.0
922
2 x 2,5
7.98
7.1
85
3 x 2,5
7.98
7.5
108
4 x 2,5
7.98
8.3
135
5 x 2,5
7.98
9.0
162
7 x 2,5
7.98
10.1
219
12 x 2,5
7.98
13.4
361
4 x 4
4.95
10.3
209
5 x 4
4.95
11.3
252
4 x 6
3.3
11.9
298
5 x 6
3.3
13.1
360
5 x 10
1.91
17.4
623

Technical changes reserved.

All figures are therefore without guarantee.
