HSLCH

Download PDF

Add to inquiry

Download PDF

To inquiry

FRNC control cable, halogen-free, screened

PVC and Rubber Cables and Wires

As flexible control and connecting cable for fixed laying and flexible applications without tensile stress and/or without guided movements. For the protection of human life and valuable equipment, especially when excellent EMC behavior is requested.

Design

This product consists of:

  • 1
    Bare copper conductors, fine wires class 5 according to DIN EN 60228 / VDE 0295 / IEC 60228
  • 2
    Core insulation of special halogen-free, flame retardant compound (FRNC)
  • 3
    Cores are stranded in layers with optimal lay-length
  • 4
    Wrapping with plastic tape
  • 5
    Tinned copper wire braiding
  • 6
    Outer sheath of special halogen-free, flame retardant compound (FRNC), colour: grey (RAL 7001)

Technical Data

Standard: Based on EN 50525-3-11
Test Voltage: 2000 V / 50 Hz
Rated Voltage: 300/500 V (Uo/U)
Bending radius (min.):
  • Fixed installation: 4 x Ø of cable
  • Flexible use: 15 x Ø of cable
Fire properties:
  • EN 60332-1-2: self-extinguishing and flame retardant
  • EN 60332-3-24 (Category C): reduced flame propagation EN 60754-1, EN 60754-2: halogen-free; non-corrosive combustion gases
  • EN 61034-2, IEC 61034: smoke density
Core identification: Black (continuously numbered), from 3 cores with green/yellow ground conductor
Temperature range:
  • Fixed installation: -40°C up to 70°C
  • Flexible use: -5°C up to 70°C

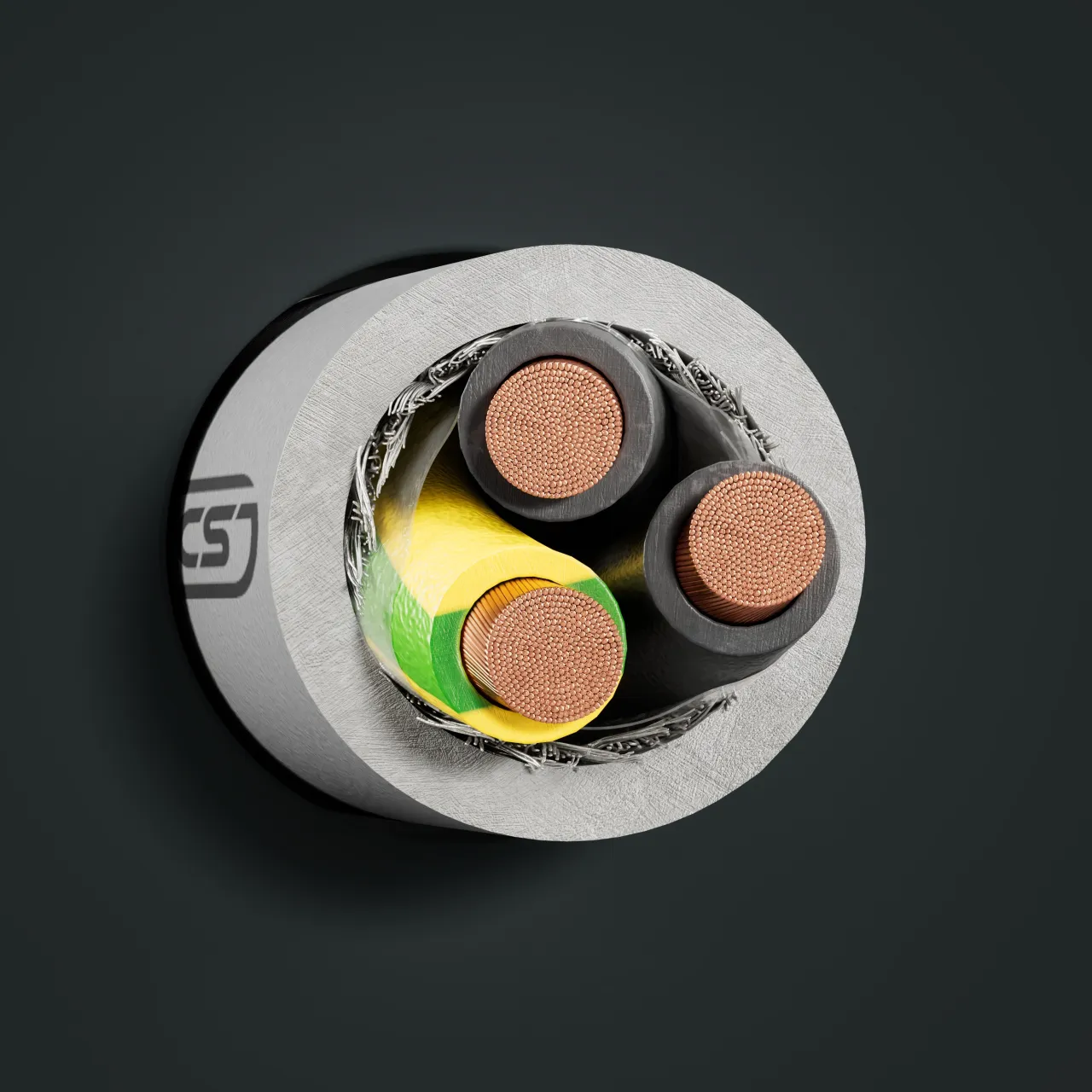

Cable image - HSLCH
+
-

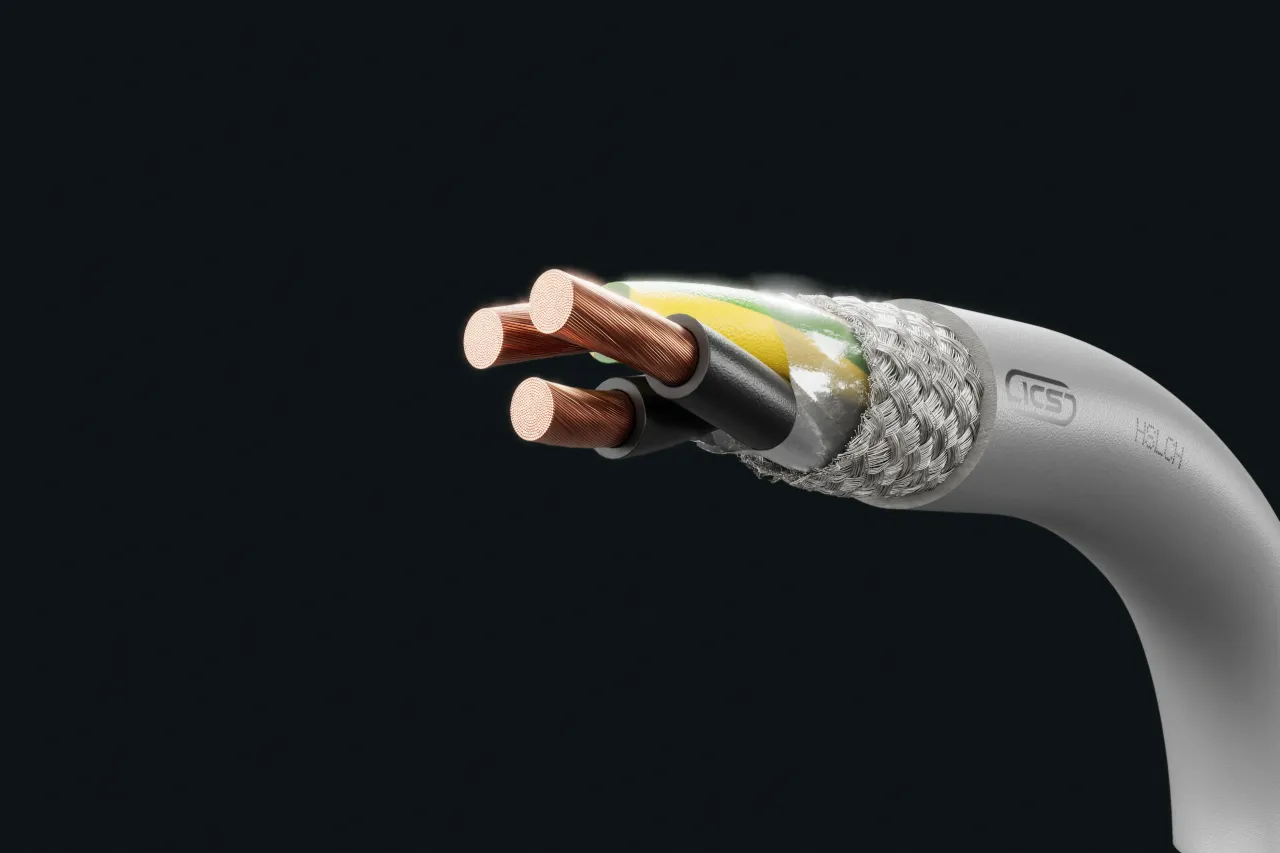

Cable image - HSLCH
+
-

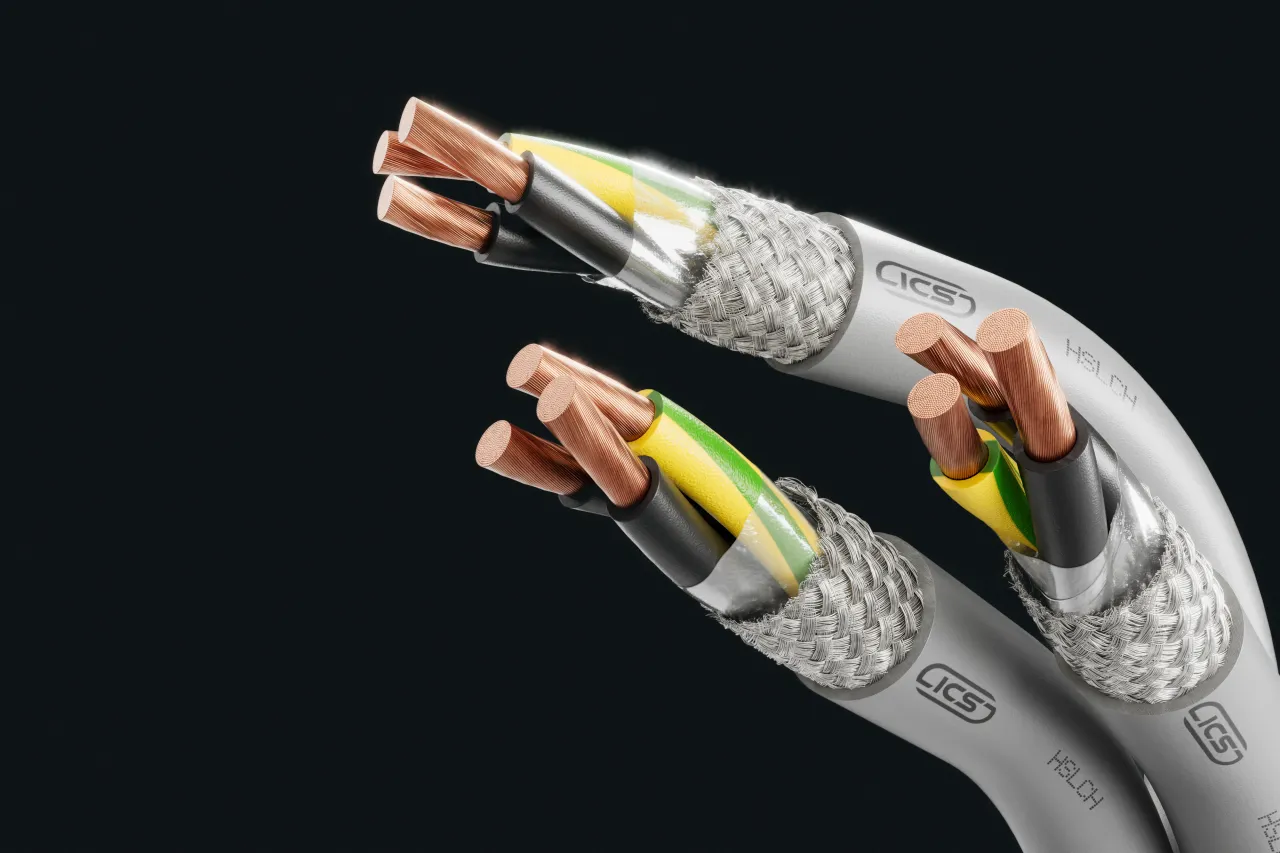

Cable image - HSLCH
+
-

Contact us

Are you interested in this product?

Dipl. Ing. Peter Tomka

Product supervisor

+421 37 6969631
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Outer diameter appr. (mm)
Cu-value (kg/km)
Total weight appr. (kg/km)
2 x 0.75
6.7
43
53
3 G 0.75
7.0
52
63
4 G 0.75
7.5
61
77
5 G 0.75
8.1
72
94
7 G 0.75
8.7
89
116
12 G 0.75
11.4
138
187
18 G 0.75
13.3
211
285
25 G 0.75
16.0
280
397
2 x 1
7.1
51
62
3 G 1
7.4
62
74
4 G 1
8.0
74
91
5 G 1
8.7
88
111
7 G 1
9.3
112
140
12 G 1
12.3
185
232
18 G 1
14.7
268
332
25 G 1
17.7
354
464
2 x 1.5
8.0
65
84
3 G 1.5
8.4
82
102
4 G 1.5
9.1
100
125
5 G 1.5
9.9
119
154
7 G 1.5
11.1
154
193
12 G 1.5
14.7
268
323
18 G 1.5
17.3
373
479
25 G 1.5
21.0
530
678
2 x 2,5
9.7
92
123
3 G 2.5
10.2
118
151
5 G 2.5
12.1
176
234
7 G 2.5
13.9
253
306

Technical changes reserved.

All figures are therefore without guarantee.
