Light XLPE/FRNC installation cable

Halogen-free Cables and Wires

Halogen-free installation cable suitable for application in house-hold and industry. For internal or outdoor application by protected installation. The cable is not UV-resistant.

Design

This product consists of:

  • 1
    Copper conductor, round solid (RE) resp. round stranded (RM)
  • 2
    Core insulation (XLPE)
  • 3
    Inner covering (halogen-free polymer compound)
  • 4
    Sheath (halogen-free polymer compound grey RAL 7035)

Technical Data

Standard: DIN VDE 0250-215
Certificate: VDE Germany
Test Voltage: 2 kV / 50 Hz
Rated Voltage: 300/500 V (Uo/U)
Bending radius (min.): 10 x Ø der Leitung
Fire properties:
  • EN 50265-2-1: flame-retardant and self-extinguishing
  • EN 60754-1 and 2: halogen-free, no corrosive fire gases
Core identification: HD 308 S2
Temperature range:
  • Laying temperature: min. -5°C
  • Conductor temperature: max. 70°C
  • Short circuit temperature: max. 160°C
  • Fixed installation: -40°C up to 70°C
  • Flexible use: 5°C up to 70°C

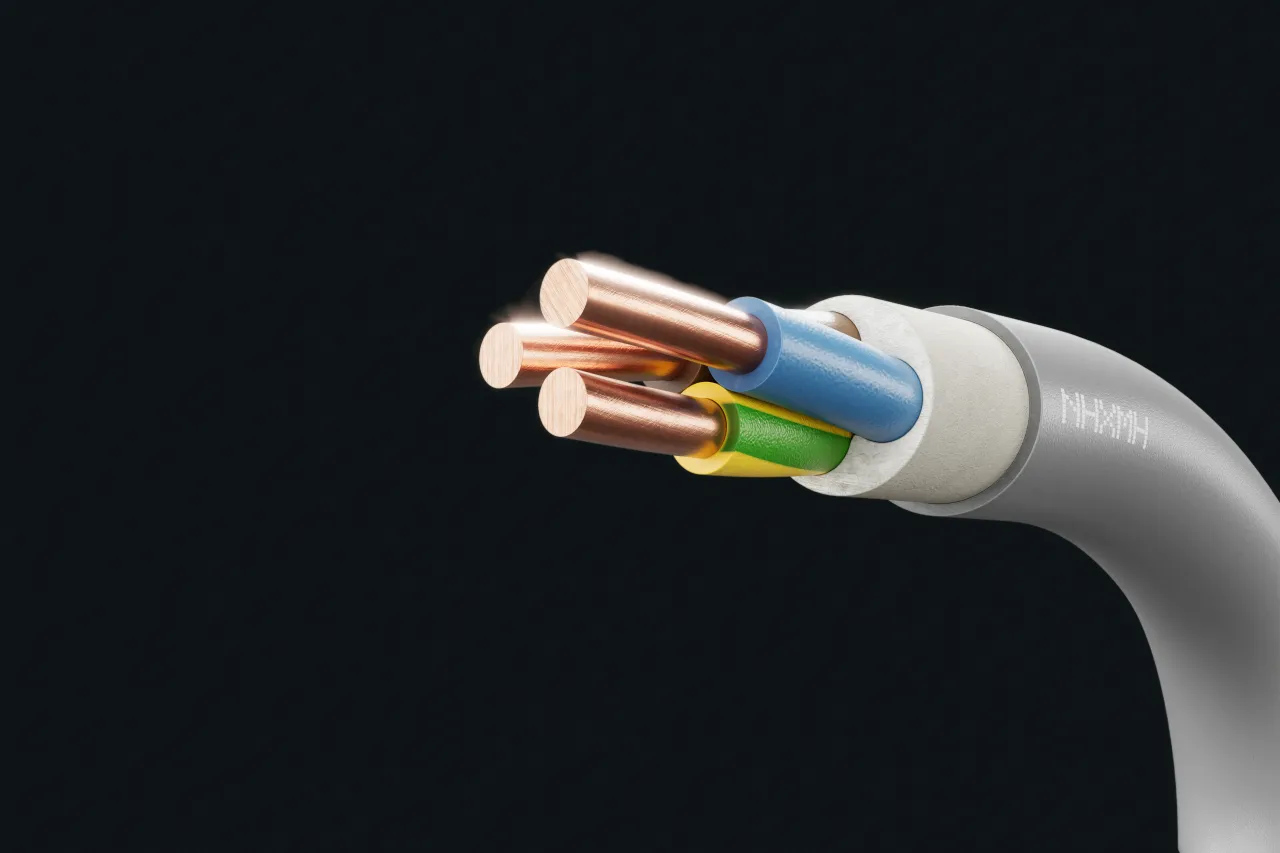

Cable image - HMH
+
-

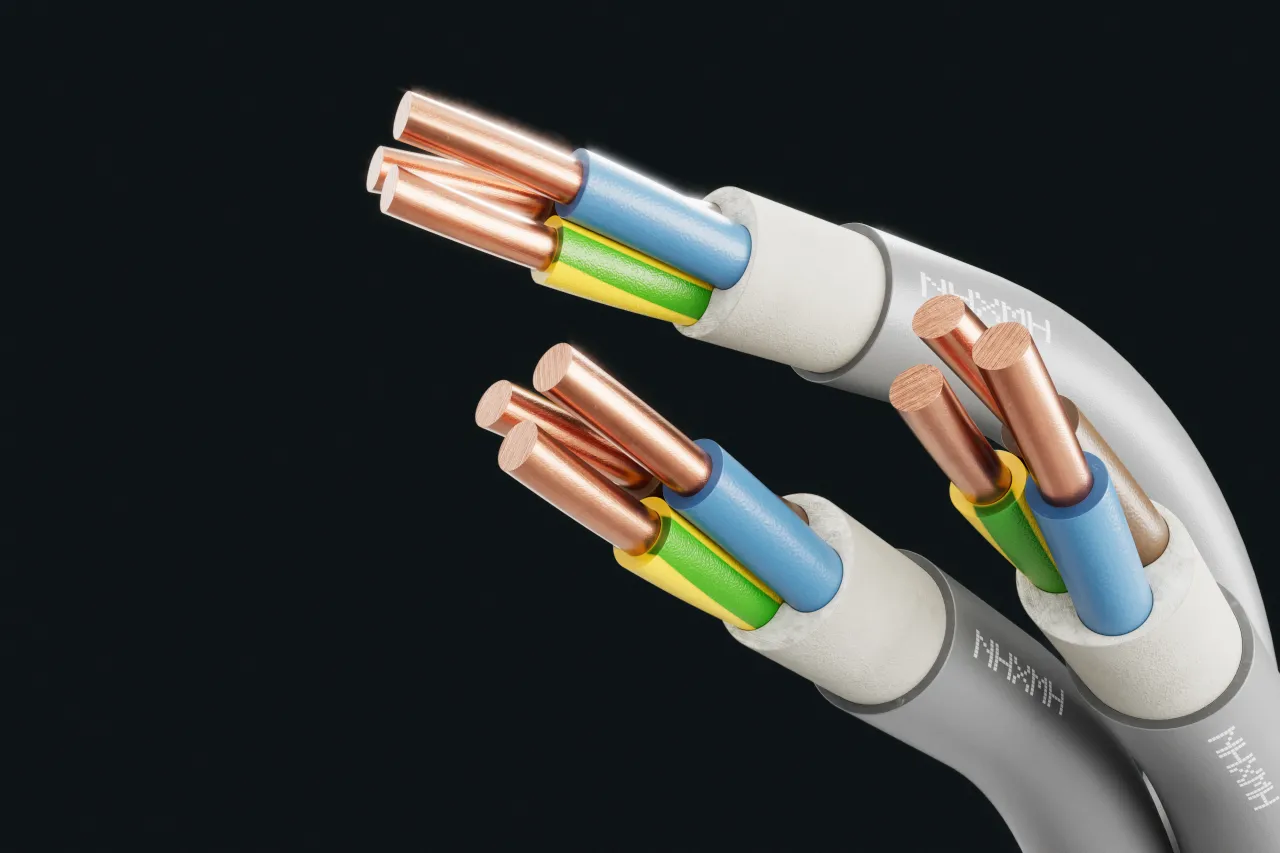

Cable image - HMH
+
-

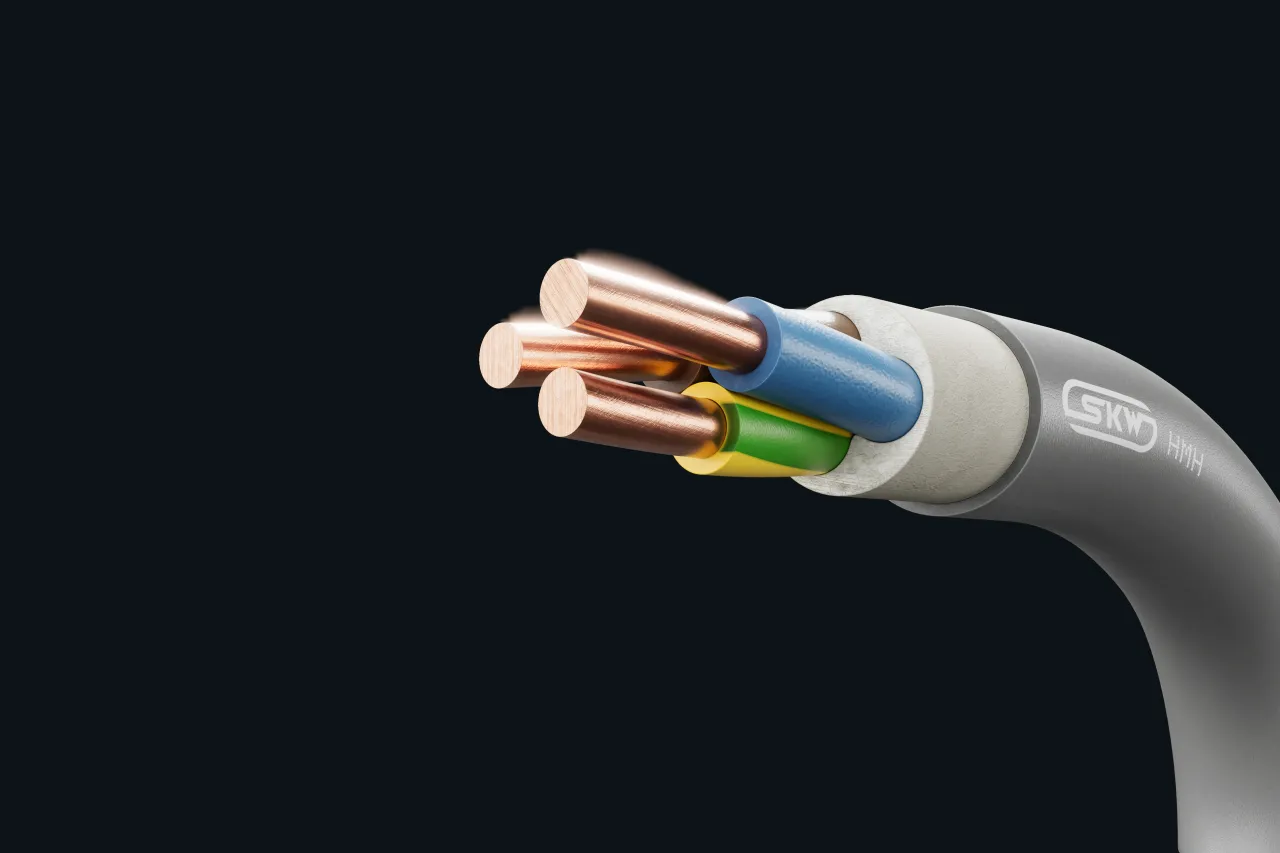

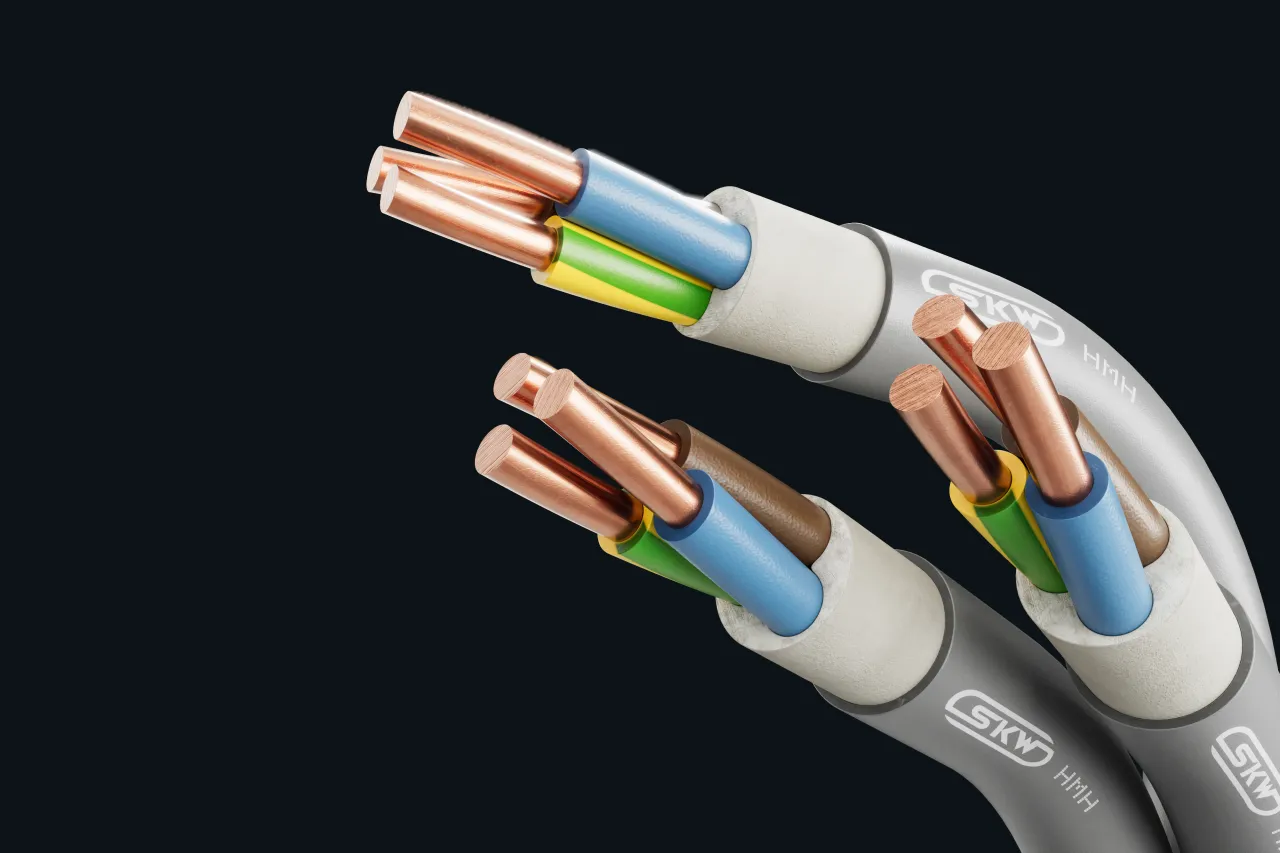

Cable image - HMH
+
-

Contact us

Are you interested in this product?

Dogan Özcan, MSc

Product supervisor

+43 (0) 1 70170-154
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Max. conductor resistance (Ω/km)
Standard lengths/packing (m)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
2 x 1.5 RE
12.1
500 T, 1000 T
8.0
120
3 x 1.5 RE
12.1
500 T, 1000 T
8.4
133
3 x 1.5 RE
12.1
500 T, 1000 T
8.4
133
4 x 1.5 RE
12.1
500 T, 1000 T
9.0
142
5 x 1.5 RE
12.1
500 T, 1000 T
9.6
183
7 x 1.5 RE
12.1
500 T, 1000 T
10.0
250
10 x 1.5 RE
12.1
500 T, 1000 T
12.9
287
12 x 1.5 RE
12.1
500 T, 1000 T
16.5
320
3 x 2.5 RE
7.41
500 T, 1000 T
9.3
176
3 x 2.5 RE
7.41
500 T, 1000 T
9.3
176
4 x 2.5 RE
7.41
500 T, 1000 T
10.0
188
5 x 2.5 RE
7.41
500 T, 1000 T
10.5
249
7 x 2.5 RE
7.41
500 T, 1000 T
14.0
339
3 x 4 RE
4.61
500 T, 1000 T
10.5
247
4 x 4 RE
4.61
500 T, 1000 T
12.0
279
5 x 4 RE
4.61
500 T, 1000 T
13.0
370
3 x 6 RE
3.08
500 T, 1000 T
12.0
335
4 x 6 RE
3.08
500 T, 1000 T
12.5
371
5 x 6 RE
3.08
500 T, 1000 T
14.5
488
3 x 10 RE
1.83
500 T, 1000 T
14.5
496
4 x 10 RE
1.83
500 T, 1000 T
15.5
569
5 x 10 RE
1.83
500 T, 1000 T
17.0
739
5 x 10 RM
1.83
500 T, 1000 T
17.0
717
4 x 16 RM
1.15
500 T, 1000 T
20.3
946
5 x 16 RM
1.15
500 T, 1000 T
21.0
1086
4 x 25 RM
0.727
500 T, 1000 T
25.1
1439
5 x 25 RM
0.727
500 T, 1000 T
25.5
1597
4 x 35 RM
0.524
500 T, 1000 T
26.5
1731

Technical changes reserved.

All figures are therefore without guarantee.
