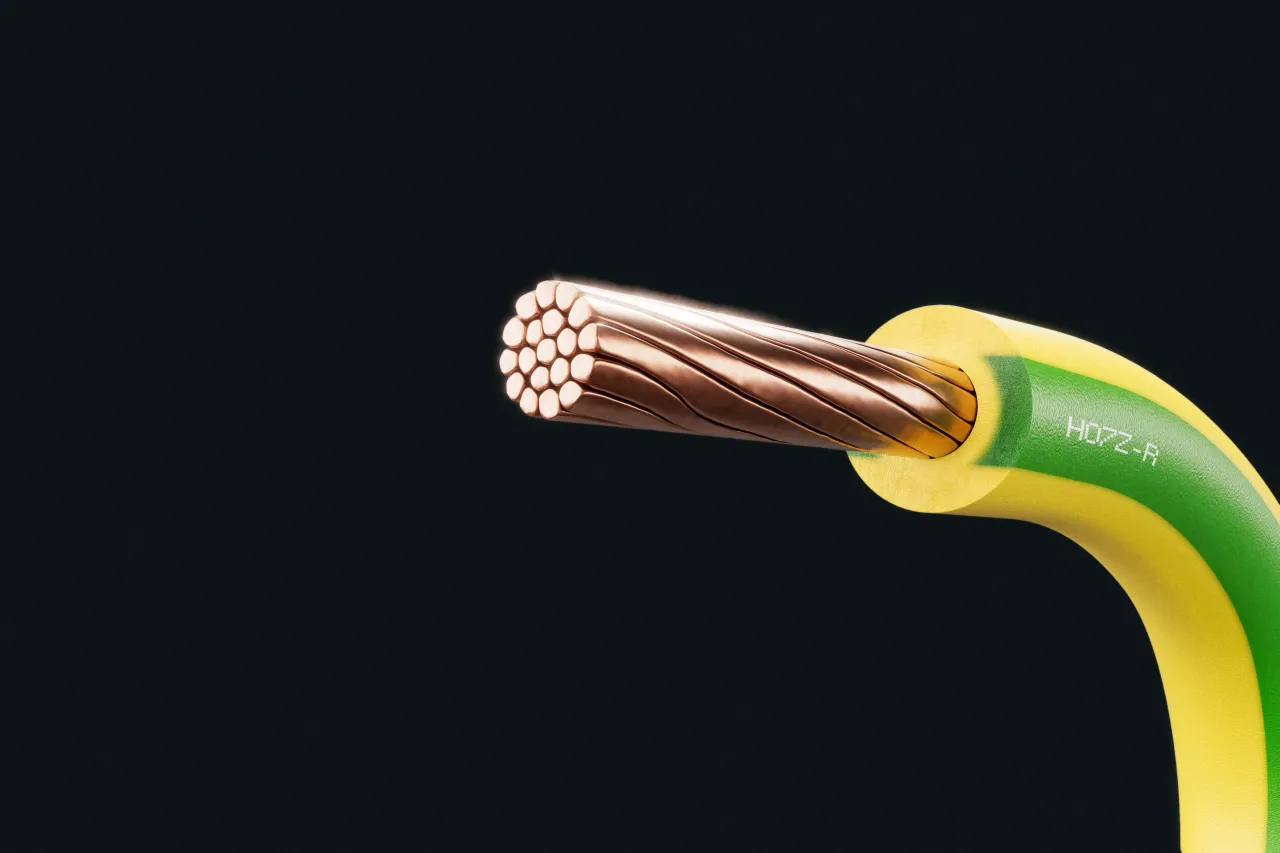

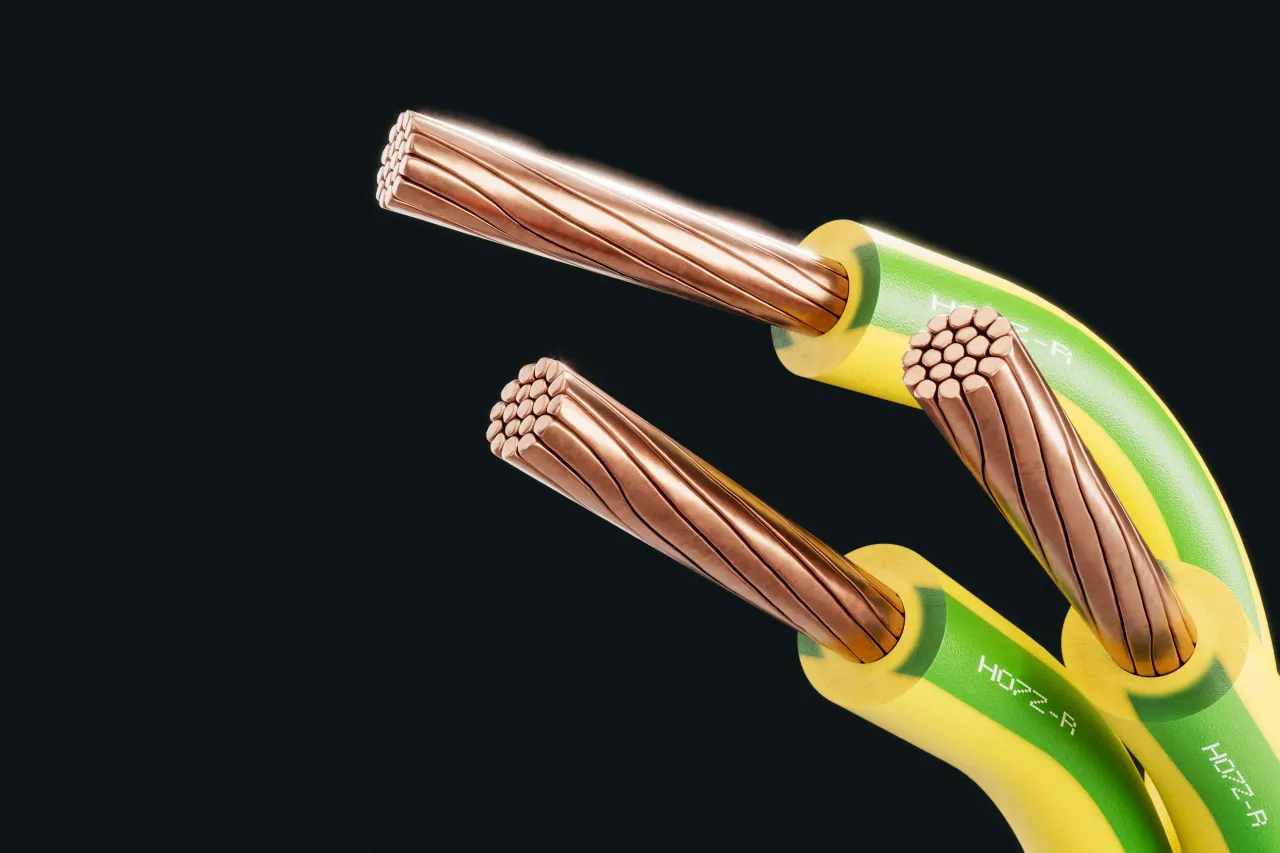

Insulated wire, halogen-free, multi core
Halogen-free Cables and Wires
For fixed installation in conduits on or under plaster. Suitable for protected installation in and on lighting facilities or control devices for voltages up to 750 V AC or 1,000 V DC against ground. Suitable for hotels, hospitals, underground railways, airports etc. to protect people and technical building equipment in the event of fire.
Design
This product consists of:
- 1Copper conductor, stranded wire (-R)
- 2Core insulation (XLPE)
Technical Data
Standard: EN 50525-3-41
Test Voltage: 2.5 kV
Rated Voltage: 450/750 V (Uo/U)
Bending radius (min.): 4 x Ø of wire
Fire properties:
- EN 60332-1-2: flame retardant and self-extinguishing
- EN 60754-1 and 2: halogen-free; non-corrosive
- combustion gases
- EN 61034-2: low smoke emission
- CPR classification: Eca
Core identification: HD 308 S2
Temperature range:
- Laying temperature: min. 5°C
- Operating temperature: -5°C up to 90°C
- Conductor temperature: max. 90°C
- Short circuit temperature: max. 250°C
