PVC insulated wire
PVC and Rubber Cables and Wires
PVC insulated wires for fixed and protected installations, for internal wiring of equipment and lightings, for signalling and control circuits.
Design

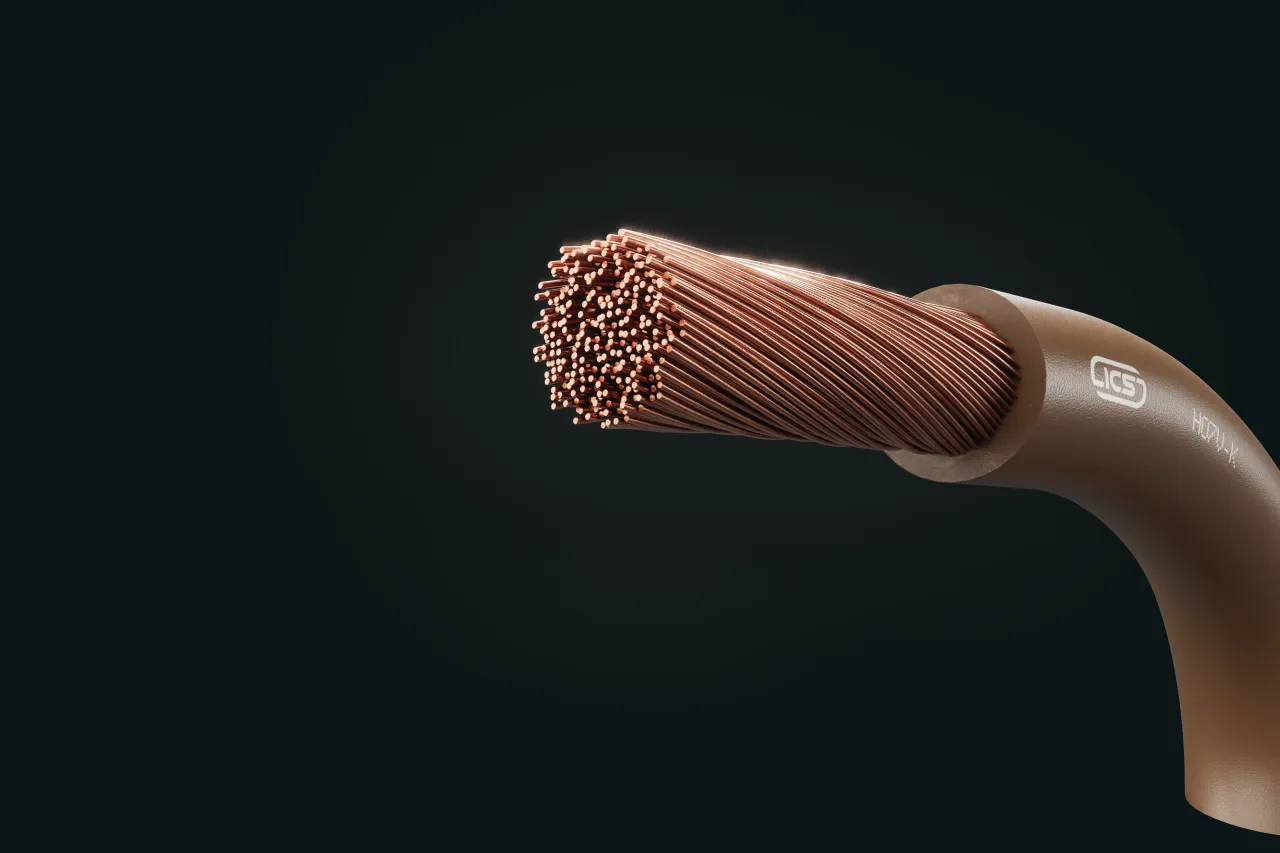

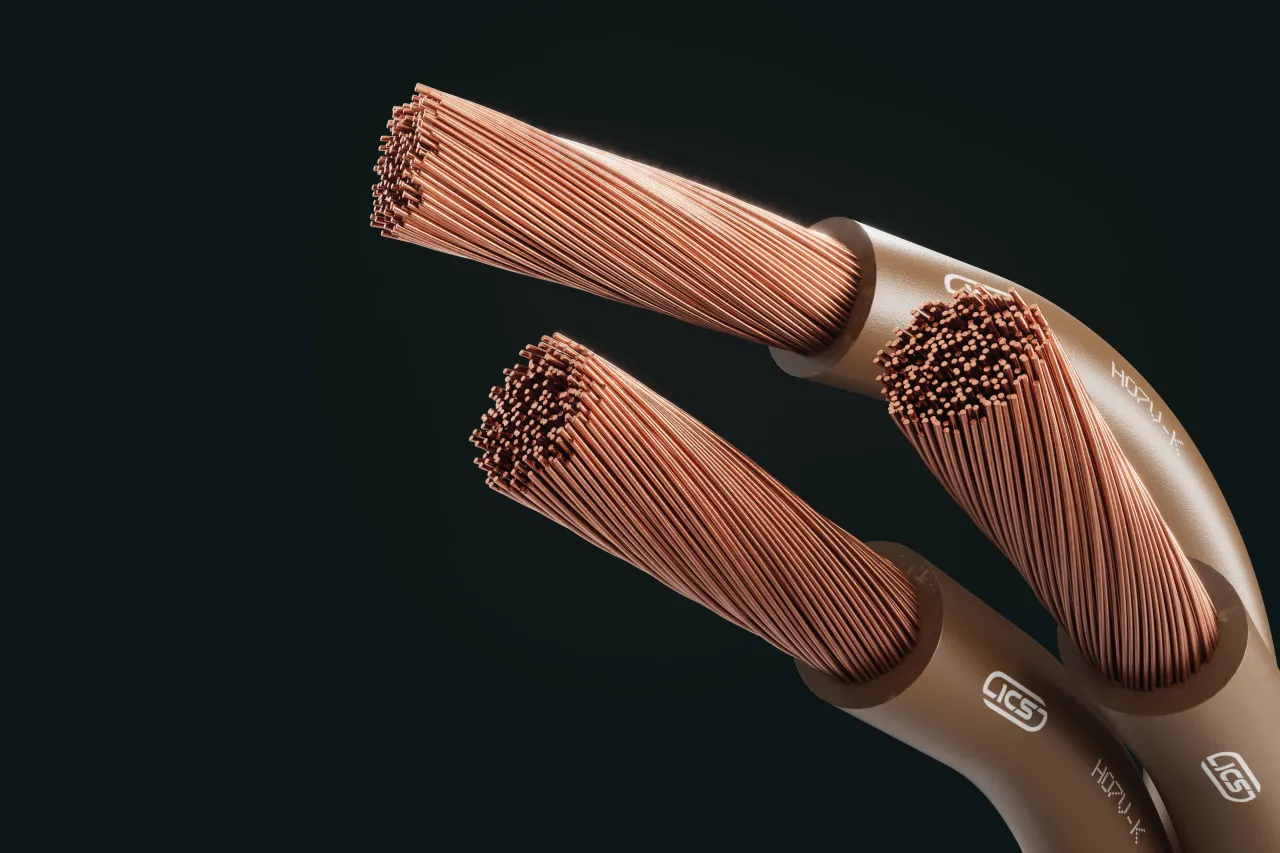

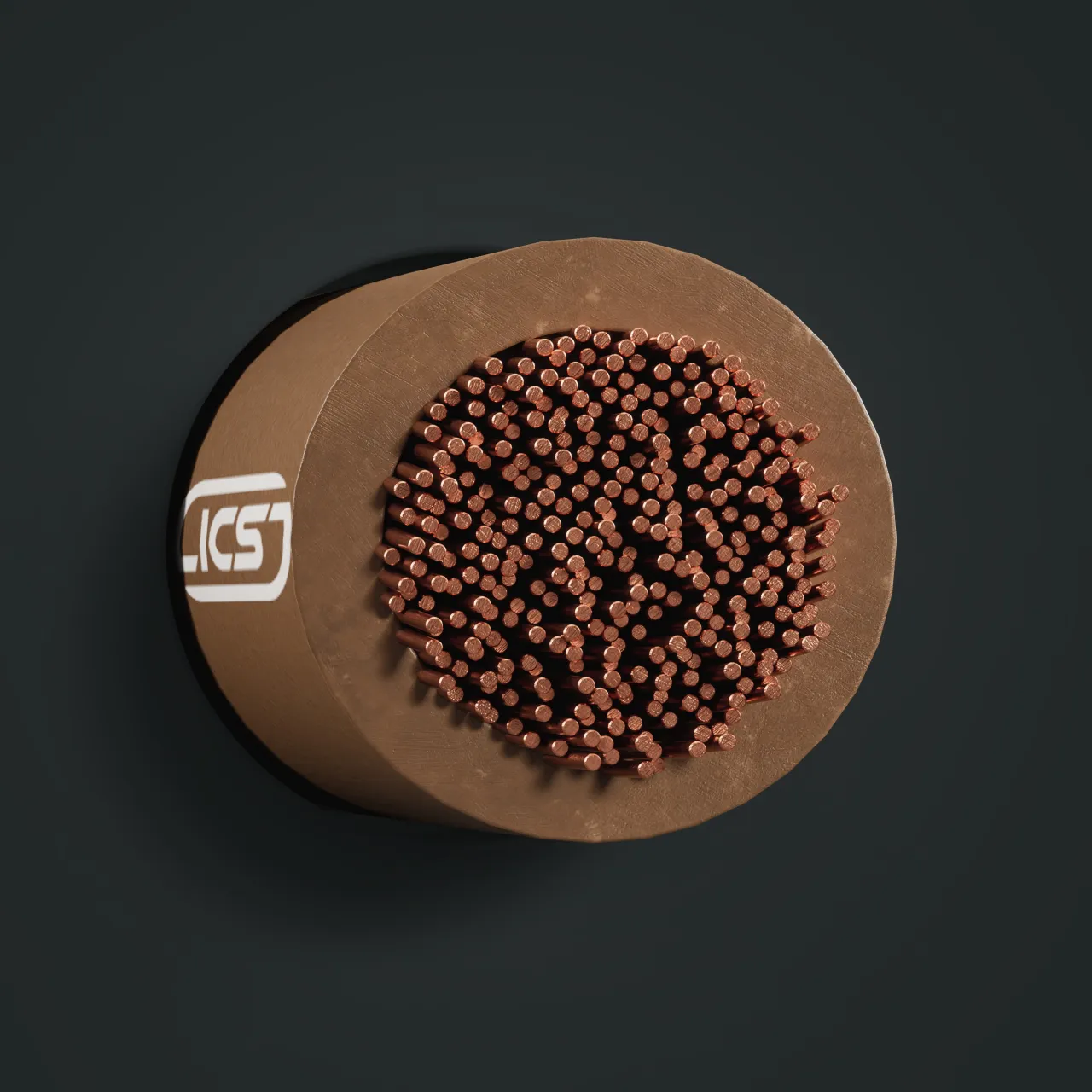

This product consists of:
- 1Bare copper conductors, fine wires class 5 according to DIN EN 60228 / VDE 0295 / IEC 60228
- 2Core insulation of special compound based on polyvinyl chloride (PVC)
Technical Data
Standard: EN 50525-2-31
Test Voltage: 2500 V
Rated Voltage: 450/750 V (Uo/U)
Bending radius (min.):
- Fixed installation: 3 x Ø up to 12 mm
- 4 x Ø over 12 mm
- Flexible use: 5 x Ø up to 12 mm
- 6 x Ø over 12 mm
Fire properties:
- EN 60332-1-2: self-extinguishing and flame retardant
- CPR classification: Eca
Core identification: According to EN 50525-1 - black, white, blue, brown, red, orange, violet, pink, green/yellow, yellow, green, grey
Temperature range:
- Laying temperature: min. 5°C
- Fixed installation: -30°C up to 70°C
- Flexible use: -5°C up to 70°C
