H07BQ-F (NGMH11YÖ)

Download PDF

Add to inquiry

Download PDF

To inquiry

PUR Insulated wire

Silicone, PUR and Building Site Cables

For use in dry, damp or wet rooms with medium mechanical stress. The cables are primarily used in industrial enterprises and construction sites under demanding operating conditions, especially with demanding operating conditions, especially abrasive and grinding stresses.

Design

This product consists of:

  • 1
    Kupferleiter, feindrähtig verzinnt oder unverzinnt
  • 2
    Aderisolation (EPR-Gummi)
  • 3
    Gemeinsame Aderumhüllung (EPR-Gummi)
  • 4
    Mantel (Polyurethan orange, ölbeständig und abriebfest)

Technical Data

Standard: EN 50525-2-21
Test Voltage: 2.5 kV
Rated Voltage: 450/750 V (Uo/U)
Bending radius (min.):
  • 3 x Ø der Leitung (feste Verlegung)
  • 5 x Ø der Leitung (flexible Verlegung)
Fire properties: CPR-Klassifizierung: Eca
Core identification: HD 308 S2
Temperature range:
  • Laying temperature: min. -40°C
  • Conductor temperature: max. 90°C
  • Short circuit temperature: max. 200°C
  • Fixed installation: -40°C up to 75°C
  • Flexible use: -25°C up to 75°C

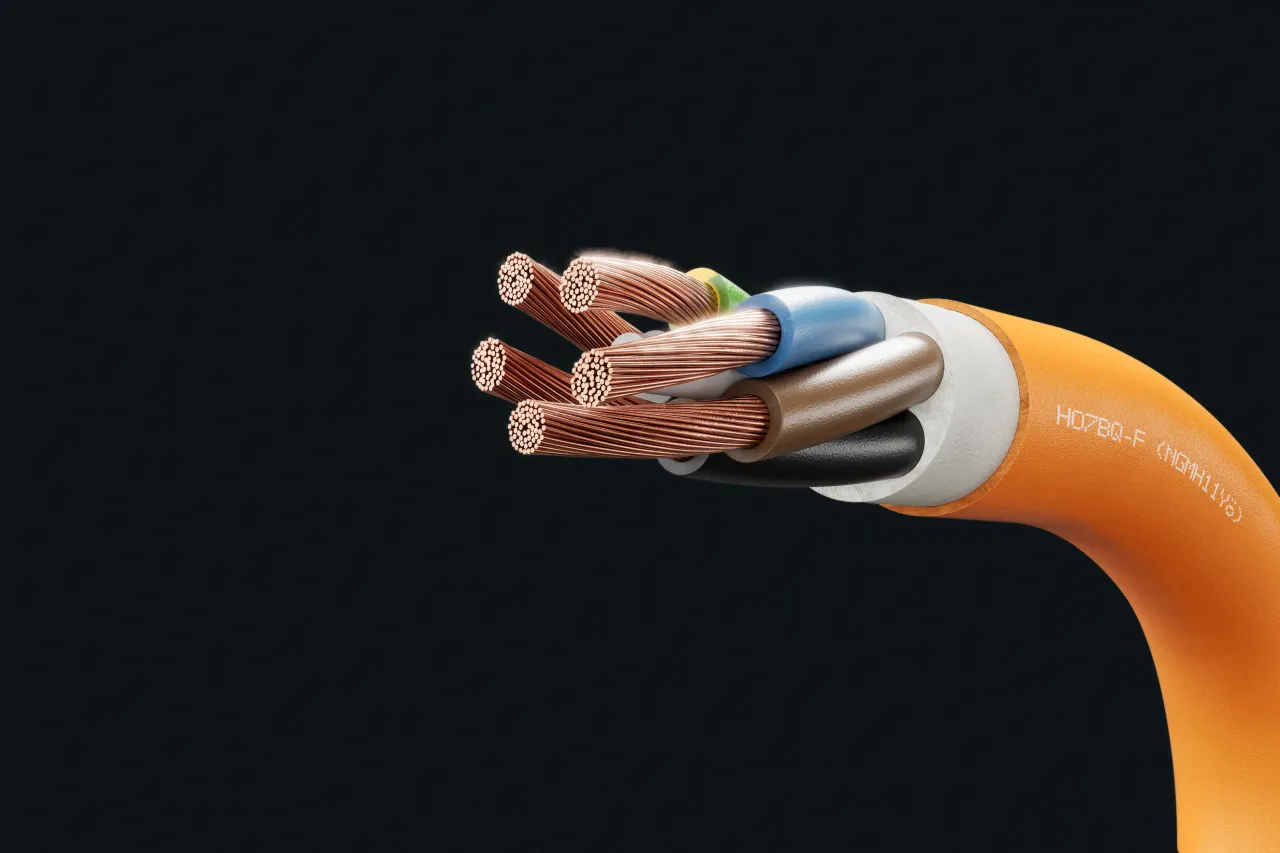

Cable image - H07BQ-F (NGMH11YÖ)
+
-

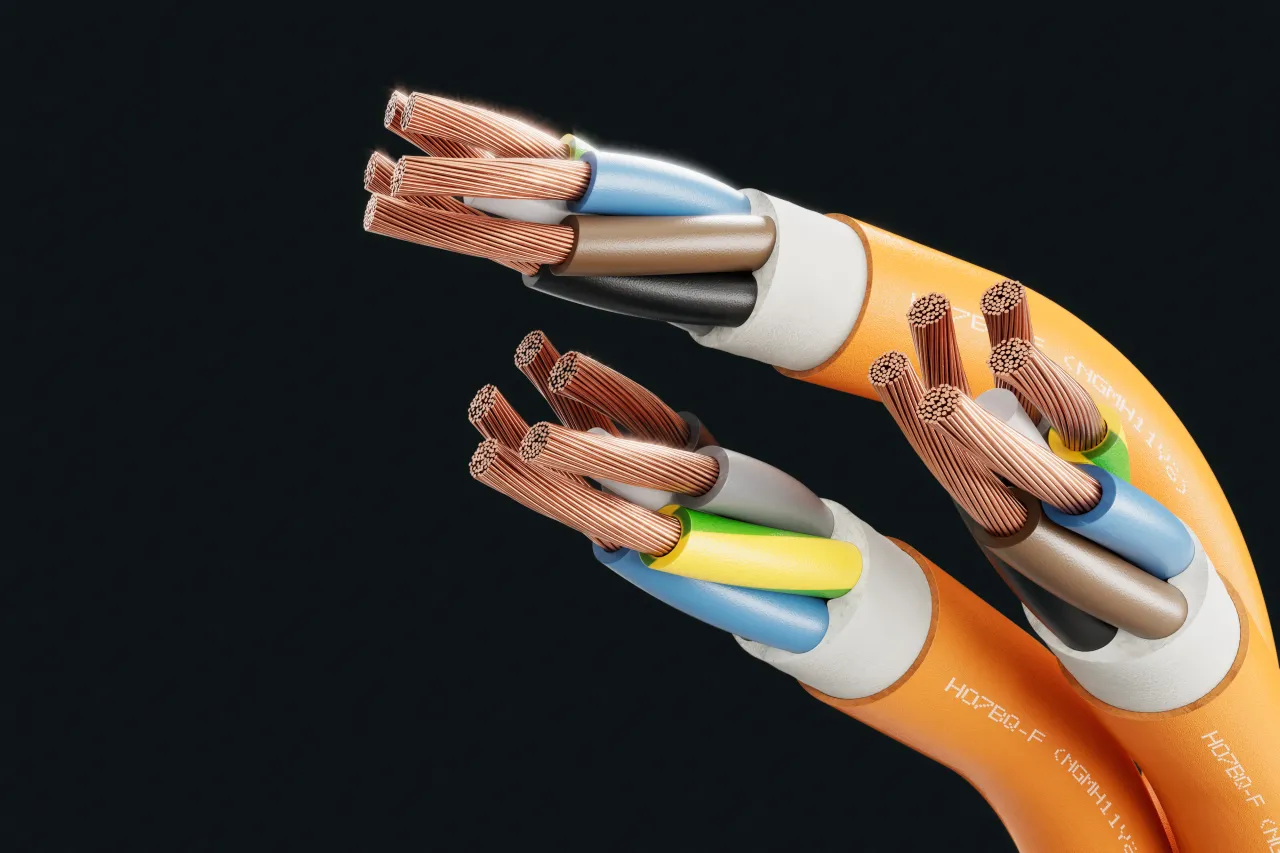

Cable image - H07BQ-F (NGMH11YÖ)
+
-
Cable image - H07BQ-F (NGMH11YÖ)
+
-

Contact us

Are you interested in this product?

Dogan Özcan, MSc

Product supervisor

+43 (0) 1 70170-154
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Max. conductor resistance (Ω/km)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
Standard lengths/packing (m)
2 x 1,5
13.7
8.5
95
500 SP, 1000 SP
3 G 1,5
13.7
9.0
108
500 SP, 1000 SP
4 G 1,5
13.7
10.0
120
500 SP, 1000 SP
5 G 1,5
13.7
10.8
177
500 SP, 1000 SP
7 G 1,5
13.7
14.0
291
500 T, 1000 T
12 G 1,5
13.7
18.0
446
500 T, 1000 T
3 G 2,5
8.21
10.6
137
500 SP, 1000 SP
4 G 2,5
8.21
11.8
177
500 T, 1000 T
5 G 2,5
8.21
13.0
260
500 T, 1000 T
7 G 2,5
8.21
15.0
431
500 T, 1000 T
12 G 2,5
8.21
21.0
641
500 T, 1000 T
4 G 4
5.09
13.6
256
500 T, 1000 T
5 G 4
5.09
15.0
372
500 T, 1000 T
4 G 6
3.39
15.3
346
500 T, 1000 T
5 G 6
3.39
16.1
491
500 T, 1000 T
5 G 10
1.95
22.2
852
500 T, 1000 T
5 G 16
1.24
25.3
1206
500 T, 1000 T
5 G 25
0.795
33.6
2096
500 T, 1000 T
5 G 50
0.386
46.5
3290
500 T, 1000 T
5 G 70
0.272
53.0
5556
500 T, 1000 T
5 G 95
0.206
60.0
7274
500 T, 1000 T

Technical changes reserved.

All figures are therefore without guarantee.
