H05V-U (YSe)

Download PDF

Add to inquiry

Download PDF

To inquiry

PVC Insulated wire, single core

PVC and Rubber Cables and Wires

For fixed and protected installation within appliances as well as in and on luminaires. Permissible for installation in conduits on and under plaster but only for control and signal circuits.

Design

This product consists of:

  • 1
    Copper conductor, round solid (RE) -U
  • 2
    Core insulation (PVC)

Technical Data

Standard: EN 50525-2-31
Certificate: EZÚ Czech Republic, ÖVE Austria
Test Voltage: 2 kV / 50 Hz
Rated Voltage: 300/500 V (Uo/U)
Bending radius (min.): 4 x Ø of wire
Fire properties:
  • EN 60332-1-2: flame retardant and self-extinguishing
  • CPR: Eca
Core identification: According to EN 50525-1: CR, SM, MD, HA, SE, OR, RZ, RA, TY, FI, BA, ZZ
Temperature range:
  • Laying temperature: min. 5°C
  • Operating temperature: -30°C up to 70°C
  • Conductor temperature: max. 70°C
  • Short circuit temperature: max. 160°C

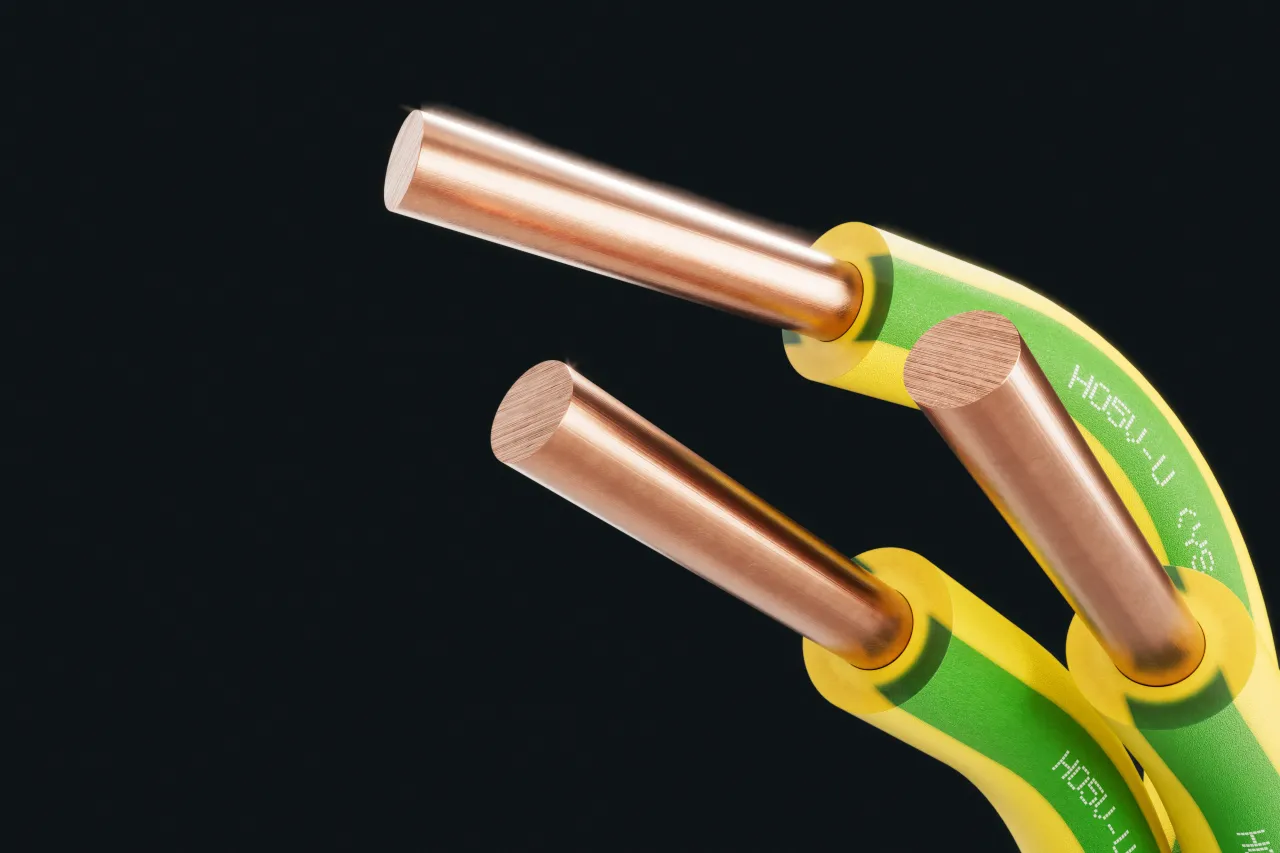

Cable image - H05V-U (YSe)
+
-

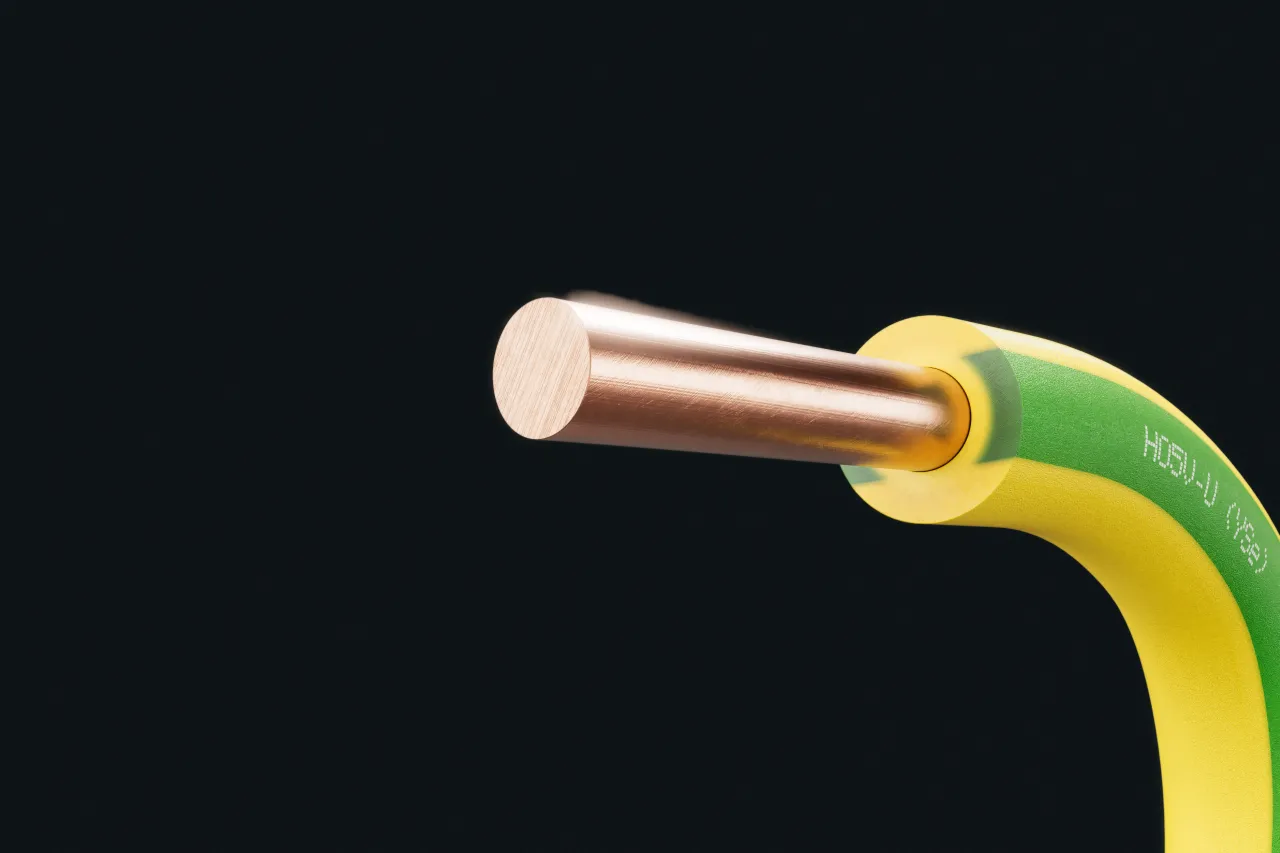

Cable image - H05V-U (YSe)
+
-
Cable image - H05V-U (YSe)
+
-

Contact us

Are you interested in this product?

Dogan Özcan, MSc

Product supervisor

+43 (0) 1 70170-154
[email protected]

Options

Add to inquiry
Nominal cross-section (mm²)
Core colours
Max. conductor resistance (Ω/km)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
Standard lengths/packing (m)
0.5
sw, bl, rt
36.0
2.0
8
100 R
0.75
sw, br, rt, bl, ws
24.5
2.1
12
100 R
1
sw, bl, vi, gr, ws, gnge
18.1
2.3
14
100 R

Technical changes reserved.

All figures are therefore without guarantee.
