H05V-K (YSf)

Download PDF

Add to inquiry

Download PDF

To inquiry

PVC insulated wire, fine core

PVC and Rubber Cables and Wires

For fixed and protected installation within appliances as well as in and on luminaires. Permissible for installation in conduits on and under plaster but only for control and signal circuits.

Design

This product consists of:

  • 1
    Copper conductor, fine wire (-K)
  • 2
    Core insulation (PVC)

Technical Data

Standard: EN 50525-2-31
Certificate: ÖVE Austria
Test Voltage: 2 kV
Rated Voltage: 300/500 V (Uo/U)
Bending radius (min.): 4 x Ø of wire
Fire properties: EN 60332-1-2: flame retardant and self-extinguishing
Core identification: HD 308 S2
Temperature range:
  • Laying temperature: min. 5°C
  • Operating temperature: -30°C up to 70°C
  • Conductor temperature: max. 70°C
  • Short circuit temperature: max. 160°C

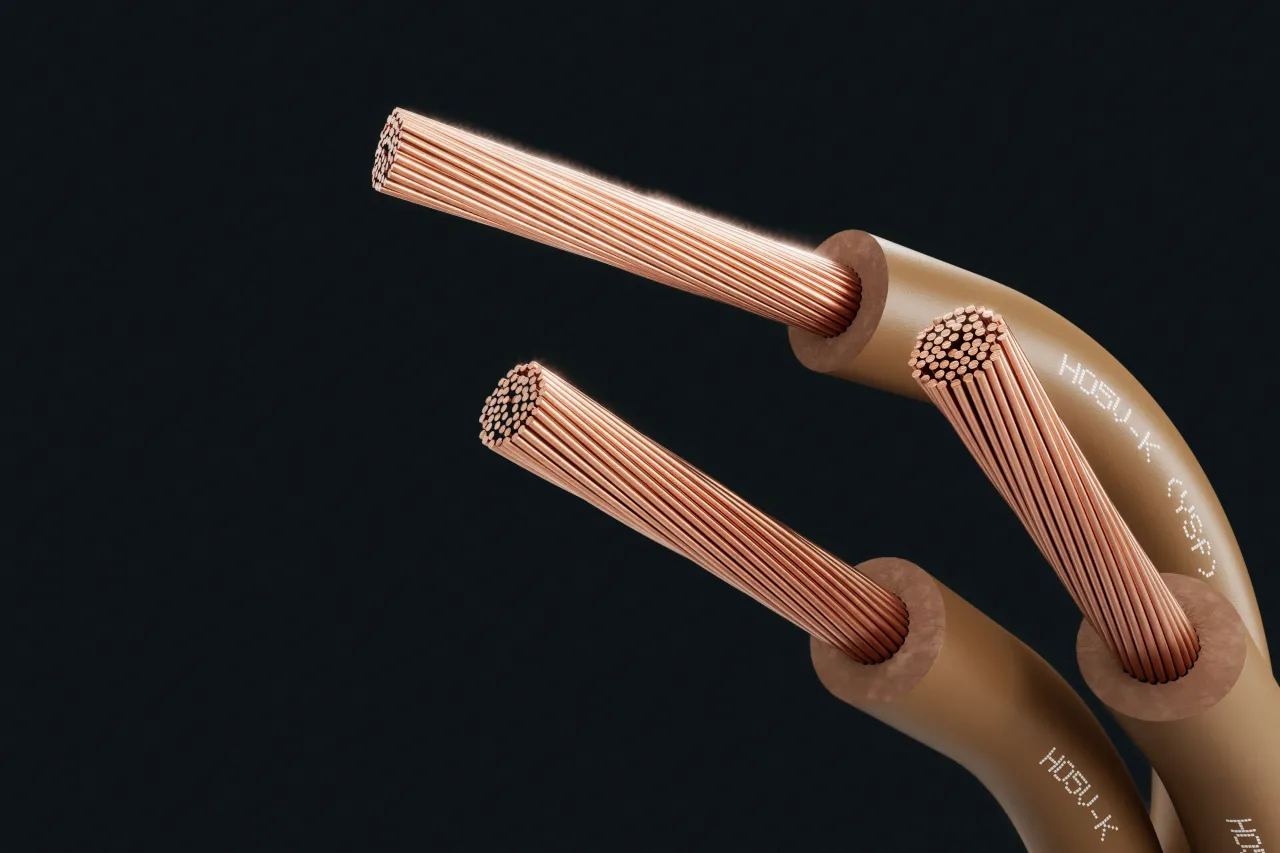

Cable image - H05V-K (YSf)
+
-
Cable image - H05V-K (YSf)
+
-
Cable image - H05V-K (YSf)
+
-

Contact us

Are you interested in this product?

Dogan Özcan, MSc

Product supervisor

+43 (0) 1 70170-154
[email protected]

Options

Add to inquiry
Nominal cross-section (mm²)
Core colours
Max. conductor resistance (Ω/km)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
Standard lengths/packing (m)
0.5
bk, bn, bu, vt, rd, og, ye, gy, gn, wh, gnye
39.0
2.1
9
100 R
0.75
bk, bn, rd, bu, wh
26.0
2.2
12
100 R
1
bk, bn, bu, vt, rd, og, ye, gy, gn, wh, gnye
19.5
2.4
14
100 R

Technical changes reserved.

All figures are therefore without guarantee.
