H01N2-D (NSLFFöu)

Download PDF

Add to inquiry

Download PDF

To inquiry

Rubber welding cable

PVC and Rubber Cables and Wires

Single core cable for connection to electrofusion units as hand-held electrode cable or as ground cable for use in dry, damp rooms and outdoors. H01N2-E (finest wire) on request.

Design

This product consists of:

  • 1
    Kupferleiter, feindrähtig (-D normale Flexibilität)
  • 2
    Trennschicht (Vliesband)
  • 3
    Mantel (Polychloropren schwarz, kältebeständig, öl- und UV-beständig)

Technical Data

Standard:
  • EN 50525-2-81
Certificate: VDE Germany
Test Voltage: 1 kV
Rated Voltage: 100/100 V (Uo/U)
Bending radius (min.): 4 x Ø of cable
Fire properties: EN 60332-1-2: flame retardant and self-extinguishing
Temperature range:
  • Laying temperature: min. -20°C
  • Operating temperature: -20°C up to 80°C
  • Conductor temperature: max. 85°C
  • Short circuit temperature: max. 250°C

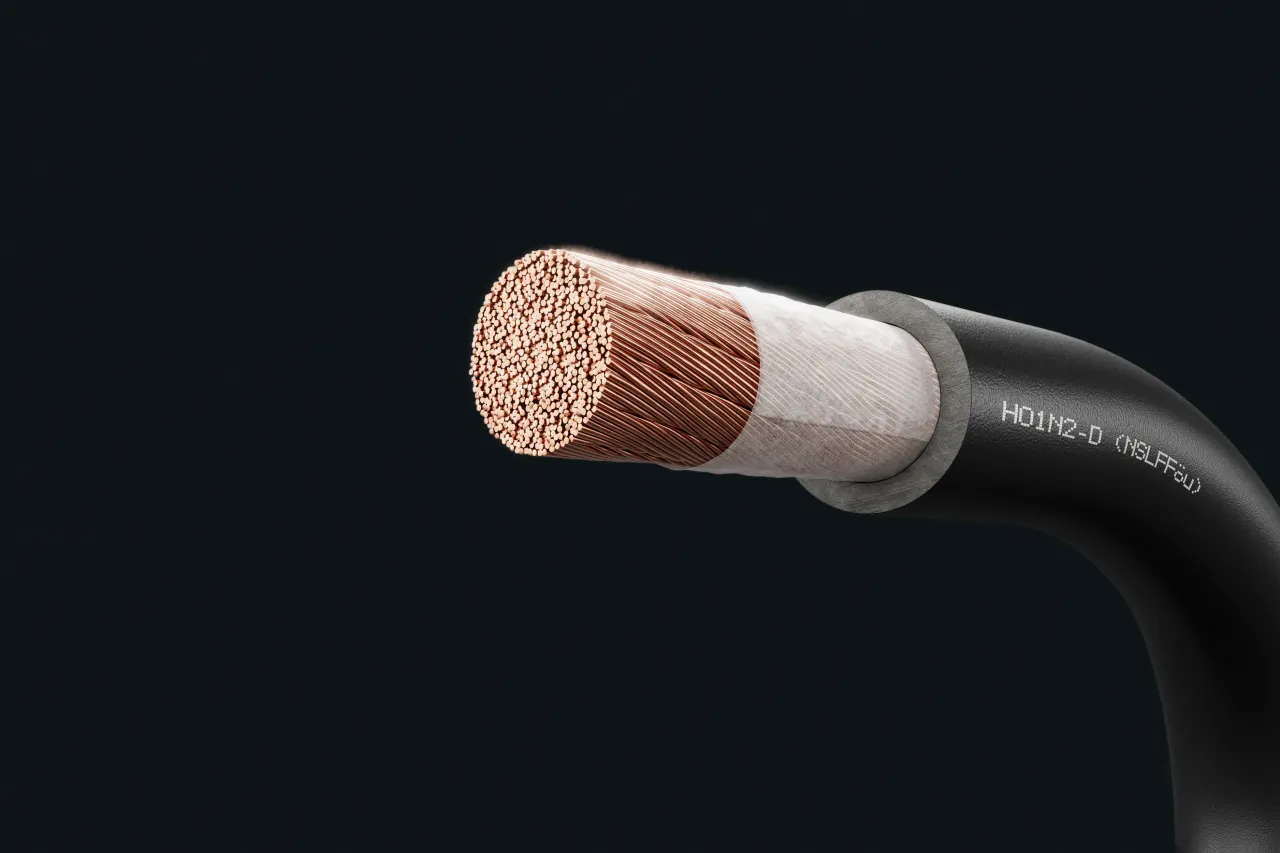

Cable image - H01N2-D (NSLFFöu)
+
-

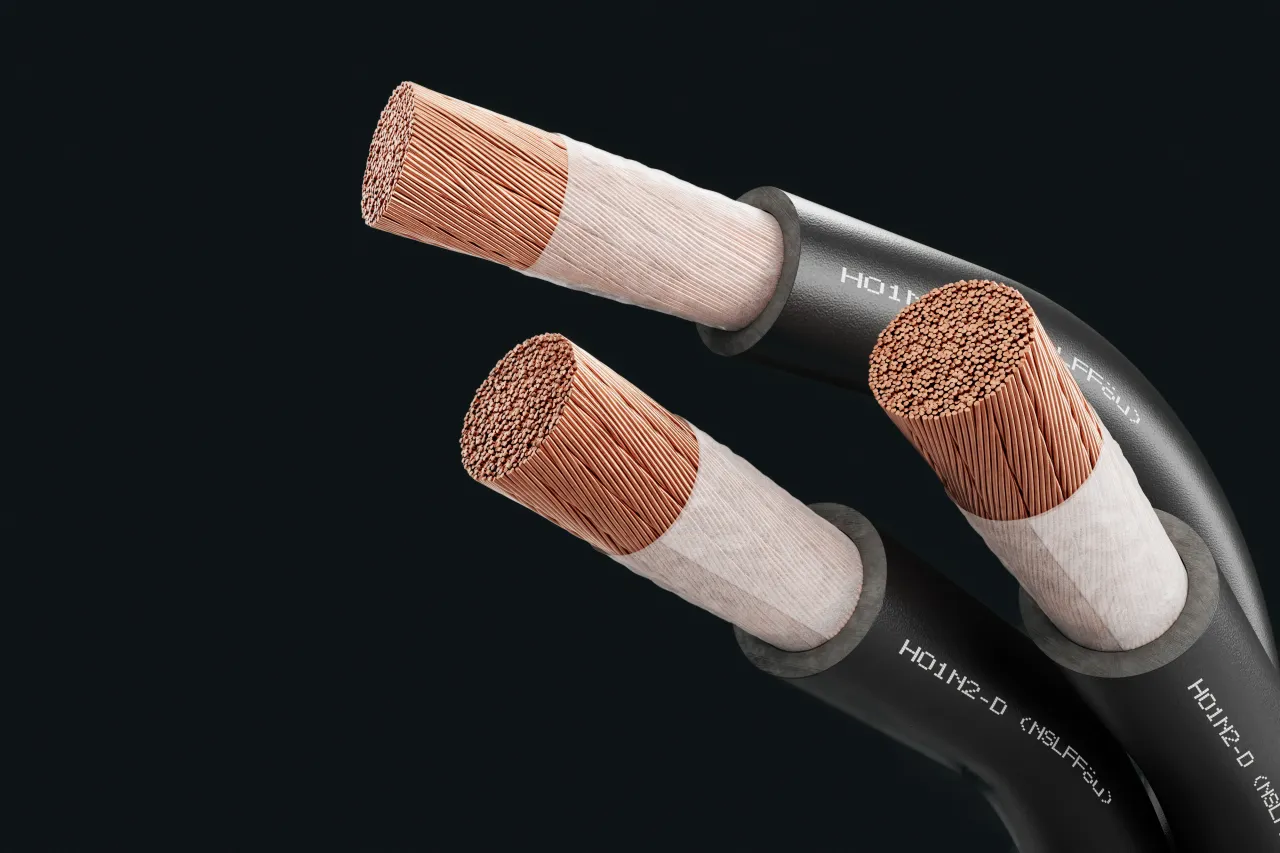

Cable image - H01N2-D (NSLFFöu)
+
-
Cable image - H01N2-D (NSLFFöu)
+
-

Contact us

Are you interested in this product?

Dogan Özcan, MSc

Product supervisor

+43 (0) 1 70170-154
[email protected]

Options

Add to inquiry
Nominal cross-section (mm²)
Max. conductor resistance (Ω/km)
Diameter of wire (mm)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
Standard lengths/packing (m)
10
1.91
0.21
8.5
150
500 T, 1000 T
16
1.21
0.21
10.0
220
500 T, 1000 T
25
0.78
0.21
11.5
300
500 T, 1000 T
35
0.554
0.21
13.0
410
500 T, 1000 T
50
0.368
0.21
15.0
560
500 T, 1000 T
70
0.272
0.21
17.0
770
500 T, 1000 T
95
0.206
0.21
19.5
1050
500 T, 1000 T
120
0.161
0.51
22.0
1290
500 T, 1000 T
150
0.129
0.51
23.5
1590
500 T, 1000 T

Technical changes reserved.

All figures are therefore without guarantee.
