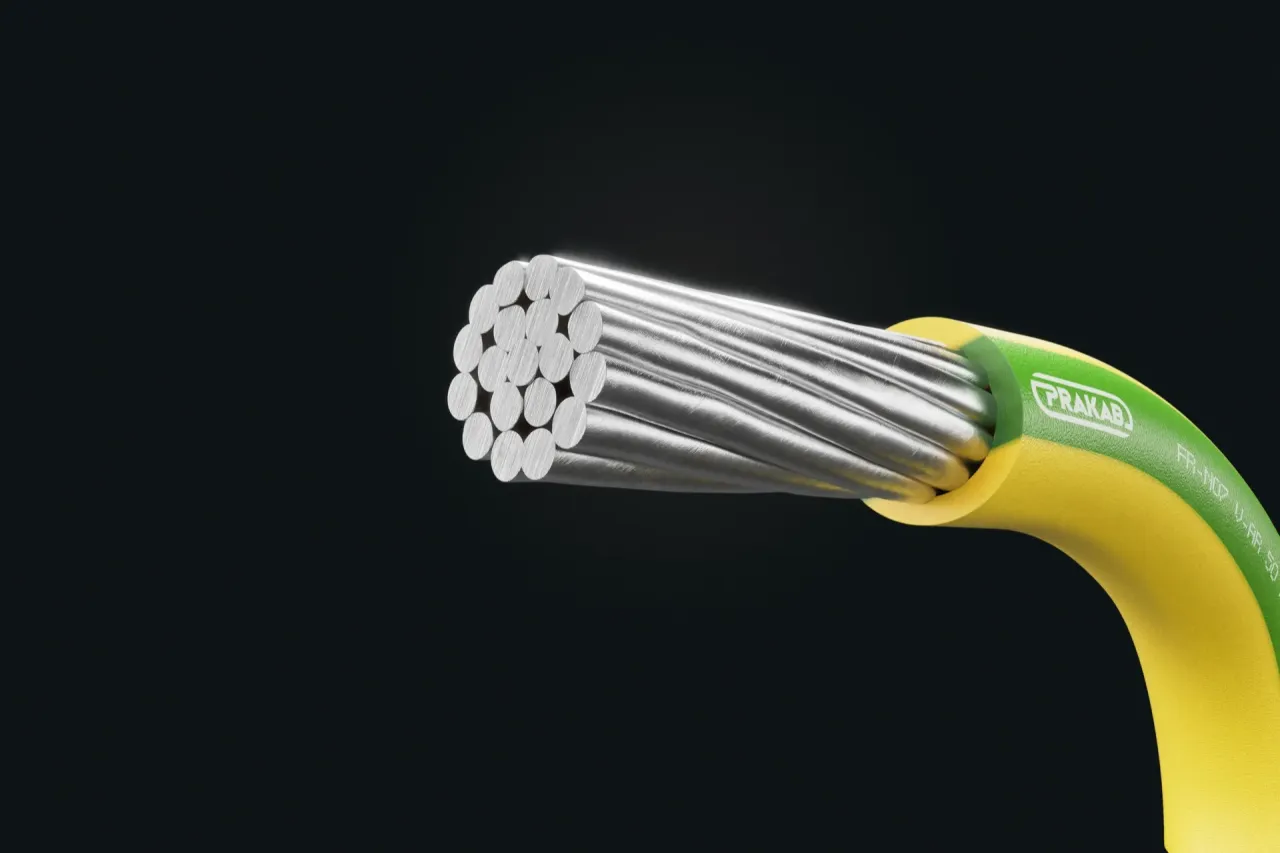

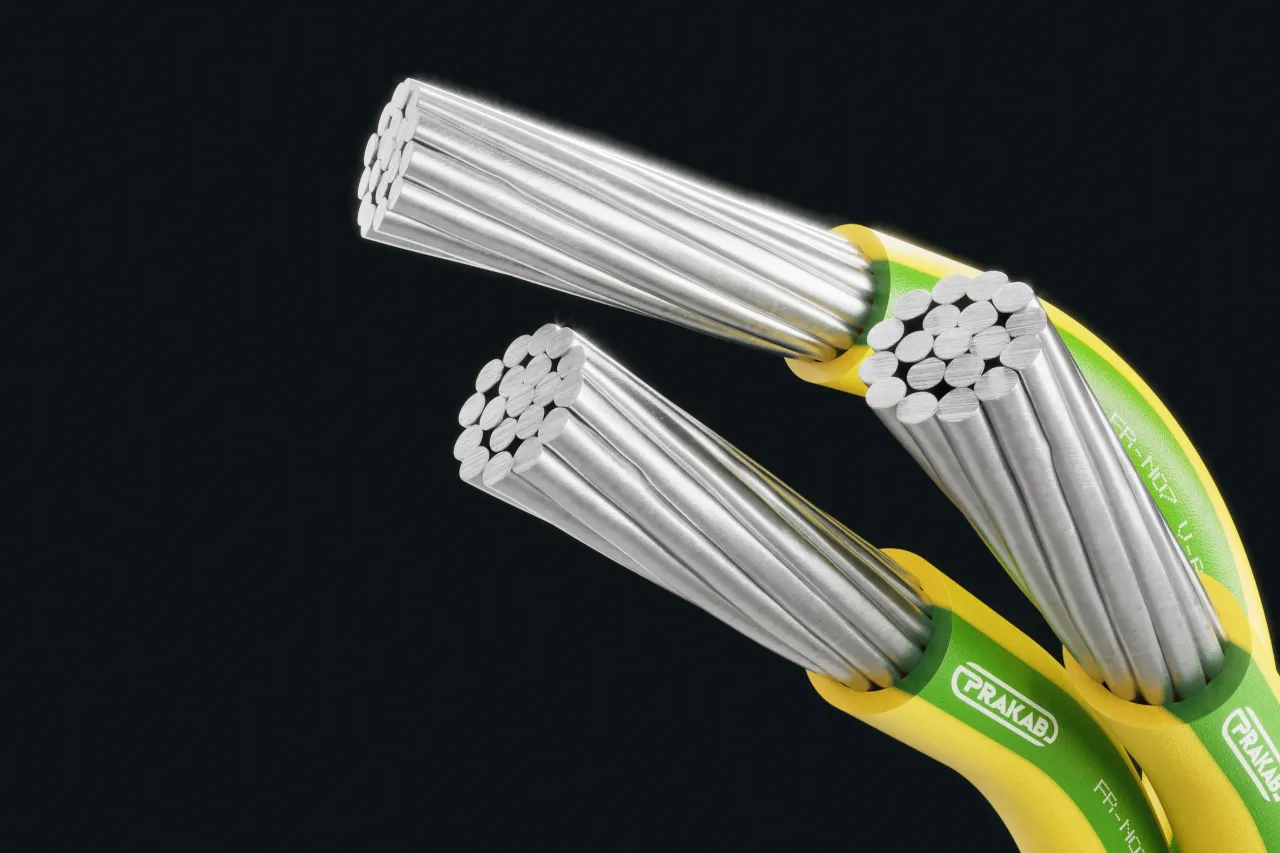

PVC insulated wires, stranded
Installation cables
Conductors are designed for fixed installation as interconnecting conductors in dry environment, in pipelines, under the plaster, in devices and switchboards.
Design

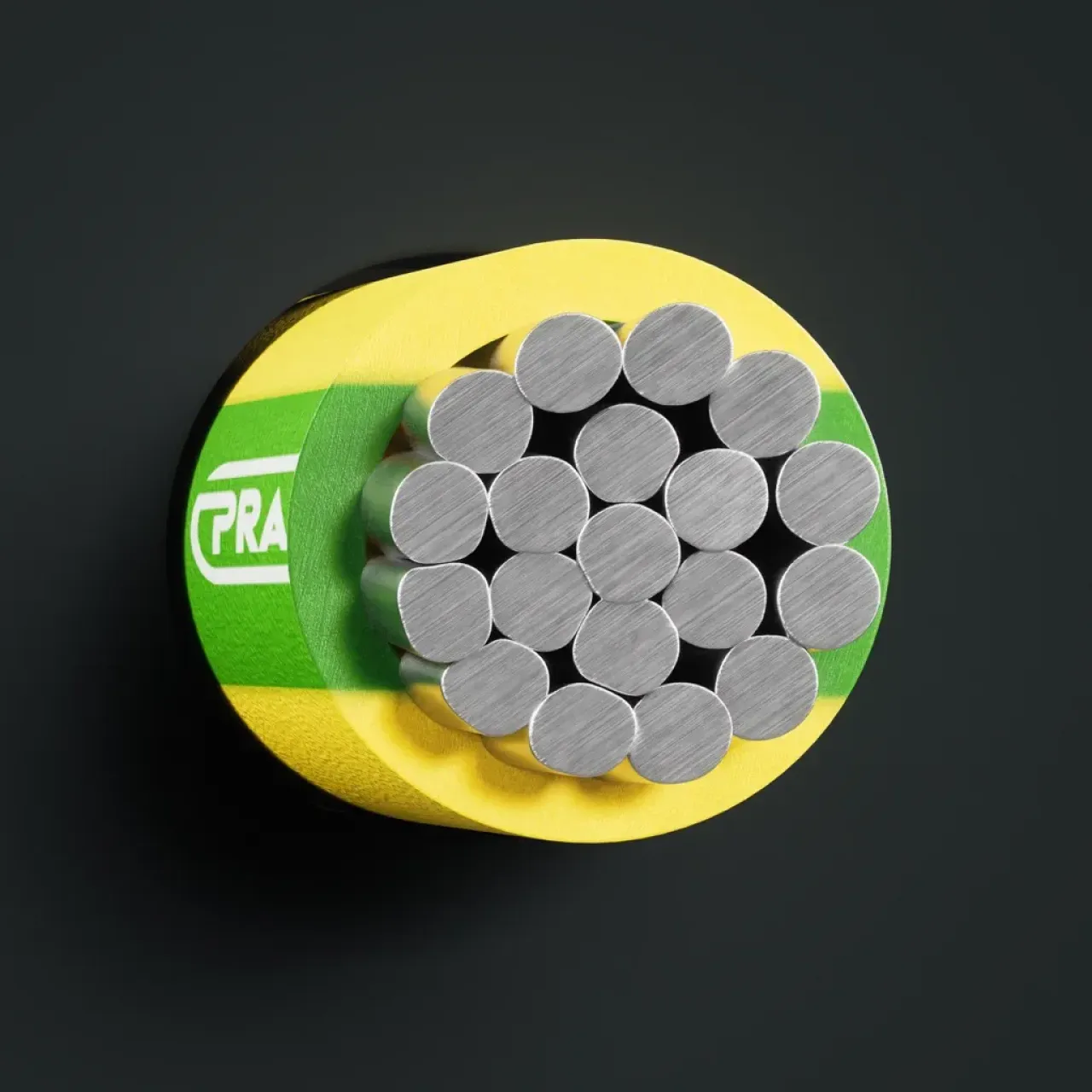

This product consists of:
- 1Aluminium conductor, stranded wire (–R)
- 2Core insulation (PVC)
Technical Data
Standard: adapted to EN 50525-2-31
Certificate: EZÚ Czech Republic
Test Voltage: 2,5 kV / 50 Hz
Rated Voltage: 450/750 V
Bending radius (min.):
- 5 x Ø up to 50 mm2
- 6 x Ø over 50 mm2
Fire properties:
- EN 60332-1-2: self-extinguishing
- CPR classification: Eca
Core identification: According to EN 50525-1: BK, BU, BN, GY, OG, PK, RD, VT, WH, GNYE
Temperature range:
- Laying temperature: min. 5°C
- Operating temperature: -5°C up to 70°C
- Conductor temperature: max. 70°C
- Short circuit temperature: max. 160°C
