Ground power supply cable, with control cores for fixed installation
Industrial Cables
400 Hz cables are mainly used to supply power to aircrafts (onboard power). May be operated in mobile, stationary or underground mode. Simple, long-lasting and easy to install design with a fair market price and great quality.
Design

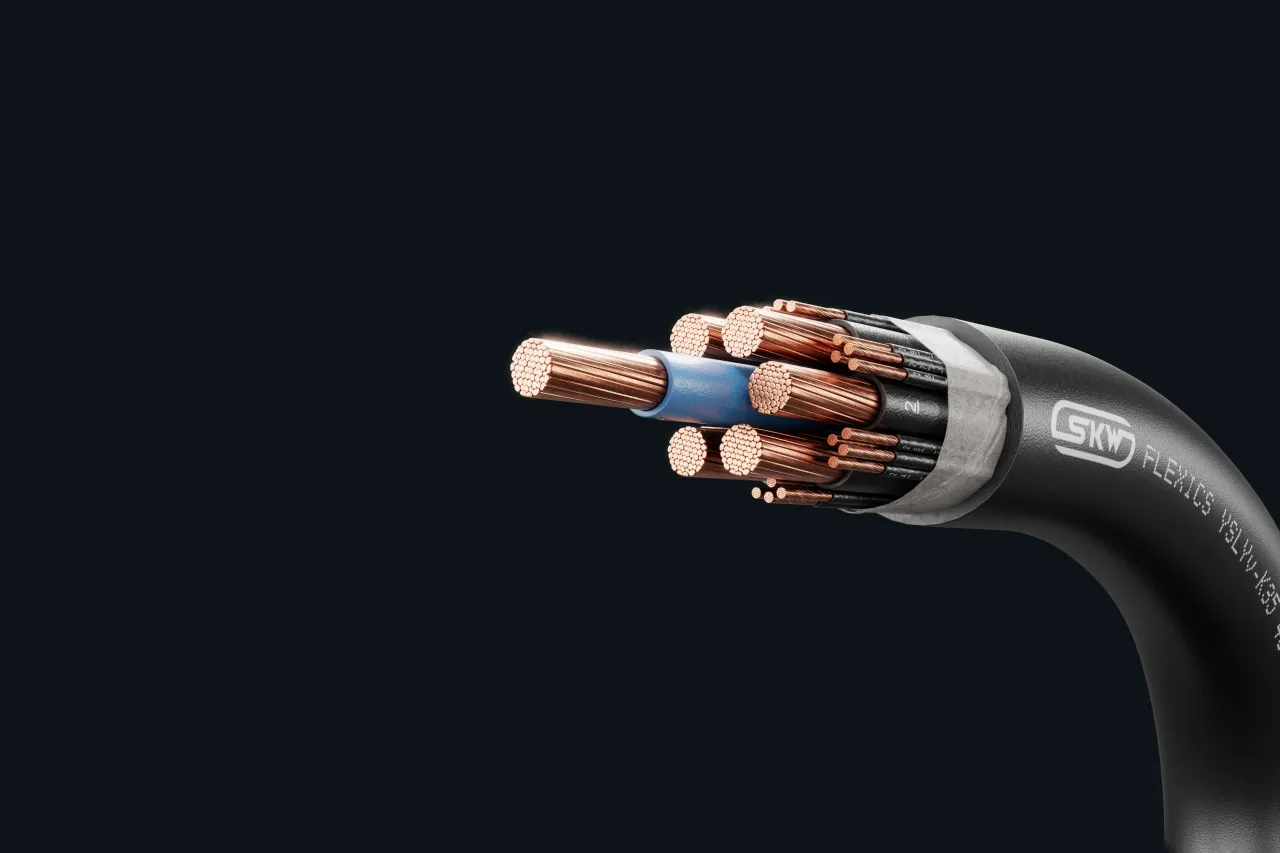

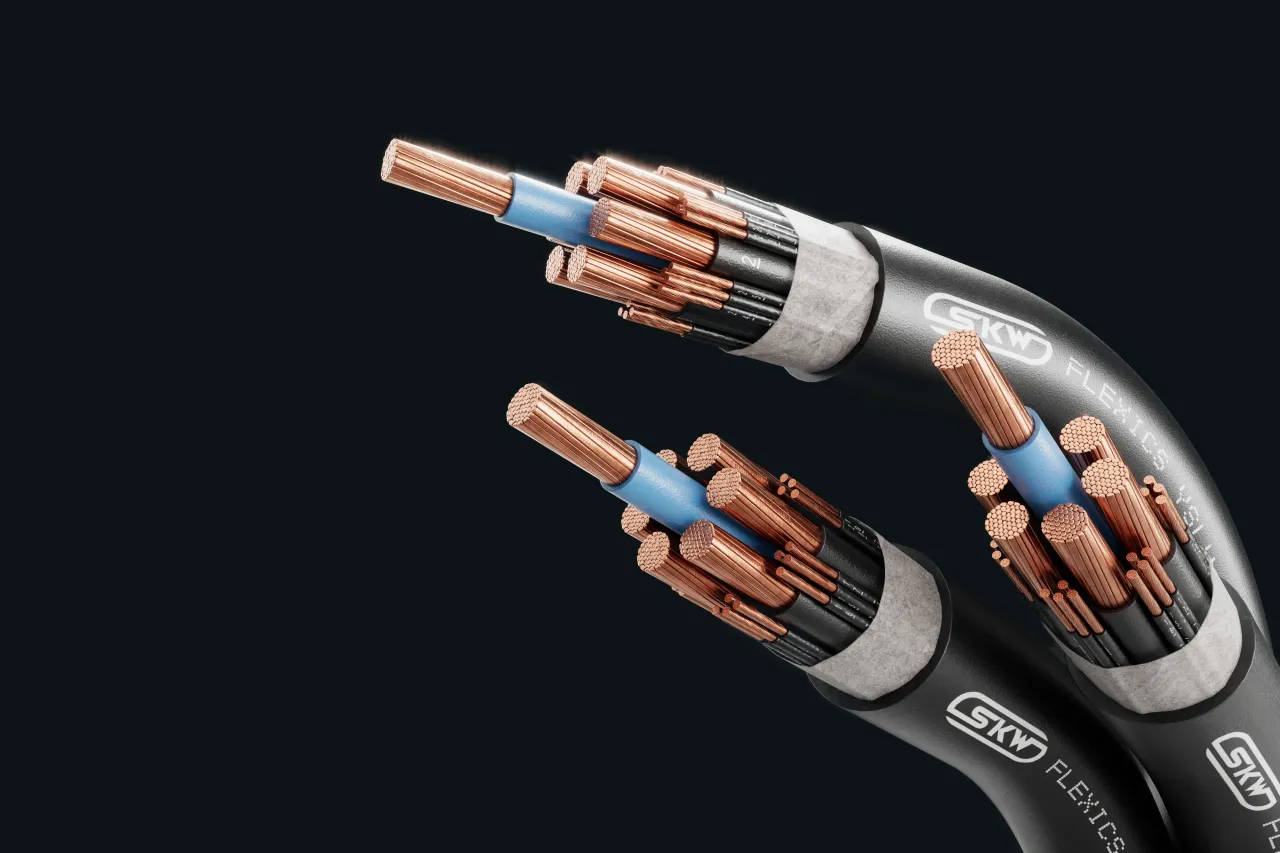

This product consists of:
- 1Bare copper conductors, fine wires class 5 according to DIN EN 60228 / VDE 0295 / IEC 60228
- 2Power supply control cores insulation of special cold resistant mixture of polyvinyl chloride (PVC); control cores of special compound based on polyvinyl chloride (PVC)
- 3Power supply cores (black with No. 1-6) stranded over central core (blue) with 6 star-quads in the interstices
- 4Non-woven tape separation
- 5Outer sheath of special cold resistant compound based on polyvinyl chloride (PVC), colour: black (RAL 9005)
Technical Data
Test Voltage: 4000 V / 50 Hz
Rated Voltage: 0.6/1 kV (Uo/U)
Bending radius (min.): 5 x Ø of cable
Fire properties: EN 60332-1-2: self-extinguishing and flame retardant
Core identification: Central blue core, other cores black (continuously numbered)
Temperature range:
- Fixed installation: -40°C up to 70°C
- Flexible use: -15°C up to 70°C
