FLEXICS® TRUCK FLRYY

Download PDF

Add to inquiry

Download PDF

To inquiry

PVC/PVC power and control cable for commercial vehicles

Industrial Cables

These PVC sheathed cables provide optimal solution for wiring of electrical installations in commercial vehicles. Moreover, ADR approval allows use in vehicles transporting hazardous goods.

Design

This product consists of:

  • 1
    Bare copper conductors, fine wires according to ISO 6722-1
  • 2
    Core insulation of special compound based on polyvinyl chloride (PVC) or for data transmission core/control pairs based on modified polyolefins (MPO), thin wall insulation according to ISO 6722-1
  • 3
    Power supply cores stranded together with control cores and construction-related fillers (optional)
  • 4
    Mineral powder separation or non-woven wrapping over stranding (optional)
  • 5
    Outer sheath of special compound based on polyvinyl chloride (PVC), colour: black (RAL 9005) or according to customer’s requirements

Technical Data

Standard: Acc. to ISO 6722-1 and ISO 14572 / temperature class A
Certificate: ADR TÜ . EGG . 267 – 18
Test Voltage: 5000 V / 50Hz
Rated Voltage: 60 V (Uo/U)
Bending radius (min.): 12 x Ø of cable
Fire properties: ISO 6722-1, ISO 14572, ISO 4141
Core identification: Acc. to ISO 4141-3, colour coded or continuously numbered, according to internal standards or client’s requirements
Temperature range: Operating temperature: -40°C up to 85°C

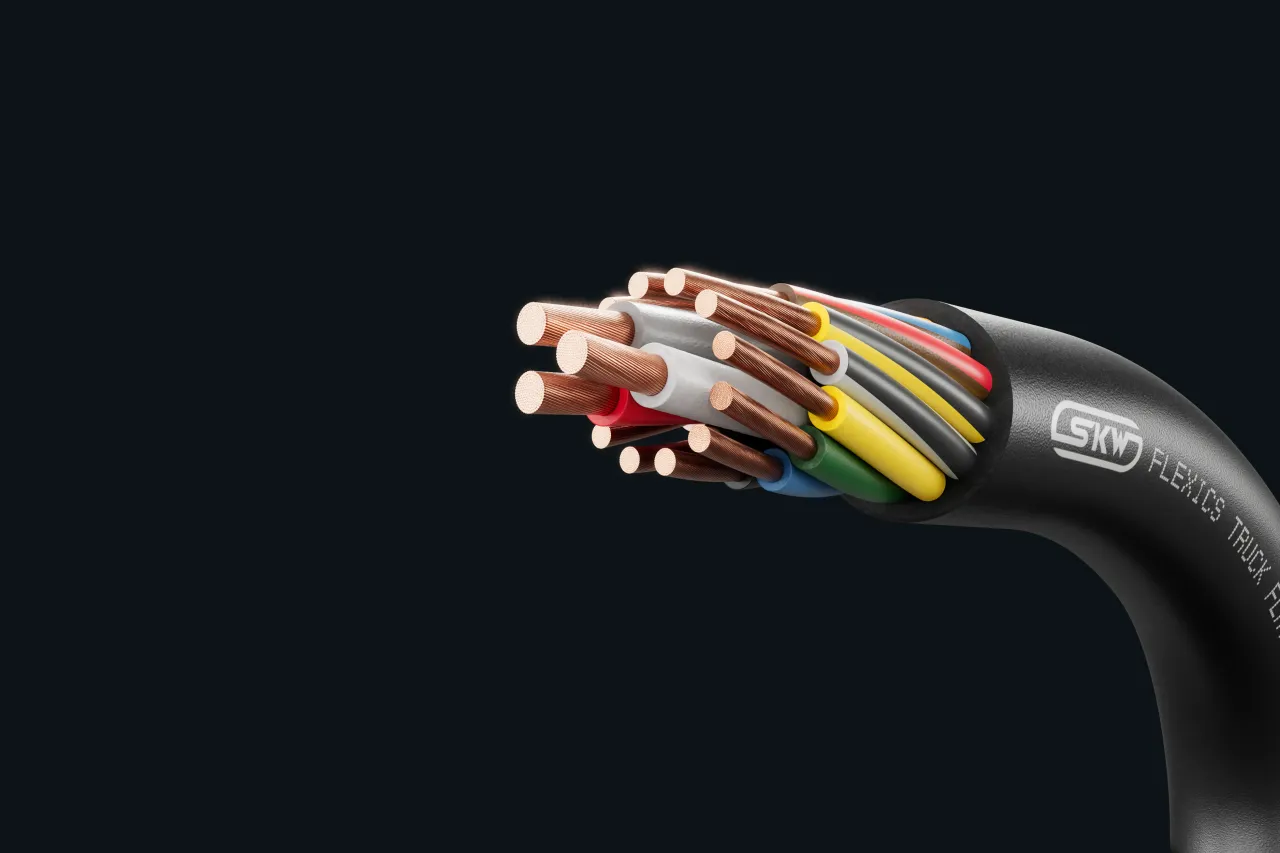

Cable image - FLEXICS® TRUCK FLRYY
+
-

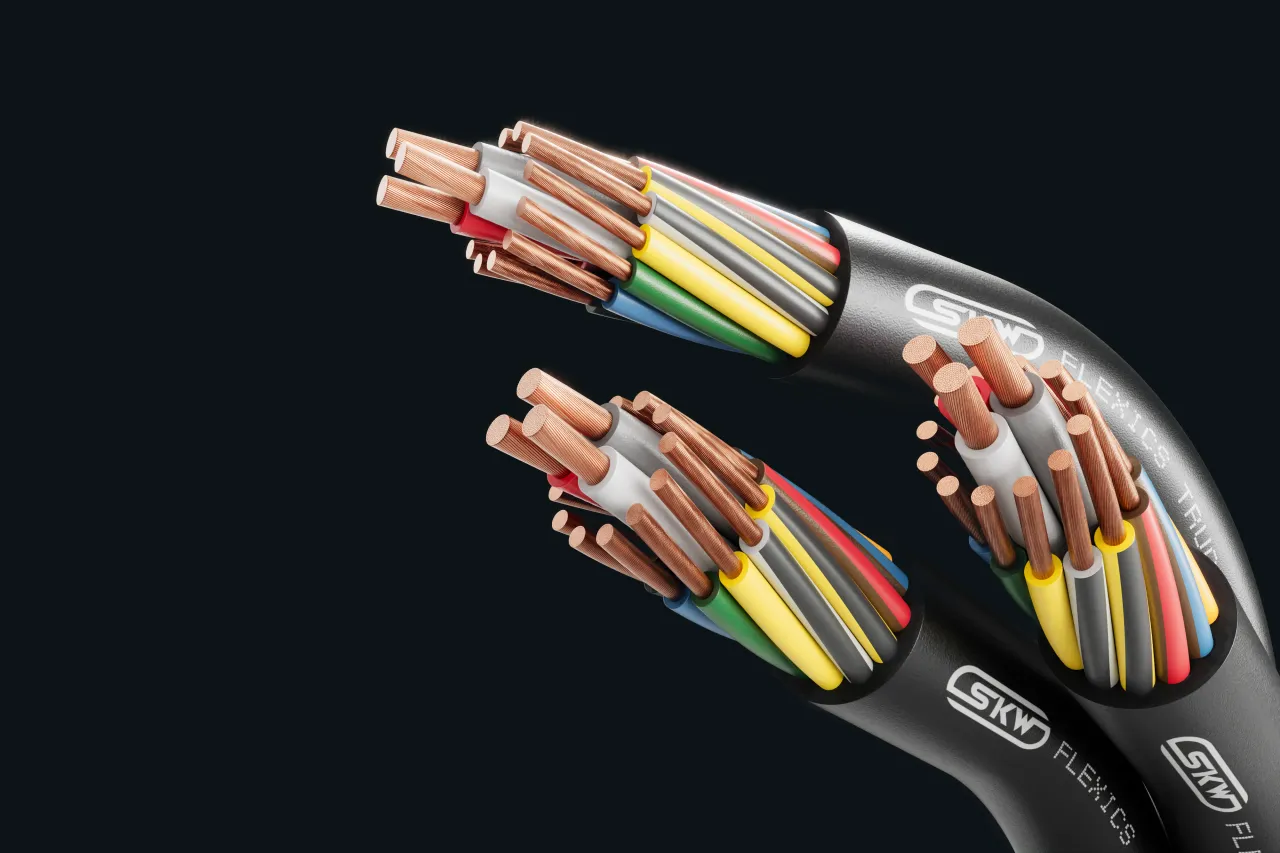

Cable image - FLEXICS® TRUCK FLRYY
+
-
Cable image - FLEXICS® TRUCK FLRYY
+
-

Contact us

Are you interested in this product?

Dogan Özcan, MSc

Product supervisor

+43 (0) 1 70170-154
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
2 x 0.5
5.0
34
7 x 0.75
7.3
79
2 x 1
6.0
55
3 x 1
6.3
63
4 x 1
6.8
81
5 x 1
7.5
97
5 x 1 + 1 x 2.5
9.0
133
2 x 1.5
6.6
68
2 x 1.5 + 2 x 0.75
7.2
85
3 x 1.5 + 2 x 4
11.6
197
3 x 1.5 + 2 x 6
12.1
275
4 x 1.5
7.5
106
5 x 1.5 + 2 x 2.5
10.3
217
6 x 1.5 + 1 x 2.5
10.3
187
7 x 1.5
8.9
166
8 x 1.5 + 1 x 2.5
11.7
239
8 x 1.5 + 5 x 2.5
14.8
360
9 x 1.5 + 4 x 2.5
14.8
352
10 x 1.5 + 3 x 2.5 + (2 x 1.5)
14.4
391
10 x 1.5 + 3 x 2.5
14.4
367
50 x 1.5
23.4
998
2 x 4 + 3 x 1.5 + (2 x 1.5)
12.7
251
2 x 6 + 3 x 1.5 + (2 x 1.5)
13.7
316
4 x 6 + 1 x 1.5
13.7
352

Technical changes reserved.

All figures are therefore without guarantee.
