FLEXICS® SERVO UL/c(UL)

Download PDF

Add to inquiry

Download PDF

To inquiry

UL recognized PVC/PVC servo-motor supply cable, unscreened

PVC/PVC connection cable especially for frequency converters and servo motors. FLEXICS® SERVO UL/c(UL) cable are designed for fixed or flexible indoor installations without guidance and/or tensile stress.

Design

This product consists of:

  • 1
    Bare copper conductors, fine wires class 5 according to DIN EN 60228 / VDE 0295 / IEC 60228
  • 2
    Core insulation of special compound based on polyvinyl chloride (PVC)
  • 3
    Control pairs individually screened with plastic laminated aluminium tape and tinned copper wires. Aluminium tape is not applied for 1-pair versions
  • 4
    Cores are stranded together with optimal lay-length
  • 5
    Non-woven tape separation
  • 6
    Outer sheath of special compound based on polyvinyl chloride (PVC), colour: grey (RAL 7001)

Technical Data

Certificate:
  • UL AWM Style 20886
  • CSA C22.2 No. 210-11, AWM
Test Voltage: 4000 V / 50 Hz
Rated Voltage:
  • 0.6/1 kV (Uo/U)
  • 1000 V (UL/CSA)
Bending radius (min.):
  • Fixed installation: 7.5 x Ø of cable
  • Flexible use: 20 x Ø of cable
Fire properties:
  • EN 60332-1-2: self-extinguishing and flame retardant
  • UL: vertical flame test VW-1, cable flame test
  • CSA: FT1
Core identification:
  • Supply cores: black (continuously numbered) with green/yellow ground conductor
  • Control pairs 0.34 mm2: colour coded
  • Control pairs from 0.75 mm2: black with white numbers
Temperature range:
  • Fixed installation: -30°C up to 80°C
  • Flexible use: -5°C up to 70°C

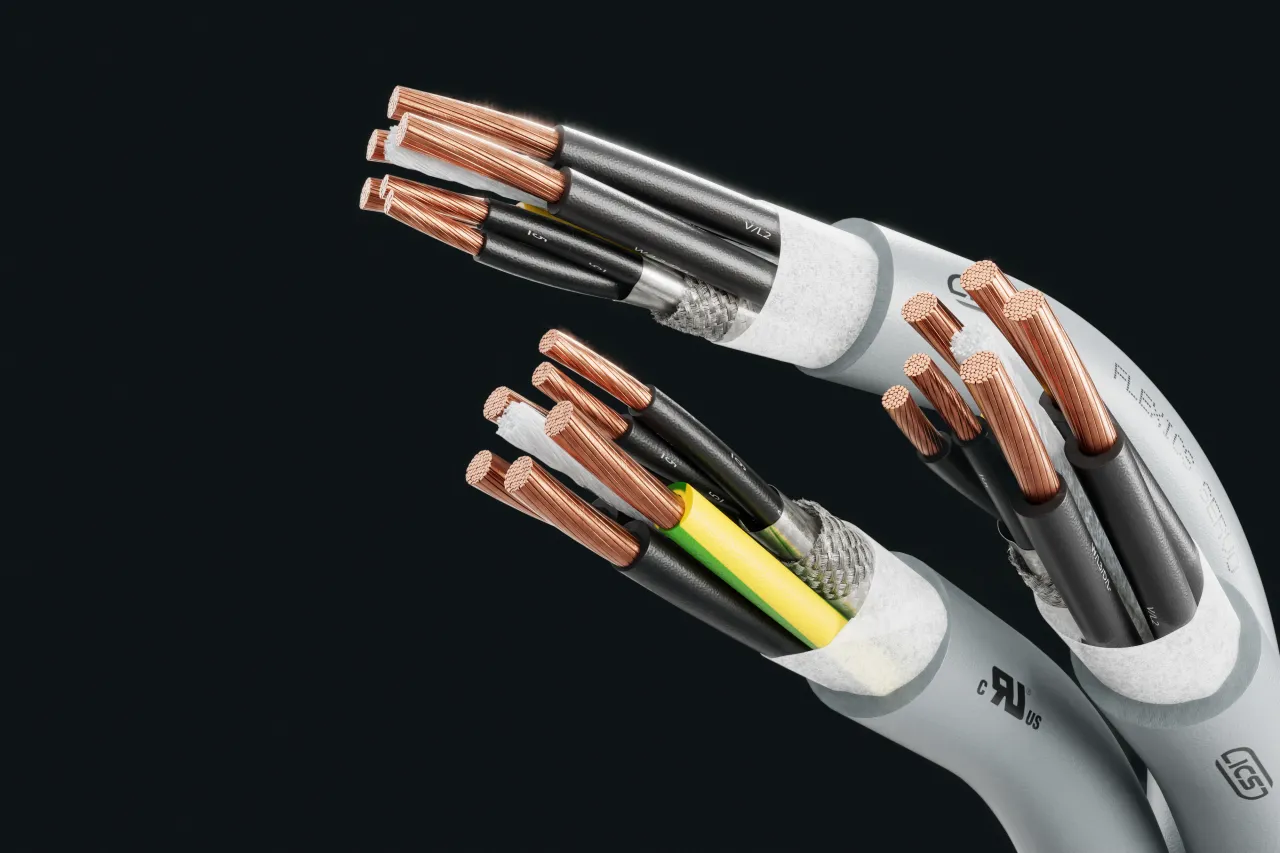

Cable image - FLEXICS® SERVO UL/c(UL)
+
-

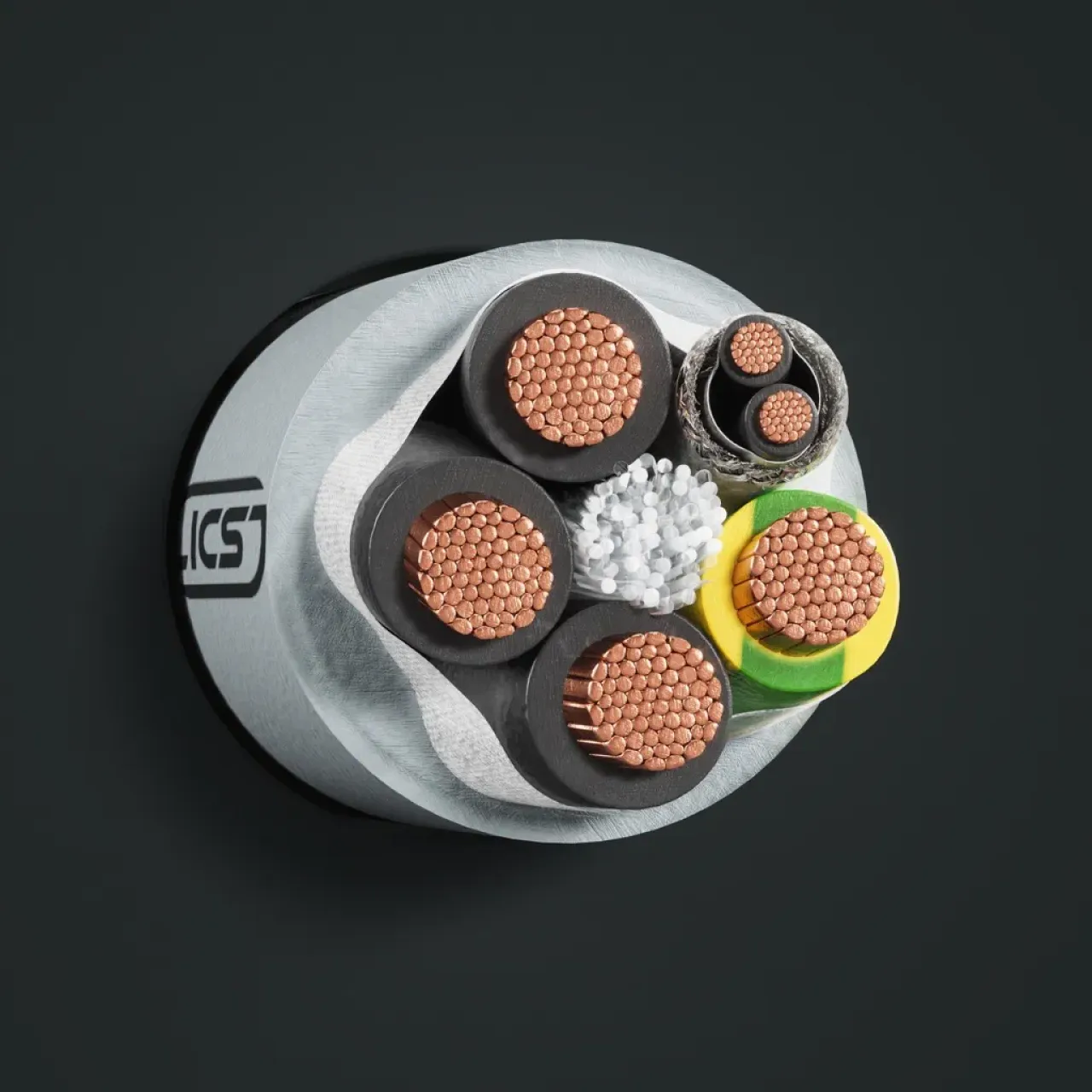

Cable image - FLEXICS® SERVO UL/c(UL)
+
-

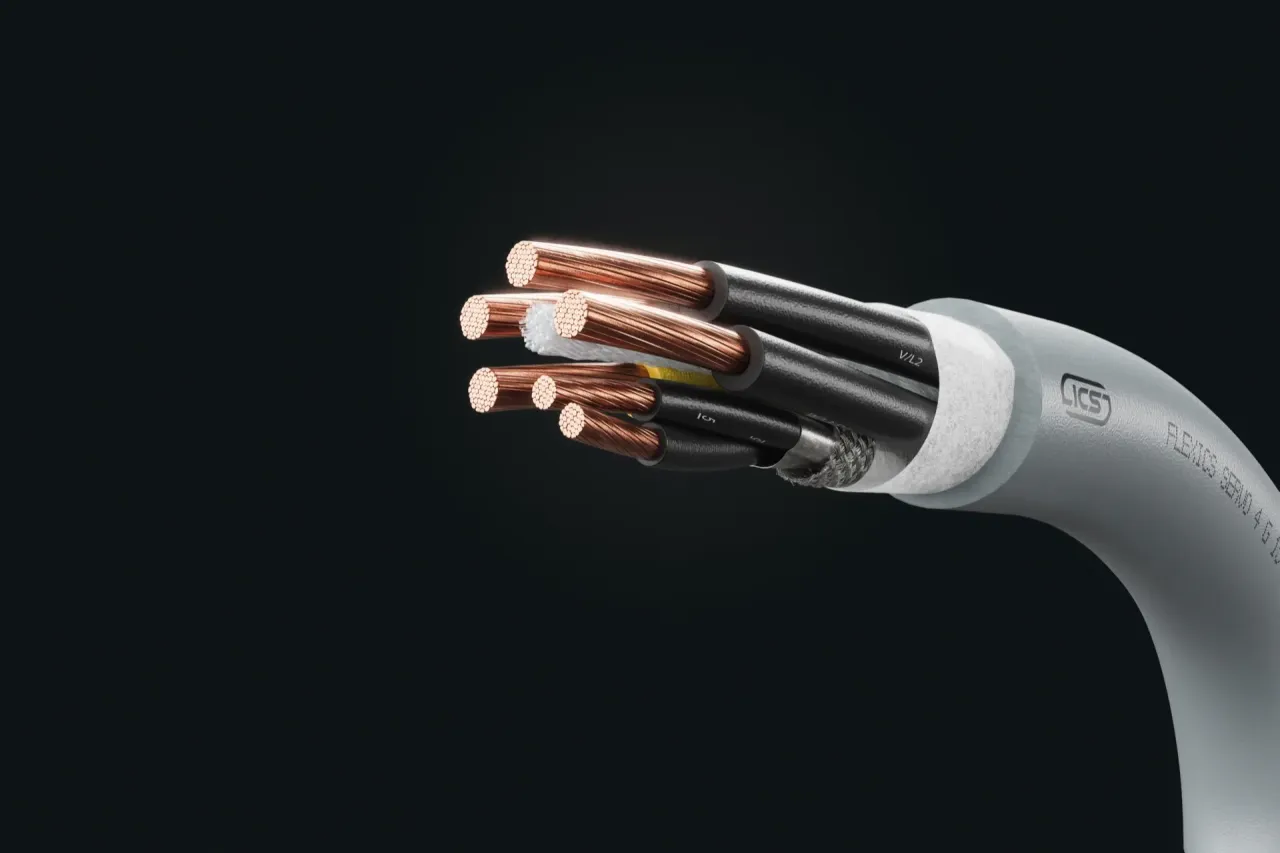

Cable image - FLEXICS® SERVO UL/c(UL)
+
-

Contact us

Are you interested in this product?

Dipl. Ing. Peter Tomka

Product supervisor

+421 37 6969631
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Outer diameter appr. (mm)
Cu-value (kg/km)
Total weight appr. (kg/km)
4 G 0.75 + 2 x (2 x 0.34)
11.6
92
201
4 G 1.5 + (2 x 0.75)
13.0
98
230
5 G 1.5 + (2 x 0.75)
13.8
110
258
7 G 1.5 + (2 x 0.75)
13.9
144
299
4 G 1.5 + 2 x (2 x 0.75)
14.0
101
294
4 G 2.5 + (2 x 0.75)
14.4
139
294
5 G 2.5 + (2 x 0.75)
15.5
159
349
7 G 2.5 + (2 x 0.75)
16.4
216
429
4 G 2.5 + (2 x 2 x 0.75)
15.1
142
349
4 G 4 + (2 x 0.75 + 2 x 1)
16.8
218
443
4 G 6 + (2 x 0.75 + 2 x 1)
18.0
295
532
4 G 10 + (2 x 0.75 + 2 x 1)
21.7
448
799
4 G 16 + (2 x 2 x 1)
24.4
669
1078
4 G 25 + (2 x 2 x 1.5)
30.1
1060
1713

Technical changes reserved.

All figures are therefore without guarantee.
