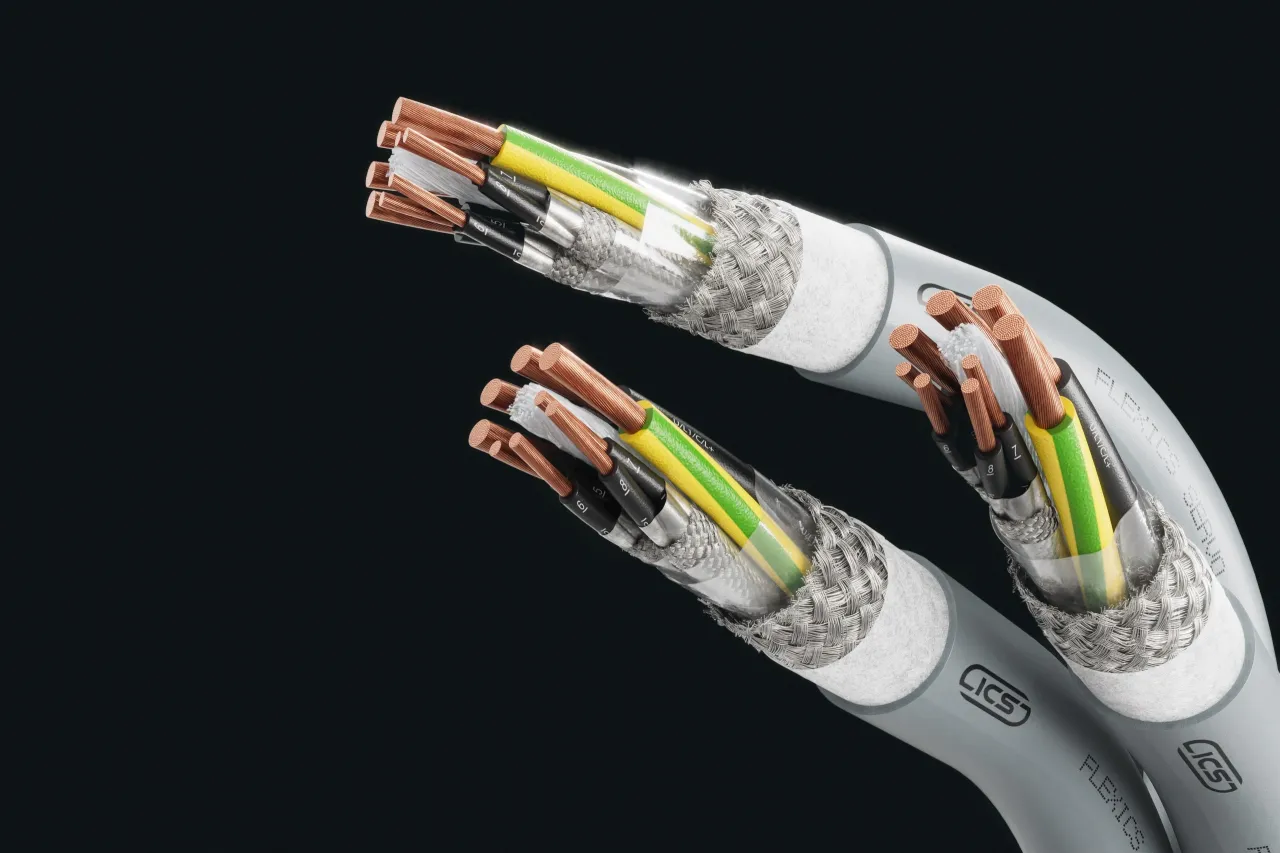

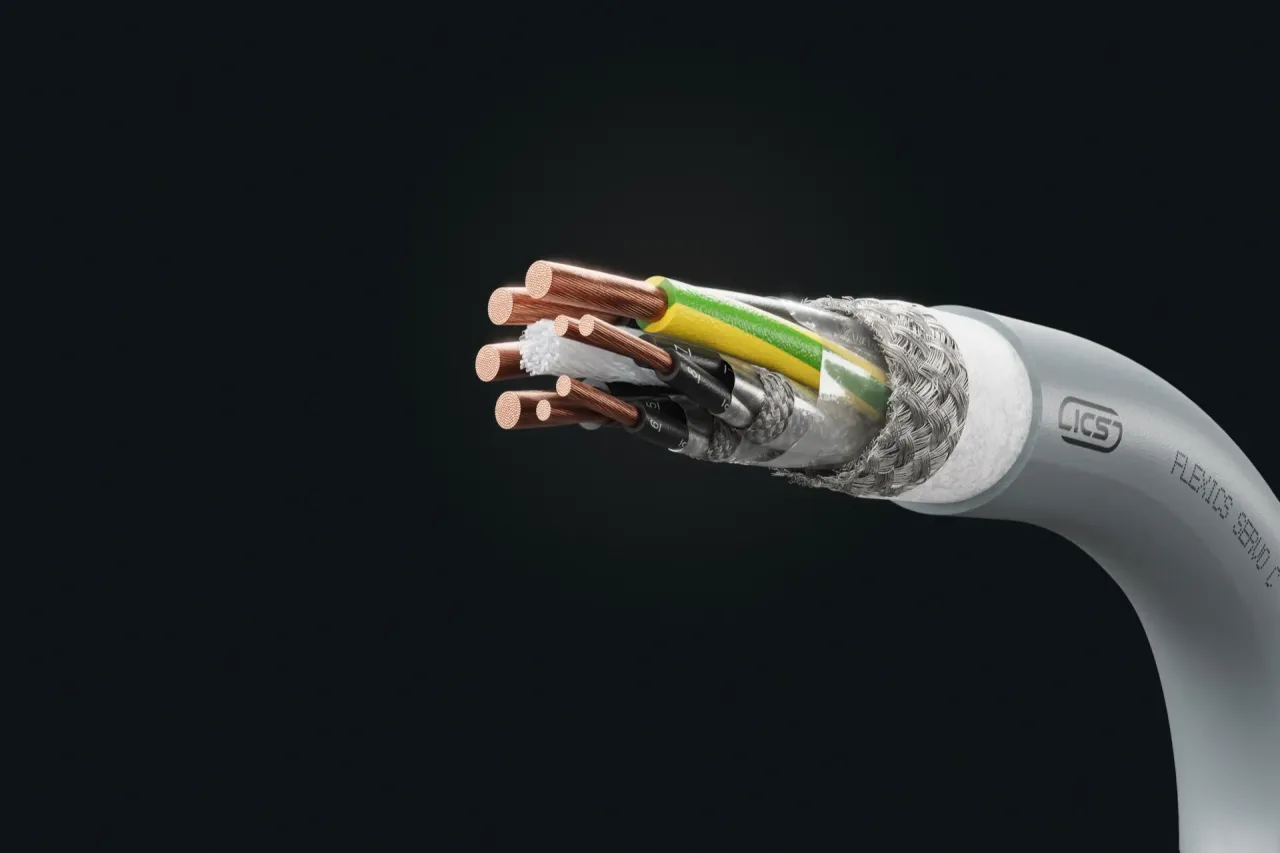

PVC/PVC servo-motor supply cable, screened

Automation and Motor Supply Cables

PVC/PVC connection cable especially for frequency converters and servo motors. FLEXICS® SERVO C cable are designed for fixed or flexible indoor installations without guidance and/or tensile stress, especially when excellent EMC behaviour is required.

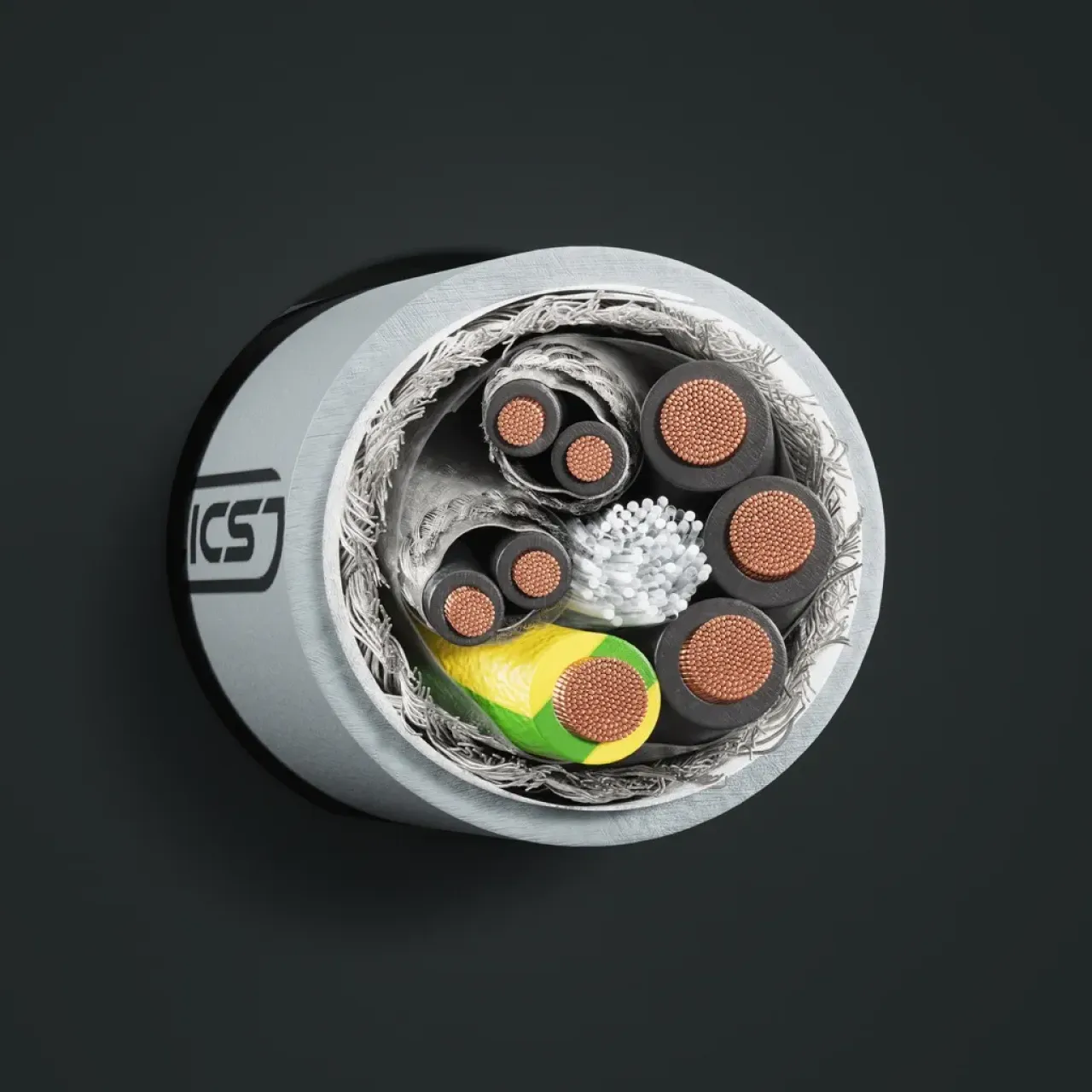

Design

This product consists of:

1
Bare copper conductors, fine wires class 5 according to DIN EN 60228 / VDE 0295 / IEC 60228
2
Core insulation of special compound based on polyvinyl chloride (PVC)
3
Control pairs individually screened with plastic laminated aluminium tape and tinned copper wires
4
Cores are stranded together with optimal lay-length
5
Plastic tape
6
Tinned copper wire braiding
7
Non-woven tape separation over braiding (optional)
8
Outer sheath of special compound based on polyvinyl chloride (PVC), colour: grey (RAL 7001)

Technical Data

Test Voltage: 4000 V / 50 Hz

Rated Voltage: 0.6/1 kV (Uo/U)

Bending radius (min.):

Fixed installation: 7.5 x Ø of cable
Flexible use: 20 x Ø of cable

Fire properties: EN 60332-1-2: self-extinguishing and flame retardant

Core identification:

Supply cores: black (continuously numbered) with green/yellow ground conductor
Control pairs 0.34 mm2: colour coded
Control pairs from 0.75 mm2: black with white numbers

Temperature range:

Fixed installation: -30°C up to 80°C
Flexible use: -5°C up to 70°C

Contact us

Are you interested in this product?

Dipl. Ing. Peter Tomka

Product supervisor

+421 37 6969631

[email protected]

Add to inquiry

Number of cores x nominal cross-section (mm²)

Outer diameter appr. (mm)

Cu-value (kg/km)

Total weight appr. (kg/km)

4 G 0.75 + 2 x (2 x 0.34)

10.2

111

157

4 G 1.5 + 2 x (2 x 0.75)

13.2

148

274

4 G 2.5 + (2 x 2 x 0.75)

14.7

226

333

4 G 4 + (2 x 0.75 + 2 x 1)

16.2

304

424

4 G 6 + (2 x 0.75 + 2 x 1)

17.8

379

553

4 G 10 + (2 x 0.75 + 2 x 1)

21.6

592

815

4 G 16 + (2 x 2 x 1)

24.1

861

1088

4 G 25 + (2 x 2 x 1.5)

29.7

1262

1665
