FLEXICS® SERVO

Download PDF

Add to inquiry

Download PDF

To inquiry

PVC/PVC servo-motor supply cable, unscreened

Industrial Cables

PVC/PVC connection cable especially for frequency converters and servo motors. FLEXICS® SERVO cable are designed for fixed or flexible indoor installations without guidance and/or tensile stress.

Design

This product consists of:

  • 1
    Bare copper conductors, fine wires class 5 according to DIN EN 60228 / VDE 0295 / IEC 60228
  • 2
    Core insulation of special compound based on polyvinyl chloride (PVC)
  • 3
    Control pairs individually screened with plastic laminated aluminium tape and tinned copper wires. Aluminium tape is not applied for 1-pair versions
  • 4
    Cores are stranded together with optimal lay-length
  • 5
    Non-woven tape separation
  • 6
    Outer sheath of special compound based on polyvinyl chloride (PVC), colour: grey (RAL 7001)

Technical Data

Test Voltage: 4000 V / 50 Hz
Rated Voltage: 0.6/1 kV (Uo/U)
Bending radius (min.):
  • Fixed installation: 7.5 x Ø of cable
  • Flexible use: 20 x Ø of cable
Fire properties: EN 60332-1-2: self-extinguishing and flame retardant
Core identification:
  • Supply cores: black (continuously numbered) with green/yellow ground conductor
  • Control pairs 0.34 mm2: colour coded
  • Control pairs from 0.75 mm2: black with white numbers
Temperature range:
  • Fixed installation: -30°C up to 80°C
  • Flexible use: -5°C up to 70°C

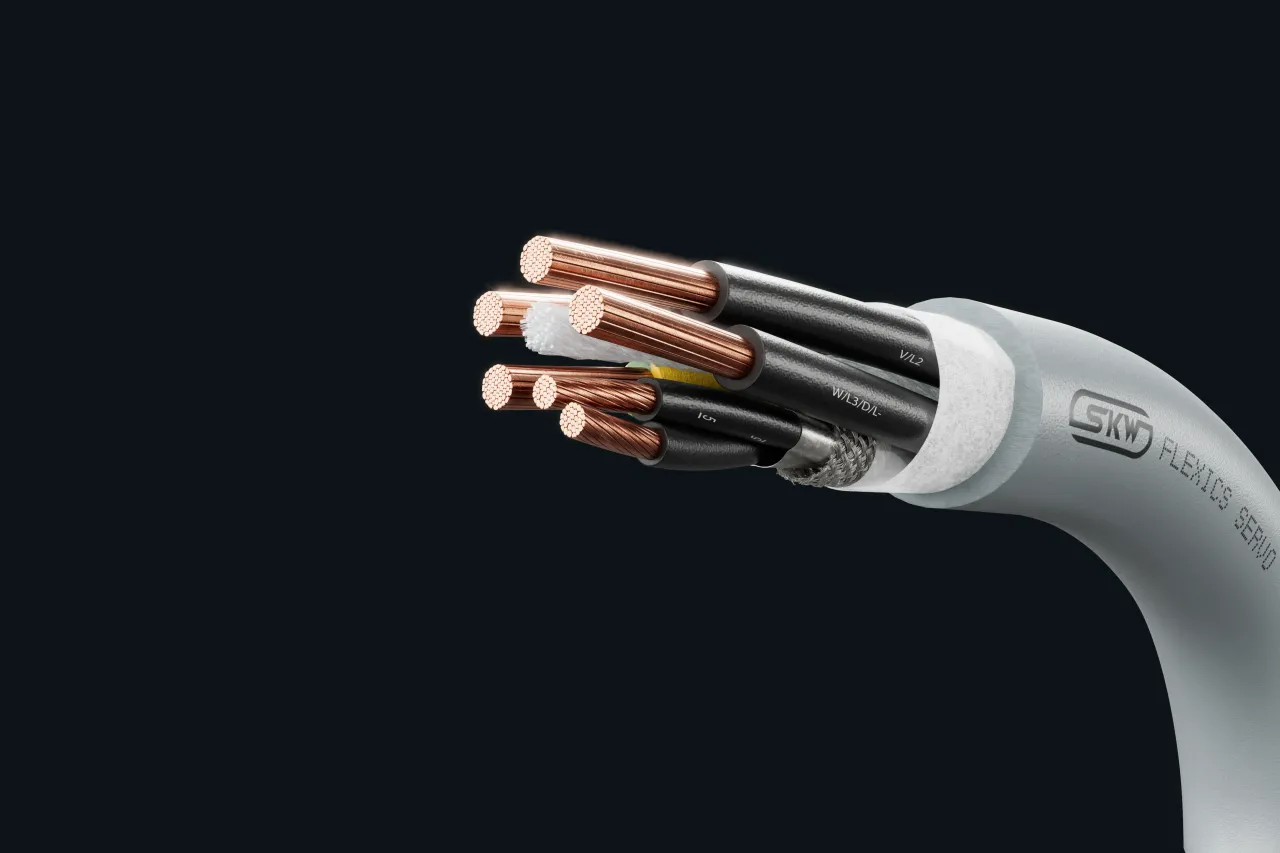

Cable image - FLEXICS® SERVO
+
-

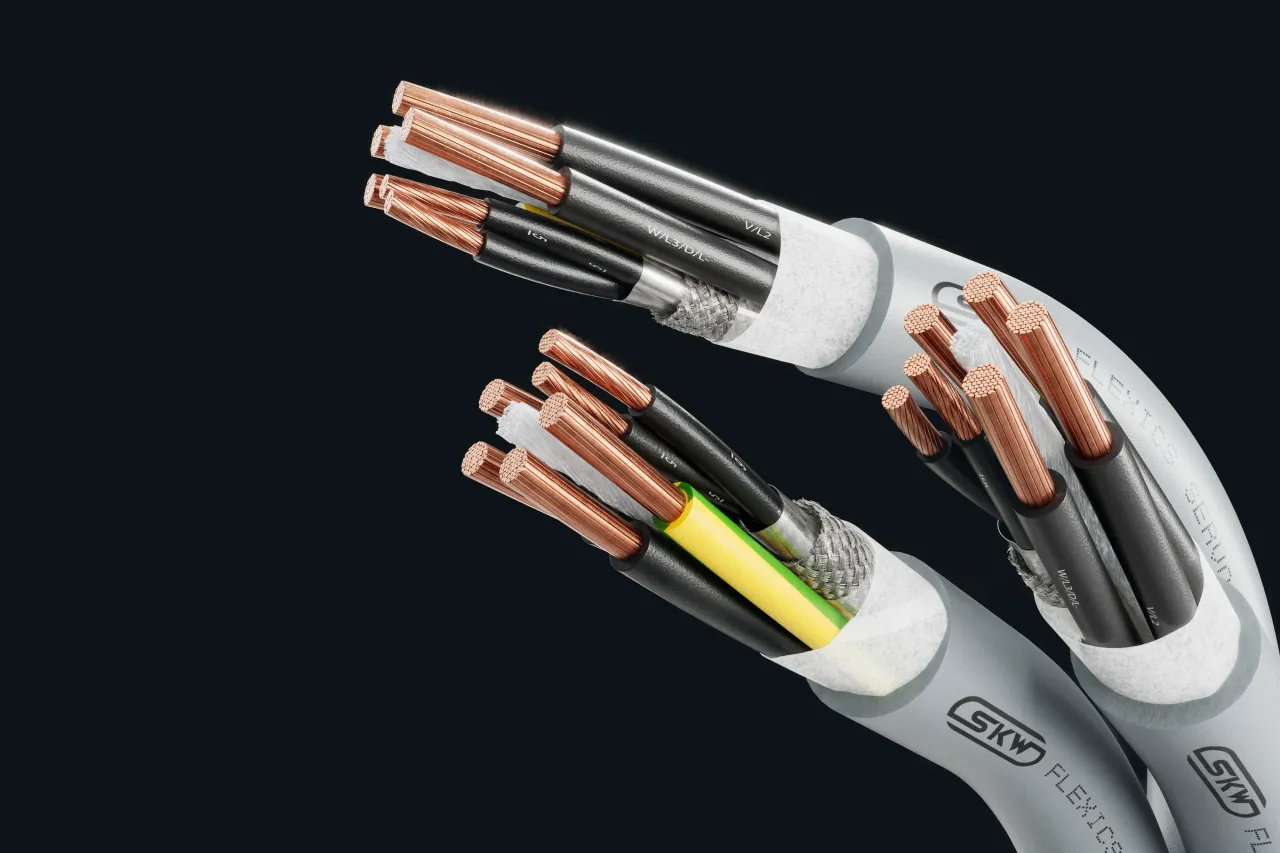

Cable image - FLEXICS® SERVO
+
-
Cable image - FLEXICS® SERVO
+
-

Contact us

Are you interested in this product?

Dogan Özcan, MSc

Product supervisor

+43 (0) 1 70170-154
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
4 G 0.75 + 2 x (2 x 0.34)
9.6
133
4 G 1.5 + 2 x (2 x 0.75)
12.4
225
4 G 1.5 + (2 x 0.75)
11.6
184
5 G 1.5 + (2 x 0.75)
12.6
213
7 G 1.5 + (2 x 0.75)
12.8
251
5 G 2.5 + (2 x 0.75)
14.5
297
7 G 2.5 + (2 x 0.75)
15.5
373
4 G 2.5 + 2 x (2 x 0.75)
13.7
275
4 G 2.5 + (2 x 0.75)
13.2
246
4 G 4 + (2 x 0.75 + 2 x 1)
15.4
369
4 G 6 + (2 x 0.75 + 2 x 1)
16.6
458
4 G 10 + (2 x 0.75 + 2 x 1)
20.4
705
4 G 16 + (2 x 2 x 1)
23.2
976
4 G 25 + (2 x 2 x 1.5)
29.0
1524

Technical changes reserved.

All figures are therefore without guarantee.
