PUR cable for submersible motor pumps, screened
Industrial Cables
Extremely robust cable for extreme environmental conditions. The PUR outer sheath meets the highest requirements for tear and abrasion resistance. Excellent weather resistance, very good chemical resistance and microbial safe. Halogen-free and resistant to UV rays. Single-core versions are particularly suitable for short and earth-proof installations. Excellent EMC behavior.

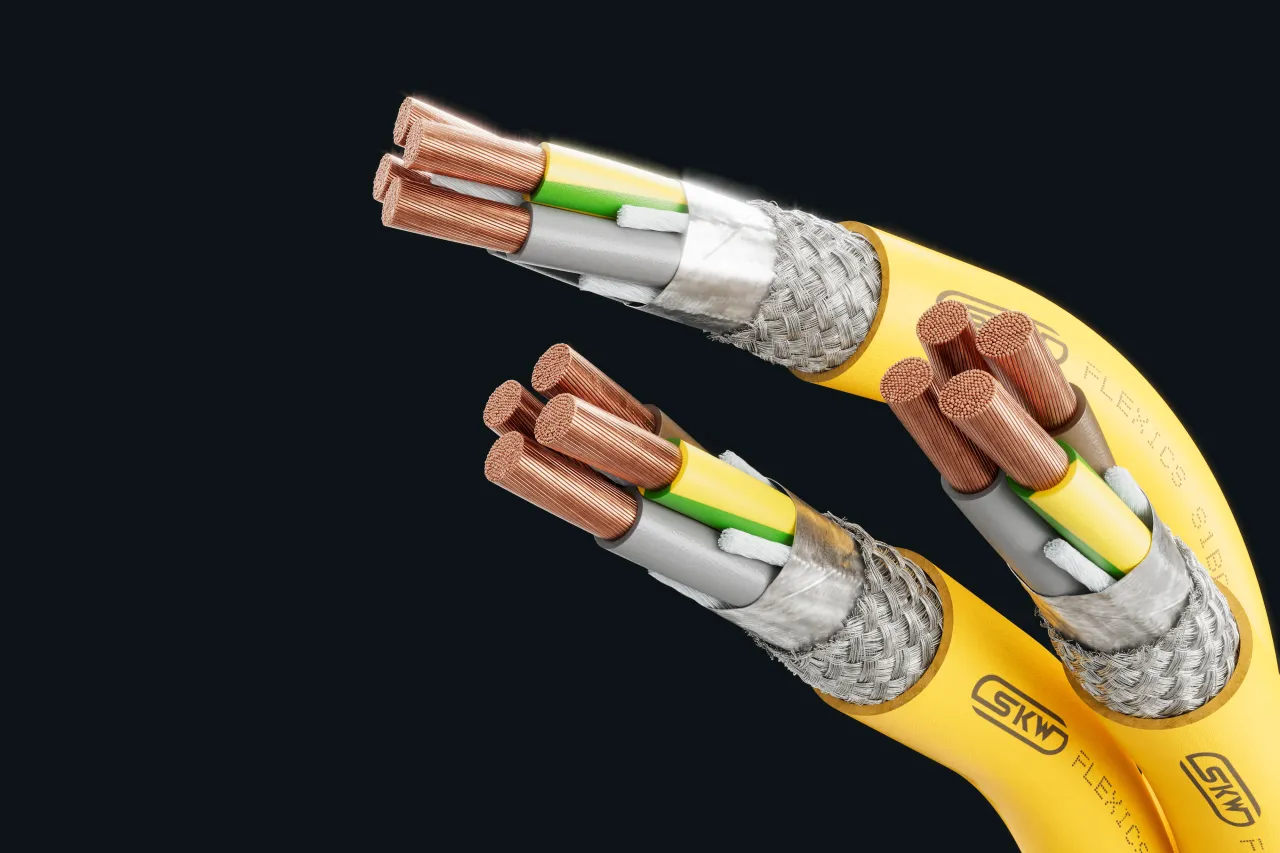

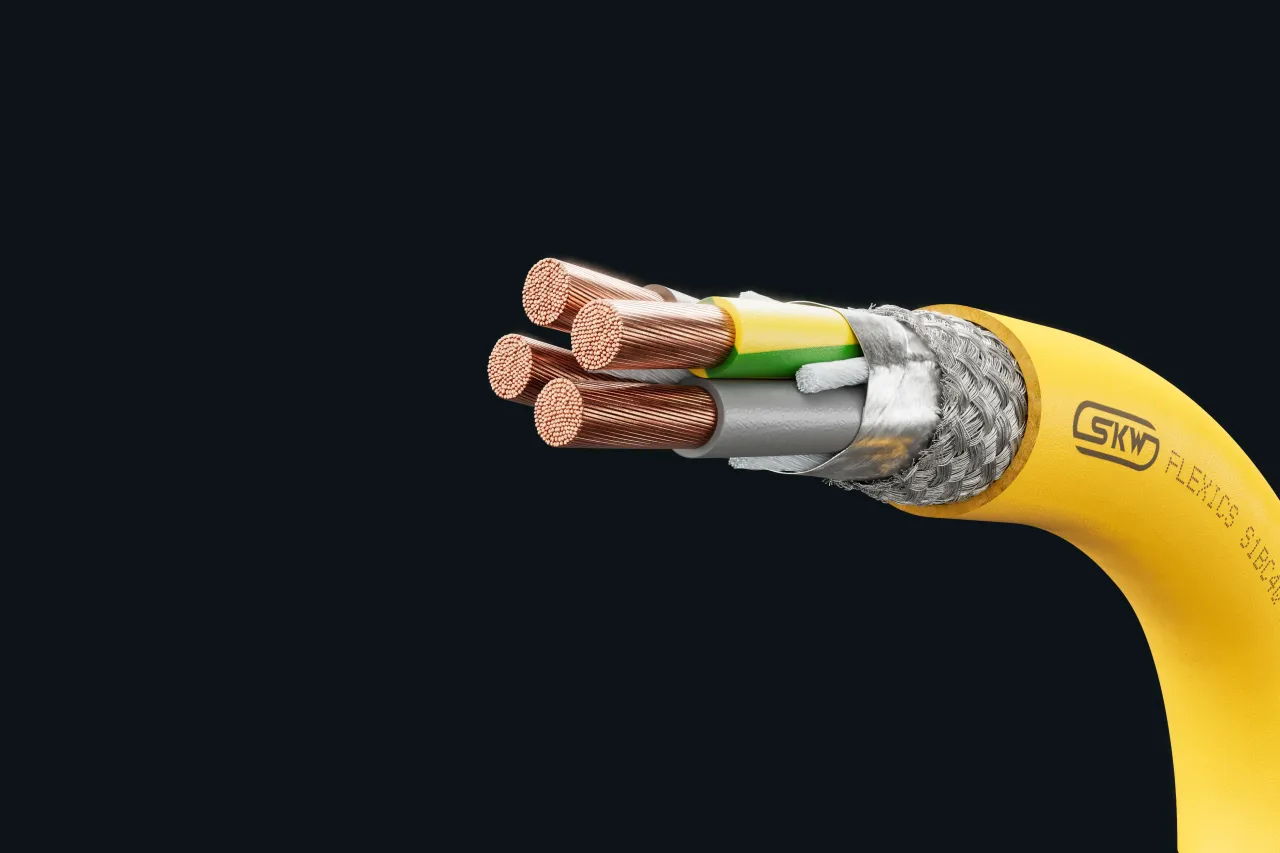

Design
This product consists of:
- 1Bare copper conductors, fine wires class 5 according to DIN EN 60228 / VDE 0295 / IEC 60228
- 2Core insulation of special compound based on cross-linked polymer (XLPE)
- 3Cores are stranded together with optimal lay-length
- 4Plastic bonded aluminium tape and tinned copper wire braiding
- 5Special polyurethane (PUR) outer sheath, colour: yellow (RAL 1021)
Technical Data
Test Voltage: 3500 V / 50 Hz
Rated Voltage: 0.6/1 kV (Uo/U)
Bending radius (min.):
- Fixed installation: 6 x Ø of cable
- Flexible use: 10 x Ø of cable
Core identification: Colours according to CENELEC HD 308 S2
Temperature range:
- Operating temperature: -40°C up to 90°C
- Conductor temperature: max. 90°C
- Short circuit temperature: max. 200°C
