PUR power and control cable, halogen-free, reelable
Industrial Cables
Drum or reeling cables are specifically designed for moving applications in different application fields. They can work as power, control and signaling cables for cable reels, lifting appliances, transport systems, agricultural machines or cranes. These cables are built to resist medium or high mechanical stress.
Design

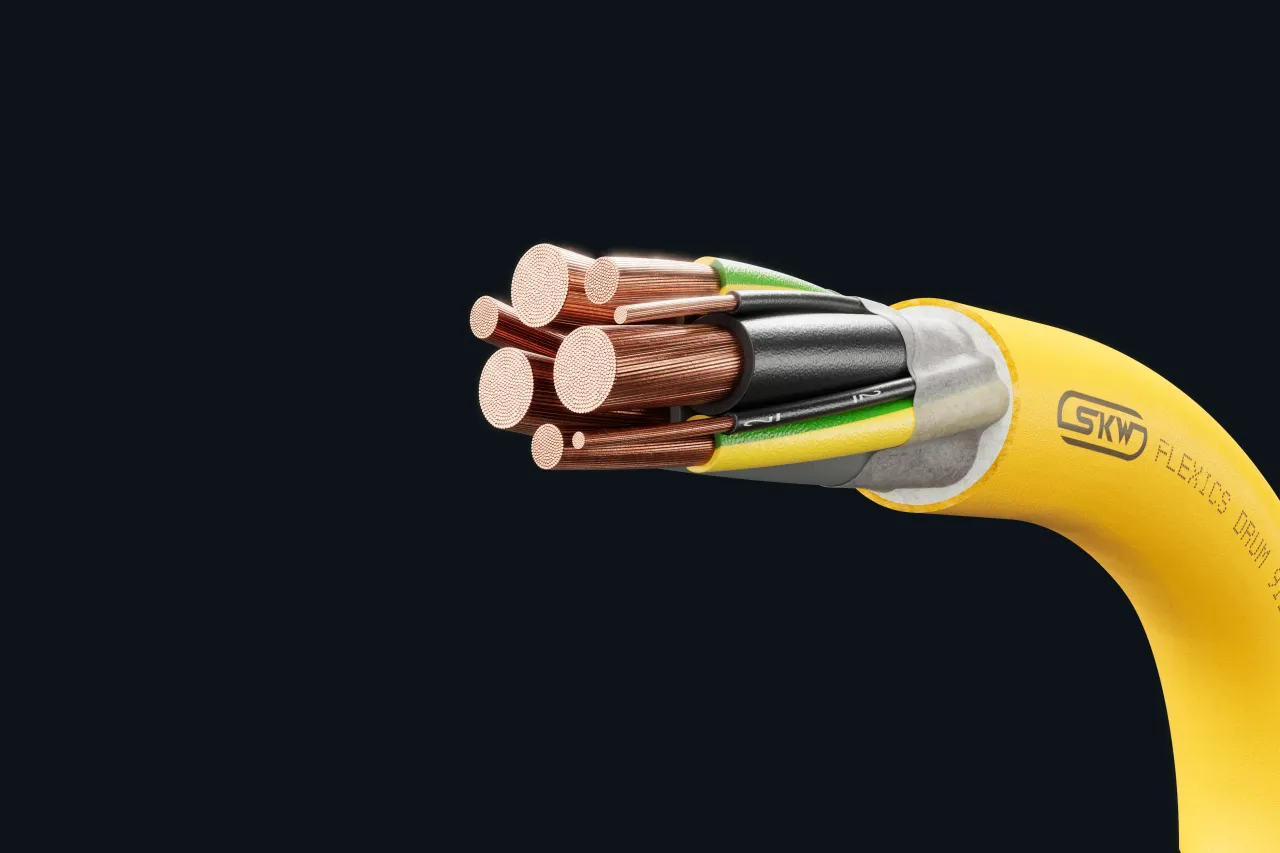

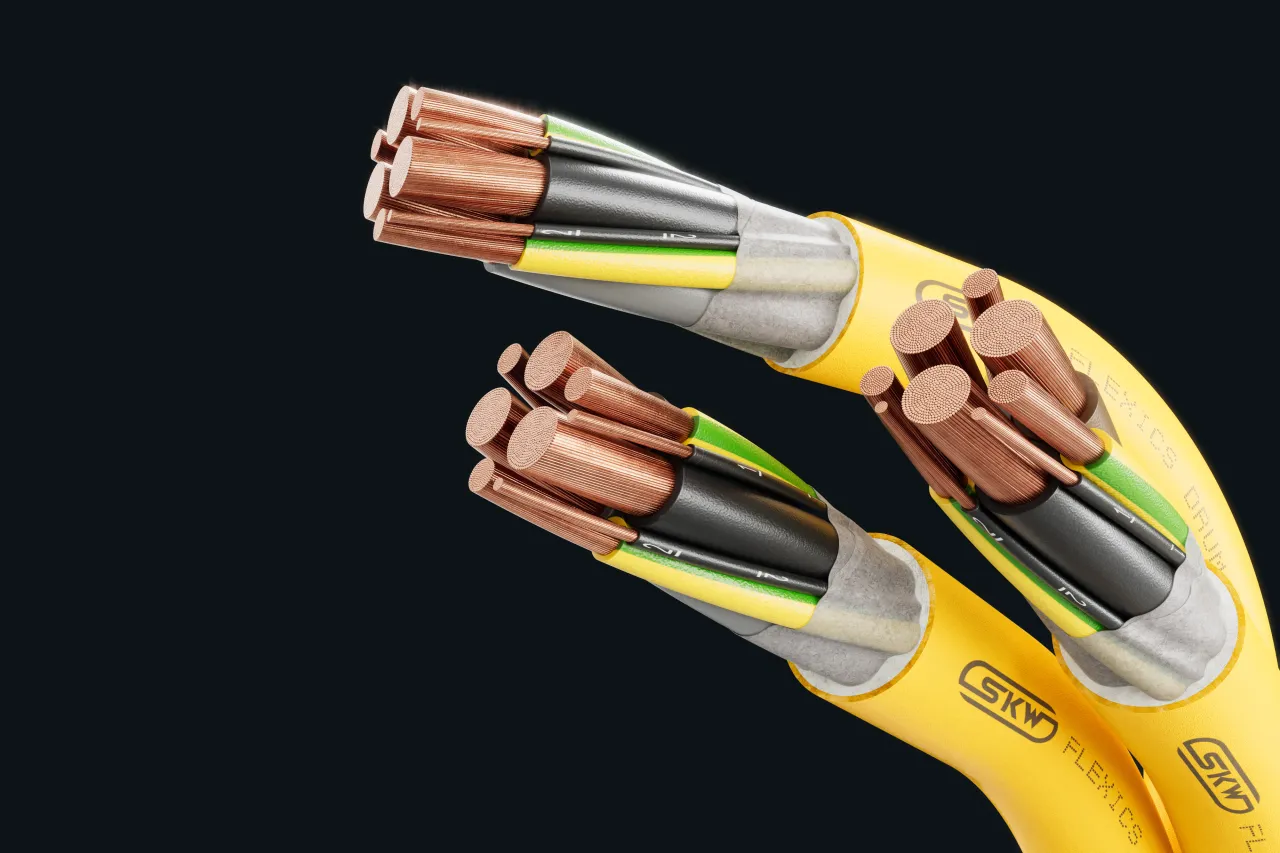

This product consists of:
- 1Bare copper conductors, fine wires class 5 according to DIN EN 60228 / VDE 0295 / IEC 60228
- 2Power supply core insulation of special thermoplastic vulcanizate compound (TPV); control cores of special compound based on polypropylene (PP)
- 3Cores are stranded together with optimal lay-length
- 4Non-woven tape separation
- 5Primary outer sheath of special polyurethane (PUR), colour: white (RAL 9010)
- 6Secondary outer sheath of special polyurethane (PUR), colour: yellow (RAL 1021)
Technical Data
Test Voltage: 4000 V / 50 Hz
Rated Voltage: 0.6/1 kV (Uo/U)
Bending radius (min.):
- Fixed installation: 5 x Ø of cable
- Flexible use: 7.5x Ø of cable
Fire properties: EN 60332-1-2: self-extinguishing and flame retardant
Core identification: Colour code acc. to HD 308 S2 with two control cores, coloured and numbered
Temperature range:
- Fixed installation: -40°C up to 90°C
- Flexible use: -40°C up to 90°C
