FLEXICS® CHAIN UL/c(UL)

Download PDF

Add to inquiry

Download PDF

To inquiry

UL recognized PVC/PVC drag chain cable, unscreened

Industrial Cables

Extremely flexible PVC/PVC control cable for transmission of instrumentation and control signals for machine building and plant construction purposes, especially for continuous moving machine parts, e.g. within C-tracks. FLEXICS® CHAIN UL/c(UL) cables are designed for indoor applications when exposed to medium mechanical stress.

Design

This product consists of:

  • 1
    Bare copper conductors, super fine wires class 6 according to DIN EN 60228 / VDE 0295 / IEC 60228
  • 2
    Core insulation of special compound based on polyvinyl chloride (PVC)
  • 3
    Cores stranded in layers with short lay-lengths
  • 4
    Non-woven wrapping over each stranding layer
  • 5
    Outer sheath of special compound based on polyvinyl chloride (PVC), colour: grey (RAL 7001)

Technical Data

Standard: Based on VDE 0285
Certificate:
  • UL AWM 20886
  • CSA C22.2 No. 210-11, AWM
Test Voltage: 4000 V / 50 Hz
Rated Voltage:
  • 300/500 V (Uo/U)
  • 1000 V (UL/CSA)
Bending cycles: 3 million
Bending radius (min.):
  • Fixed installation: 7.5 x Ø of cable
  • Flexible use: 10 x Ø of cable
Fire properties:
  • EN 60332-1-2: self-extinguishing and flame retardant
  • UL: vertical flame test VW-1 cable flame test
  • CSA: FT1
Core identification: Black (continuously numbered), from 3 cores with green/yellow ground conductor
Temperature range:
  • Fixed installation: -30°C up to 80°C
  • Flexible use: -5°C up to 70°C

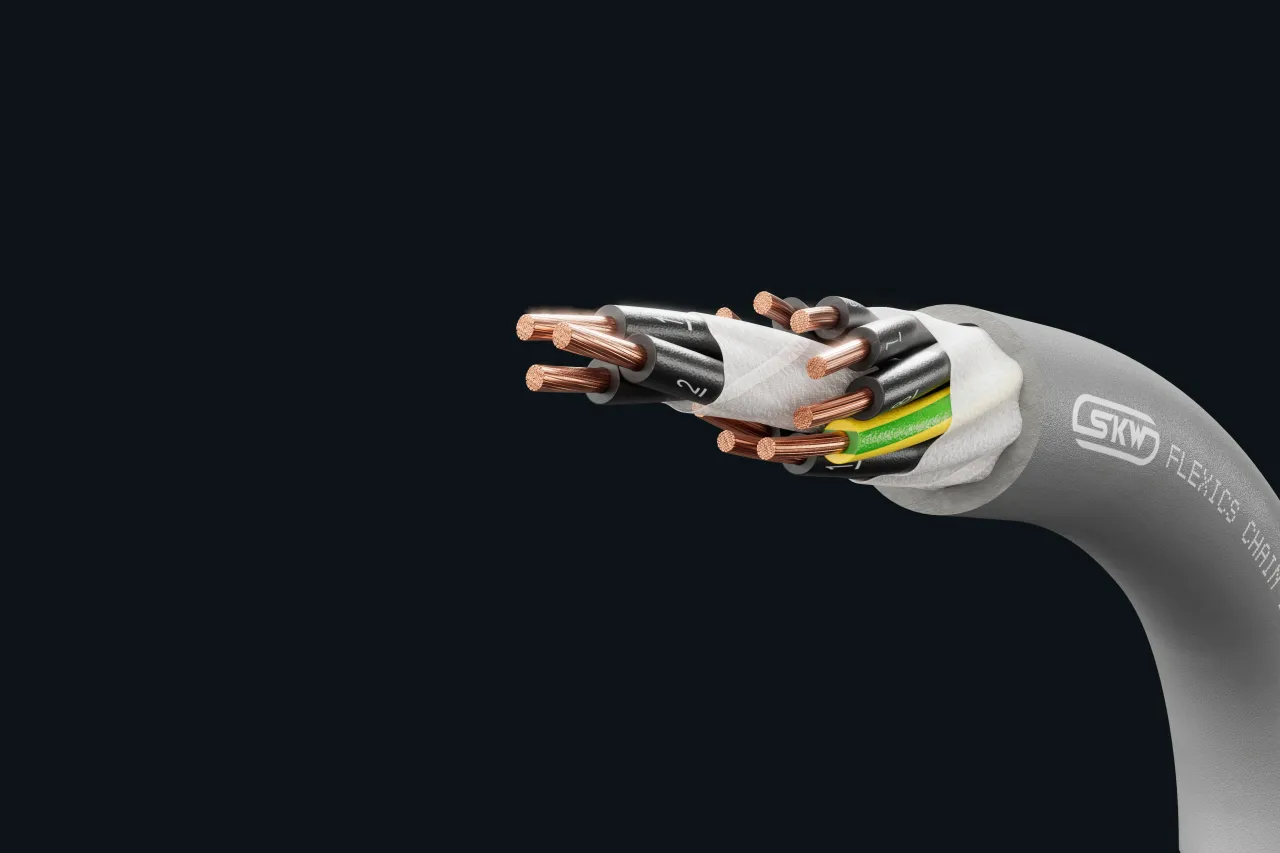

Cable image - FLEXICS® CHAIN UL/c(UL)
+
-

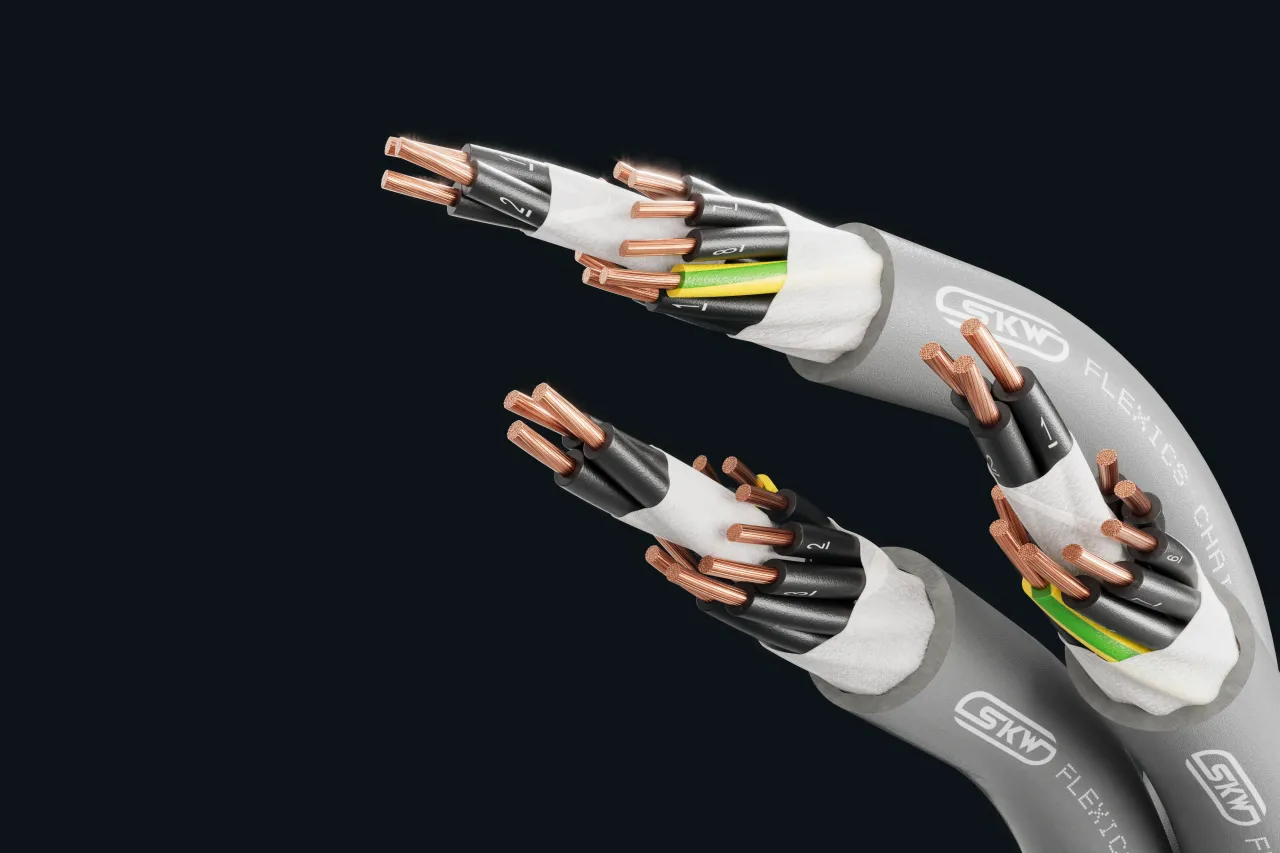

Cable image - FLEXICS® CHAIN UL/c(UL)
+
-
Cable image - FLEXICS® CHAIN UL/c(UL)
+
-

Contact us

Are you interested in this product?

Dogan Özcan, MSc

Product supervisor

+43 (0) 1 70170-154
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
2 x 0.5
5.5
42
3 G 0.5
5.9
52
4 G 0.5
6.6
60
5 G 0.5
7.2
72
7 G 0.5
8.7
106
12 G 0.5
10.5
150
18 G 0.5
12.5
231
25 G 0.5
15.0
316
2 x 0.75
6.1
51
3 G 0.75
6.6
63
4 G 0.75
7.3
75
5 G 0.75
8.0
90
7 G 0.75
9.6
132
12 G 0.75
11.6
201
18 G 0.75
13.9
300
25 G 0.75
16.6
415
2 x 1
6.4
58
3 G 1
7.0
72
4 G 1
7.8
88
5 G 1
8.5
106
7 G 1
10.3
159
12 G 1
12.4
237
18 G 1
15.1
358
25 G 1
18.3
536
2 x 1.5
7.0
72
3 G 1.5
7.7
93
4 G 1.5
8.8
122
5 G 1.5
9.6
147
7 G 1.5
11.6
219
12 G 1.5
13.9
322
18 G 1.5
16.9
478
25 G 1.5
20.1
670
3 G 2.5
9.0
130
4 G 2.5
10.0
165
5 G 2.5
11.0
210
7 G 2.5
13.4
308
12 G 2.5
15.9
446
18 G 2.5
20.4
718
25 G 2.5
24.7
1070
3 G 4
10.6
192
4 G 4
11.8
243
5 G 4
13.3
325
7 G 4
18.5
469
3 G 6
12.8
290
4 G 6
14.0
368
7 G 6
19.8
620

Technical changes reserved.

All figures are therefore without guarantee.
