PP/PUR servo-motor supply cable, halogen-free for drag chain application, unscreened
Highly flexible PP/PUR connection cable for frequency converters and servo motors, especially for continuous moving machine parts, e.g. within C-tracks. FLEXICS® CHAIN SERVO 911 cables are designed for indoor applications when exposed to high mechanical stress and increased resistance against a wide range of oils, greases, coolants and lubricants.
Design

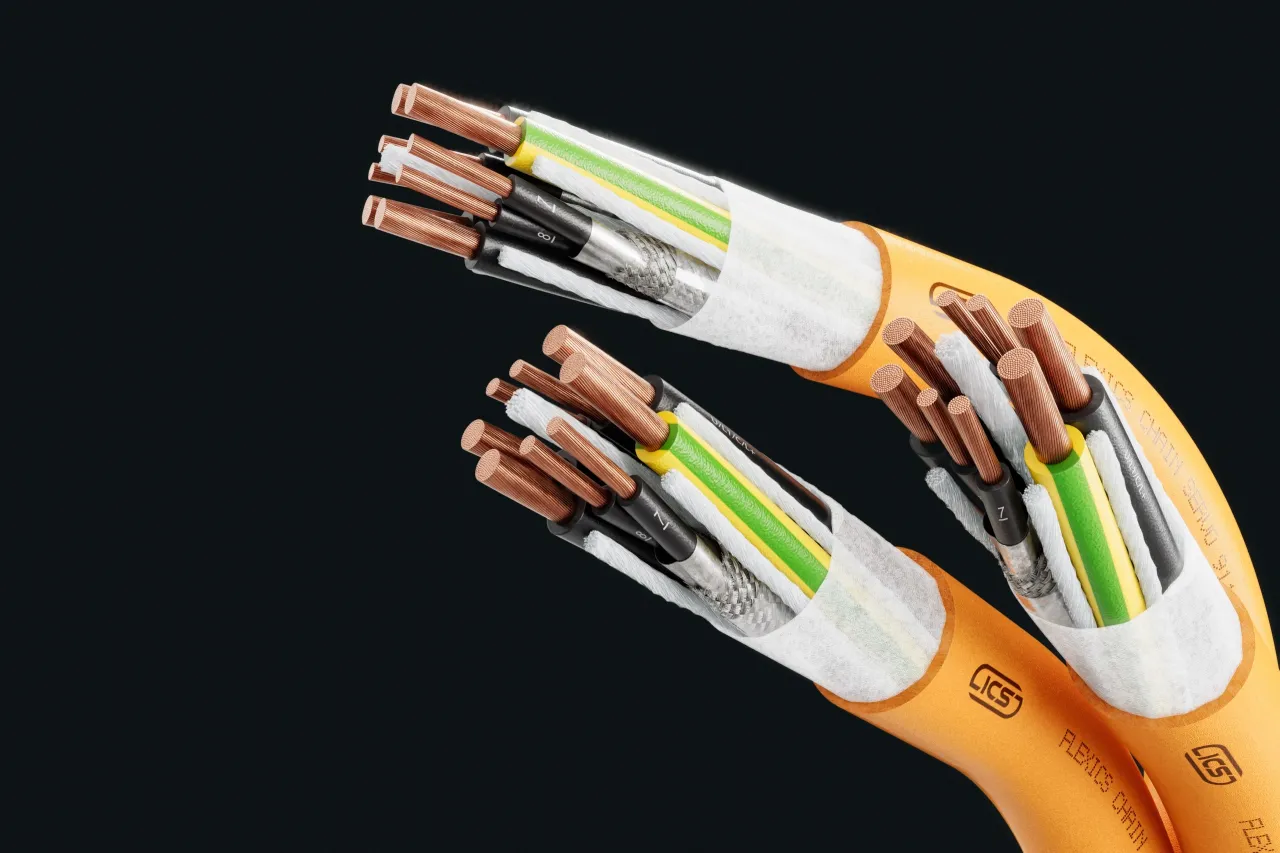

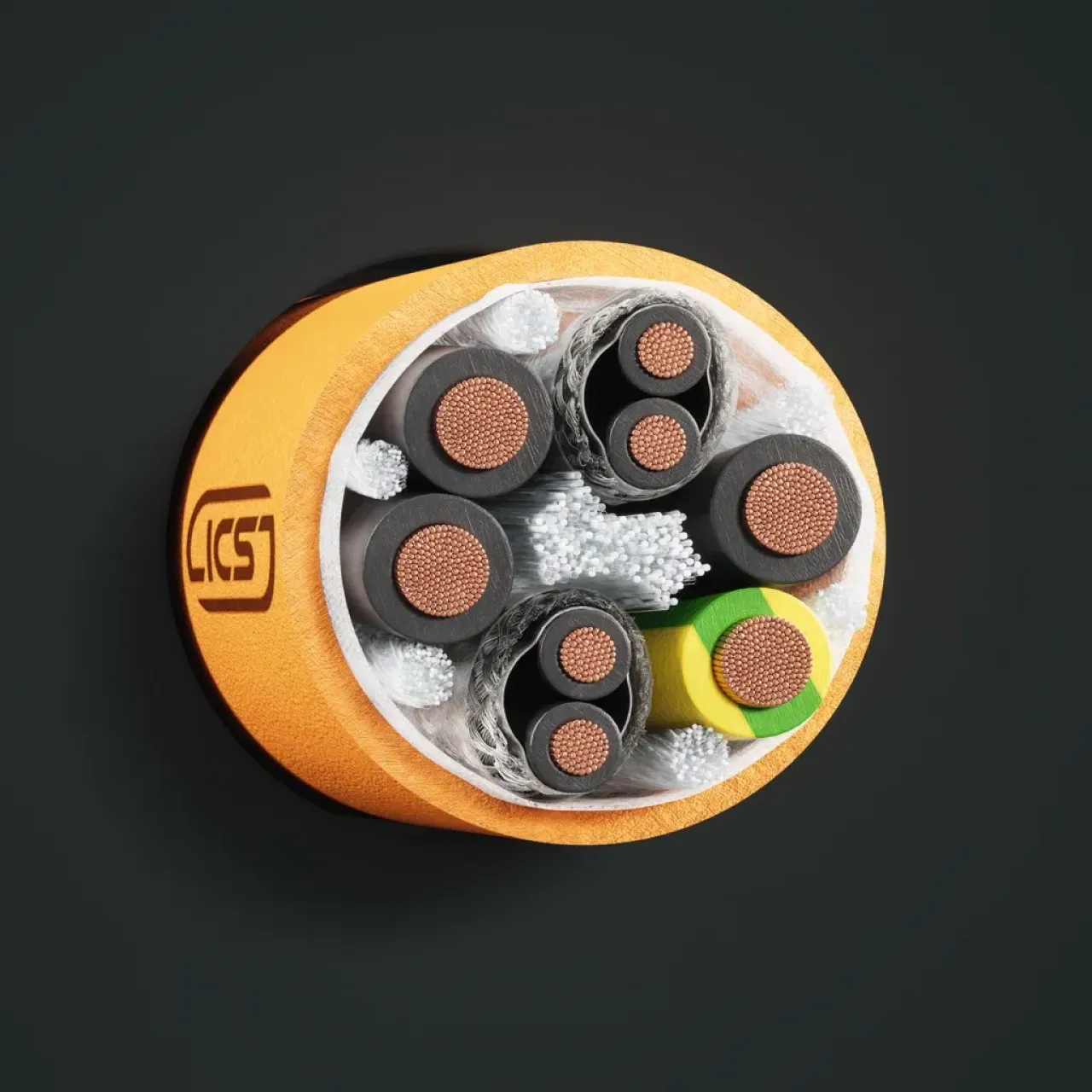

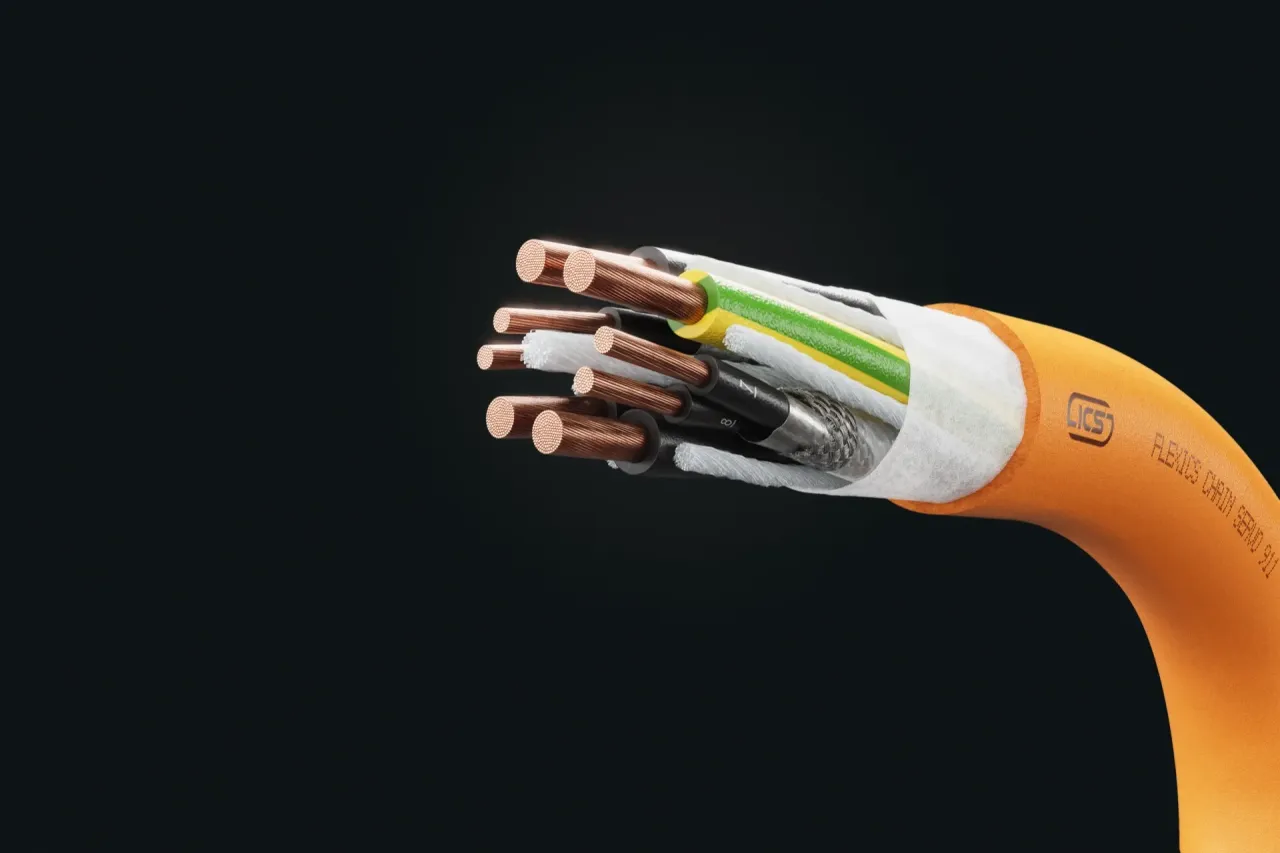

This product consists of:
- 1Bare copper conductors, super fine wires class 6 according to DIN EN 60228 / VDE 0295 / IEC 60228
- 2Core insulation of special compound based on polypropylene (PP)
- 3Control pairs individually screened with plastic laminated aluminium tape and tinned copper wires
- 4Cores stranded together in short lay-lengths
- 5Non-woven tape separation
- 6Special polyurethane (PUR) outer sheath, colour: orange (RAL 2003) or grey (RAL 7001)
Technical Data
Test Voltage: 4000 V / 50 Hz
Rated Voltage: 0.6/1 kV (Uo/U)
Bending cycles: 5 million
Bending radius (min.):
- Fixed installation: 5 x Ø of cable
- Flexible use: 7.5 x Ø of cable
Fire properties: EN 60332-1-2: self-extinguishing and flame retardant
Core identification:
- Supply cores: black (continuously numbered) with green/yellow ground conductor
- control cores: black with number printing
Temperature range:
- Fixed installation: -50°C up to 80°C
- Flexible use: -30°C up to 80°C
