FLEXICS® CHAIN C

Download PDF

Add to inquiry

Download PDF

To inquiry

PVC/PVC drag chain cable, screened

Industrial Cables

Extremely flexible PVC/PVC control cable for transmission of instrumentation and control signals for machine building and plant construction purposes, especially for continuous moving machine parts, e.g. within C-tracks. FLEXICS® CHAIN C cables are designed for indoor applications when exposed to medium mechanical stress, especially when excellent EMC behavior is requested.

Design

This product consists of:

  • 1
    Bare copper conductors, super fine wires class 6 according to DIN EN 60228 / VDE 0295 / IEC 60228
  • 2
    Core insulation of special compound based on polyvinyl chloride (PVC)
  • 3
    Cores stranded in layers with short lay-lengths
  • 4
    Non-woven wrapping over each stranding layer
  • 5
    Inner sheath of special compound based on polyvinyl chloride (PVC)
  • 6
    Tinned copper wire braiding
  • 7
    Non-woven tape separation over braiding (optional)
  • 8
    Outer sheath of special compound based on polyvinyl chloride (PVC), colour: grey (RAL 7001)

Technical Data

Standard: Based on VDE 0285
Test Voltage: 4000 V / 50 Hz
Rated Voltage: 300/500 V (Uo/U)
Bending cycles:
  • 3 million
Bending radius (min.):
  • Fixed installation: 7.5 x Ø of cable
  • Flexible use: 10 x Ø of cable
Fire properties: EN 60332-1-2: self-extinguishing and flame retardant
Core identification: Black (continuously numbered), from 3 cores with green/yellow ground conductor
Temperature range:
  • Fixed installation: -30°C up to 80°C
  • Flexible use: -5°C up to 70°C

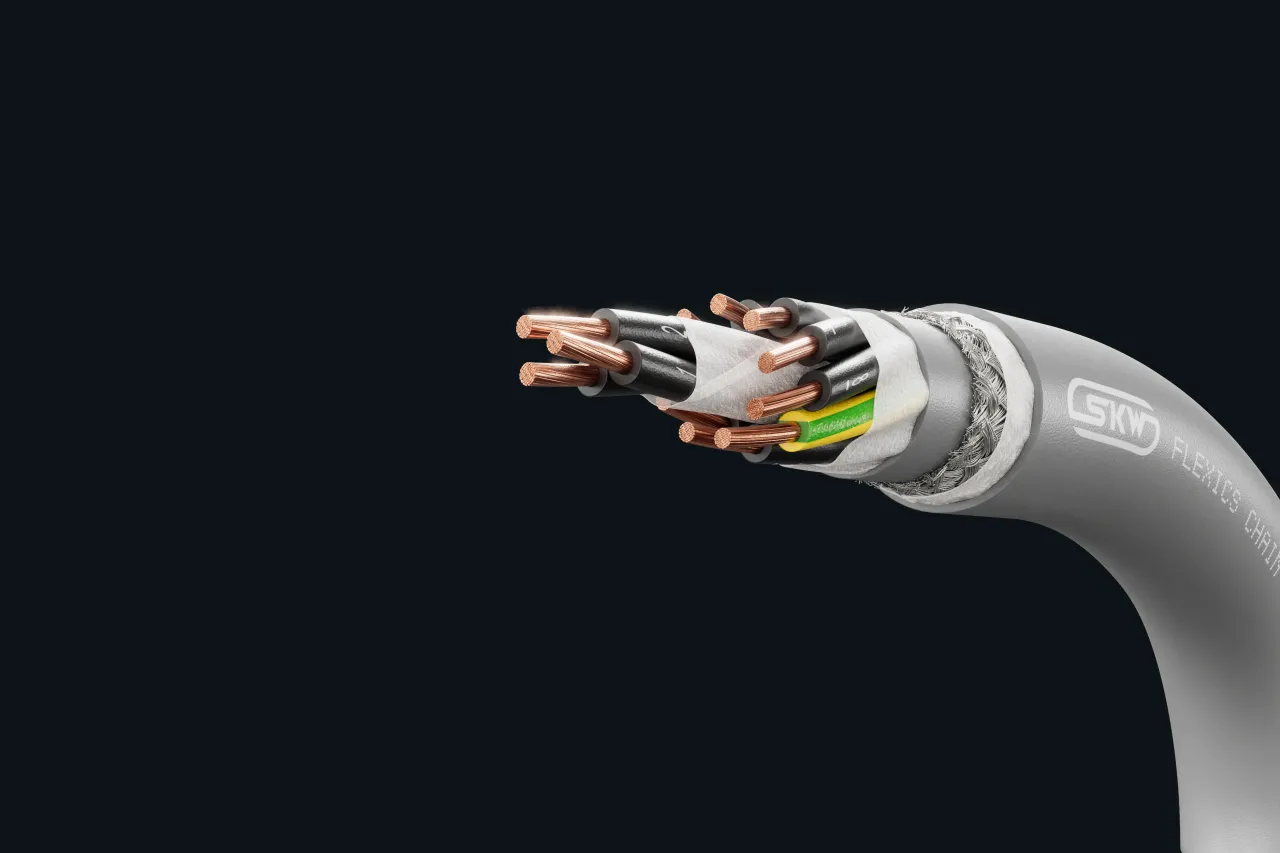

Cable image - FLEXICS® CHAIN C
+
-

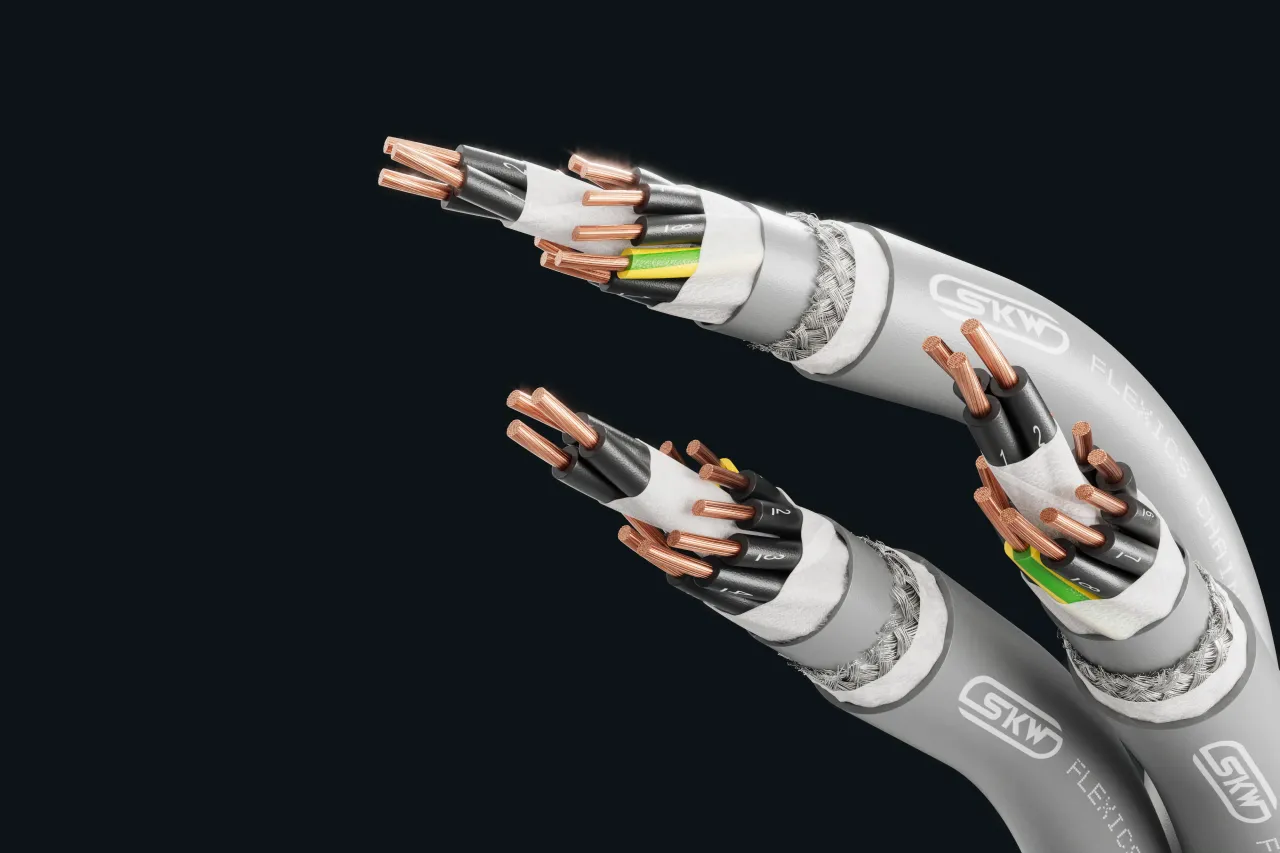

Cable image - FLEXICS® CHAIN C
+
-
Cable image - FLEXICS® CHAIN C
+
-

Contact us

Are you interested in this product?

Dogan Özcan, MSc

Product supervisor

+43 (0) 1 70170-154
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
2 x 0.5
6.9
73
3 G 0.5
7.3
84
4 G 0.5
7.9
98
5 G 0.5
8.6
110
7 G 0.5
9.8
141
12 G 0.5
11.5
201
18 G 0.5
13.4
285
25 G 0.5
15.9
394
2 x 0.75
7.3
85
3 G 0.75
7.8
98
4 G 0.75
8.4
116
5 G 0.75
9.0
128
7 G 0.75
10.7
178
12 G 0.75
12.5
253
18 G 0.75
14.9
367
25 G 0.75
17.4
496
2 x 1
7.7
97
3 G 1
8.2
116
4 G 1
8.9
134
5 G 1
9.8
154
7 G 1
11.4
207
12 G 1
13.4
314
18 G 1
16.1
443
25 G 1
18.8
612
2 x 1.5
8.4
117
3 G 1.5
9.0
139
4 G 1.5
9.9
169
5 G 1.5
10.9
201
7 G 1.5
12.7
262
12 G 1.5
15.2
404
18 G 1.5
17.8
560
25 G 1.5
21.2
788
3 G 2.5
11.0
206
4 G 2.5
11.9
244
5 G 2.5
13.2
306
7 G 2.5
15.8
418
12 G 2.5
20.4
690
18 G 2.5
24.0
994
25 G 2.5
28.2
1420
4 G 4
13.7
360
5 G 4
15.3
430
7 G 4
20.0
670
4 G 6
16.1
514
7 G 6
23.0
862

Technical changes reserved.

All figures are therefore without guarantee.
